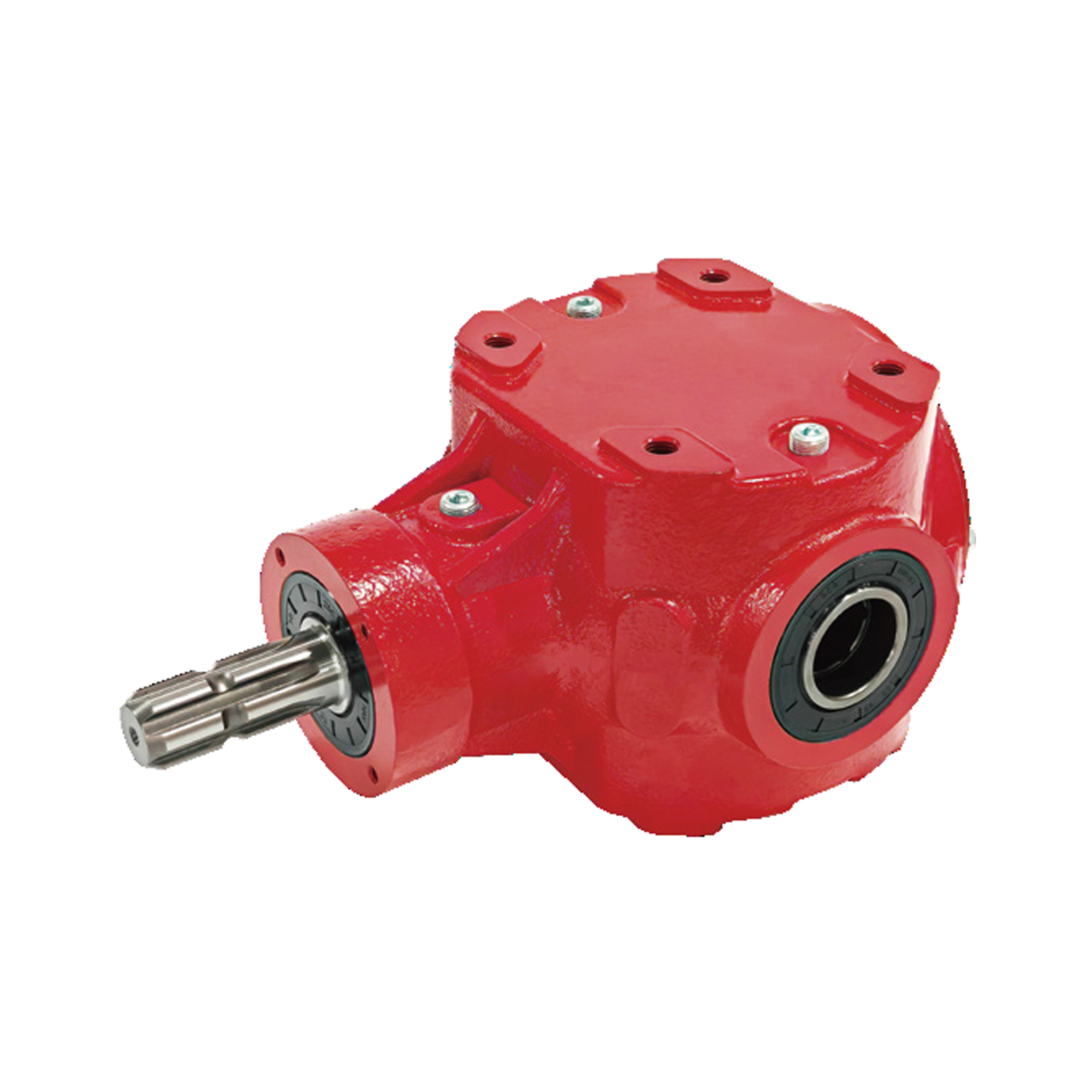

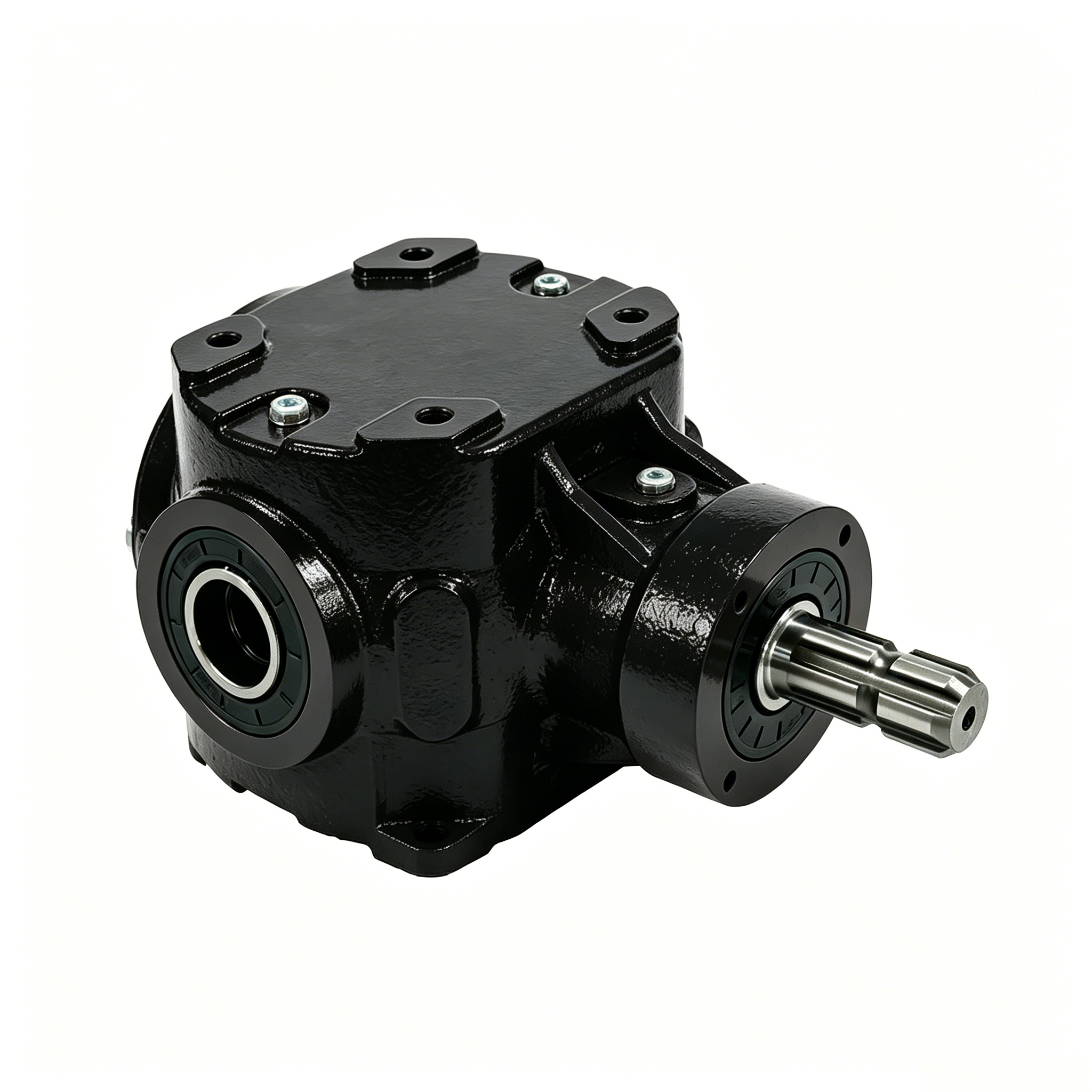

KLF4053 multi-functional ratio bevel gear reducer
You are here: Home » Products » Agricultural Gearboxes » Multifunction Gearbox » KLF4053 multi-functional ratio bevel gear reducer
KLF4053 multi-functional ratio bevel gear reducer
KLF4053 multi-functional ratio bevel gear reducer KLF4053 multi-functional ratio bevel gear reducer

loading

KLF4053 multi-functional ratio bevel gear reducer

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

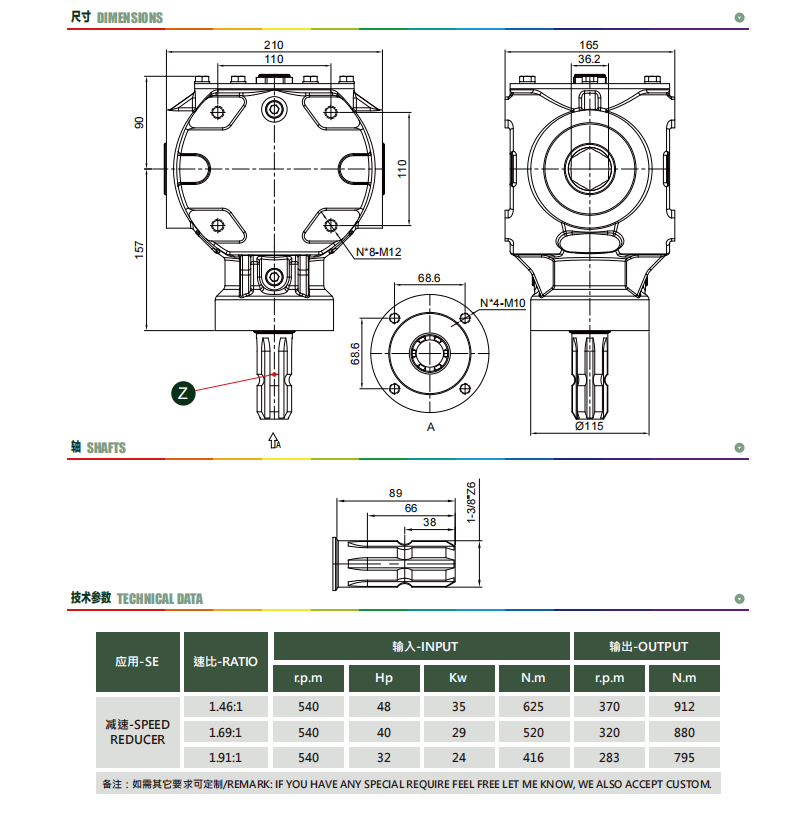

1. Speed ratio 1.92:1, module M=5.5
Rated horsepower: 38HP, input speed 540 rpm, output speed 280 rpm, input torque 495N.M, output torque 952N.M
2. The surface is sprayed with red topcoat and is shipped without refueling.
3.Suitable for fertilizer spreaders, drilling machines, pruning machines and so on.
  • KLF4053

  • Kadiva

Availability:
Quantity:

1. Product Profile

Manufactured by KADIVA MACHINERY (HANGZHOU) CO.,LTD, the KLF4053 belongs to the universal multi-ratio agricultural gear reducer lineup, engineered as a robust power transfer unit for heavy-load farm machinery. Built with high-strength cast iron casing coated in durable red anti-corrosion paint, this gearbox is purpose-built to work alongside tractor PTO systems, delivering reliable speed reduction and torque amplification for large-scale field working equipment.
