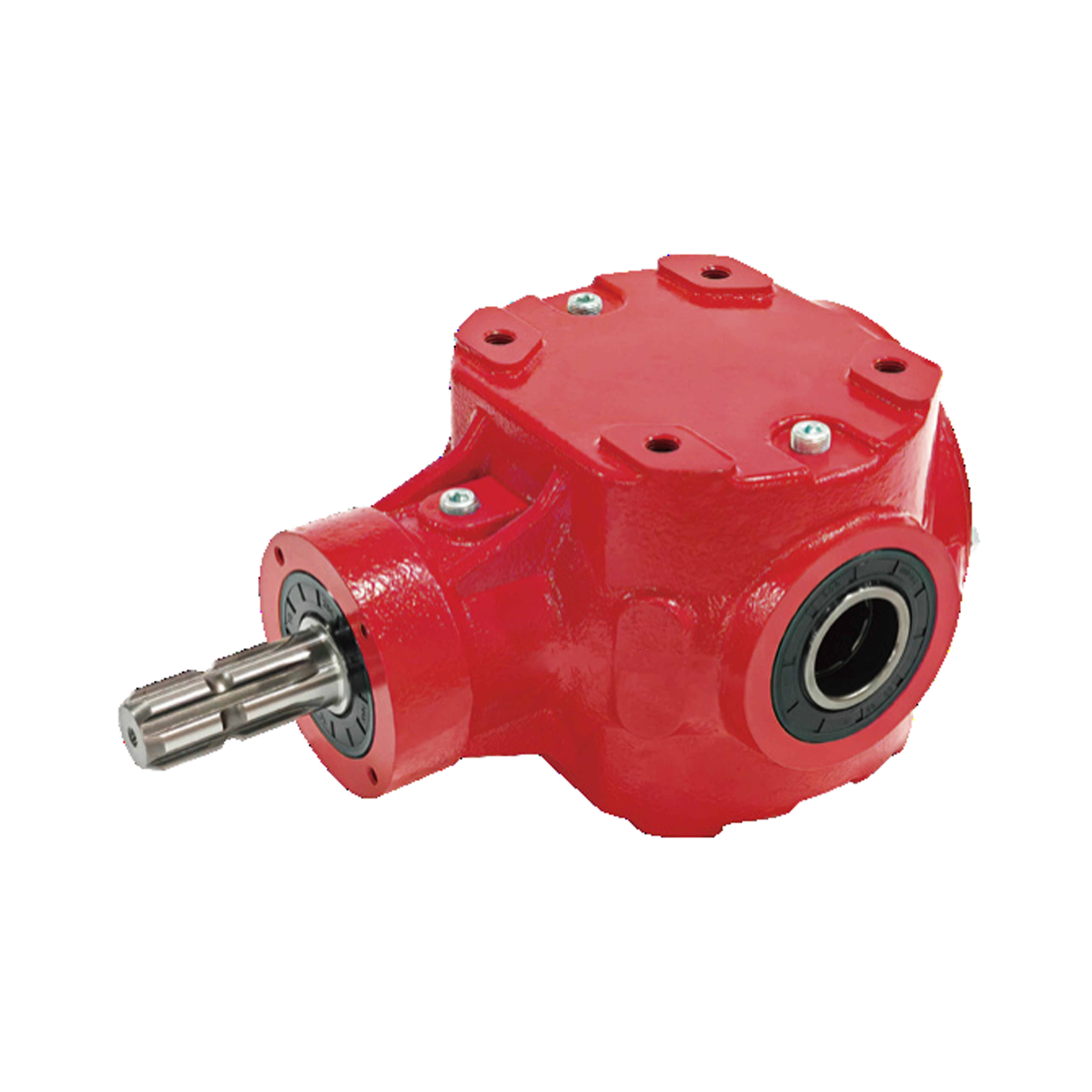

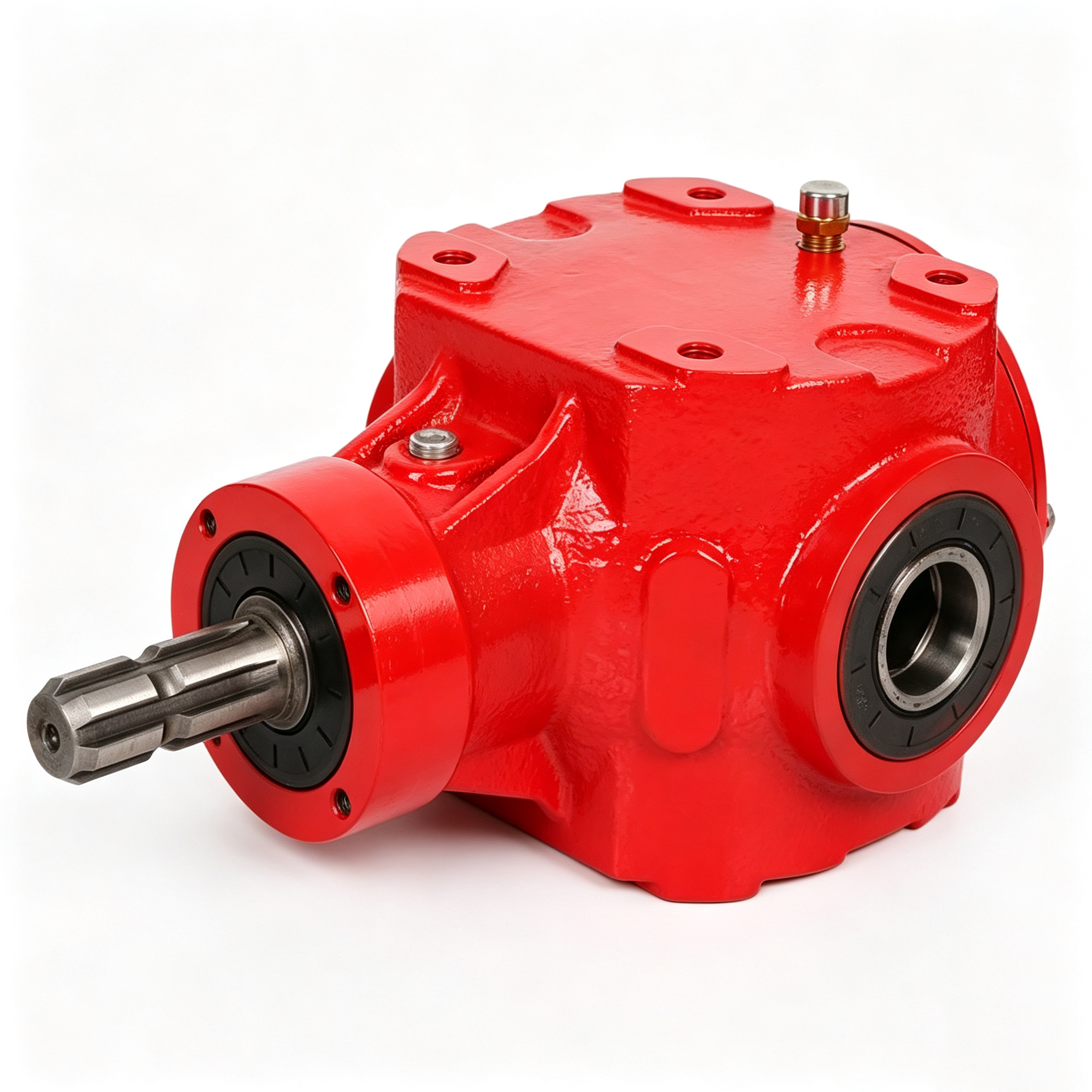

KLF4033 multifunctional speed ratio gearbox
You are here: Home » Products » Agricultural Gearboxes » Multifunction Gearbox » KLF4033 multifunctional speed ratio gearbox
KLF4033 multifunctional speed ratio gearbox
KLF4033 multifunctional speed ratio gearbox KLF4033 multifunctional speed ratio gearbox

loading

KLF4033 multifunctional speed ratio gearbox

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
1. Speed ratio 1.92:1, module M=5.5
Rated horsepower: 38HP, input speed 540 rpm, output speed 280 rpm, input torque 495N.M, output torque 952N.M
2. The surface is sprayed with red topcoat and is shipped without refueling.
3.Suitable for fertilizer spreaders, drilling machines, pruning machines and so on.
  • KLF4033

  • Kadiva

Availability:
Quantity:

Product Overview

KLF4033 is a heavy-duty agricultural gear reducer, belonging to the universal multi-speed ratio gearbox lineup. Constructed with high-strength cast iron housing finished with durable red anti-corrosion paint, this 90° spiral bevel drive unit is purpose-built for tractor PTO-powered farm implements, including rotary tillers, fertilizer spreaders, hay rakes and various medium-to-heavy load agricultural equipment for rotational speed conversion and torque boosting.

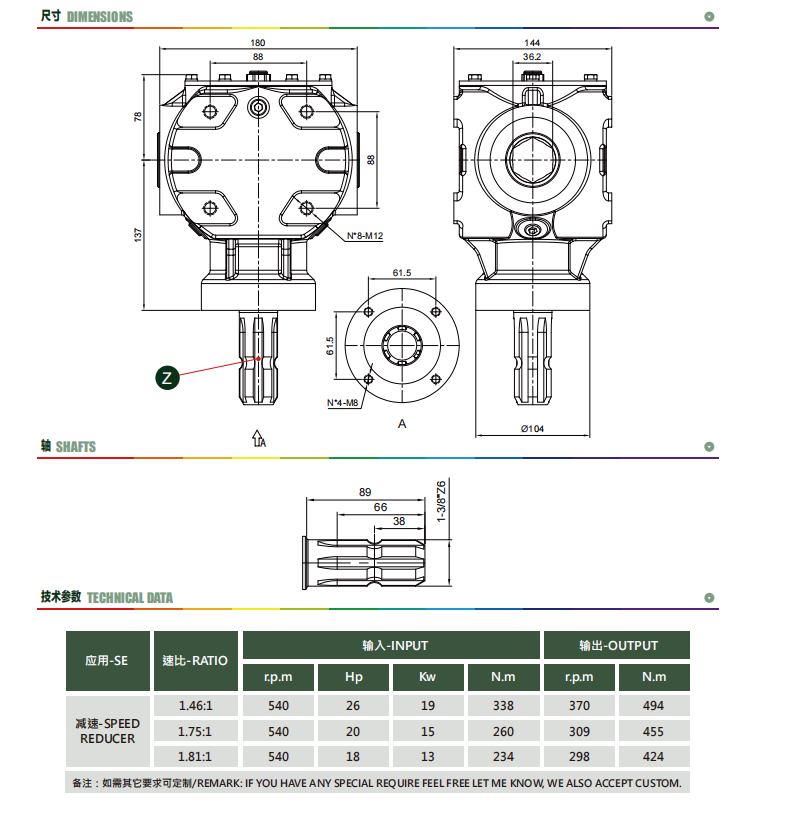

Technical Specification
