Product Introduction

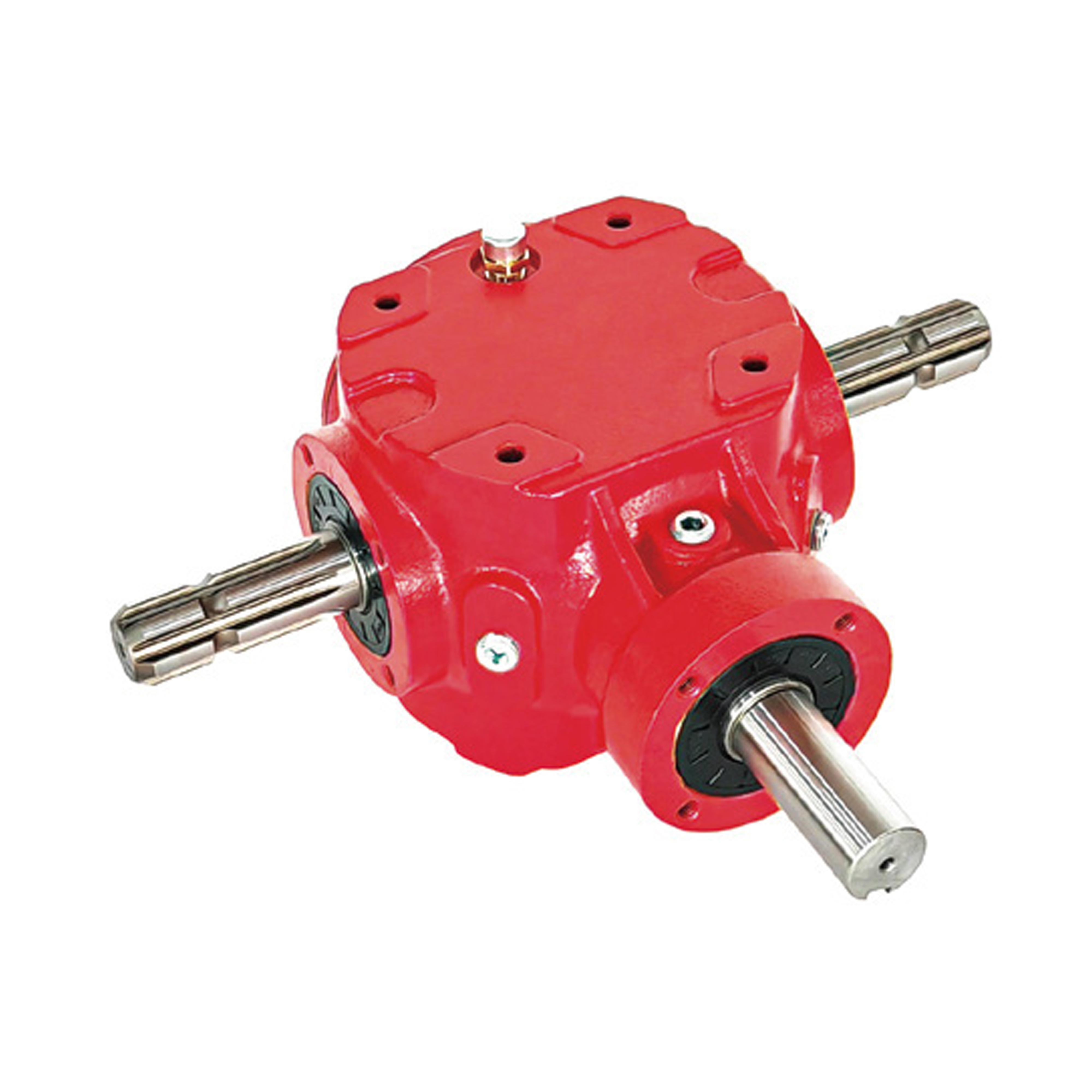

The KLF2030 Universal Multi-Ratio Bevel Gearbox is a robust, three-way right-angle power transmission unit engineered for agricultural machinery. Designed for both speed multiplication and reduction, it offers multiple gear ratios to match diverse equipment requirements, from rotary cutters to tillers and harvesters. Its precision-machined cast iron housing, high-torque bevel gears, and versatile shaft configurations ensure reliable, efficient performance in demanding farm environments.
Product Advantages & Key Features
1. Multi-Functional Speed Conversion
The KLF2030 supports a full range of gear ratios, including speed-up (1:1.46 / 1:1.82), direct drive (1:1), and speed-down (1.46:1 / 1.82:1). This flexibility allows it to adapt to various PTO-driven implements, eliminating the need for multiple specialized gearboxes in mixed-fleet operations.
2. Broad Power & Torque Capacity
Optimized for standard 540/1000 RPM PTO inputs, the KLF2030 handles up to 65HP/48kW power at 1000 RPM (1:1 ratio), with a maximum output torque of 546N·m. This robust power rating supports both light-duty mowing and heavy-duty tillage applications, offering reliable performance across different farming tasks.
3. Flexible Shaft Configurations
The gearbox features three splined shafts (two horizontal, one vertical) with standardized dimensions, compatible with most tractor PTOs and implement connections. The vertical shaft is also available with a keyway option for added versatility.

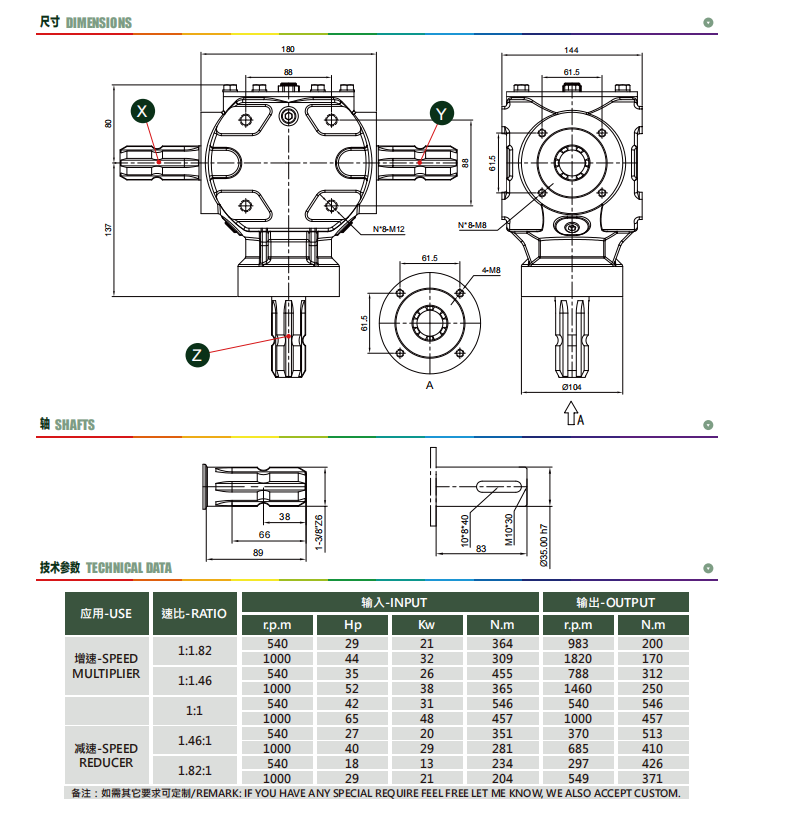

Technical Parameters
Product Uses
Rotary Cutters & Brush Hogs
The KLF2030’s speed multiplication ratios increase blade tip speed for efficient cutting of thick grass, brush, and crop residue, while its robust torque capacity handles heavy loads without stalling.
Hay Balers & Spreaders
Its smooth, low-vibration power transmission ensures consistent operation of baler mechanisms and fertilizer spreaders, minimizing downtime in critical harvest and application windows.
General Farm Power Take-Off (PTO) Applications
With its universal design, the gearbox serves as a reliable power transfer solution for any 90° drive requirement, including harvesters, sprayers, and irrigation equipment.
In-Operation & Maintenance
Operate at a steady speed and avoid overloading the gearbox beyond its rated power. Stop immediately if you detect overheating, unusual noise, or leaks. After use, clean the exterior, check oil levels, and inspect fasteners.
Q1: What are the key specifications of the KLF2030 gearbox?
A: The KLF2030 is a three-way right-angle bevel gearbox with multiple speed-up and speed-down ratios (1:1.46 ~ 1.82:1). It accepts standard 540/1000 RPM PTO input, delivers up to 65HP/48kW power, and offers a maximum output torque of 546N·m.
Q2: Can I customize the gearbox for my equipment?
A: Yes. We support customization of gear ratios, shaft types (splined/keyed), and installation dimensions to match your specific machinery requirements.
Q3: What makes the KLF2030 suitable for a wide range of applications?
A: Its multi-ratio design, robust cast iron housing, and standardized PTO-compatible shafts make it a versatile power transmission solution for most agricultural implements, eliminating the need for multiple gearbox models.
