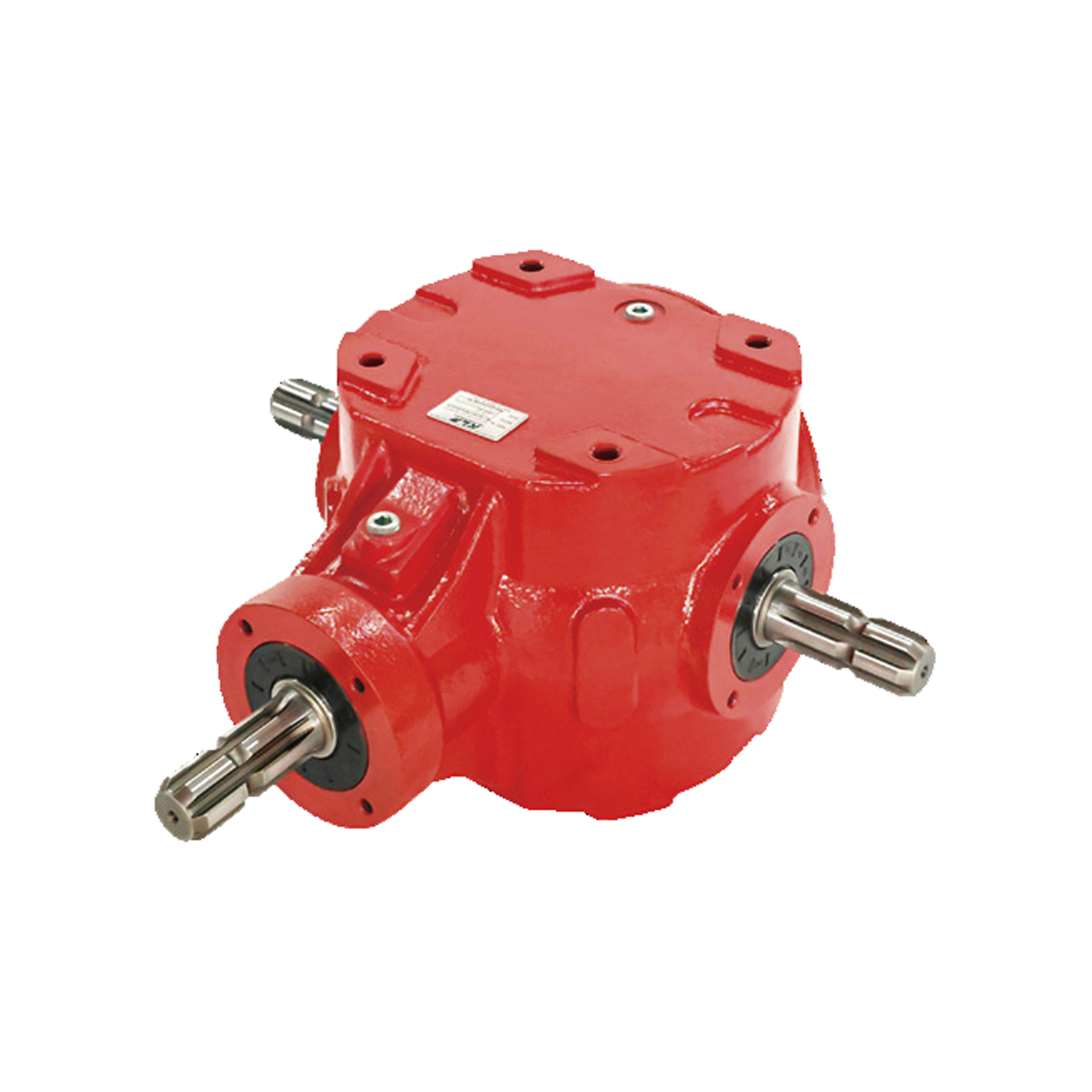

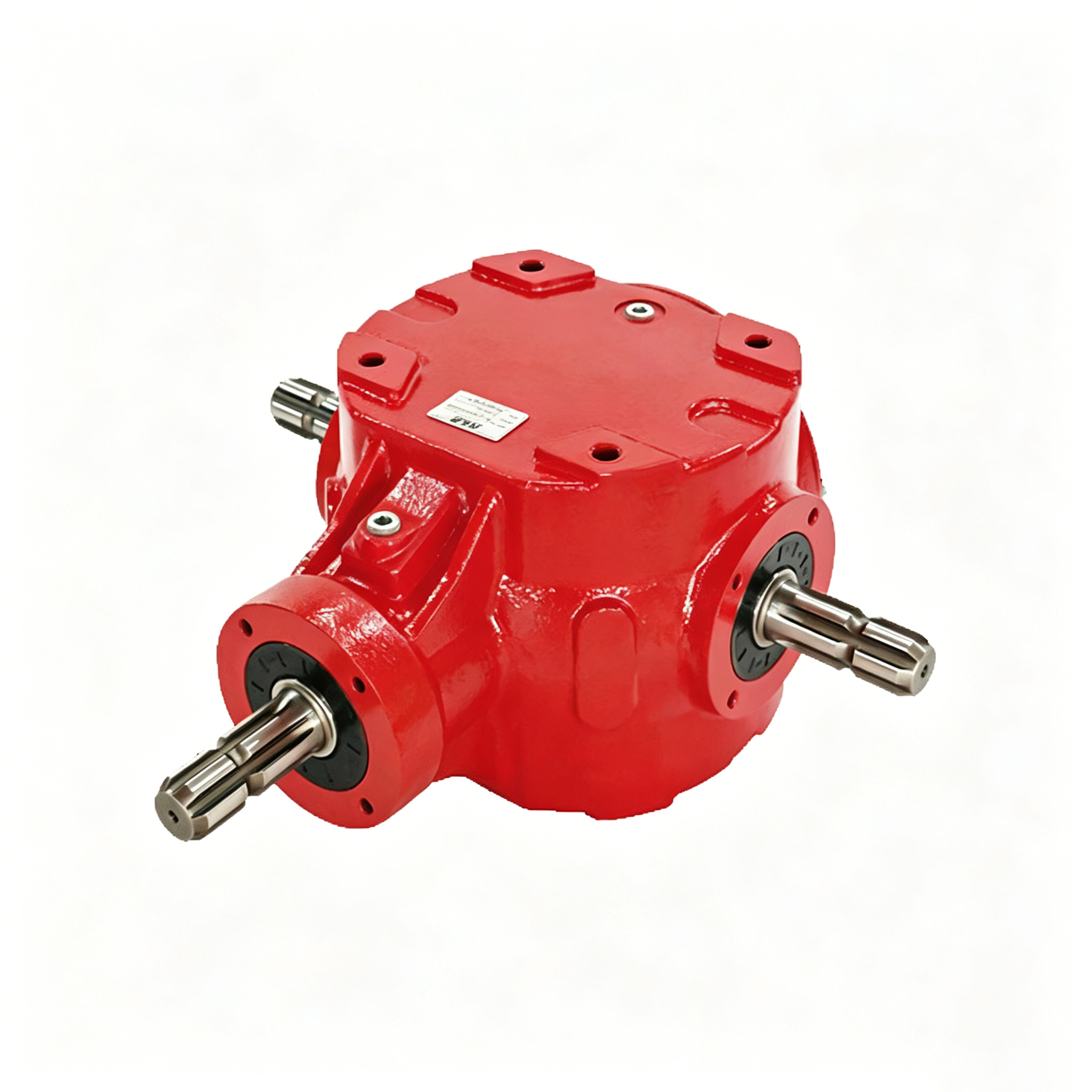

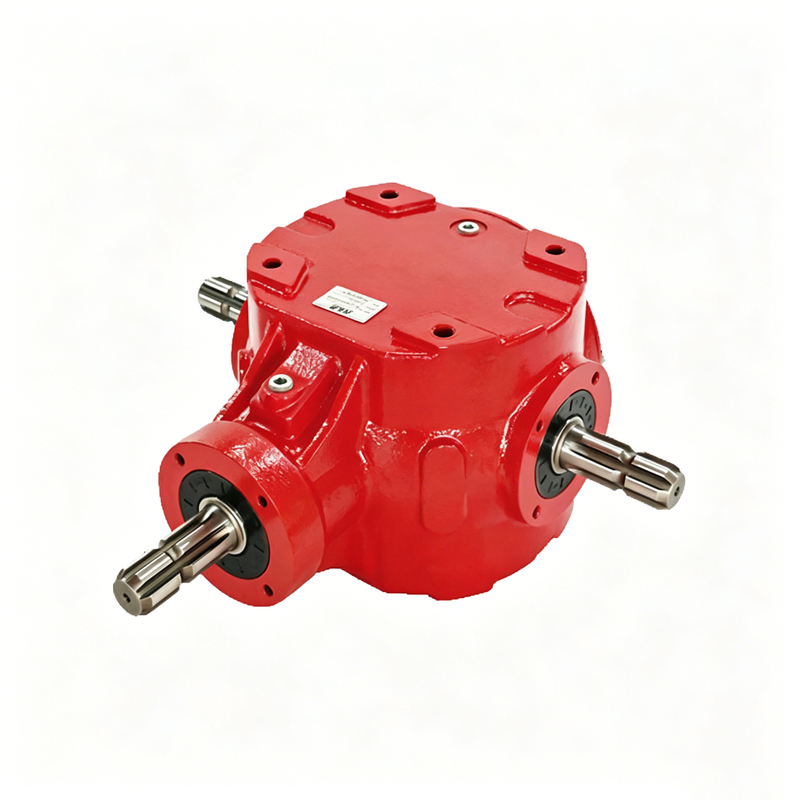

The KLF2125 is our heavy-duty universal bevel gearbox for high-power agricultural machinery. It supports both speed multiplication (up to 1:2.30) and reduction (up to 2.30:1), with a max rating of 211 HP / 155 kW and 1782 N·m torque at 1000 RPM. Its robust cast iron housing and heavy-duty splined shafts make it ideal for large rotary cutters and tillage equipment. Custom configurations are available.
RFQ
1. How do you accept payments?
We accept payment by T/T. The payment process is: 50% deposit when the order is confirmed, and 50% balance before we arrange the shipment.
2. Can I order a sample first for testing?
We support sample orders for quality verification. Please tell me the specific model you need, and I will confirm the sample price and lead time for you.
3. What is the material of the gears? Do you have any product dimension drawings?

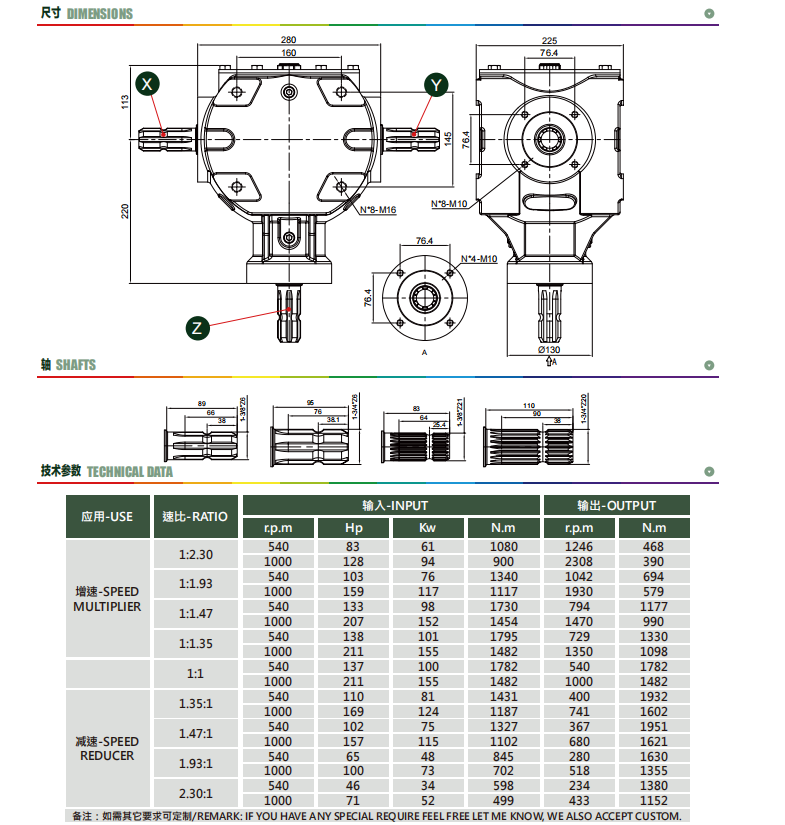

Hi, thank you for your inquiry. The gearbox housing is made of high-quality cast iron.The gears and shafts are made of 20CrMnTi alloy steel, which ensures high strength, good wear resistance and long service life for agricultural machinery. About the dimension drawings: Yes, we have complete product dimension drawings and technical specifications. I will send the detailed drawing to you right away for your reference.
Please feel free to contact us if you have any other questions or requirements.
