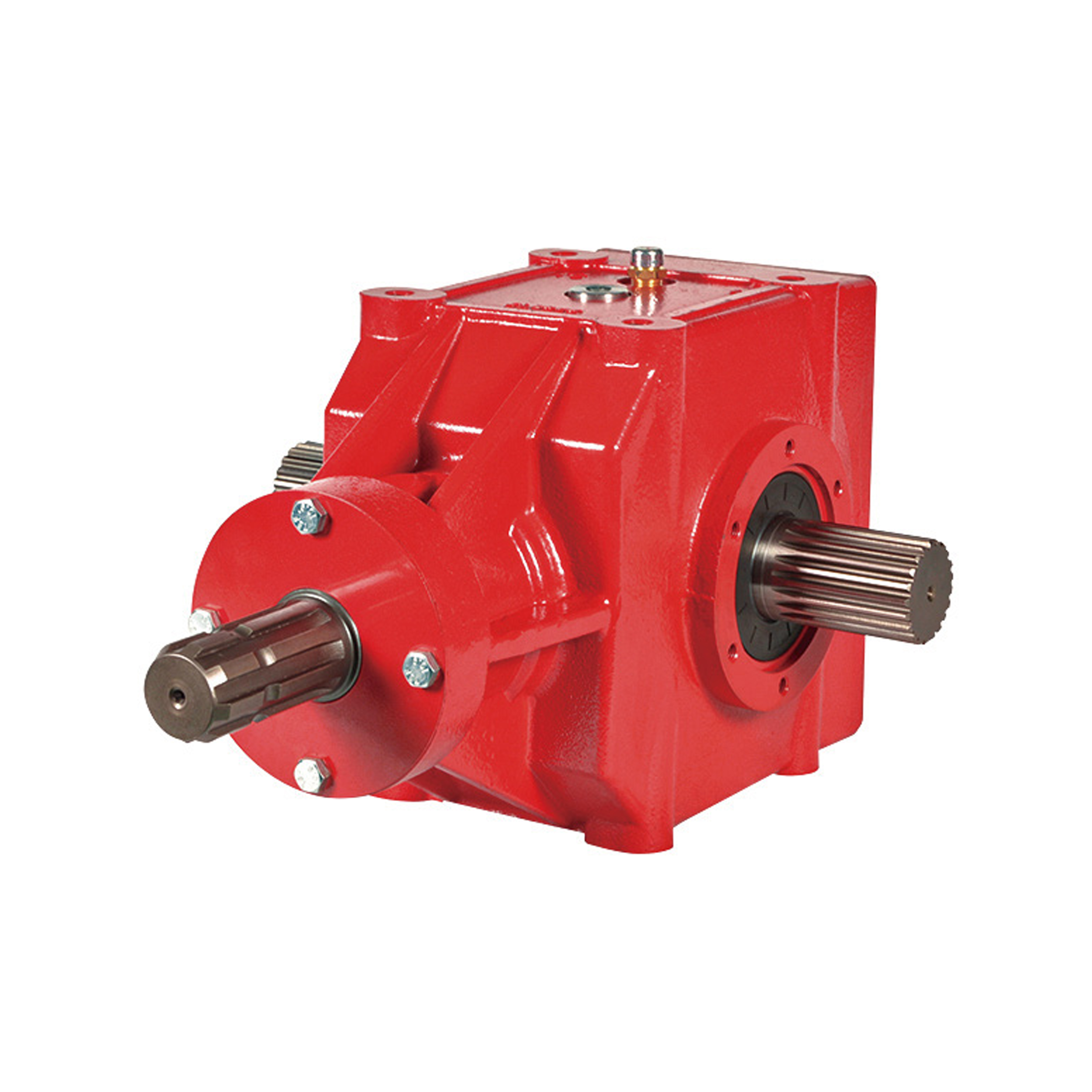

KLF275 Universal Multi-Ratio Gearbox
1. Basic Description
The KLF275 is a heavy-duty universal right-angle gearbox manufactured by KADIVA MACHINERY (HANGZHOU) CO., LTD, designed for high-torque power transmission in demanding agricultural machinery and industrial equipment. It supports both speed increasing and speed reducing configurations with multiple ratio options, built to withstand heavy loads and continuous operation

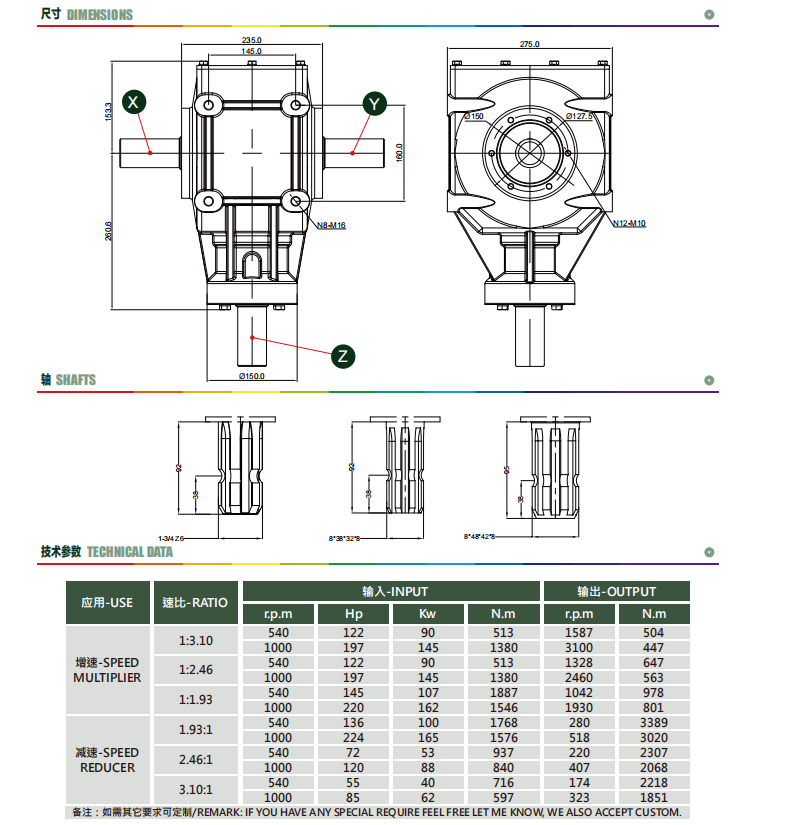

2. Technical Specifications
3. FAQ
Q1: What applications is the KLF275 suitable for?
A1: It is designed for heavy-duty agricultural machinery such as large rotary cutters, flail mowers, heavy harvesters, and industrial equipment requiring high-torque 90° power transmission with speed adjustment.
Q2: Are customizations available for this model?
A2: Absolutely. We offer full customization, including special gear ratios, custom shaft specifications (spline profile, diameter, length), mounting patterns, and surface treatments to match your equipment’s exact requirements.
Q3: What is the standard input speed range?
A3: The standard design supports 540 rpm and 1000 rpm input speeds, which are the most common PTO speeds for heavy agricultural machinery. Custom configurations for other speeds are available upon request.
