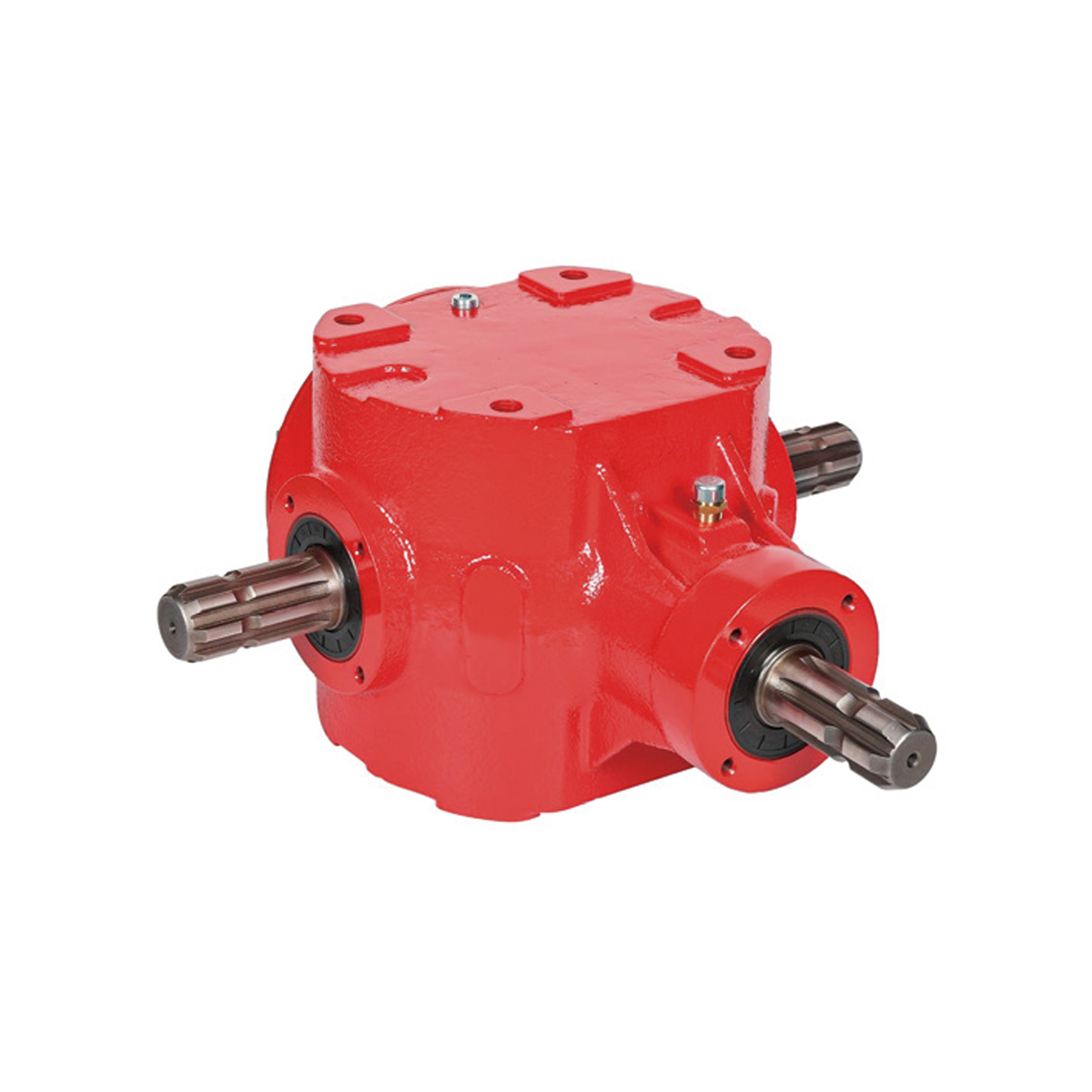

The KLF2155 is our heavy-duty universal bevel gearbox for high-power agricultural equipment. It supports both speed multiplication (up to 1:2.42) and reduction (up to 2.42:1), with a maximum rating of 265 HP / 195 kW and 2147 N·m torque at 1000 RPM. Its robust cast iron housing and heavy-duty splined shafts make it ideal for large rotary cutters, heavy tillers, and high-demand farm machinery. Custom configurations are available.
RFQ
Q1: What kind of equipment is this gearbox suitable for?
A: It is designed for heavy-duty applications including large rotary cutters, heavy tillers, balers, and other high-power PTO-driven farm machinery requiring 90° power transmission or speed conversion.
Q2: What are the shaft specifications?
A: All three shafts (X/Y/Z) feature heavy-duty splined profiles (options include 1-3/8" or 1-3/4" splines), compatible with high-power tractor PTO connections.
Q3: Can the gearbox be customized?
A: Yes. We support custom gear ratios, shaft configurations, and mounting patterns to match your specific equipment requirements.
