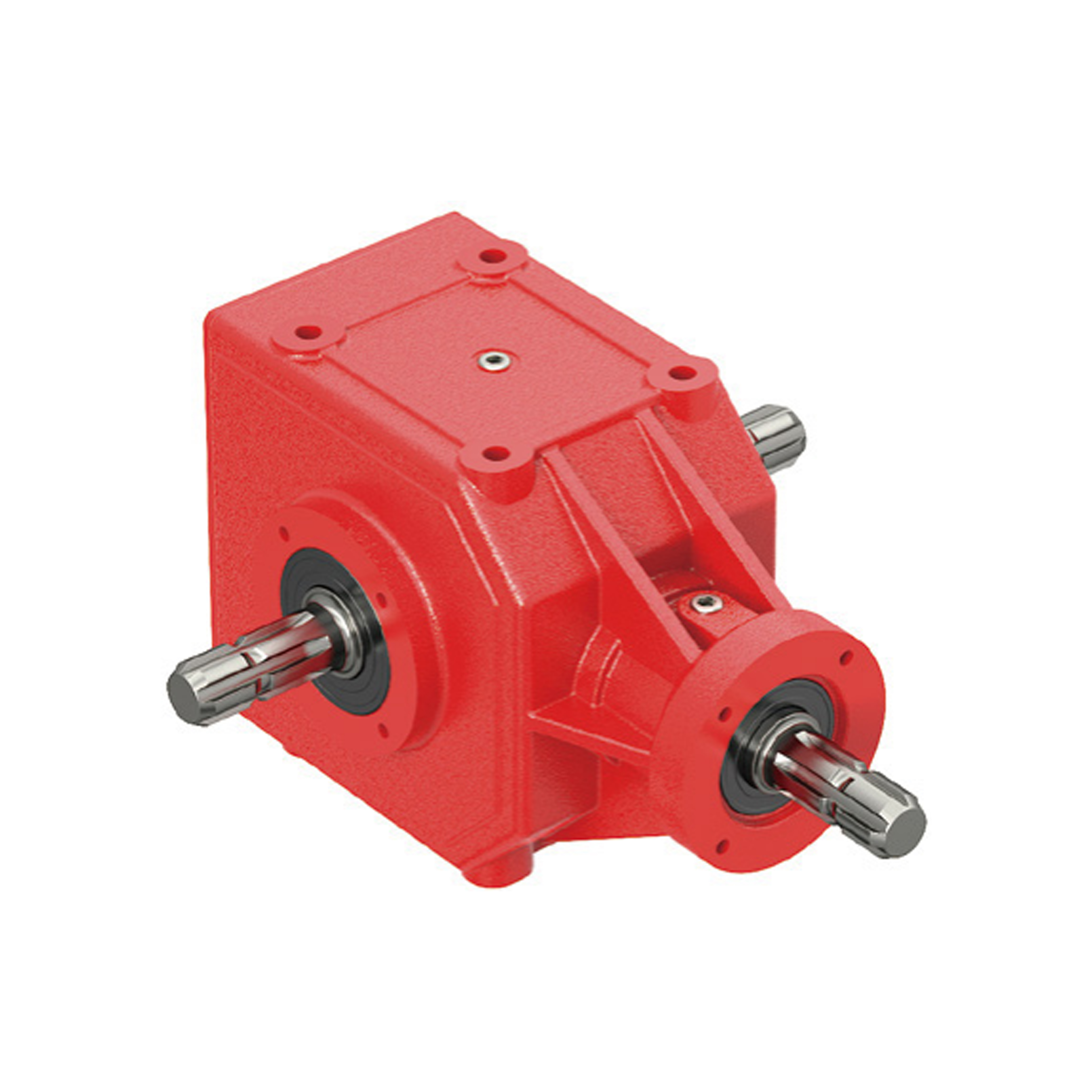

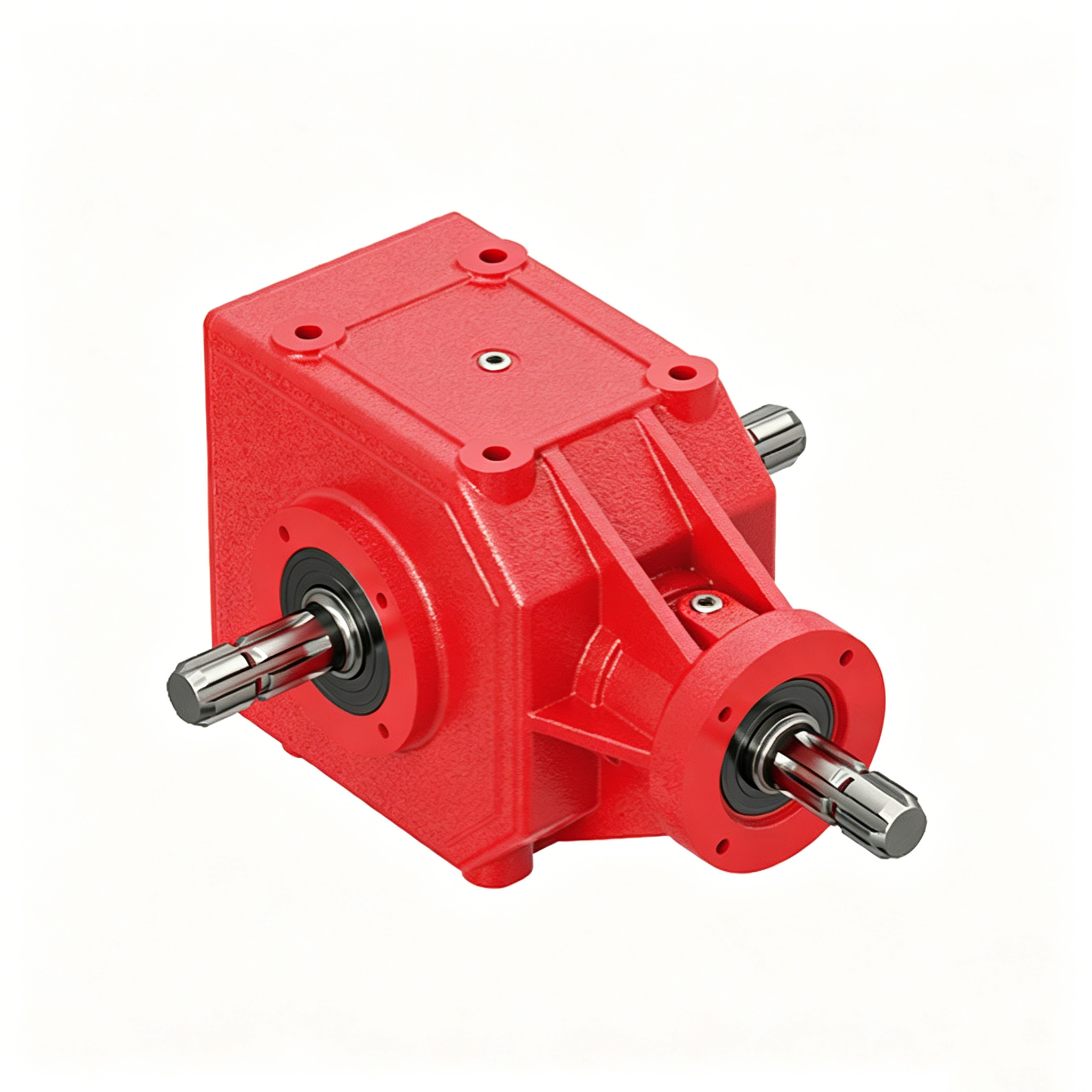

KLF2081 General gearboxes for small round baler, agricultural folding mixers

Name: KLF2081 General gearboxes for small round baler, agricultural folding mixers
Brand: Kadiva
Rating: 5.0 (84 reviews)

KLF2081 General gearbox use one piece cast iron case max strength precise positioning of internal components. with various specifications of speed increase and deceleration. Agricultural machinery general gearbox is an important component widely used in agricultural machinery and equipment. KLF2081 is mainly composed of gears, bearings, boxes and other components. Through the meshing of different gears, the rotation speed and torque are converted to meet the needs of agricultural machinery and equipment in different working scenarios.

Model:
KLF2081
Brand:
Kadiva

Availability:

Quantity:



Inquire Add to Basket

Product Description

KLF2081 Universal Multi-Ratio Gearbox

1. Basic Description

The KLF2081 is a universal right-angle gearbox manufactured by KADIVA MACHINERY (HANGZHOU) CO., LTD, designed for versatile power transmission in agricultural machinery and industrial applications. It supports both speed increasing and speed reducing functions with multiple ratio options, making it highly adaptable to different equipment requirements.

Structure: Right-angle 3-shaft configuration with precision helical gears for smooth, low-noise operation. The high-strength cast iron housing provides excellent impact resistance and durability.

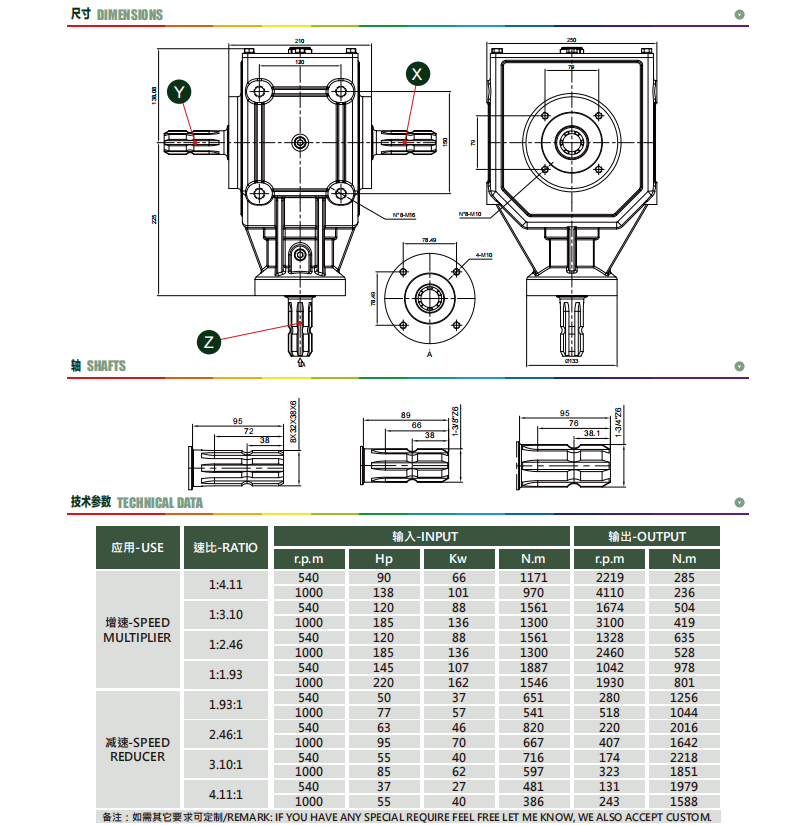

2. Technical Specifications

3. FAQ

Q1: What applications is the KLF2081 suitable for?

A1: It is widely used in agricultural machinery (e.g., rotary cutters, mowers, harvesters, spreaders) and industrial equipment requiring 90° power transmission with speed adjustment.

Q2: Are customizations available?

A2: Absolutely. We accept custom orders for special ratios, shaft specifications (spline type, diameter, length), mounting patterns, and surface treatments to meet your specific requirements.

Q3: What is the standard input speed range?

A3: The standard design supports input speeds of 540 rpm and 1000 rpm, which are common PTO speeds in agricultural machinery. Other speeds can be accommodated with custom configurations.
