✨ KLF2041 Gearbox Quick Intro

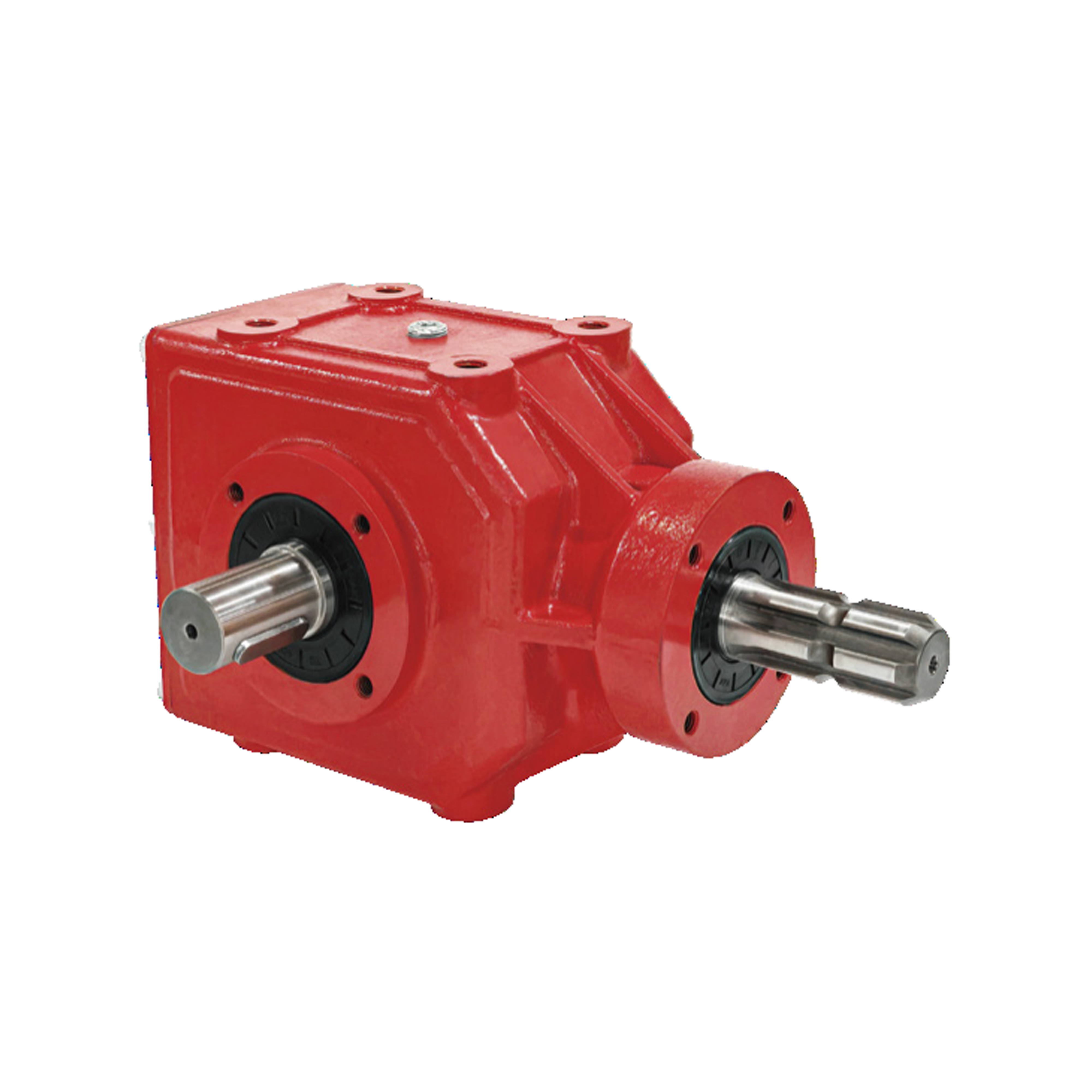

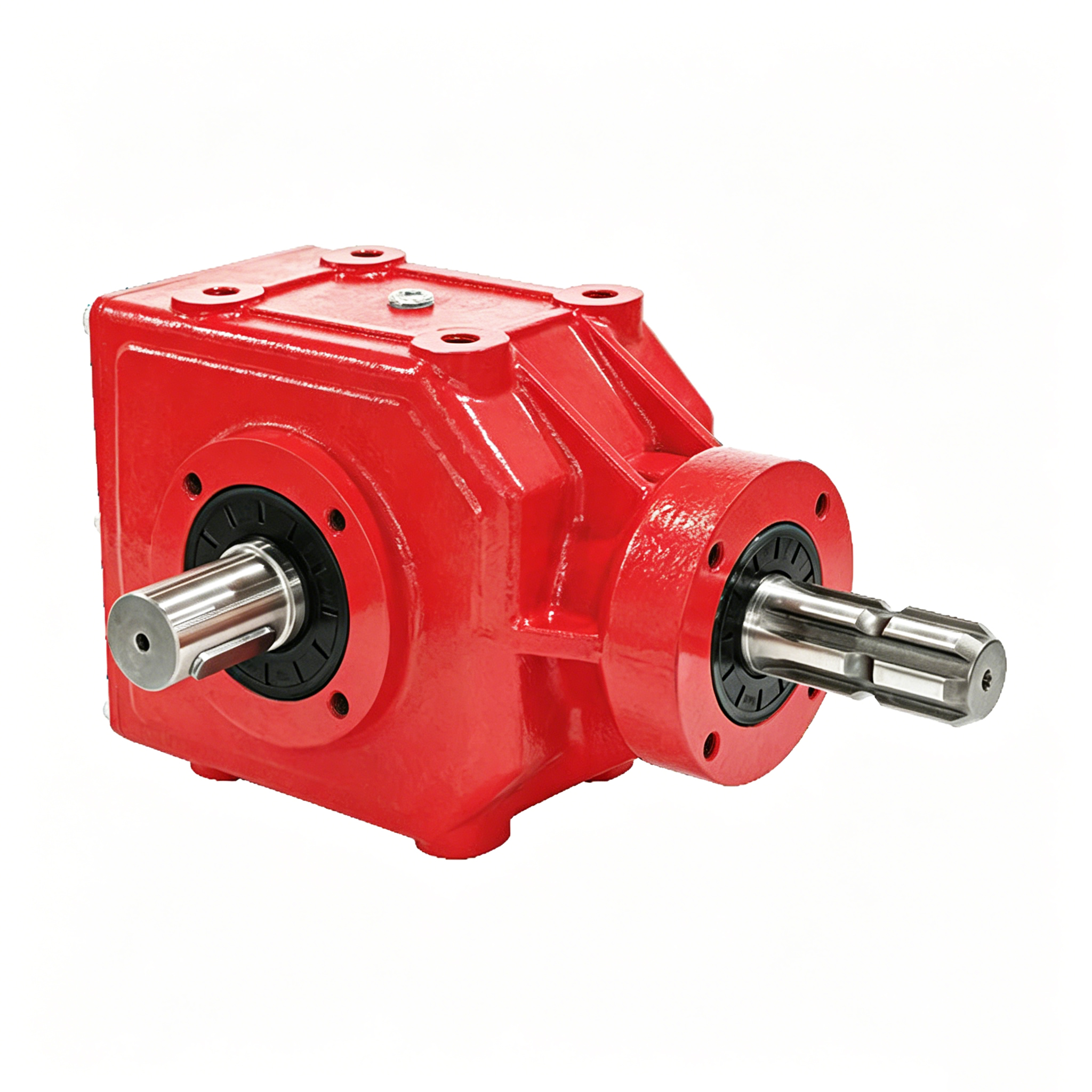

This is the KLF2041 multi-purpose agricultural gearbox from KADIVA. It’s a mid-range, 3-way right-angle gearbox with a wide range of standard ratios (both speed-up and speed-reduction), built for medium-duty farm equipment like rotary tillers, spreaders, and mowers. It balances compact size with robust power handling.
RFQ Q&A
Q: What is the most common speed ratio used for rotary tillers with this gearbox?
A: The most popular ratio for tillers is 1.258:1 (speed-up), which converts standard 540 rpm PTO to the required higher speed for the tiller blades.

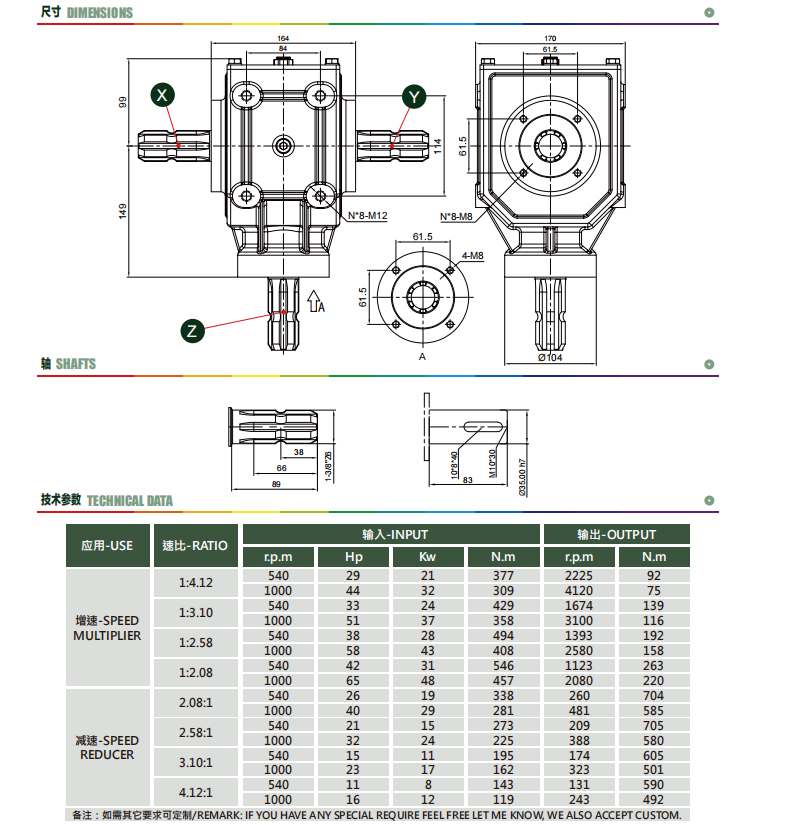

Q: What is the maximum input torque the KLF2041 can handle?
A: The maximum input torque is 546 N·m at 540 rpm with a 1:2.08 speed-up ratio.
