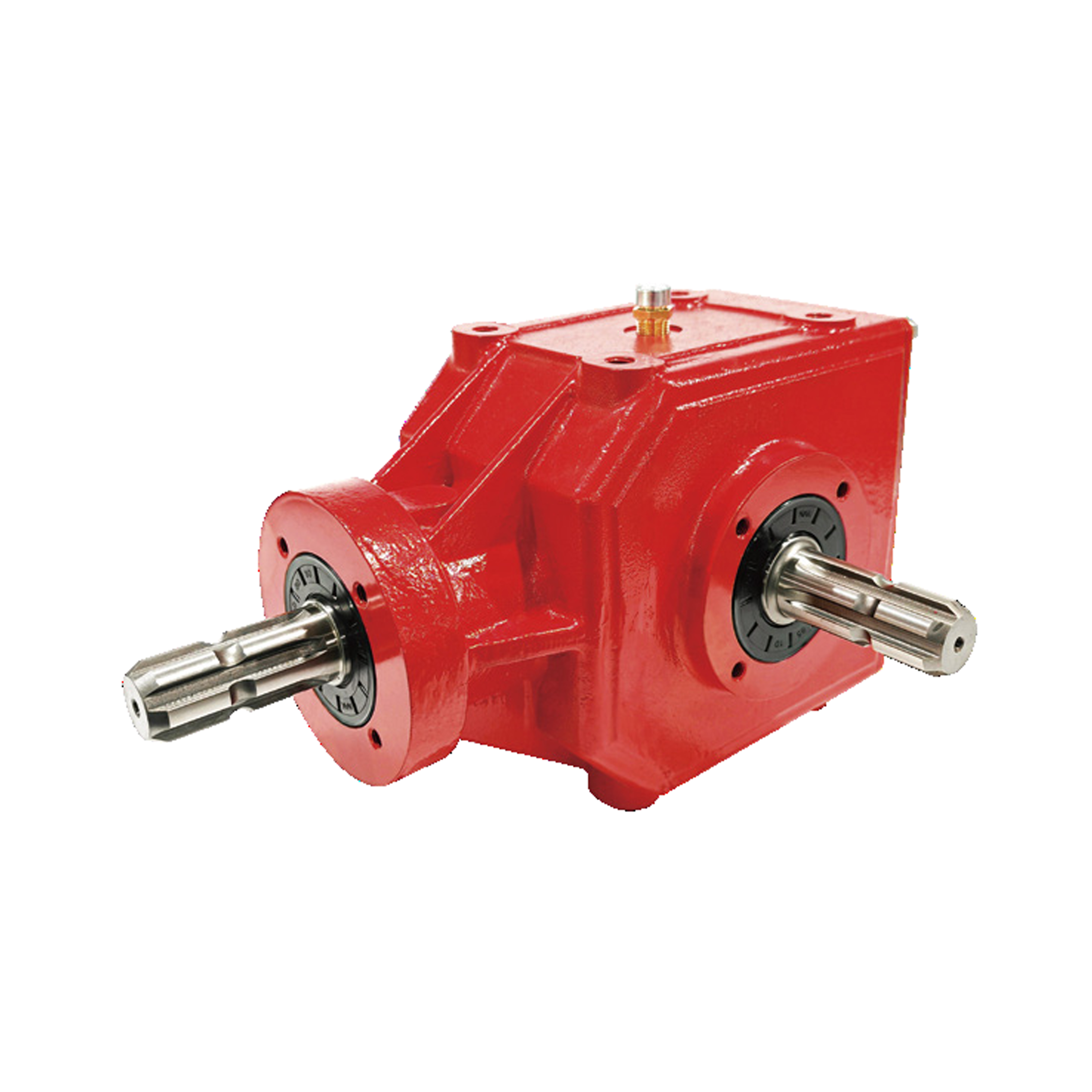

The KLF2071 is a heavy-duty, right-angle PTO gearbox engineered for high-power agricultural machinery. Designed as a premium replacement for Bondioli series gearboxes, it supports both speed-increasing and speed-reducing configurations. Its robust construction and high torque capacity make it ideal for demanding farm applications such as large harvesters, heavy-duty spreaders, and tillage equipment.
Technical Specifications
Parameter | Details |
|---|---|
Power Compatibility | 25–125 HP (18–92 kW) |
Standard Input Speeds | 540 rpm / 1000 rpm |
Output Torque Range | 161–1477 N·m |
Gear Ratios | Speed increasing: 1:1.93, 1:2.58, 1:3.10, 1:4.11 Speed reducing: 1.93:1, 2.58:1, 3.10:1, 4.11:1 |
Material | High-strength cast iron housing, 20CrMnTi carburized gears |

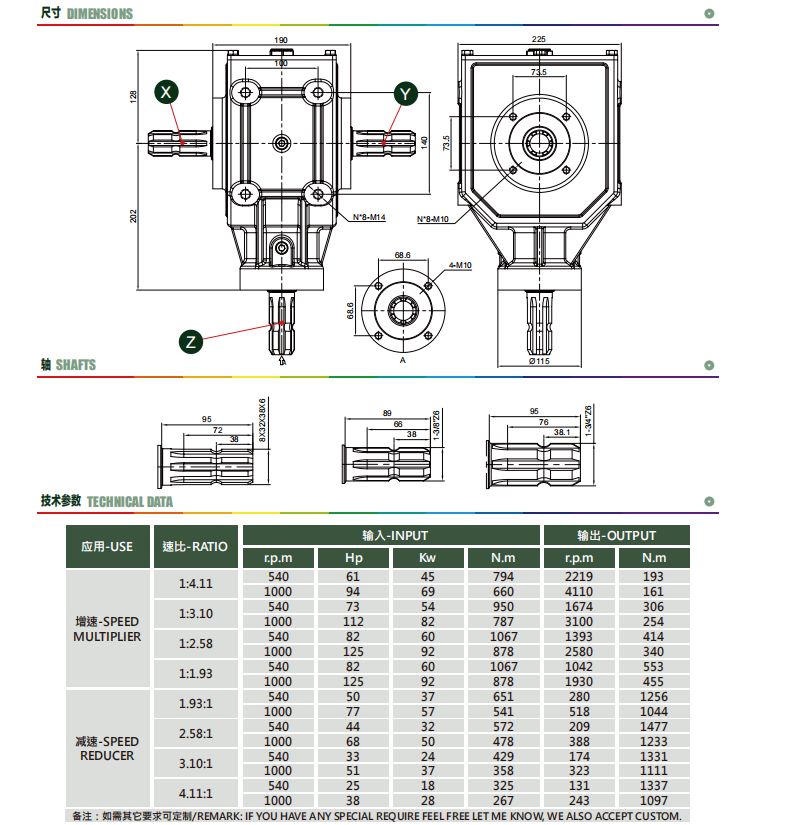

Technical Parameter
FAQ – KLF2071 Agricultural Gearbox
Q1: What gear ratios are available? Does it support both speed-up and speed-down?
A: Yes, both functions are available:
Speed Multiplier (increasing): 1:1.93 / 1:2.58 / 1:3.10 / 1:4.11
Speed Reducer (decreasing): 1.93:1 / 2.58:1 / 3.10:1 / 4.11:1
You can select the ratio based on your machine’s required output speed.
Q2: Can this gearbox directly replace Bondioli units?
A: Yes, it is designed as a direct equivalent to Bondioli series gearboxes.
Q3: Can I get custom gear ratios or shaft sizes?
A: Yes, we support full customization: non-standard ratios, custom spline profiles, shaft diameters, and mounting patterns. OEM/ODM orders are welcome.
