KLF4023 multifunctional speed ratio gearbox for farm machinery
You are here: Home » Products » Agricultural Gearboxes » Multifunction Gearbox » KLF4023 multifunctional speed ratio gearbox for farm machinery

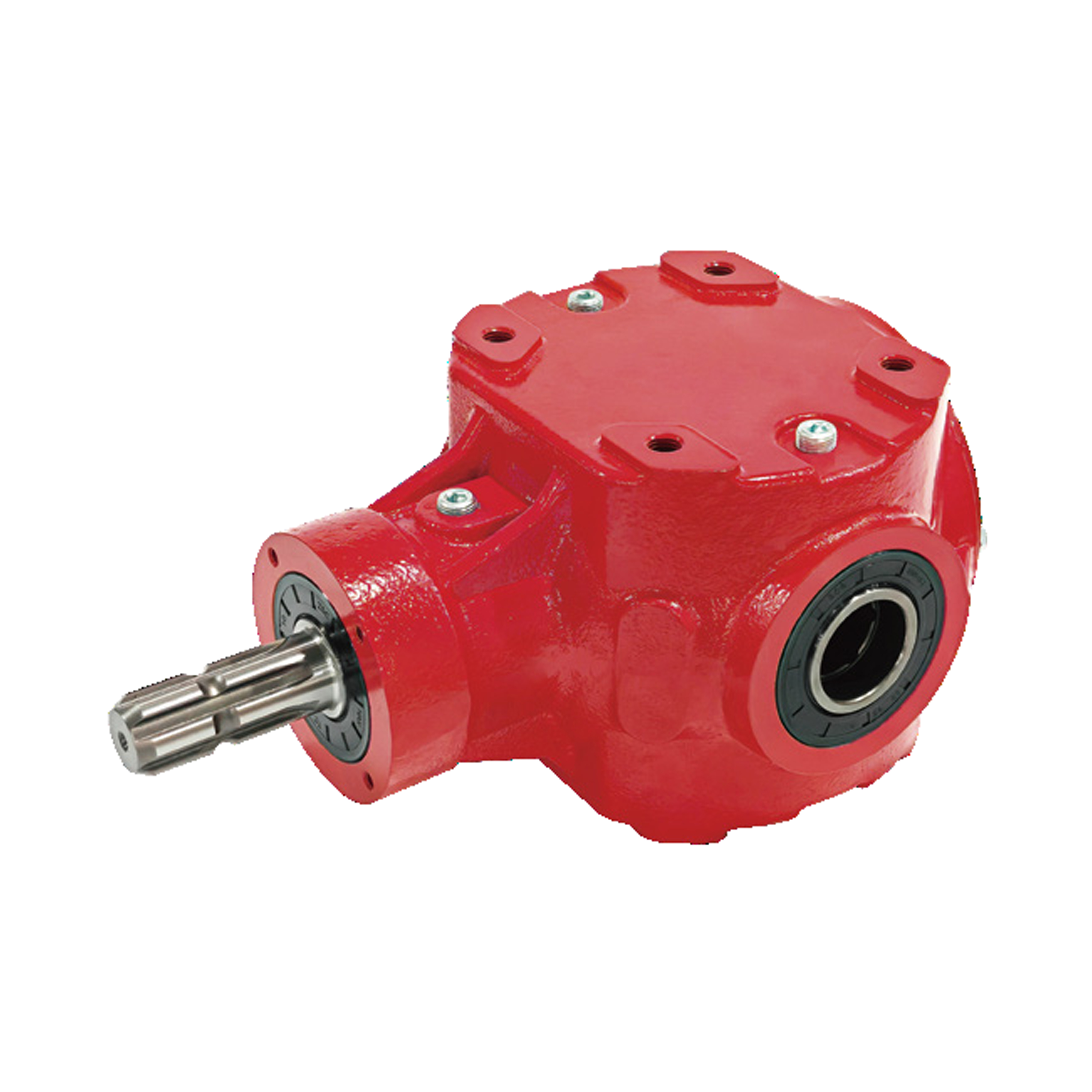

KLF4023 multifunctional speed ratio gearbox for farm machinery
KLF4023 multifunctional speed ratio gearbox for farm machinery KLF4023 multifunctional speed ratio gearbox for farm machinery

loading

KLF4023 multifunctional speed ratio gearbox for farm machinery

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
1. Speed ratio 1.92:1, module M=5.5
Rated horsepower: 38HP, input speed 540 rpm, output speed 280 rpm, input torque 495N.M, output torque 952N.M
2. The surface is sprayed with red topcoat and is shipped without refueling.
3.Suitable for fertilizer spreaders, drilling machines, pruning machines and so on.
  • KLF4023

  • Kadiva

Availability:
Quantity:

1. Product Overview

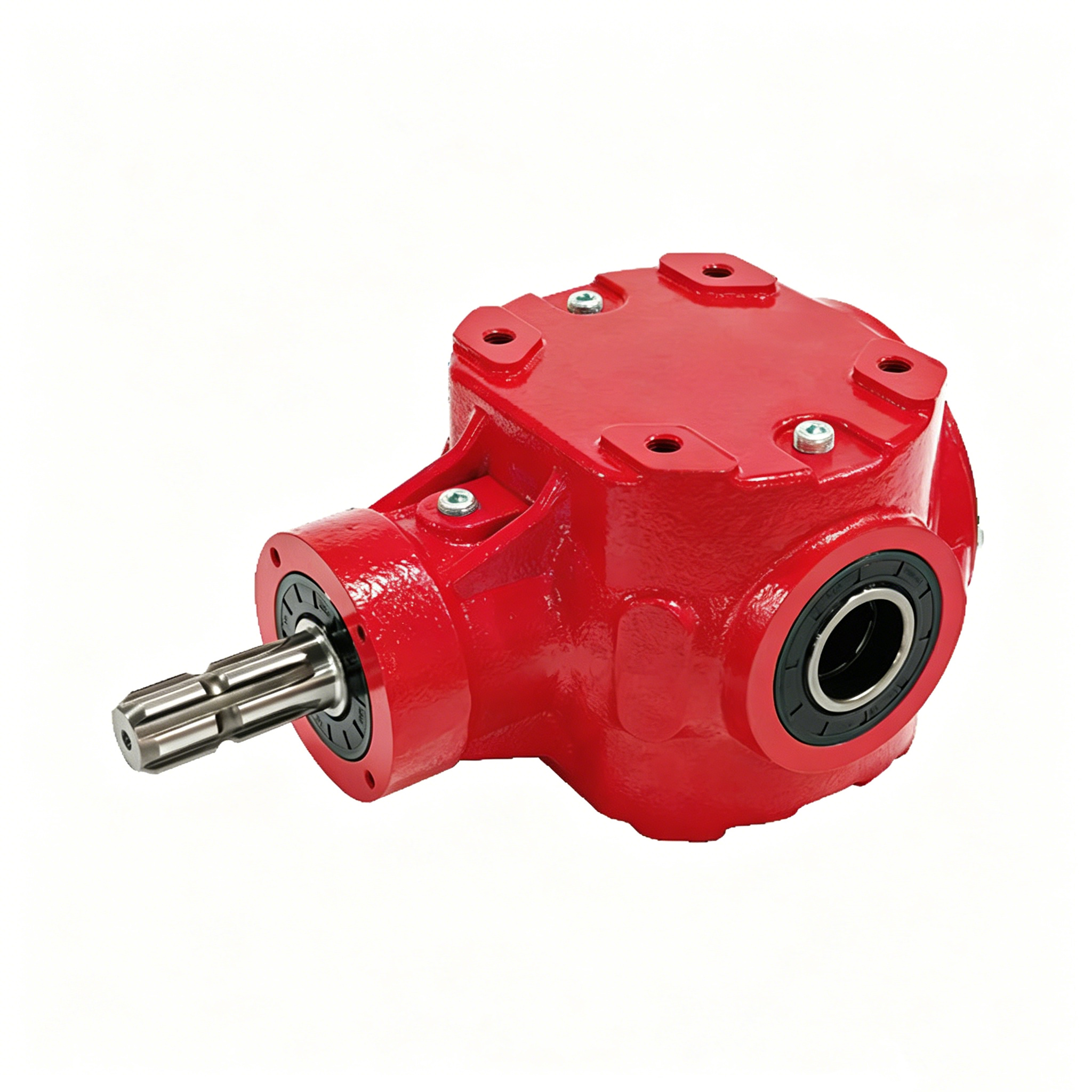

Model KLF4023 is a versatile multi-ratio gear reducer manufactured by KADIVA MACHINERY (HANGZHOU) CO.,LTD, specially engineered for agricultural machinery power transmission applications. This gearbox features a robust cast iron housing with red anti-rust coating, widely used on farm equipment such as rotary cutters, spreaders and medium-duty agricultural implements for speed conversion and torque output adjustment.

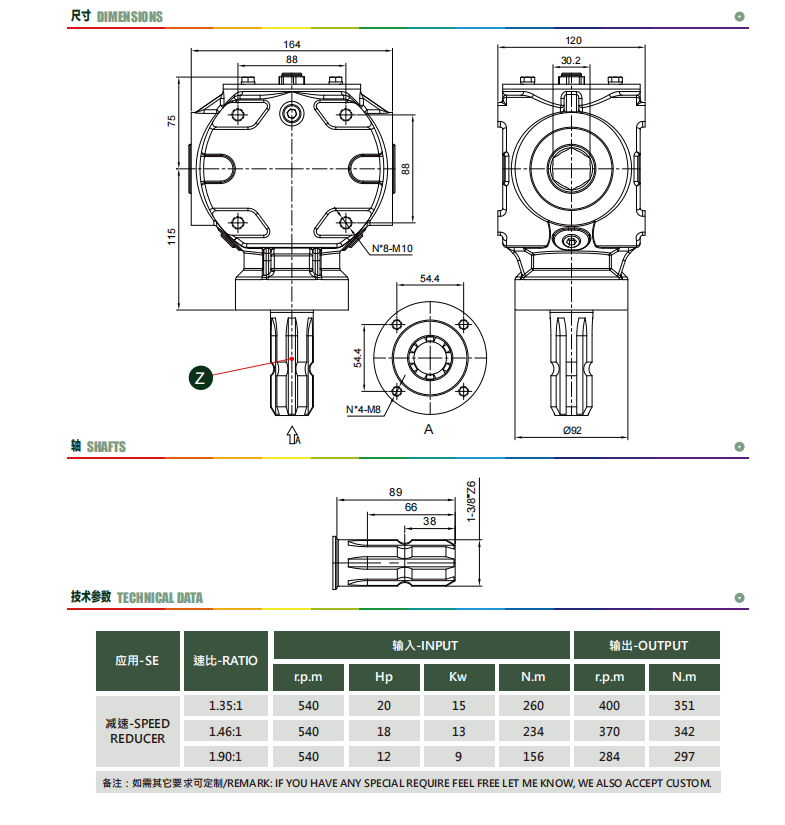

2. Technical Performance Parameters
