KLF300 multifunctional speed ratio gearbox

Name: KLF300 multifunctional speed ratio gearbox
Brand: Kadiva
Rating: 5.0 (28 reviews)

KLF300 General gearbox use one piece cast iron case max strength precise positioning of internal components. with various specifications of speed increase and deceleration. Agricultural machinery general gearbox is an important component widely used in agricultural machinery and equipment. KLF300 is mainly composed of gears, bearings, boxes and other components. Through the meshing of different gears, the rotation speed and torque are converted to meet the needs of agricultural machinery and equipment in different working scenarios.

Model:
KLF300
Brand:
Kadiva

Availability:

Quantity:



Inquire Add to Basket

Product Description

Basic Description

The KLF300 is a heavy-duty universal right-angle gearbox manufactured by KADIVA MACHINERY (HANGZHOU) CO., LTD, engineered for high-torque power transmission in demanding agricultural machinery and industrial equipment. It supports both speed increasing and speed reducing functions with multiple ratio options, built to withstand continuous high-load operation in harsh farm environments.

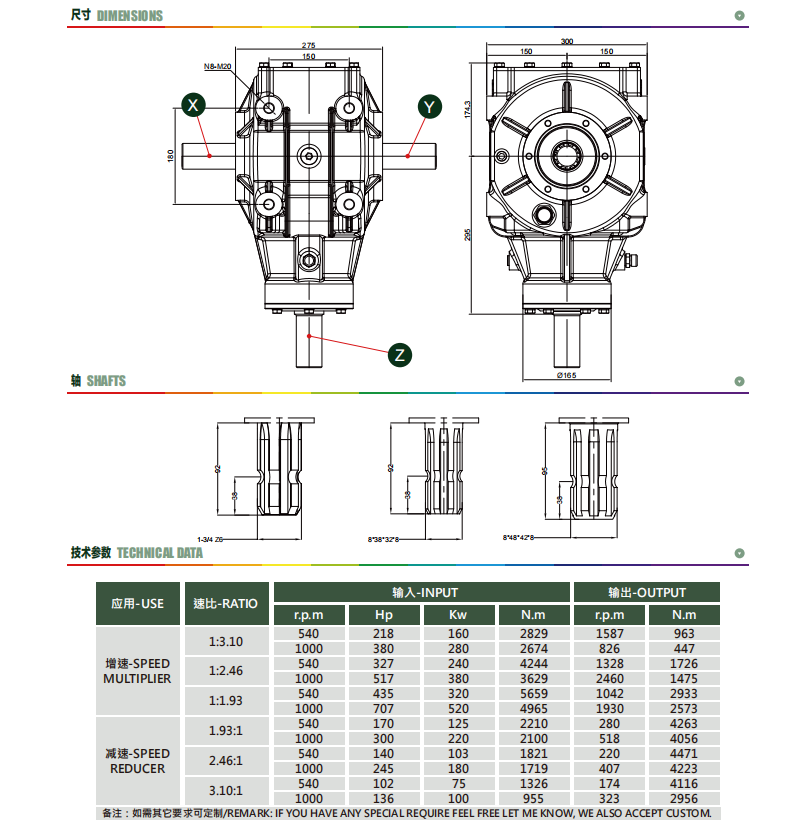

Performance Parameters

FAQ

Q1: What applications is the KLF300 suitable for?

A1: It is designed for heavy-duty agricultural machinery such as large rotary cutters, flail mowers, heavy harvesters, spreaders, and industrial equipment requiring high-torque 90° power transmission with speed adjustment.

Q2: Can this gearbox be used for both speed increasing and reducing?

A2: Yes. The KLF300 supports both functions: use 1:X ratios for speed increasing (to boost output speed while reducing torque) and X:1 ratios for speed reducing (to increase output torque while reducing speed).

Q3: Are customizations available for this model?

A3: Absolutely. We offer full customization, including special gear ratios, custom shaft specifications (spline profile, diameter, length), mounting patterns, and surface treatments to match your equipment’s exact requirements.
