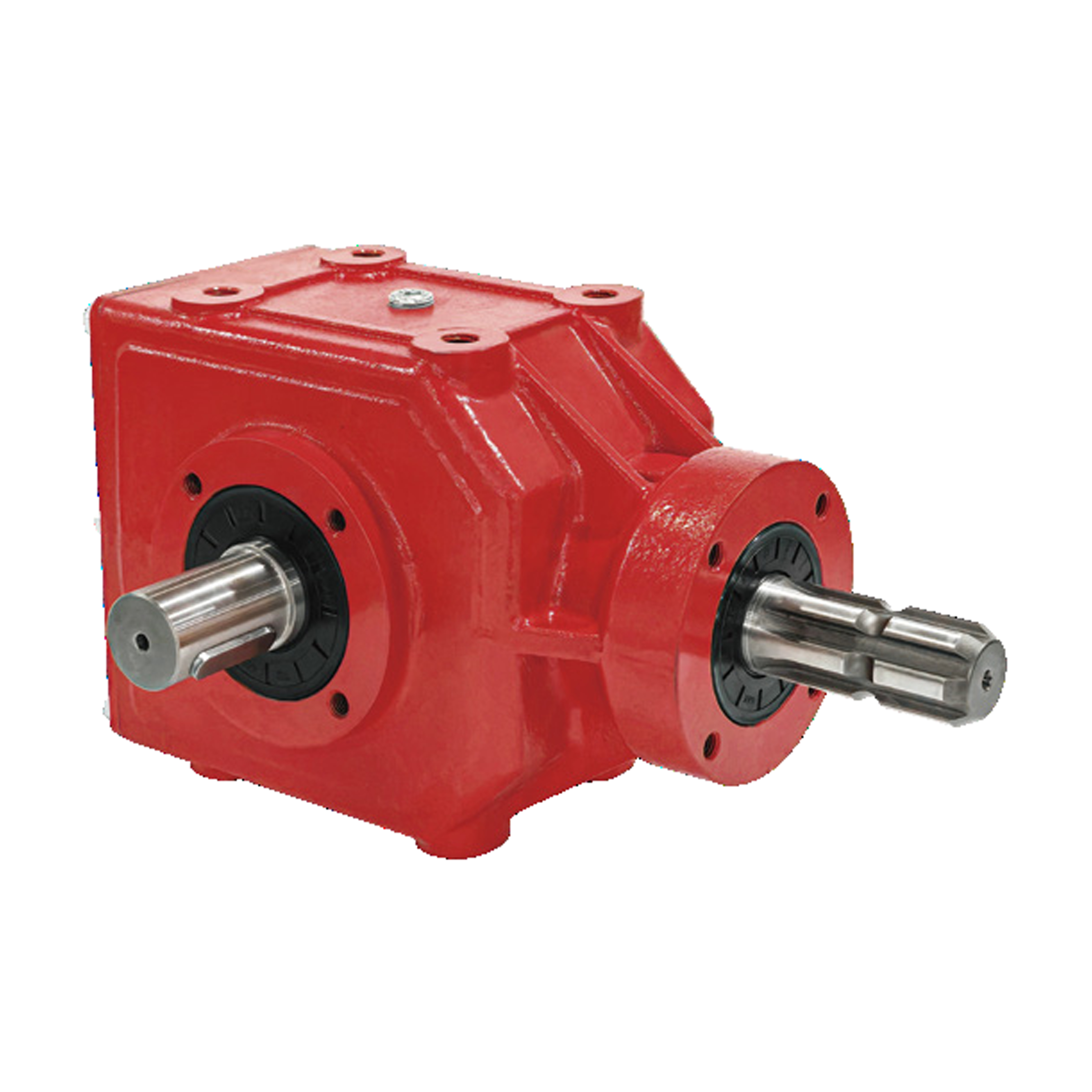

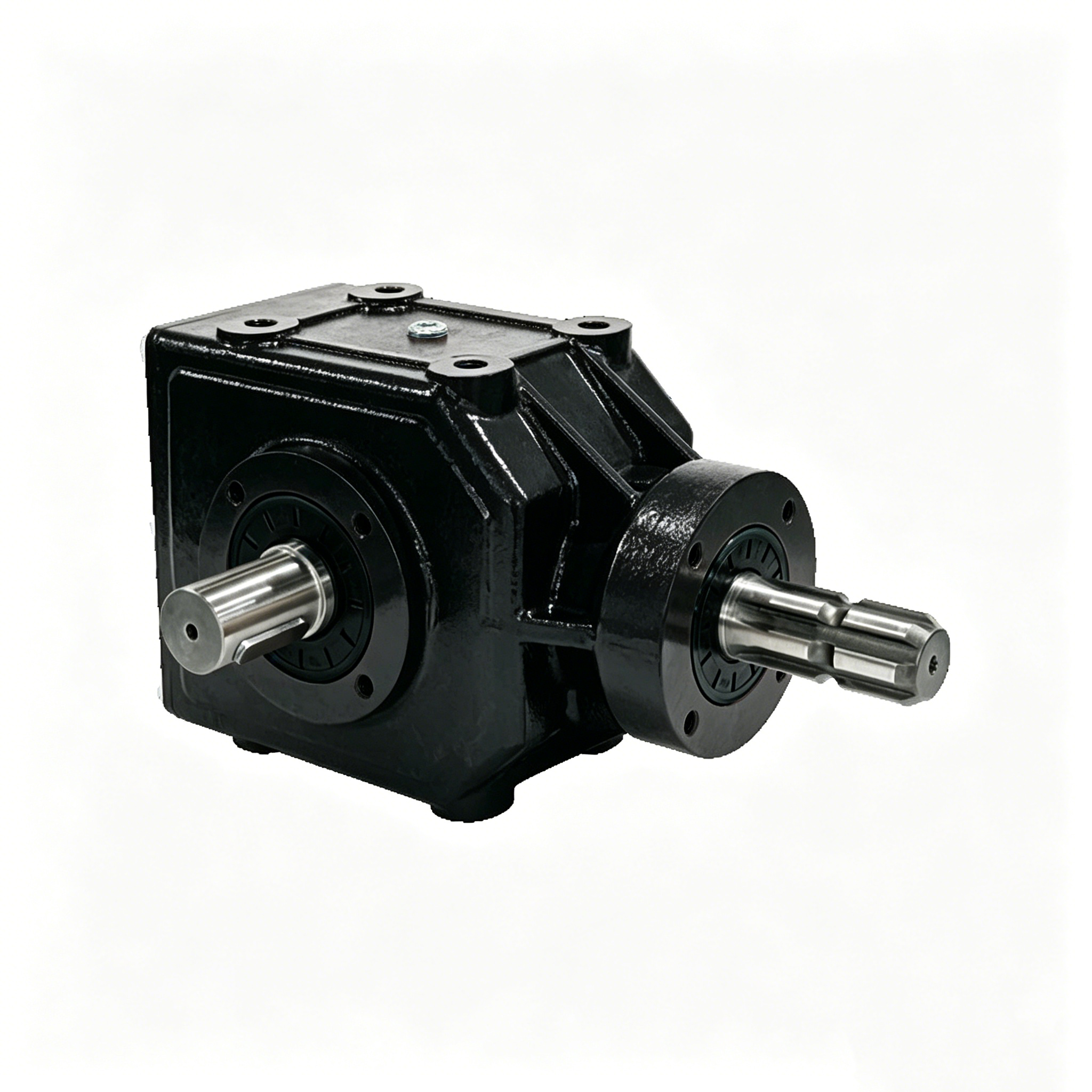

The KLF2061 is a heavy-duty, right-angle PTO gearbox engineered for agricultural machinery, designed as a high-performance alternative to Bondioli series gearboxes. It offers both speed-increasing and speed-reducing configurations, making it highly versatile for a wide range of farm equipment applications.
Technical Specifications
Parameter | Details |
|---|---|
Power Compatibility | 11–80 HP (8–59 kW) |
Standard Input Speeds | 540 rpm / 1000 rpm |
Output Torque Range | 65–1007 N·m |
Gear Ratios | Speed increasing: 1:1.93, 1:2.58, 1:3.10, 1:4.50, 1:5.33 Speed reducing: 1.93:1, 2.58:1, 3.10:1, 4.50:1, 5.33:1 |

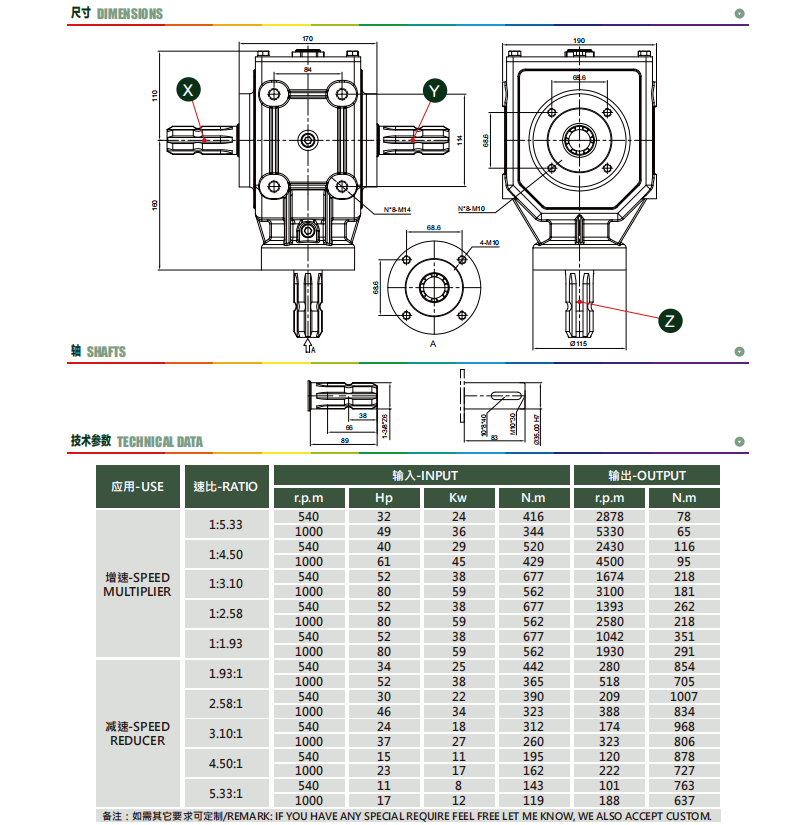

Technical Parameter
FAQ – KLF2061 Agricultural Gearbox
Q1: What gear ratios are available? Does it support both speed-up and speed-down?
A: Yes, both functions are available:
Speed Multiplier: 1:1.93 / 1:2.58 / 1:3.10 / 1:4.50 / 1:5.33
Speed Reducer: 1.93:1 / 2.58:1 / 3.10:1 / 4.50:1 / 5.33:1
You can select the ratio based on your machine’s required output speed.
Q2: Can this gearbox directly replace Bondioli units?
A: Yes, it is designed as a direct equivalent to Bondioli series gearboxes.
Q3: Can I get custom gear ratios or shaft sizes?
A: Yes, we support full customization: non-standard ratios, custom spline profiles, shaft diameters, and mounting patterns. OEM/ODM orders are welcome.
