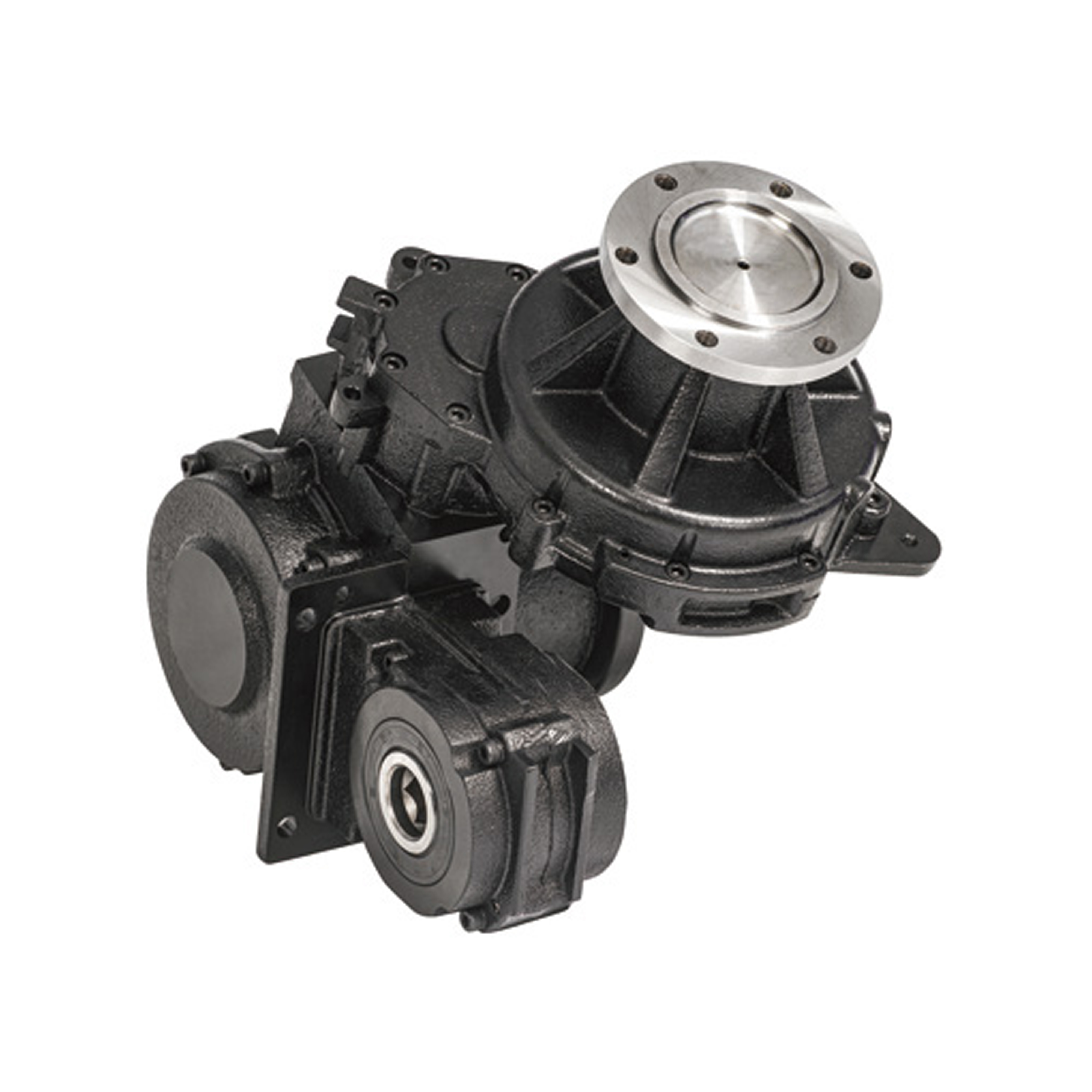

KLF-QZ-WRXR three point linkage hay turning reducer

Wholesale Agricultural Customized KLF-QZ-WRXL/R Lawn Mower Silage Machine Cutterbar Mower Gearbox
KLF-QZ-WRXR German champion 3500 watt series disc silage machine gearbox
The gearbox design is derived from the German Champion 3500 series, four-disc silage machine gearbox. Imported original design, one set equipped with 6 gearboxes. This product has a complex design structure, and compact space, and comes with a clutch protection device. It is used for silage harvesting of various crops, with a cutting width of up to 3.5 meters. The harvesting discs on both sides have a folding function, and there is a clutch device inside the gearbox. When the preset torque peak is exceeded, automatic slipping can be achieved. Protecting internal parts from damage, this header has high harvesting efficiency and a low failure rate. It can be used with different imported and domestic tractors, a good choice that customers can trust.

Model:
KLF-QZ-WRXR
Brand:
KADIVA
Code:
8483409090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

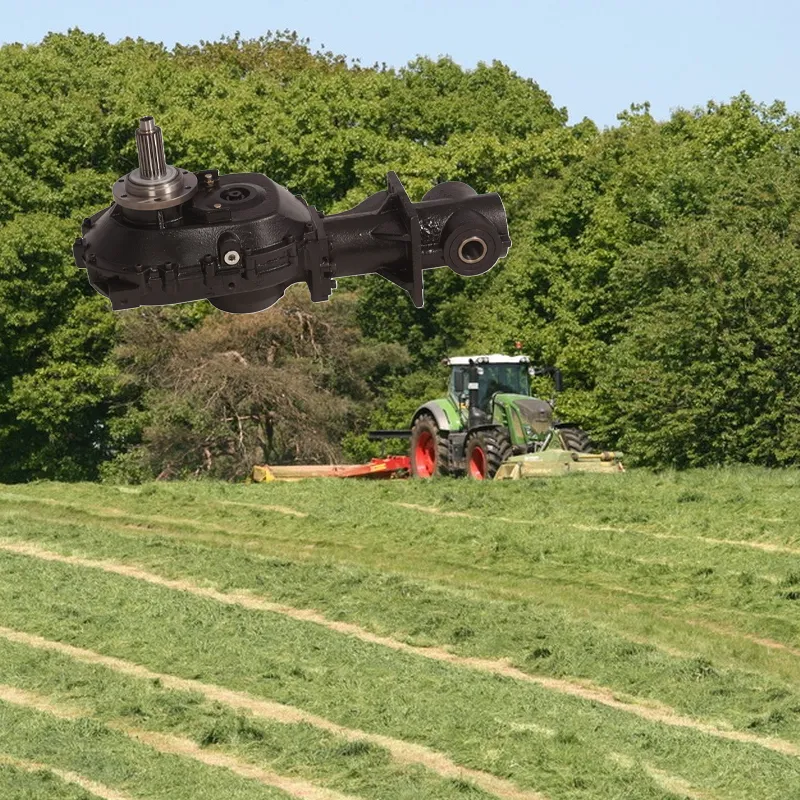

Agricultural Harvest Machine Factory Customized Four Discs Cutting Mower Gearbox

Product Name:

KLF-QZ-WRXR Gearbox
power Source:
Tractor
Customization:
Available
OEM/ODM:
Available

Certification:
ISO
Specification:
Cast iron
Production Capacity:
50000PCS/Month

Key Configurations

1.Rigorous airtight treatment

2.Cast iron bridge linking method and integrated design

3.Heightening and enlarged Design

4.Using cast iron to make the product stronger and more durable

Technical Specifications

(Custom configurations available upon request.)

Model NO.	Warranty	Input r.p.m	Input N.M	Output r.p.m	Output N.M	Rated Power	Kw	Ratio
KLF-QZ-WRXR	1 Year	540	938	702	722	80HP	58.8	1:1.3

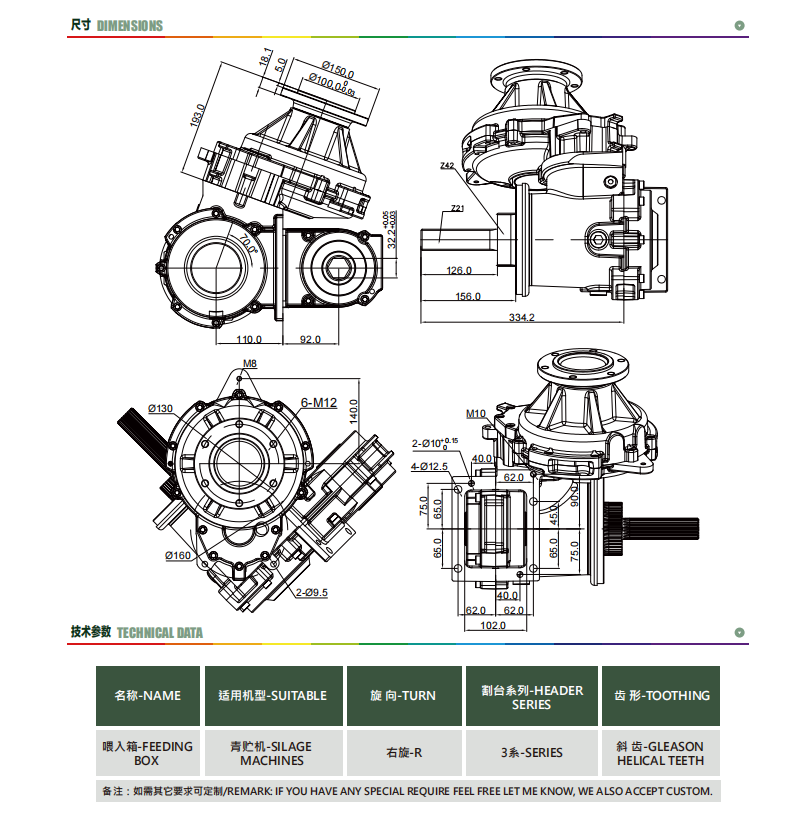

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
