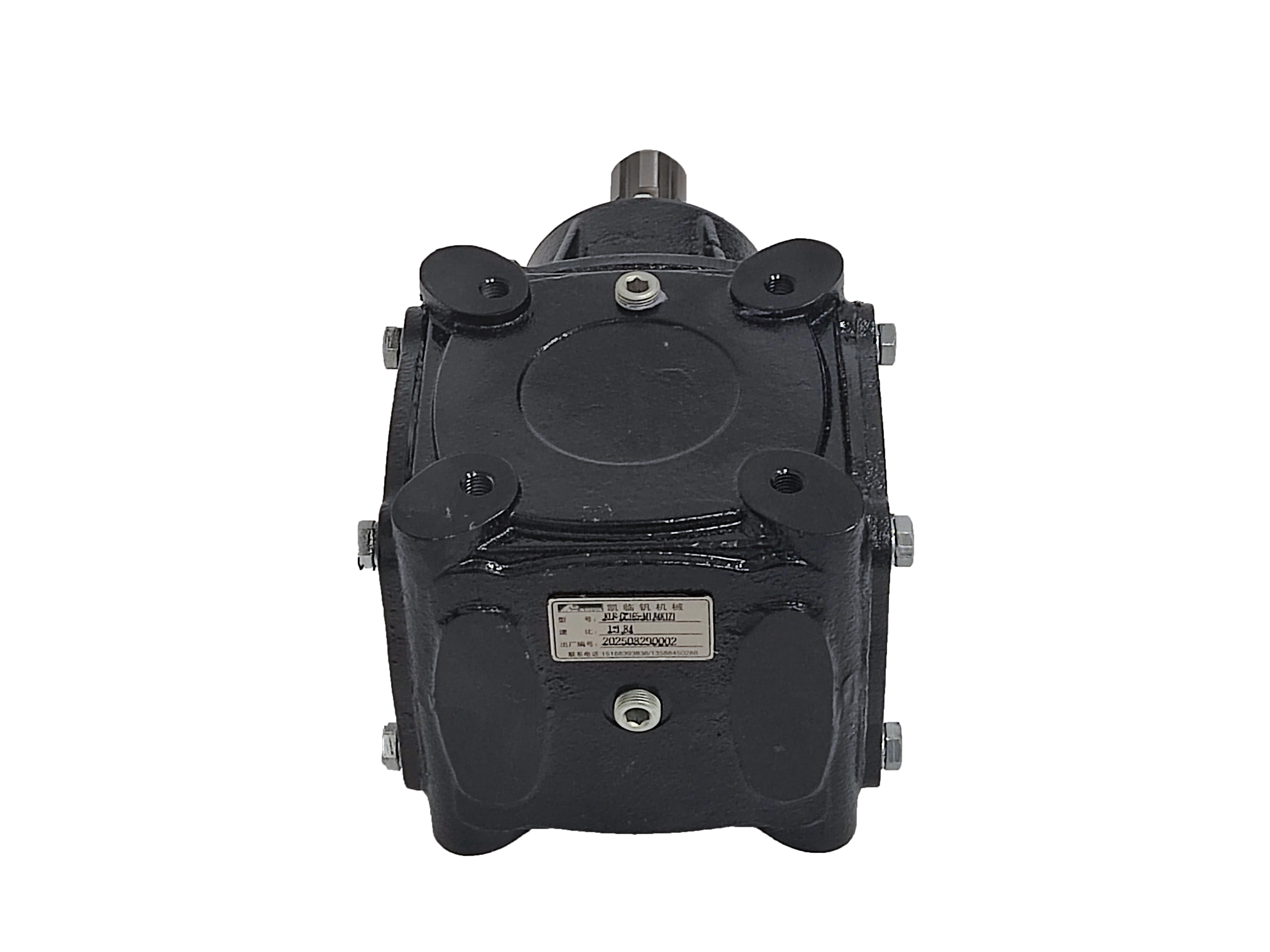

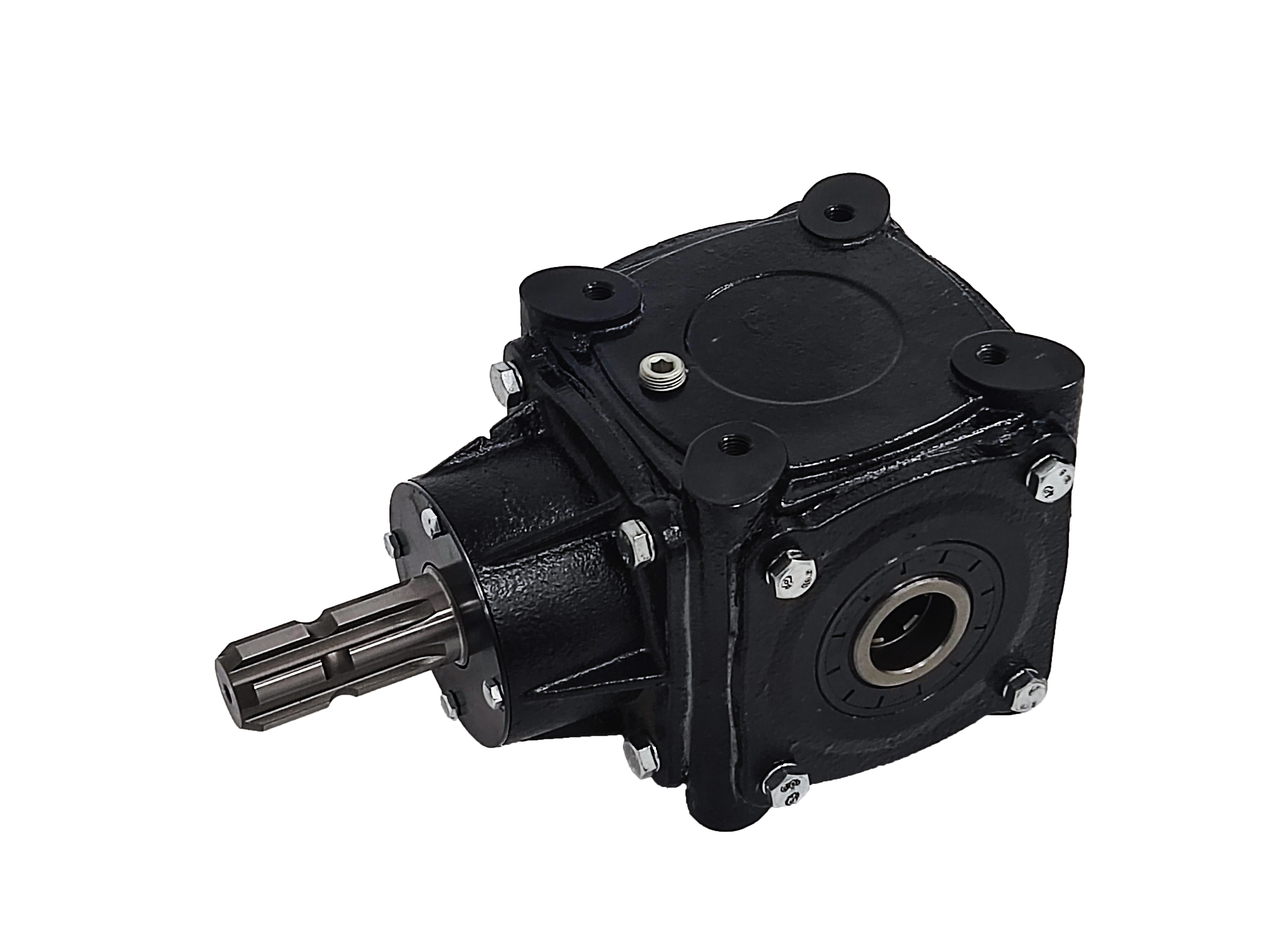

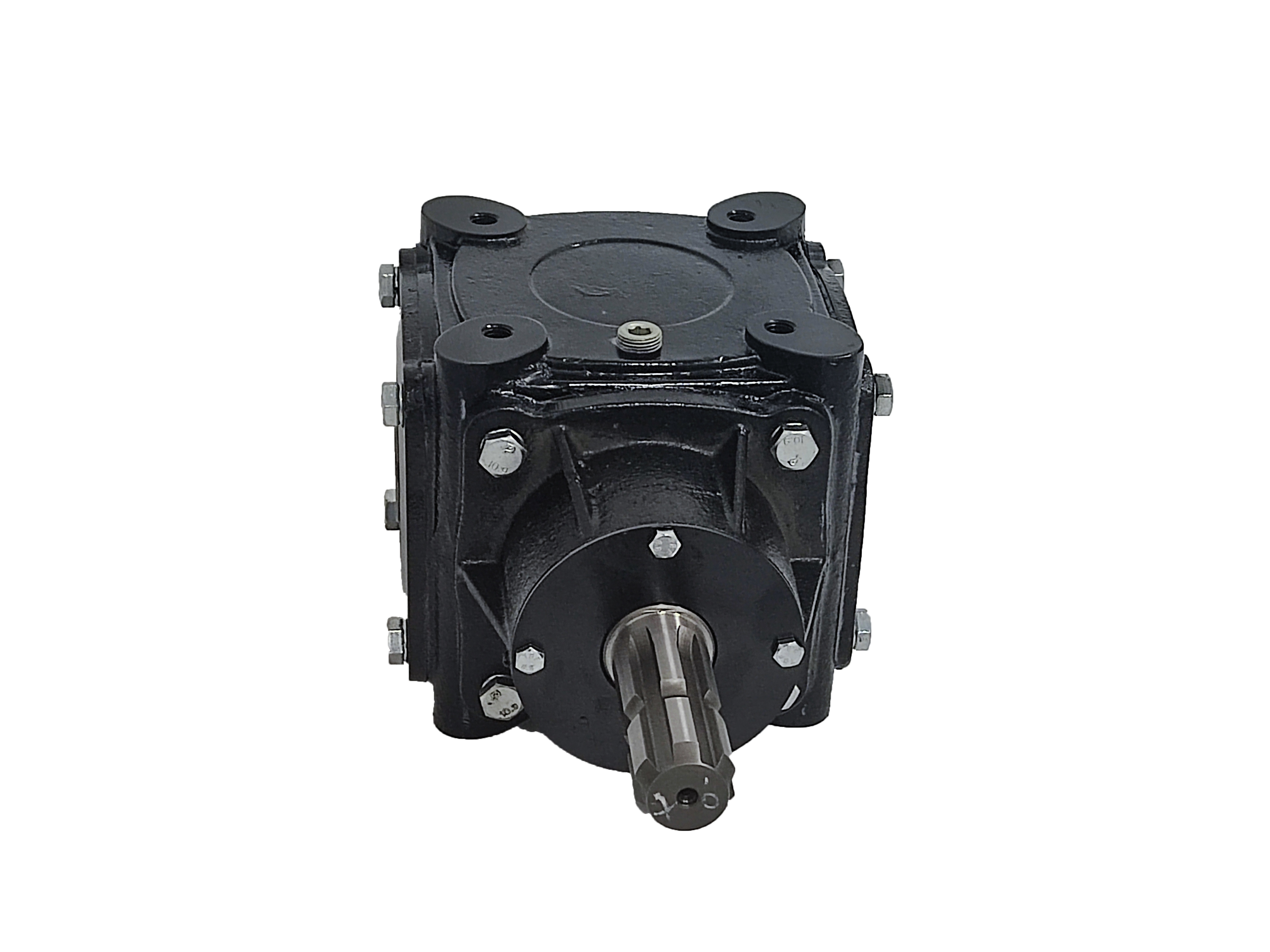

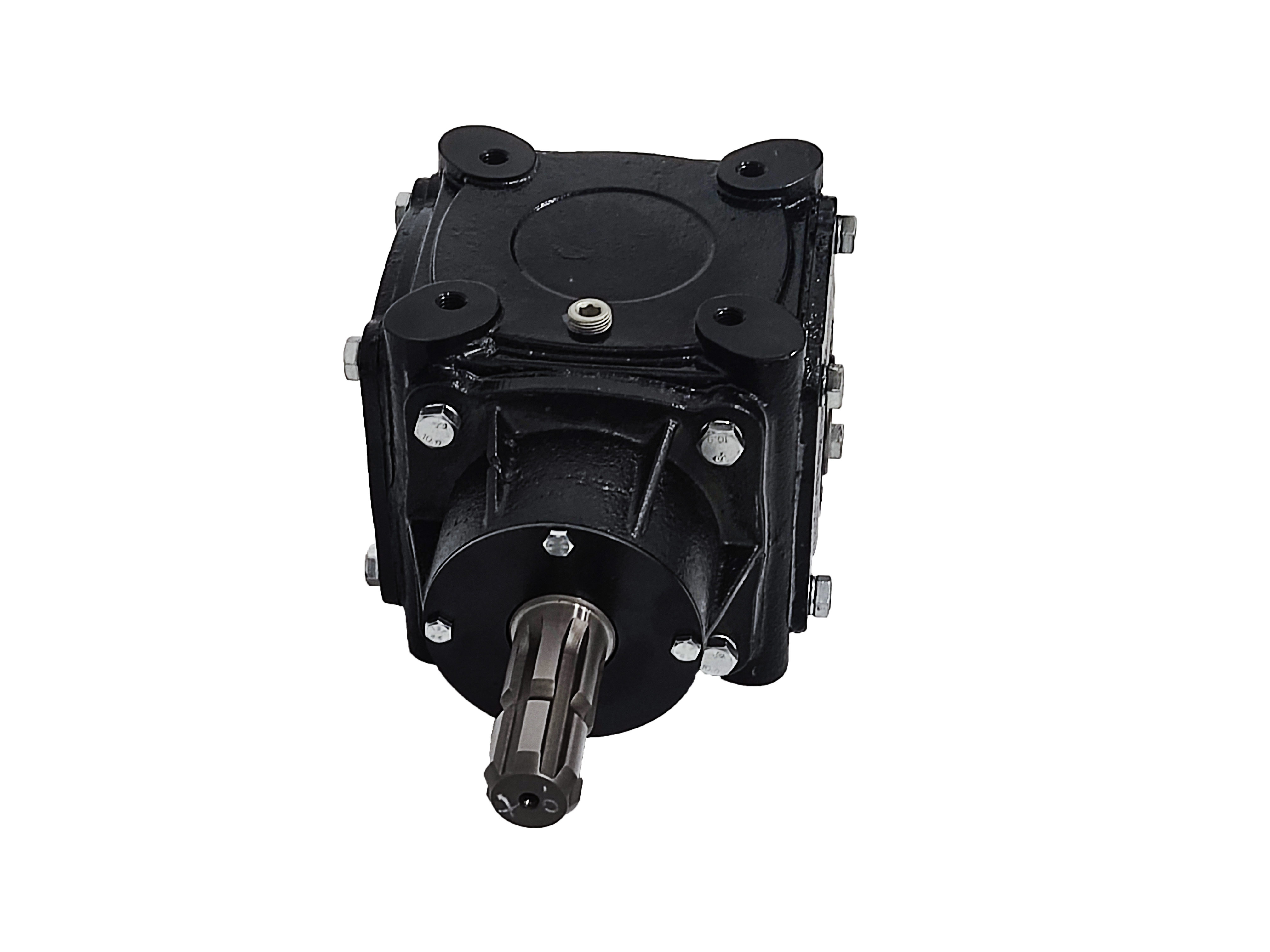

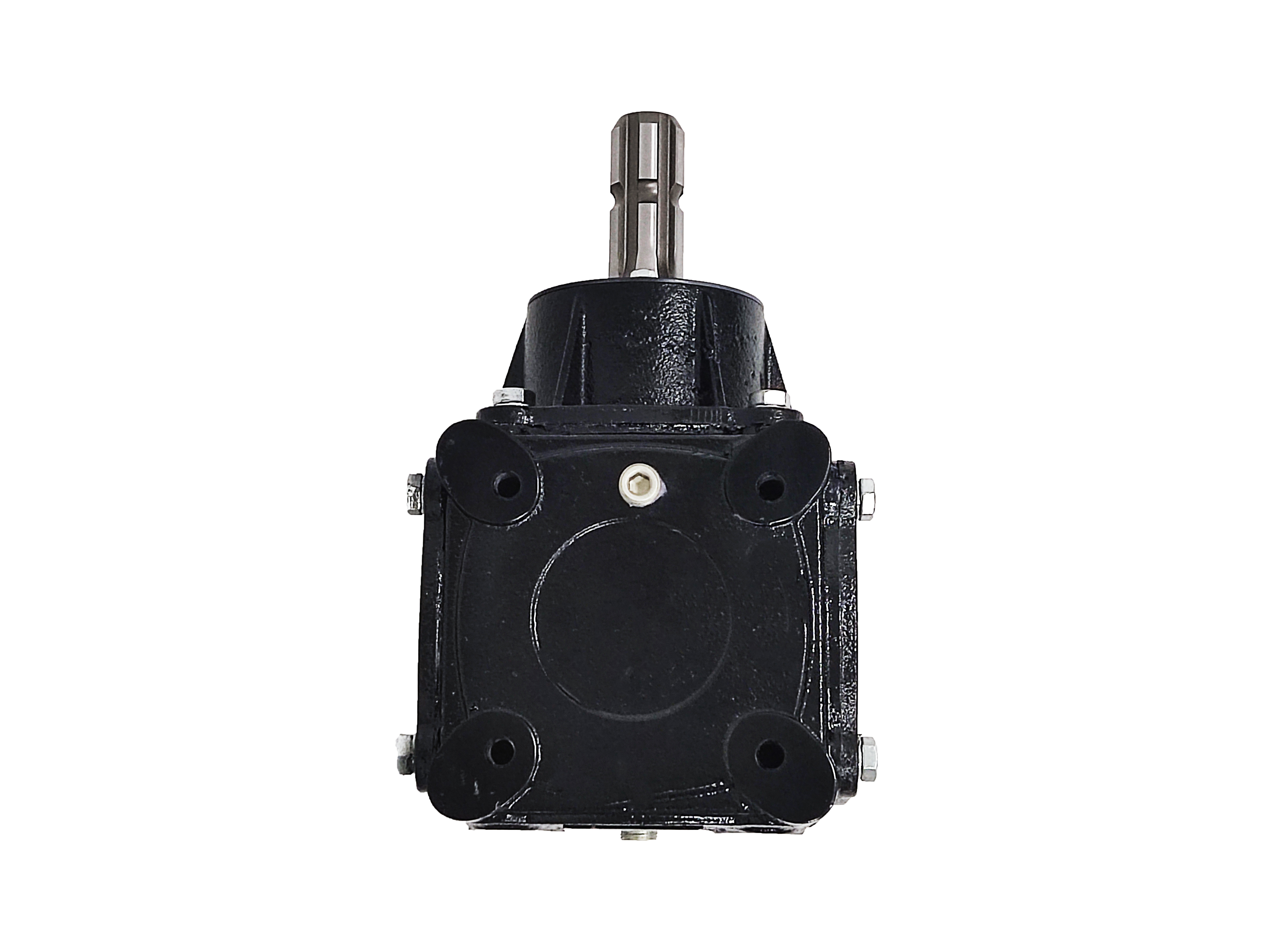

KLF-GC165 Disc Mower Series Gearbox

KLF-GC165 Mounted disc lawn mower cutterbar Gearbox

This product is used in the transmission gearbox cutterbar of tractor-mounted rotary disc mowers. It is derived from European and American design concepts and inputs power through the tractor. The transmission main gearbox drives the cylindrical gear to the cutter head. The cutter beam adopts a full gear structure design and the output speed is 3000 rpm. The transmission noise is low, and the quality is more stable and reliable. We have cutter beam available in five models: 4 discs, 5 discs, 6 discs, 7 discs, and 8 discs. The working width can reach 1.65 meters to 3.2 meters, adapting to different needs. KLF-GC165 is a rear-mounted edge holder that drives the flattening rubber roller. When equipped with GC165, it can realize the lawn mowing and flattening function. It is used for harvesting alfalfa, safflower and other crops. Flattening the stems will help to absorb water and spread them out for drying.

Model:
KLF-GC165
Brand:
KADIVA
Code:
8483409090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

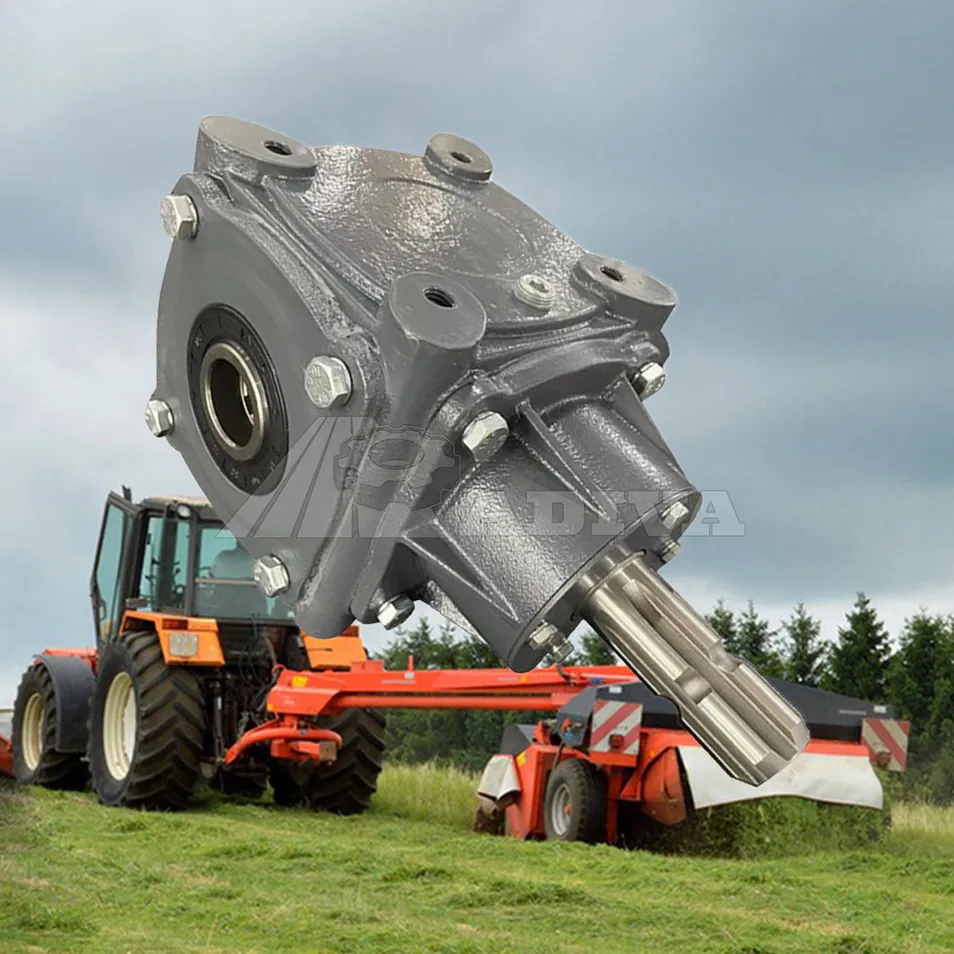

Agricultural Lawn Mower Silage Machine of Cutter Mounted Rotary Mower Gearbox

Product Name:
KLF-GC165 Gearbox
power Source:
Tractor
Major Function:
1.Power transmission

2. Dust removal and kneading square baler

3. Through the gearbox, the power is transmitted to two hydraulic pumps and the crushing device

Customization:
Available
OEM/ODM:
Available

Key Configurations

1.Rigorous airtight treatment

2. Easy to operate, practical product

3.Heightening and enlarged Design

4.Using cast iron to make the product stronger and more durable

Technical Specifications

(Custom configurations available upon request.)

USE	RATIO	INPUT				OUTPUT
		r.p.m	Hp	Kw	N.m	r.p.m	N.m
SPEED MULTIPLIER	1:2	540	38	28	495	1080	248

	1:1.84	540	41	30	530	994	288
*If you have any special require feel free let us know, we also accept custom

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
