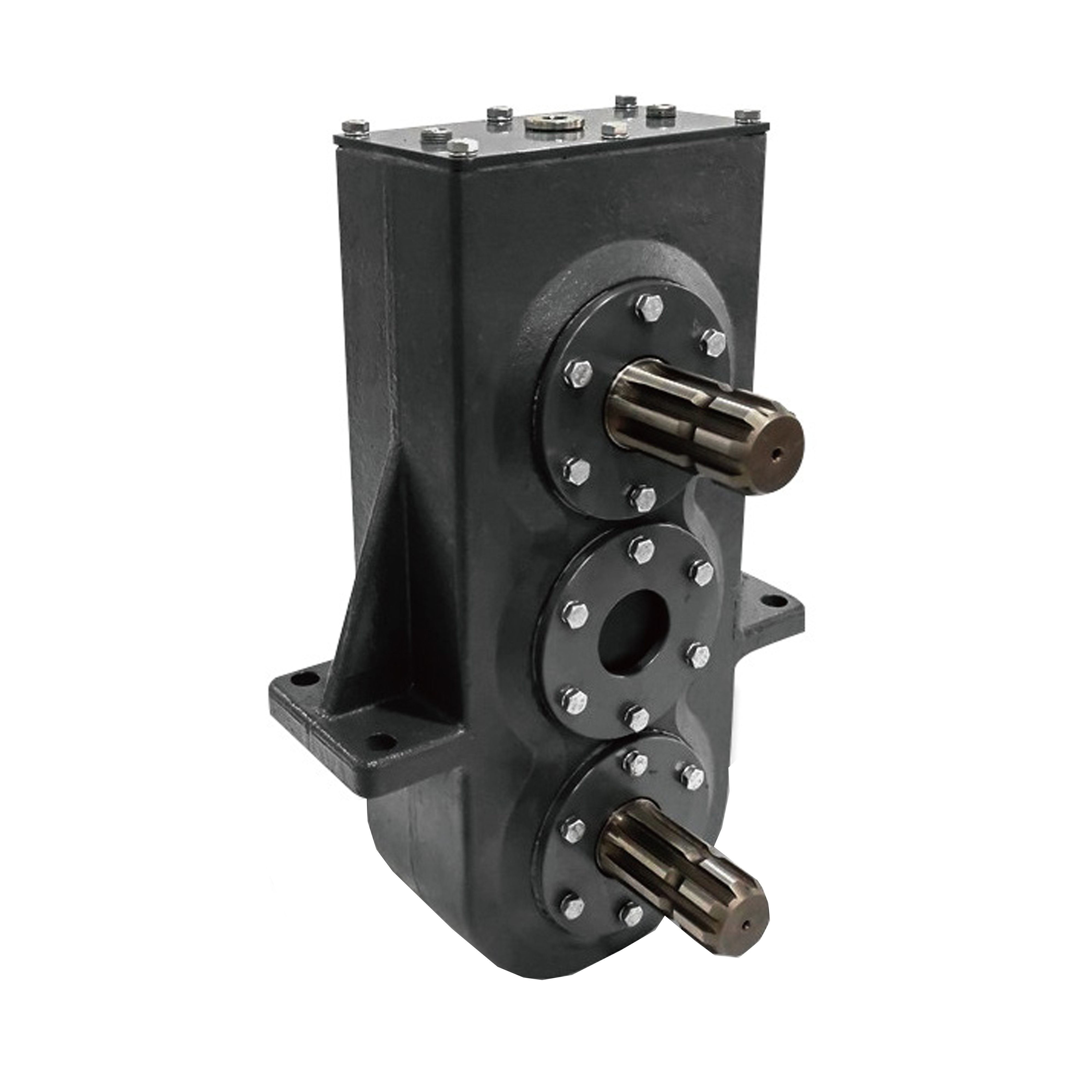

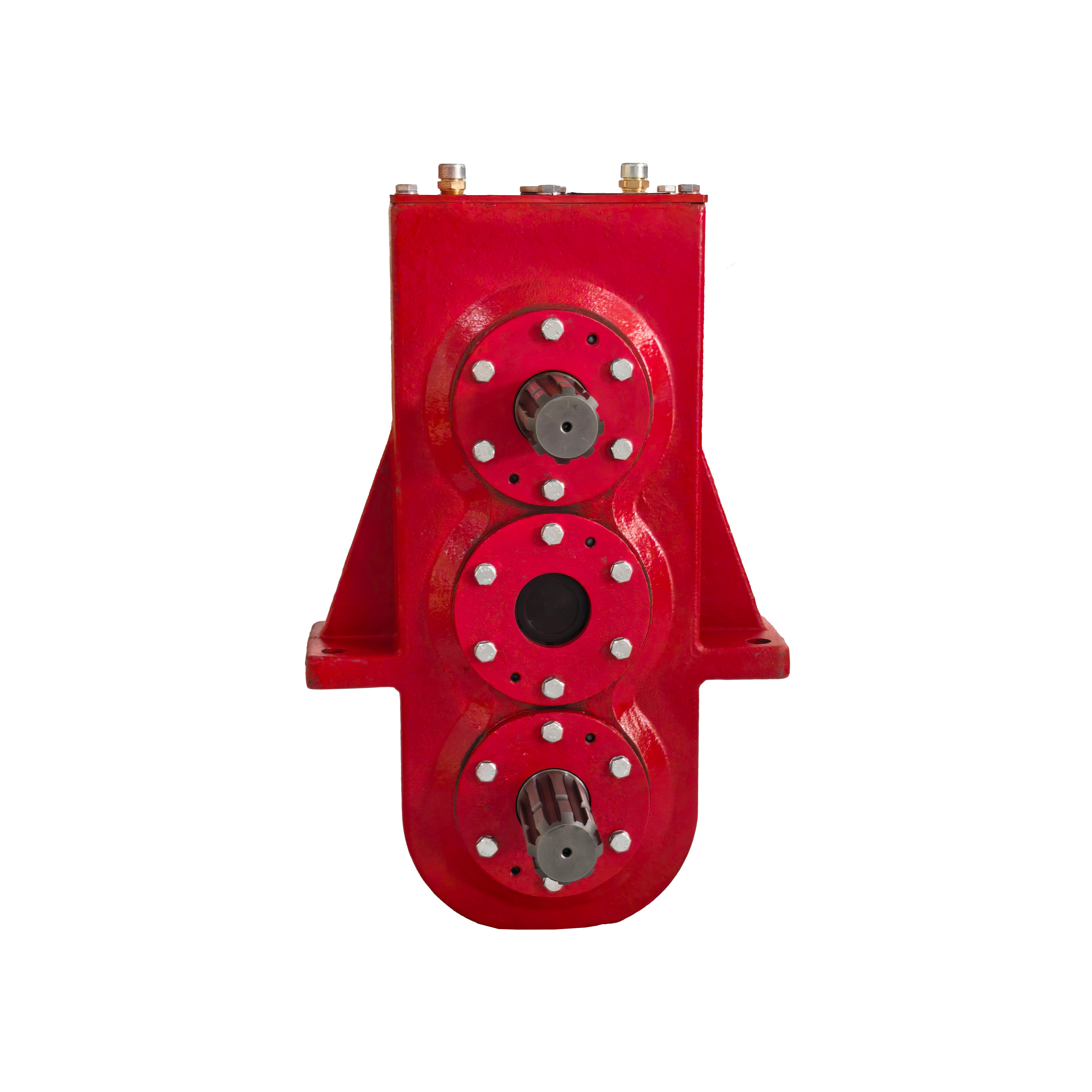

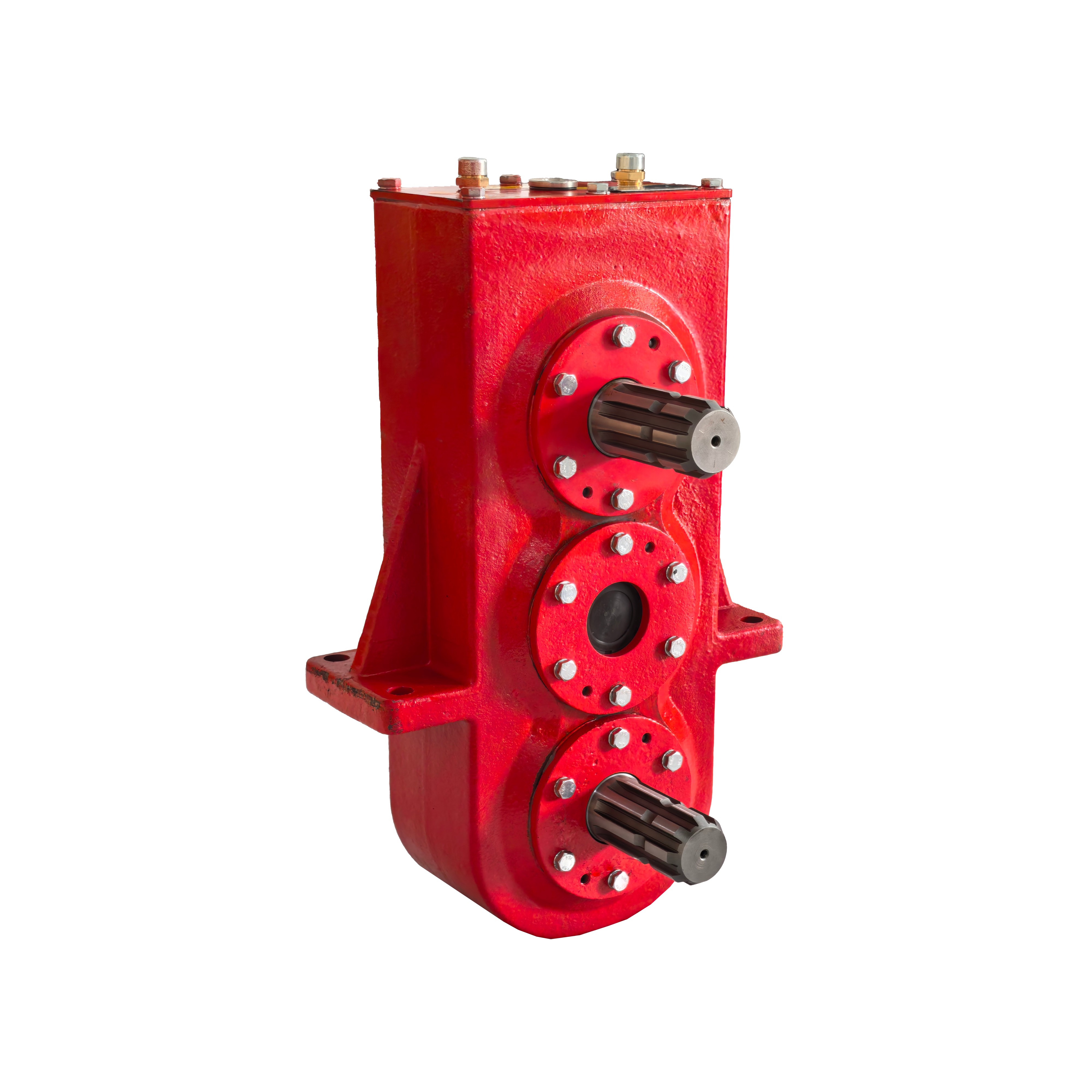

KLF-FK270 Crushing Large Round Baler Vertical Gearbox

Name: KLF-FK270 Crushing Large Round Baler Vertical Gearbox
Brand: KADIVA
Rating: 5.0 (73 reviews)

This vertical gearbox is used for the front tractor power input of the crushing large round baler, and the power is transmitted to the machine's crushing device and baling device through the gearbox. To meet the machine's operating requirements, the gearbox realizes heightening, enlarged design, multi-axis input and multi-axis output design, and can be used in different occasions and multiple needs.

Model:
KLF-FK270
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

The KLF-FK270 gearbox features a 1:1 ratio, handling 103 kW (140 Hp) at 540 rpm. It delivers 1821 N·m torque at the same 540 rpm output, ensuring stable power transmission. OEM/ODM are available and support all level of customization.

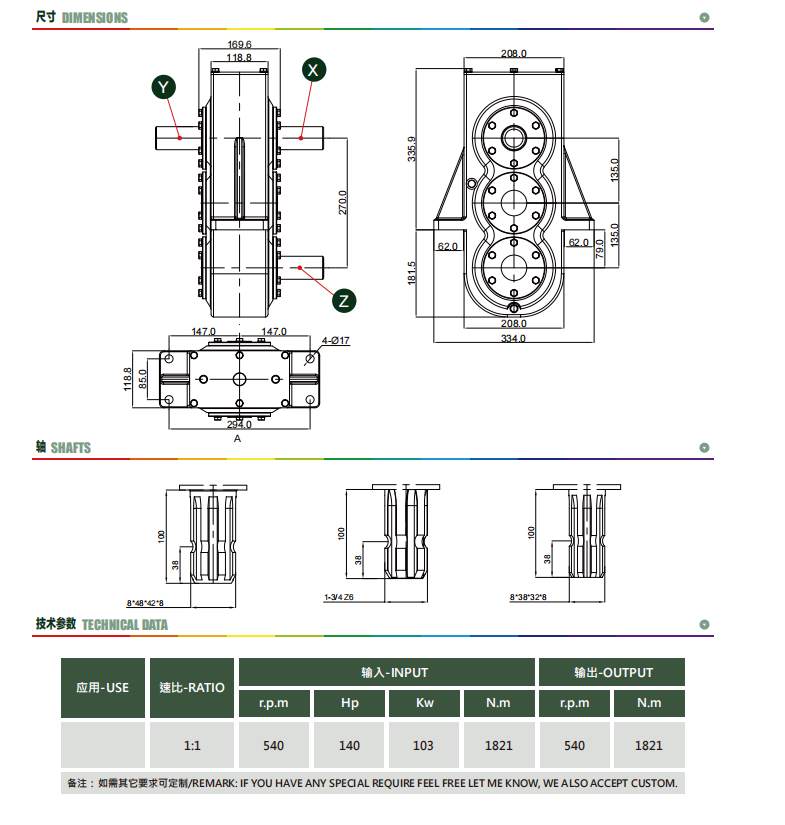

Technical Parameters
