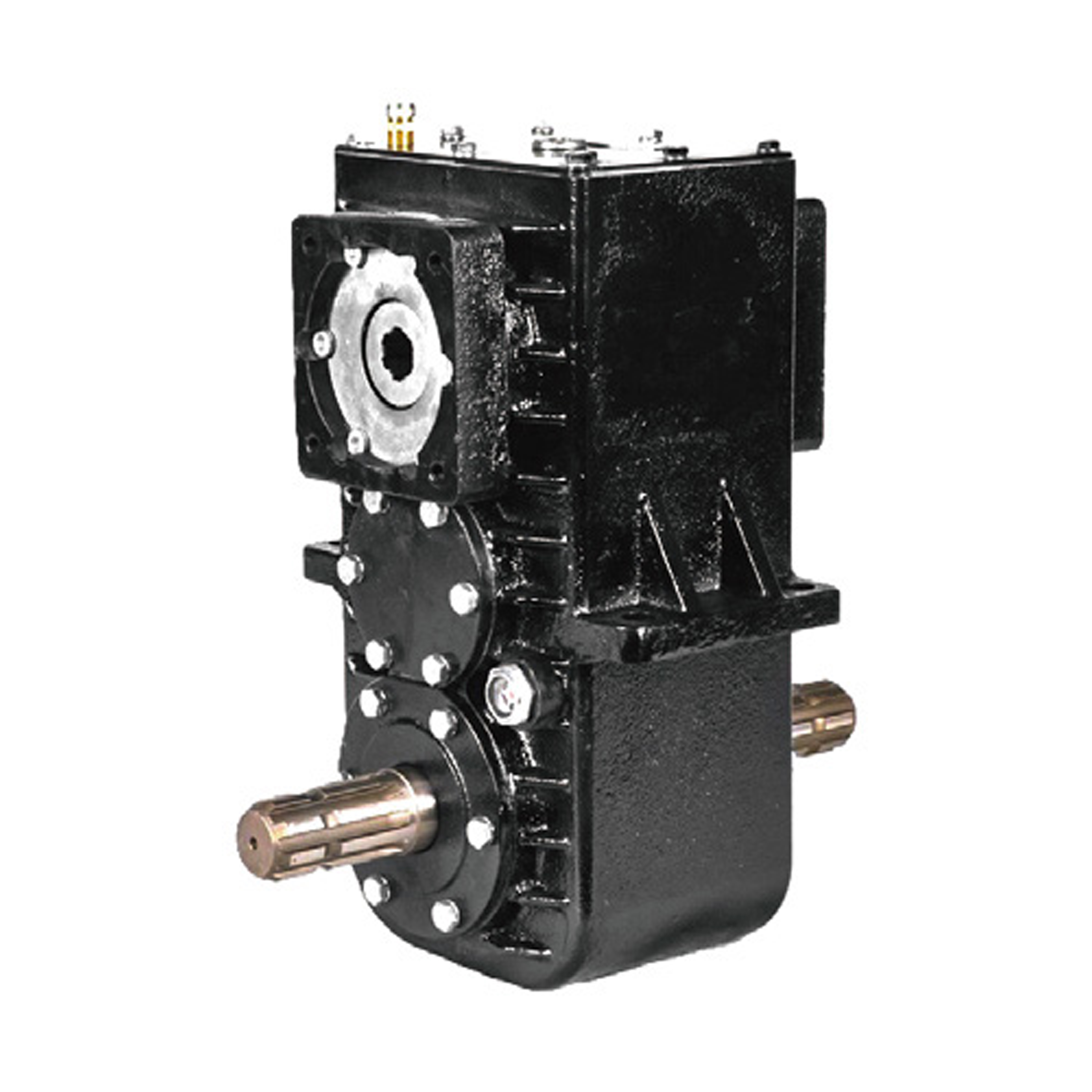

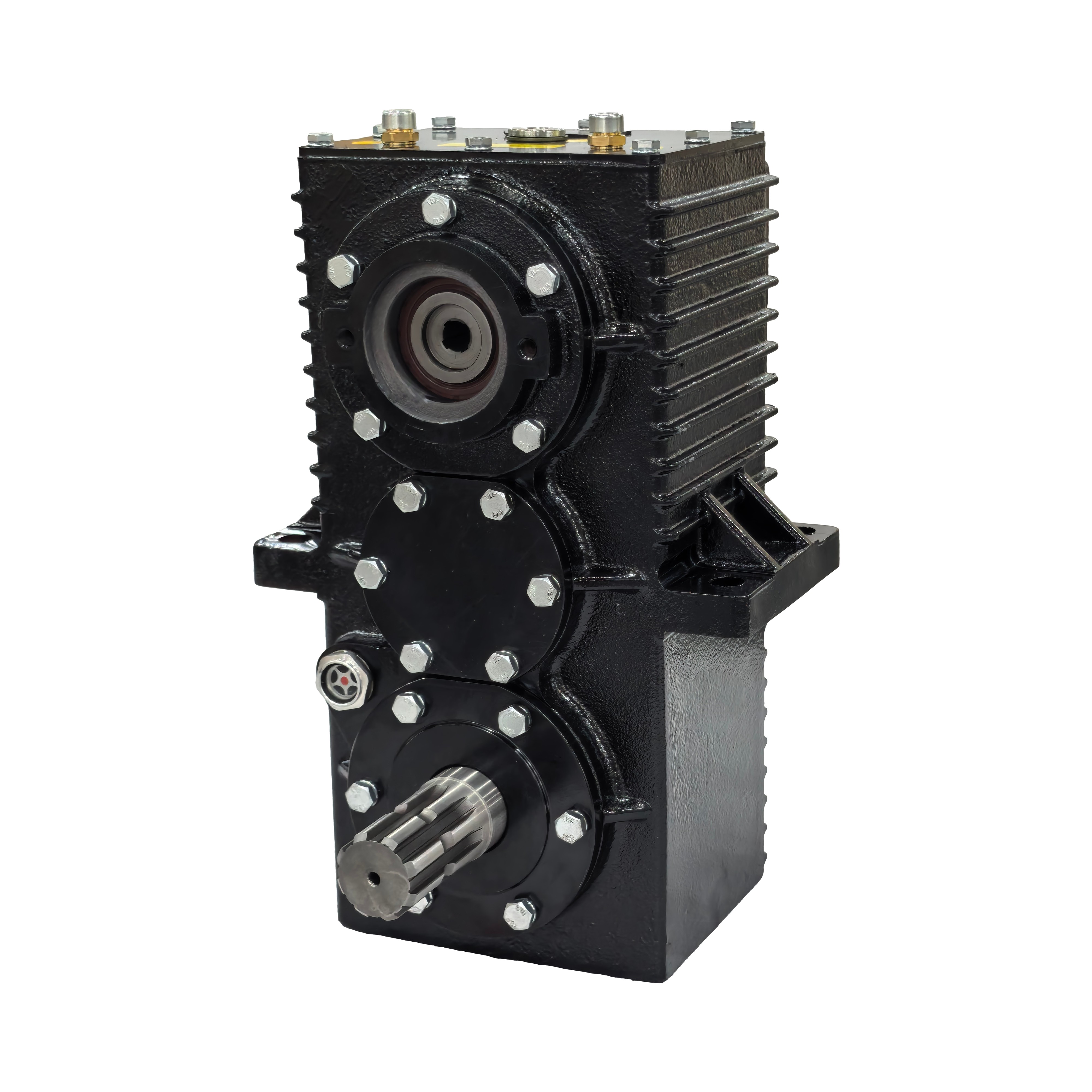

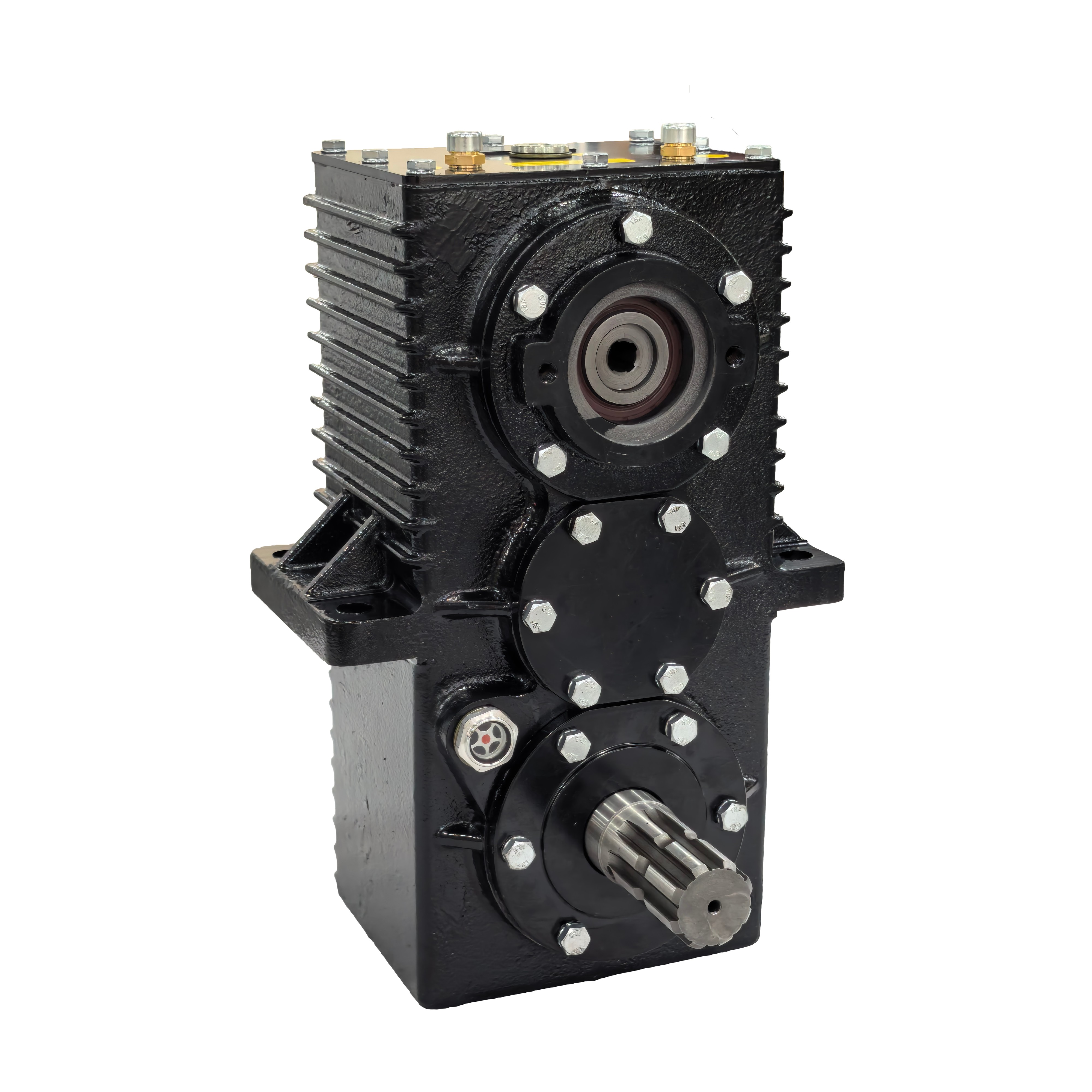

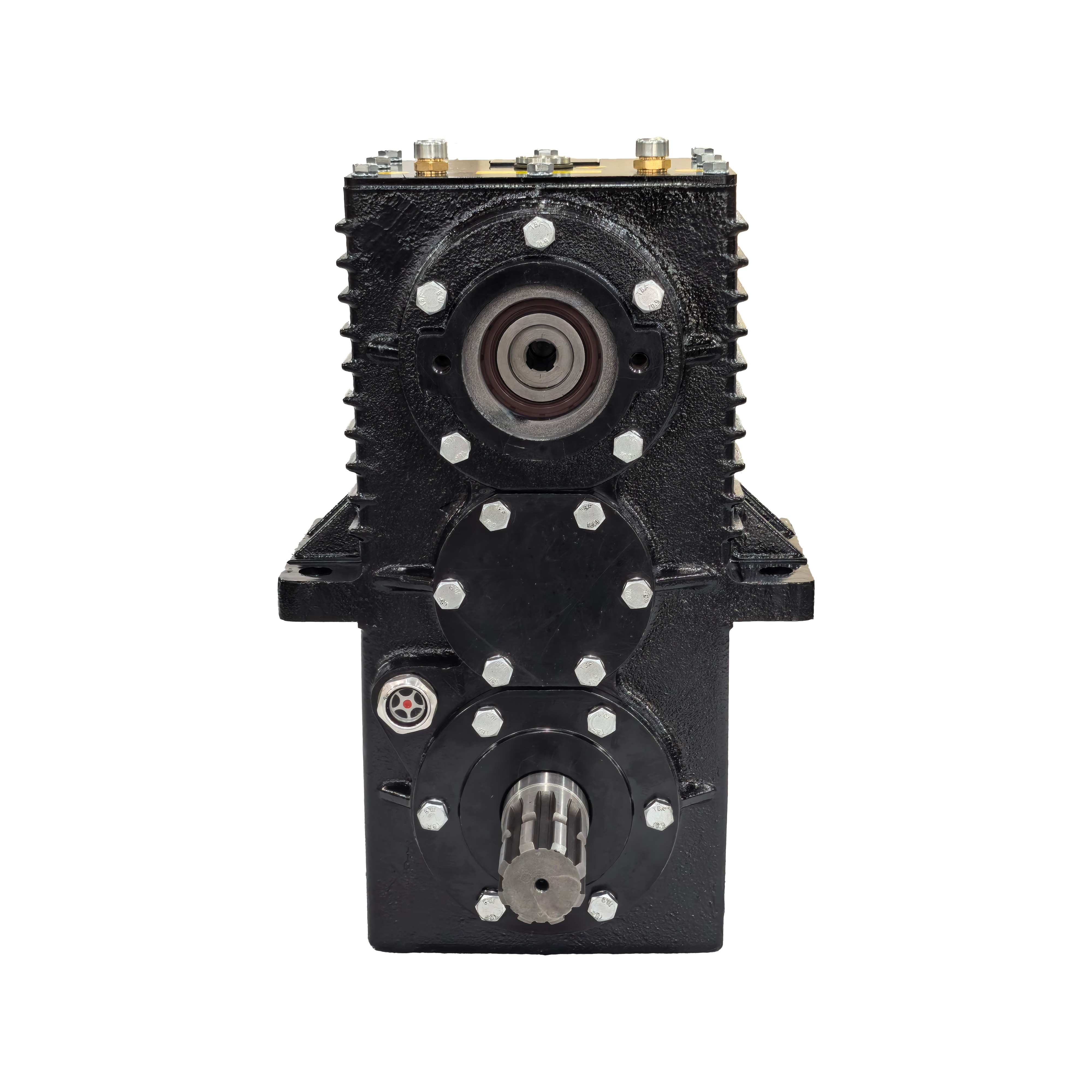

KLF-FK263 Square Dust Removal Kneading Baling Machine Vertical Gear Box

Name: KLF-FK263 Square Dust Removal Kneading Baling Machine Vertical Gear Box
Brand: KADIVA
Rating: 5.0 (88 reviews)

This gearbox is used for the tractor power input at the front of dust removal and kneading square baler. Through the gearbox, the power is transmitted to two hydraulic pumps and the crushing device. The hydraulic pump transmits hydraulic power to the other power part of the machine to complete the machine's operating requirements.
KF-FK263 has a similar range of use and is used in the design structures of different manufacturers. The advantage of this gearbox is that the front upright box and the crushing box are designed into one body, which reduces the transmission structure. It makes the equipment smaller and lighter, reducing the weight of the machine and other advantages.

Model:
KLF-FK263
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

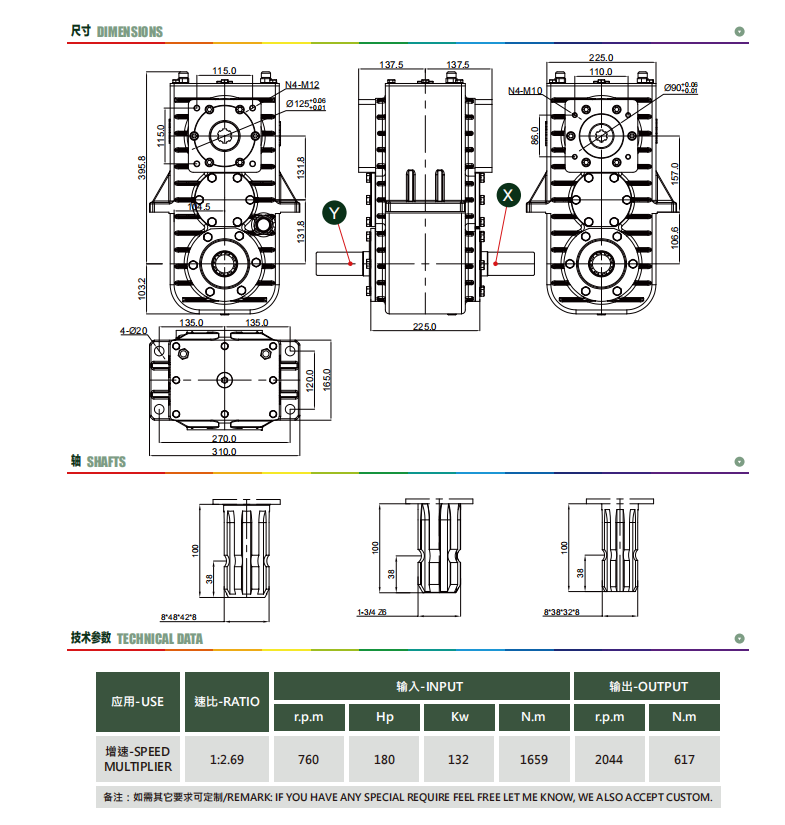

The KLF-FK263 speed multiplier features a 1:2.69 ratio, handling 132 kW (180 Hp) at 760 rpm input. It delivers 617 N·m torque at 2044 rpm output, offering reliable power transmission for heavy-duty applications. Customization is available on request.

Technical Parameters
