KLF100 cultivator gearbox features a heavy-duty cast iron housing for outstanding durability and wear resistance. It comes with a standard 2.31:1 speed reduction ratio, supporting 540 RPM input speed, 110HP/80KW power rating, 1415N.m input torque and 3265N.m output torque. Customizable specifications and direct factory sales are available, perfectly compatible with farming tillage equipment for stable and efficient long-term operation.

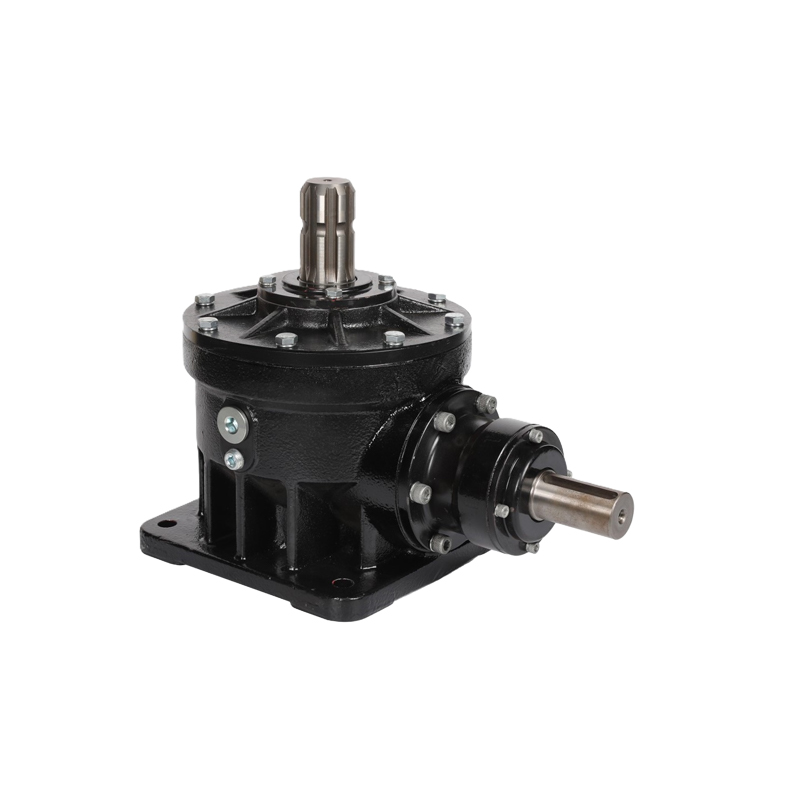

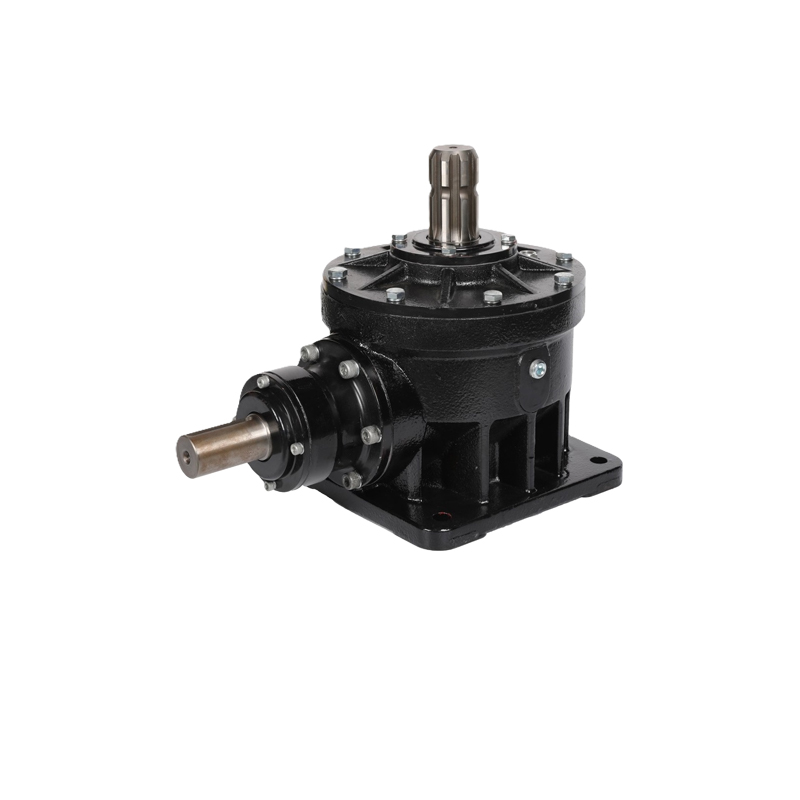

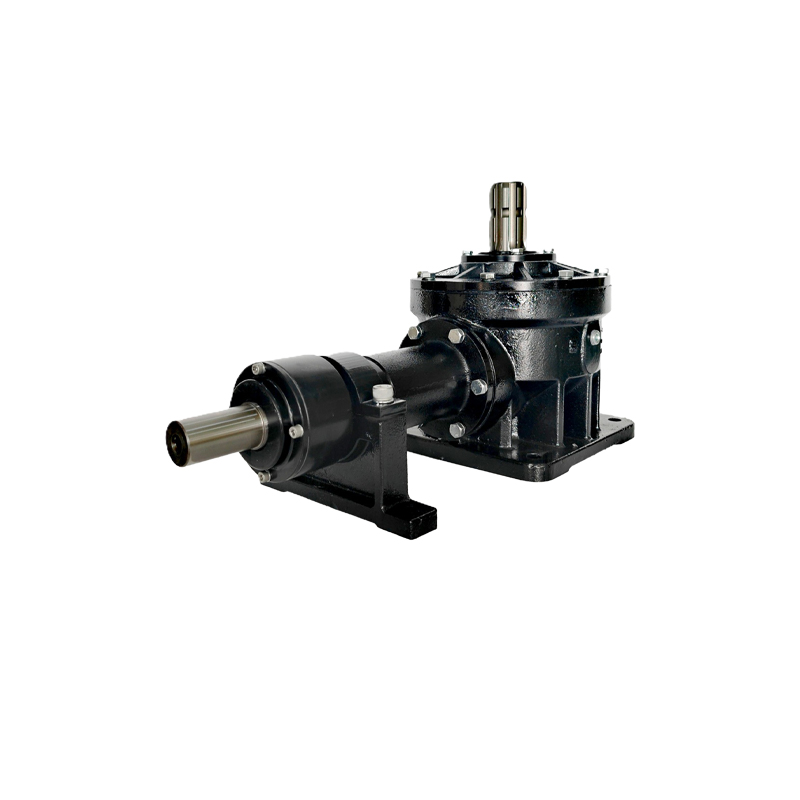

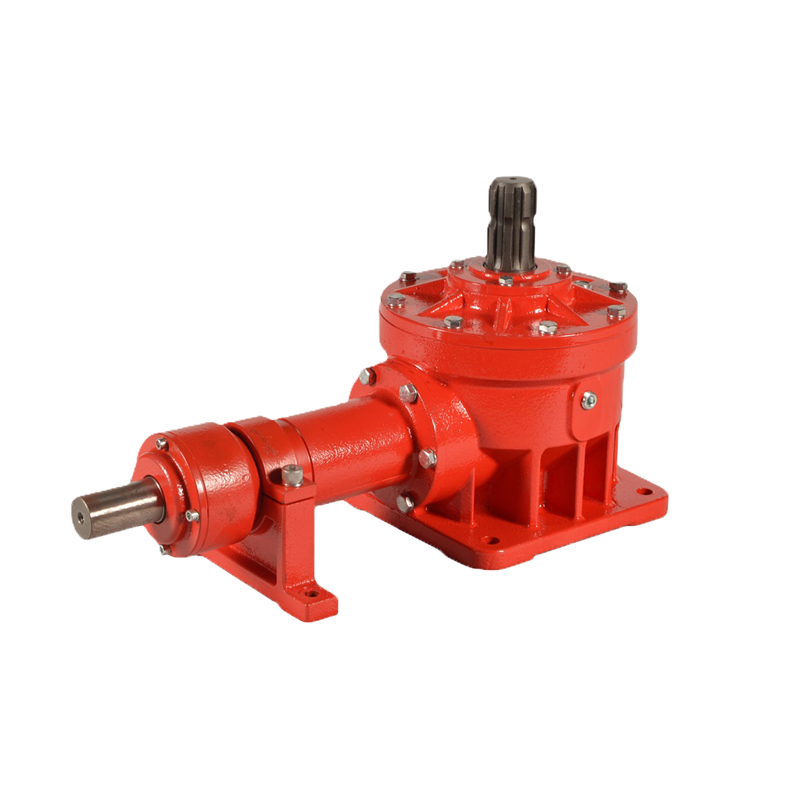

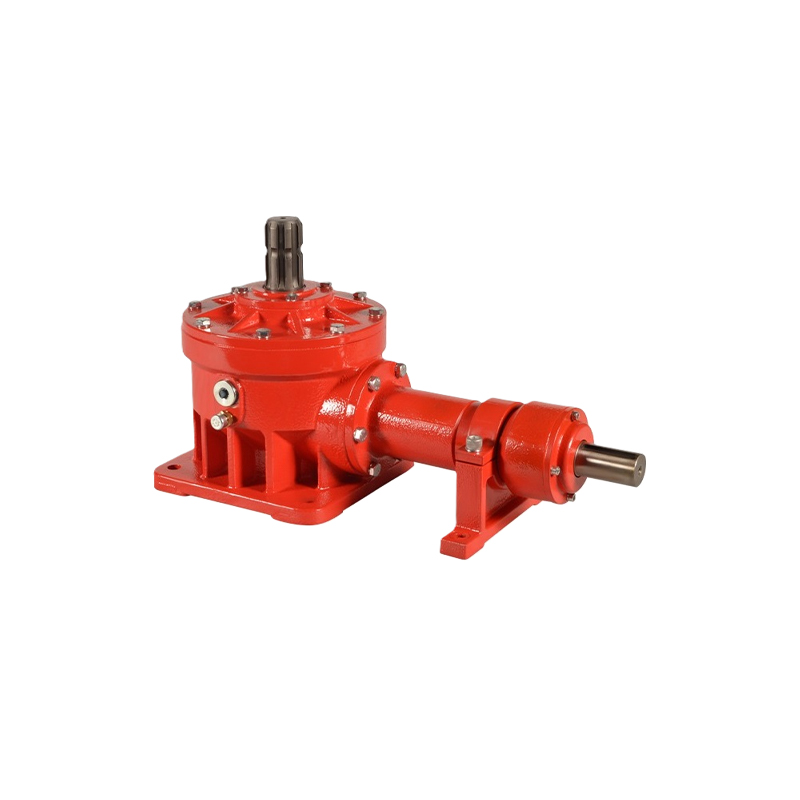

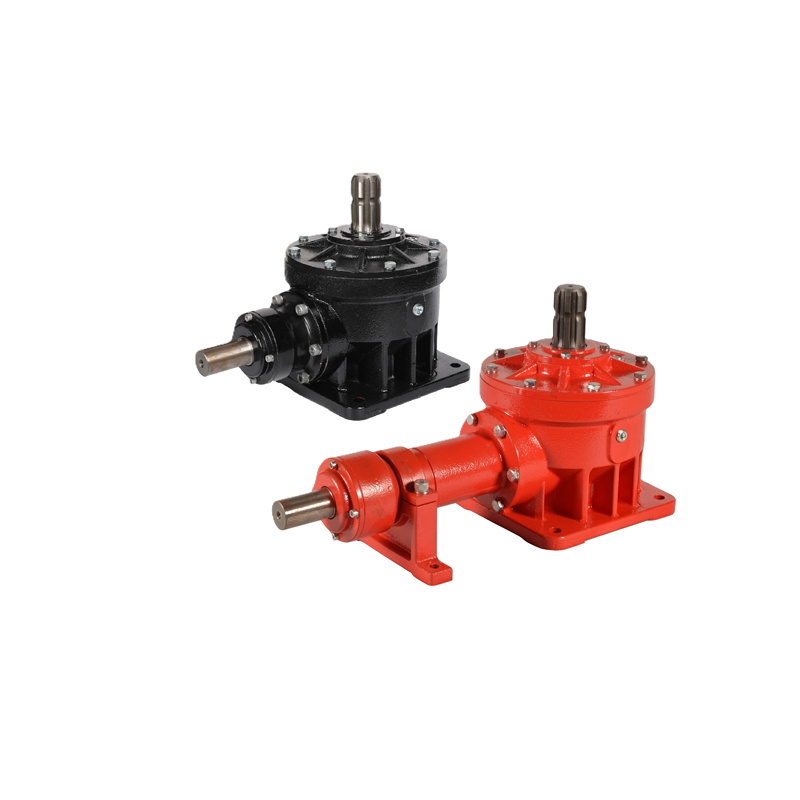

Built with thickened cast iron outer shell, this KLF100 cultivator gearbox delivers excellent shock resistance, corrosion resistance and wear resistance. The integrated casting process strengthens overall rigidity, adapting to harsh farm working environments and ensuring long service life with low maintenance frequency.
This transmission gearbox adopts standard 2.31:1 reduction gear ratio, matched with 540RPM rated input speed. With precise gear meshing design, it realizes smooth power transmission, stable running without jitter, and greatly reduces operational noise during tillage work.
Rated at 110HP/80KW power, it features 1415N.m input torque and 3265N.m high output torque. The bearing-type internal structure bears heavy load easily, perfectly meeting the demand of deep plowing and heavy-duty farming operations with strong power reserve.
We provide personalized customization on structure and parameters to fit different cultivator models. As direct factory sales, we offer reliable quality control, favorable price and complete after-sales service, bringing cost-effective purchasing experience for global buyers.
Paddy Fields and Wetland Cultivation
This gearbox is specifically designed for the high-traction, low-compaction requirements of rice paddy operations. Its anti-sinkage design provides superior stability and pull in saturated soils, preventing the tractor from getting stuck. The precise hydraulic zero-turn steering allows for efficient maneuvering on small, waterlogged plots and along field bunds, enabling complete coverage without damaging the delicate wet terrain or leaving unplanted corners.
Hillside and Sloped Terrain Farming
On uneven or sloped land, the gearbox's enhanced traction and balanced power delivery are critical for safe and stable operation. The hydraulic-driven zero-turn capability allows for agile directional changes without the need for multi-point turns, which can be hazardous on inclines. This combination enables efficient cultivation, seeding, or spraying on contoured fields, maximizing usable land while minimizing the risk of soil erosion and equipment rollover.
Smallholder and Diversified Organic Farms
For farms with mixed cropping patterns and irregularly shaped plots, this gearbox offers the versatility needed for diverse tasks. Its ability to reduce soil compaction preserves soil structure and health—a key concern in organic farming.
Product Operate Guide
Before operation, check the gearbox carefully: ensure the cast iron housing is intact, the gear oil level meets the standard, and all connections (input/output shafts) are tight without looseness.
Connect the gearbox to the cultivator and tractor correctly, align the input shaft with the tractor’s PTO shaft, and lock the fixing parts to avoid displacement during operation.
Start the tractor, adjust the input speed to 540 RPM (matching the gearbox’s rated input speed), shift to the appropriate gear, and test-run to check if the gearbox runs smoothly without abnormal noise.
During operation, maintain a stable speed, avoid overload work (do not exceed 110HP/80KW power), and stop immediately if abnormal noise, overheating or oil leakage occurs.
After operation, turn off the tractor, cut off the power supply, clean the gearbox surface, check the oil level and fasteners, and store it in a dry, ventilated place to prevent rust.
Q1: What is the main parameter of this KLF100 cultivator gearbox?

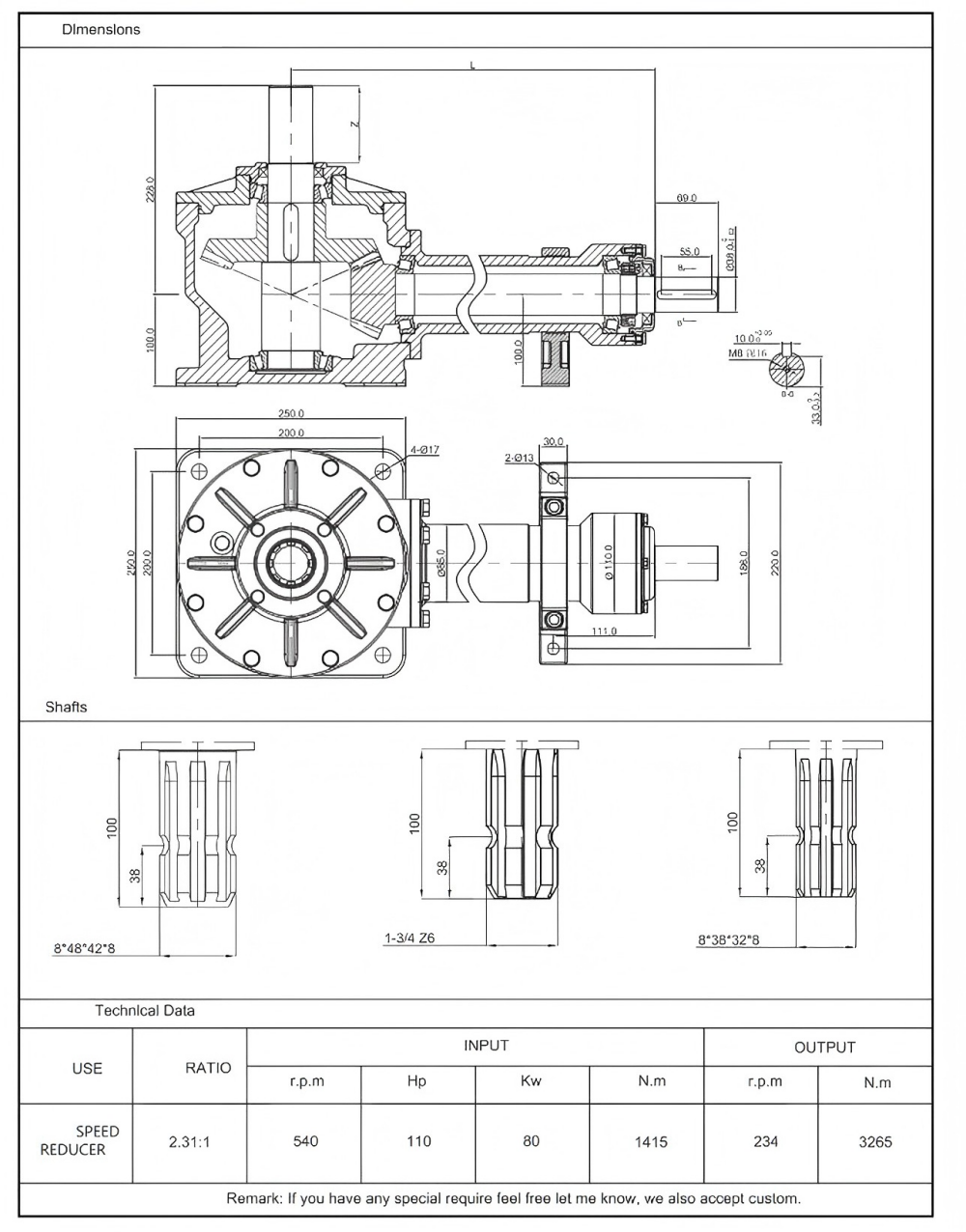

A: It features a 2.31:1 reduction ratio, 540RPM input speed, rated power 110HP/80kW, 1415N.m input torque and 3265N.m output torque. Adopting bearing type design and thick cast iron housing, it fits most farming cultivator equipment perfectly.
Q2: Is the KLF100 gearbox available for customization?
A: Yes. We support personalized customization on installation size and related specifications to match different tillage machines. As factory direct sales, we provide stable quality, competitive price and professional technical support for global customers.
Q3: What are the advantages of the cast iron housing and bearing structure?
A: The heavy-duty cast iron shell offers great shock resistance and durability for harsh farm conditions. Built-in bearing structure ensures smooth transmission, low noise, strong load capacity and long service life under long-time heavy-duty working.
