Product Introduction

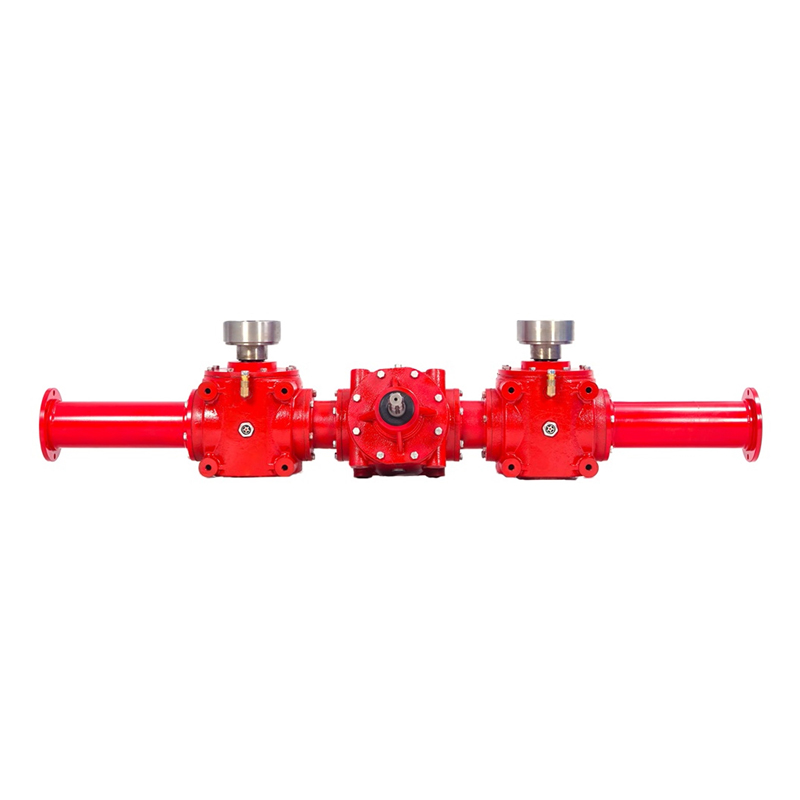

The KLF-SF230 series of auger gearboxes are designed as modular power transmission cores for modern fertilizer spreader machines. Engineered to work in seamless conjunction with other drivetrain components via a central drive shaft, these gearboxes are the key to reliable and efficient material conveyance. Available in versatile configurations—including vertical double or four-auger setups and horizontal three or four-auger arrangements—they offer tailored solutions to match different machine sizes, functional requirements, and operational scales. Built for durability and adaptability, the KLF-SF230 ensures consistent performance in diverse spreading applications.
Product Advantages & Key Features
Modular & Highly Configurable Design
The KLF-SF230 series agricultural gearbox supports multiple auger layouts, such as vertical double/four-auger and horizontal three/four-auger systems. This modularity allows seamless integration into various machine sizes and designs, offering farmers and equipment manufacturers the flexibility to customize spreading systems based on field scale, fertilizer type, and desired output.
Robust Construction for High-Torque Applications
Constructed with high-strength cast iron housing and precision-hardened helical gears, the KLF-SF230 spreader gearbox is built to withstand continuous high-torque demands. The gearbox is rated for a maximum input torque of 450 Nm and operates efficiently under heavy loads, reducing the risk of failure during peak spreading seasons.
Enhanced Sealing for Harsh Operating Conditions
To combat the abrasive and corrosive nature of fertilizers, the KLF-SF230 is equipped with triple-lip seals combined with optional dust-and-moisture-resistant labyrinth seals on all rotating shafts. The housing is coated with anti-corrosion paint, and the internal cavity is pre-lubricated with high-performance, water-resistant grease—sufficient for up to 400 hours of operation without maintenance. This sealing system ensures long-term reliability even in dusty, humid, or chemically aggressive environments.

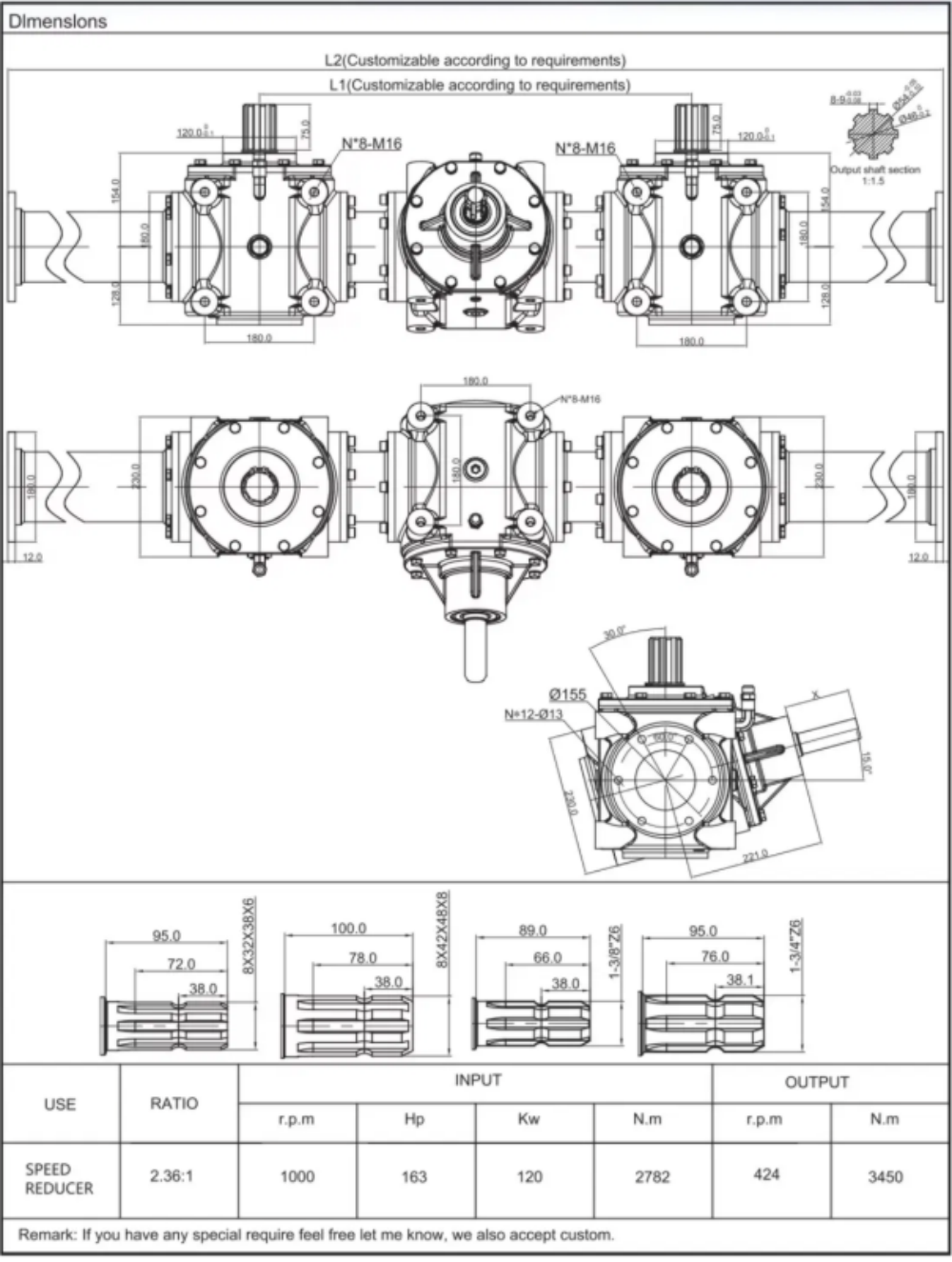

Technical Parameters
Product Uses
Application Scenarios:
High-Capacity Field Application with Horizontal Augers
For large-scale, tractor-pulled bulk spreaders, the horizontal three or four-auger configurations are ideal. Positioned at the bottom of a wide hopper, these gearboxes work in unison to move large volumes of granular fertilizer or lime evenly toward the spreading discs. This setup ensures consistent feed rates across wide working widths, making it perfect for fertilizing extensive fields, pastures, or preparing large plots for seeding.
Vertical Auger Systems for Precise Placement
In specialized spreaders or truck-mounted systems designed for roadside verges, orchards, or vineyards, vertical double or four-auger configurations excel. They lift material vertically from a lower hopper or truck bed to an elevated spreading outlet. This allows for precise, localized application and is particularly effective for spreading fertilizer in row crops or areas where horizontal space is limited, minimizing waste and improving accuracy.
Multi-Compartment Blending and Spreading Operations
The linked design of the KLF-SF230 series makes it suitable for spreaders with multiple compartments. Different gearbox units can be configured to independently control augers moving different materials from separate hopper sections into a central mixing chamber or directly to separate spreading mechanisms.
Product Operate Guide
For safe and efficient operation, please follow these key steps:
Configuration Check
Before operation, confirm your auger layout (e.g., vertical double, horizontal four) and ensure all gearboxes are correctly linked via the drive shaft according to the configuration diagram.
Power Connection & Start-up
Securely connect the main drive shaft to the power source. Always start the system at a low RPM to allow all linked gearboxes and augers to engage smoothly, preventing shock loads.
In-Use Monitoring
During initial operation, listen for unusual noises and monitor for excessive vibration, which may indicate misalignment or obstruction.
Shutdown & Cleaning
After use, completely clear the augers and gearboxes of residual fertilizer to prevent caking and corrosion, ensuring readiness for next use.
FAQ
Q1:Are you trading company or manufacturer?
A : We are manufacturer with more than 20 years production and technology experiences.
Q2:Can you supply the sample?
A :After confirmation, you can order samples to check the quality. We will charge the sample cost.
Q3:What is your payment terms?
A:T/T 30% as deposit, 70% balance before shipment.
Q4:How long is your delivery time?
A :Generally ship out within 40-50days after receive order and deposit. The time may vary depending on the product and the level of customization.
