Product Introduction
This product is used for the hydraulic drive gearbox of the Seeder Machine, which varies according to the use occasion. There are different models, namely: 8 cubic, 12 cubic, 20 cubic, 50 cubic, etc., and the traction methods also include self-made models and tractor-pulled models. Depending on the model, the size of the hydraulic drive gearbox is also different. The gearbox transmits different power inputs to the hydraulic drive motor to drive the conveyor connecting plate. Transport organic fertilizer and spread it to the fields through augers to increase land nutrition.
Product Advantages & Key Features
Authentic German-Origin Design with Proven Reliability
KLF-SF11 gearbox for Amazone spreader is not a reverse-engineered imitation but a precise execution of the original Amazone gearbox design. This guarantees perfect dimensional fitment, mounting point alignment, and power interface compatibility with your existing spreader.
Optimized for High-Torque, High-Cycle Duty in Tractor-Pulled Systems
Specifically designed for the demanding environment of tractor-pulled fertilizer spreading, this gearbox excels in transmitting high torque from the PTO to the spreading discs. The robust housing, constructed from high-grade cast iron, provides exceptional resistance to shock loads and vibration, ensuring smooth power delivery even on uneven terrain.
Sealed & Lubricated for Maximum Uptime in Harsh Environments
Understanding the corrosive nature of fertilizers and the dusty field conditions, the KLF-SF11 features a superior multi-layered sealing system. This includes high-performance lip seals and optional labyrinth seals on input and output shafts, effectively preventing contaminants from entering and retaining grease. Pre-filled with premium lithium-complex extreme pressure grease, the gearbox is maintenance-free for over 500 hours of operation, maximizing your machine's availability during critical spreading seasons.

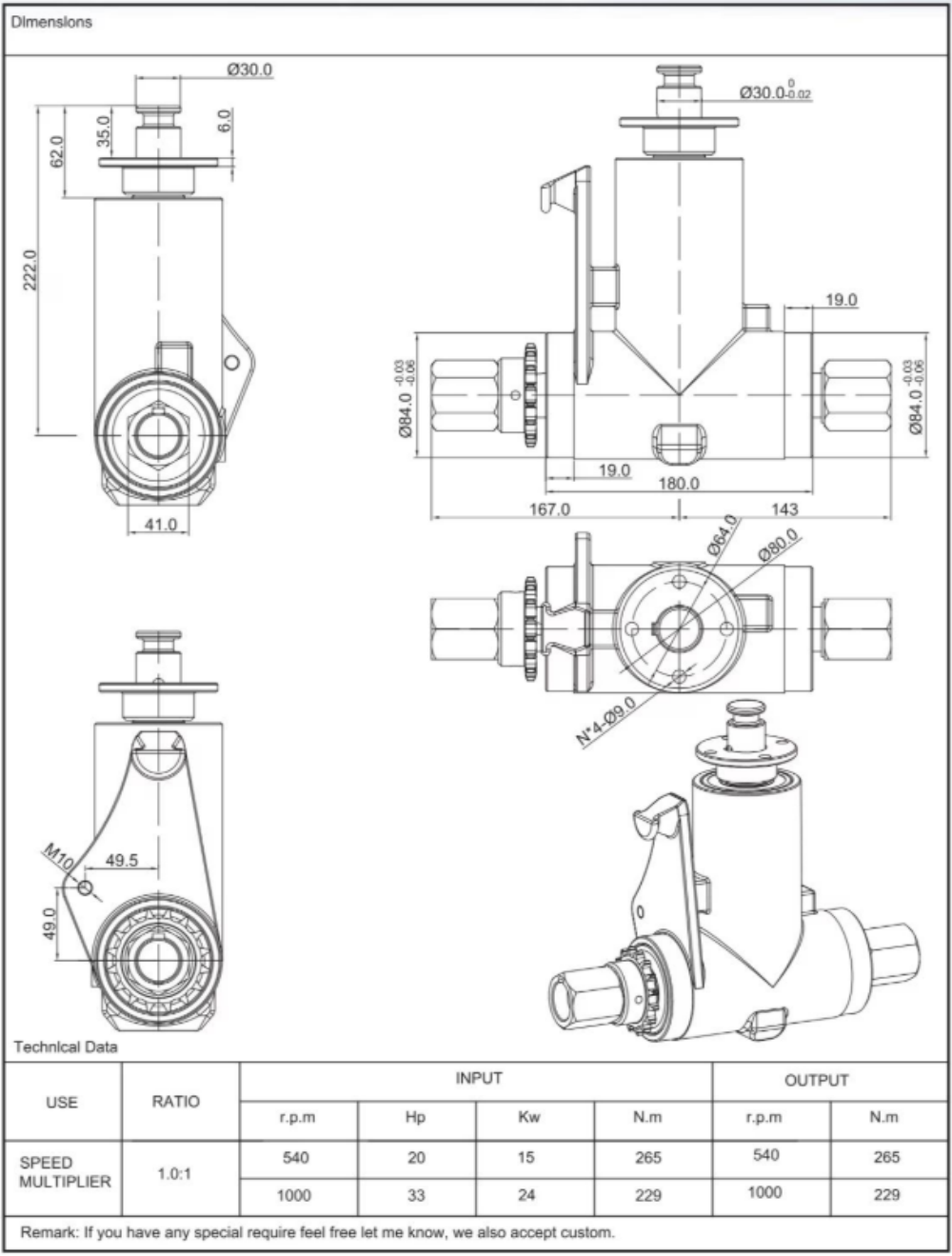

Technical Parameters
Product Uses
High-Volume Broadcast Spreading on Large-Scale Farms
The KLF-SF11 spreader gearbox is the ideal drive solution for large-scale arable farms covering hundreds of acres. Its high-torque capacity and robust construction enable efficient and reliable operation with high-capacity fertilizer spreaders.
Precision Nutrient Management in Variable-Rate Application Systems
For modern precision farming operations utilizing tractor-pulled spreaders with Variable Rate Technology, the consistent and responsive power transmission of the KLF-SF11 is critical. Its precise engineering ensures immediate torque response to controller signals, allowing for accurate on-the-go adjustment of application rates based on GPS field maps. This enables targeted fertilization, optimizing input costs and crop yield potential across varied soil zones within a single field.
Fertilizer Application in Challenging and Uneven Terrain
Orchards, vineyards, and rolling pastures present challenging terrain with slopes and uneven ground. The gearbox's hardened gearing and shock-resistant housing are specifically suited for these conditions. It maintains smooth power delivery to the spreading discs despite constant variations in load and vibration, preventing hiccups in material flow and ensuring uniform coverage even on contoured land, thereby supporting soil health in perennial crop systems and livestock farms.
Product Operate Guide
For safe and efficient operation of your KLF-SF11 fertilizer gearbox, please follow these key steps:
Pre-Operation Check
Before each use, visually inspect the gearbox for any damage or oil leaks. Ensure all mounting bolts are securely tightened.
Connection & PTO Engagement
Correctly connect the gearbox to the tractor's PTO shaft. Always start the PTO at a low engine RPM while the tractor is stationary to avoid shock loads.
In-Field Operation
Begin spreading at a moderate speed, allowing the gearbox and spreader discs to reach operating speed smoothly. Avoid sudden starts and stops.
Post-Use Cleaning
After operation, clean the exterior of the gearbox to remove accumulated fertilizer and debris, which helps prevent corrosion and allows for easier inspection.
FAQ
Q1:Are you trading company or manufacturer?
A : We are manufacturer with more than 20 years production and technology experiences.
Q2:Can you supply the sample?
A :After confirmation, you can order samples to check the quality. We will charge the sample cost.
Q3:What is your payment terms?
A:T/T 30% as deposit, 70% balance before shipment.
Q4:How long is your delivery time?
A :Generally ship out within 40-50days after receive order and deposit. The time may vary depending on the product and the level of customization.
