Product Introduction

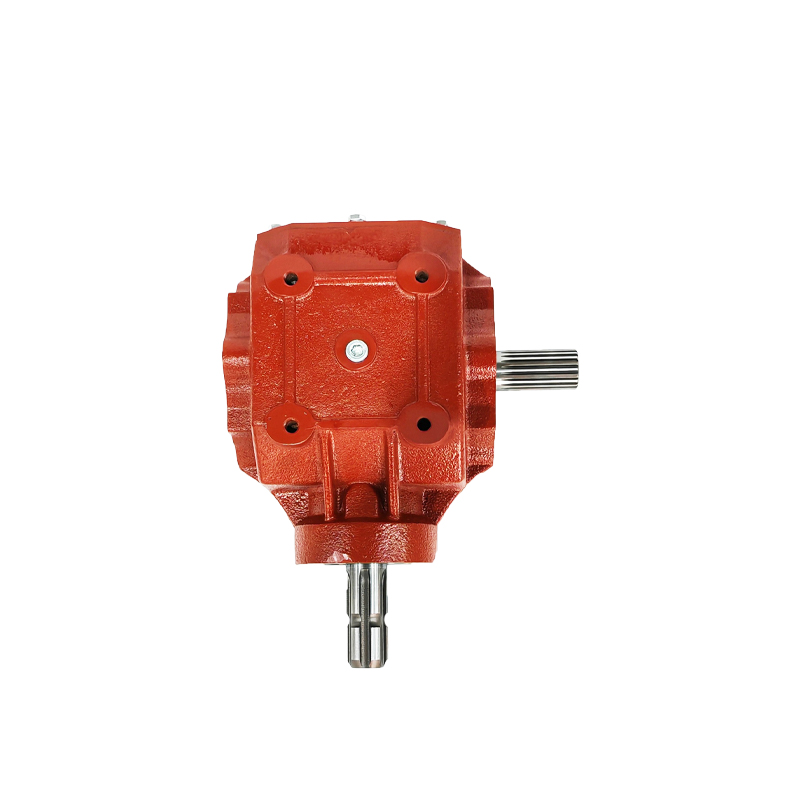

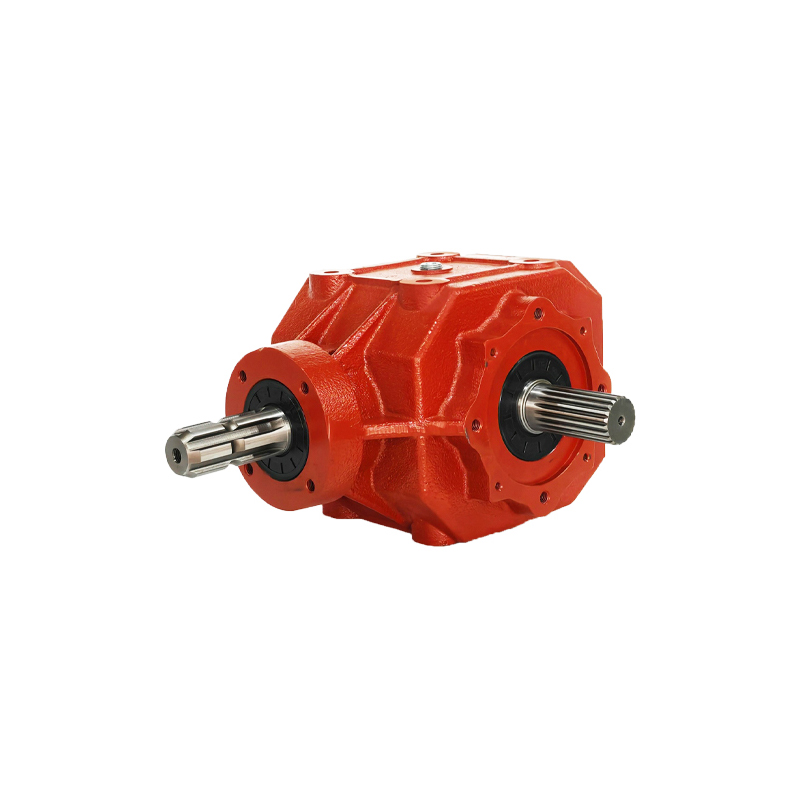

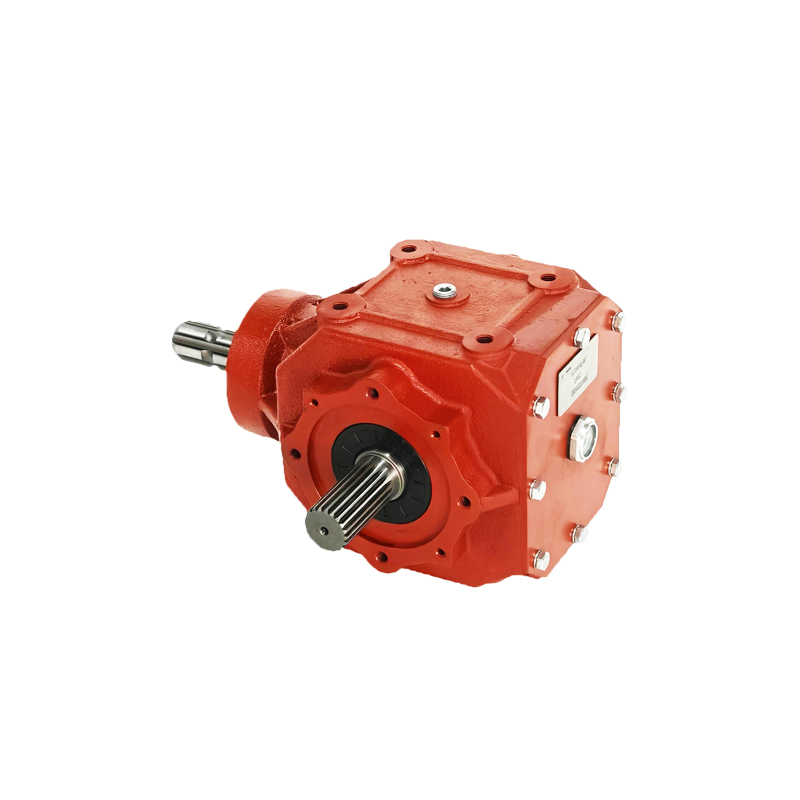

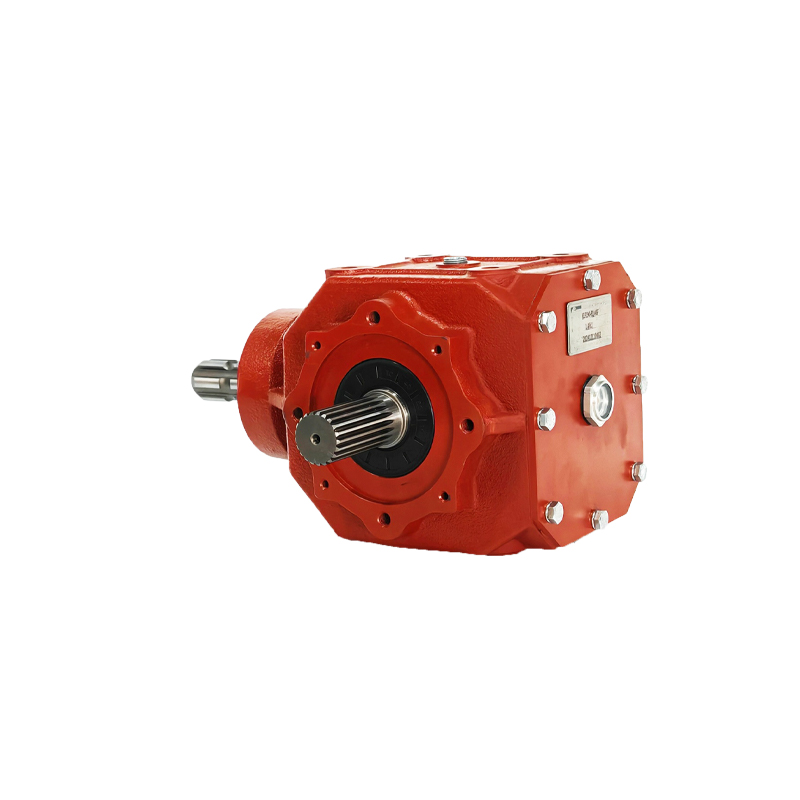

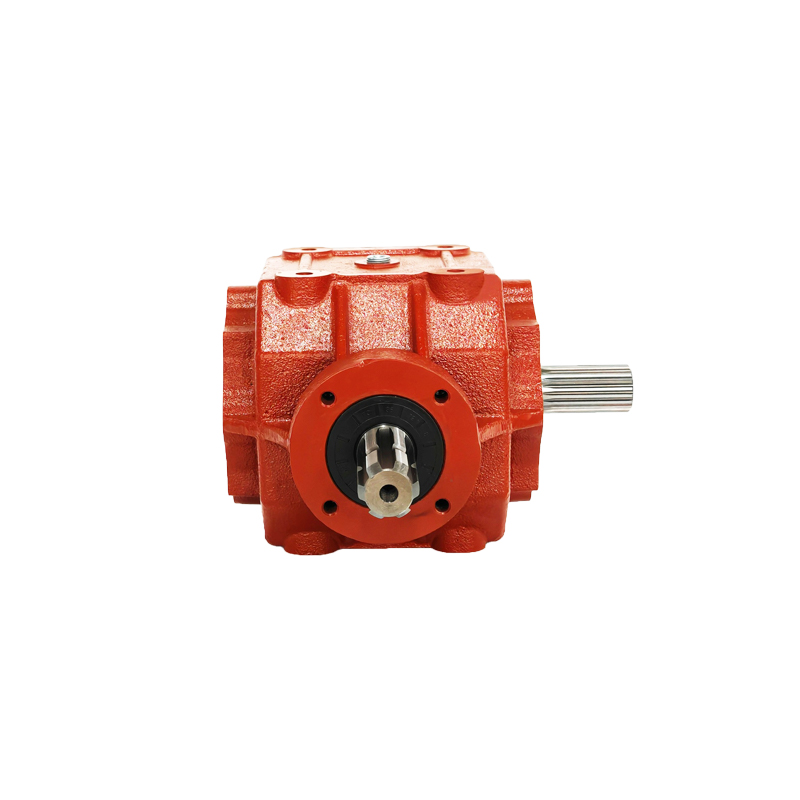

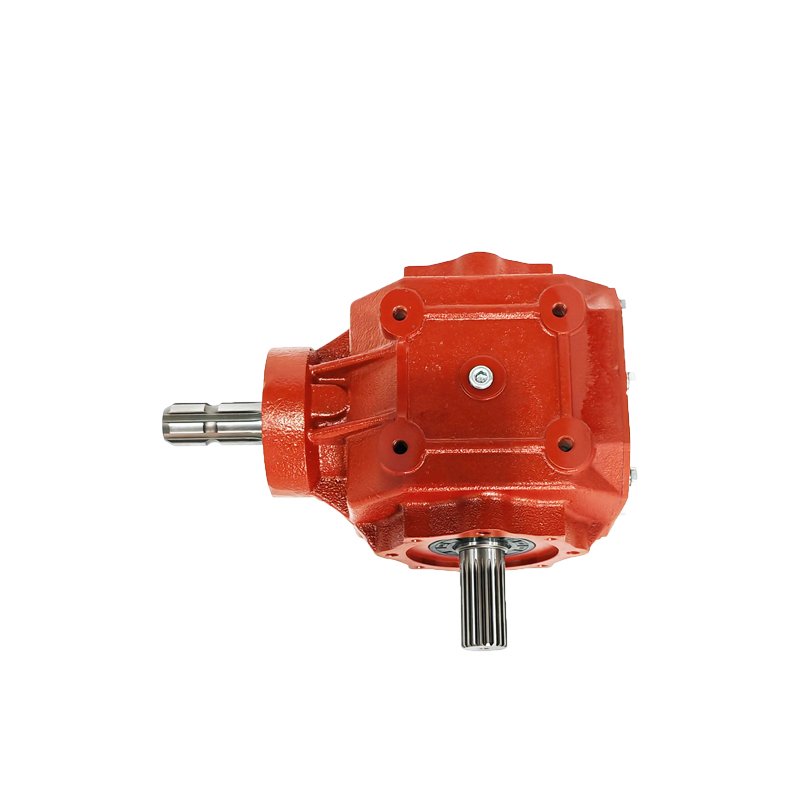

Designed for use in through-shaft rotary tillers and beaters, the KLF190 main transmission gearbox adopts European and American design concepts to ensure reliable power transfer from the main gearbox to the side gearbox, ultimately driving the cutter shaft for efficient soil tillage. Its split welded-pipe and half-shaft construction allows for straightforward maintenance and replacement, with no length-related design limitations. To improve durability, one flange end incorporates an imported maintenance-free bearing, while the enclosed welded-pipe housing around the transmission half-shaft provides added safety and a streamlined appearance.
Product Advantage
Robust Power Transmission with Euro-American Engineering Standards
The KLF190 agricultural gearbox implements proven European and American transmission system designs, ensuring over 95% mechanical efficiency in power transfer from the main to the side gearbox. Its hardened helical gear system is rated for continuous high-torque operation up to 580 Nm. This engineering precision results in reliable tilling depth control and uniform soil fragmentation across all working conditions.
Modular Maintenance-Friendly Split Structure
Featuring an innovative split welded-pipe and half-shaft assembly, this design reduces typical maintenance downtime by approximately 40%. Individual components can be replaced without disassembling the entire transmission system, and the modular construction eliminates length constraints that traditionally limit implement design flexibility.
Safety-Enhanced Enclosed Transmission Design
By encapsulating the rotating half-shaft within a structural welded pipe, the design achieves dual safety and aesthetic benefits. This protective housing prevents accidental contact with moving parts while effectively containing potential mechanical failures.

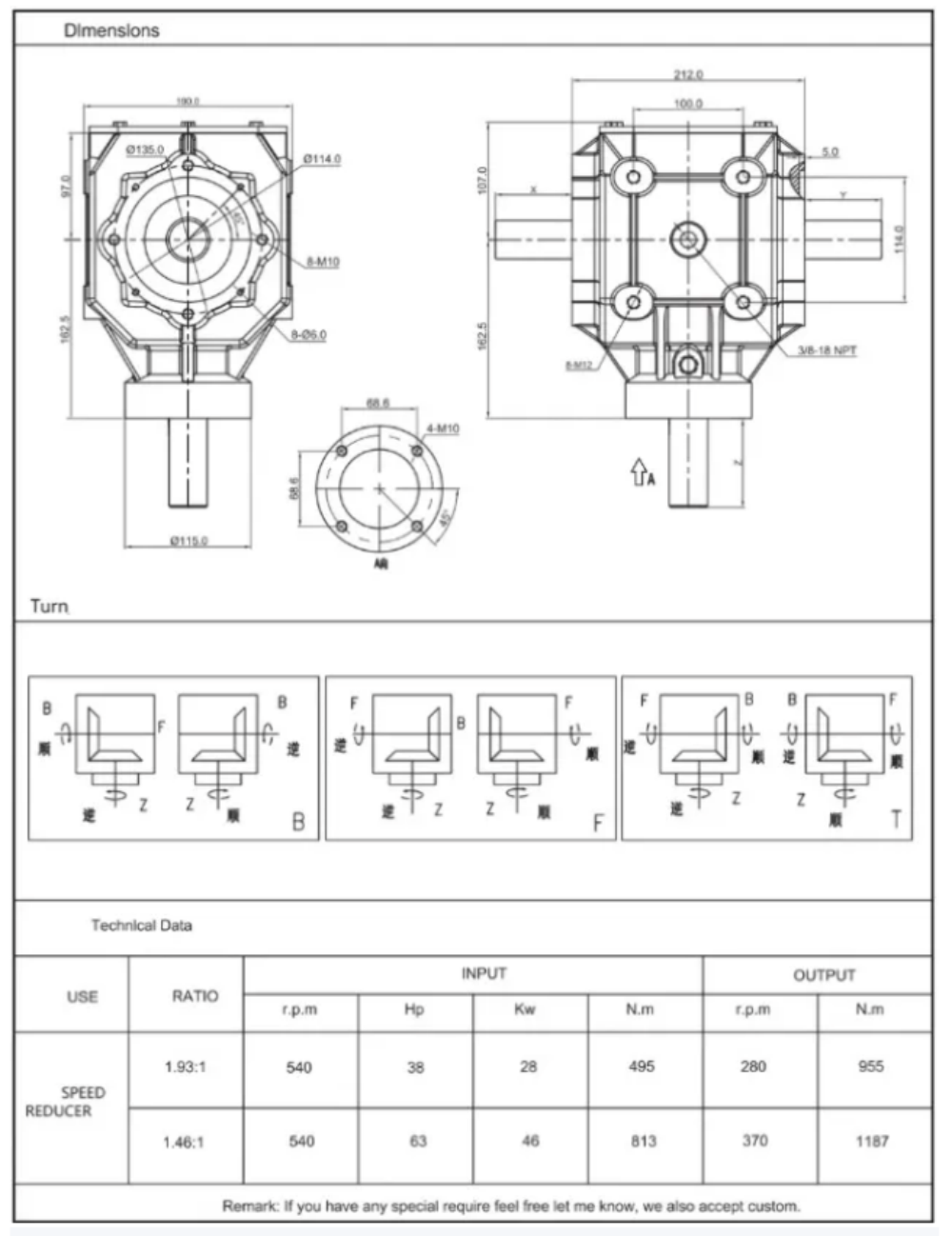

Technical Parameters
Product Uses
Main Transmission for Through-Shaft Rotary Cultivators & Tillers
This cultivator gearbox serves as the core transmission unit in through-shaft rotary tillers. Its robust power transmission ensures the cutter shaft maintains consistent rotation under high-torque demands, which is critical for effective deep tillage and soil fragmentation in tough or stony ground. The enclosed design protects internal components from soil and debris, making it exceptionally reliable for primary and secondary tillage operations.
Versatile Power Module for Multi-Functional Implements
Due to its modular and length-flexible design, this rake gearbox is ideal for integration into various multi-functional attachments beyond standard tillers. It can efficiently drive the working components of power harrows, seedbed combiners, and straw mixers. This flexibility allows farmers to use one power unit across different seasons and tasks, enhancing equipment utilization and return on investment.
Core Component for Custom-Built or Adapted Machinery
The design’s freedom from traditional length constraints and its modular split structure make this gearbox perfect for OEMs and workshops building or adapting specialized machinery. It can be configured as a multi-speed agricultural gearbox for applications requiring variable output speeds, such as in experimental plots, vineyard cultivators, or custom-designed soil preparation equipment for unique crops and terrains.
Product Operate Guide
This gearbox is designed for robust and versatile performance. Before operation, ensure all bolts are securely fastened and proper lubrication is applied. For Through-Shaft Rotary Tillers, connect the PTO shaft and ensure the gearbox is correctly aligned with the cutter shaft. Start at a low speed to check for smooth rotation and unusual noise before proceeding to full power.
For Multi-Functional Implements or Custom Machinery, verify the input/output configuration matches your implement's requirements. Always operate within the specified torque and RPM limits provided in the technical sheet. Perform a brief visual inspection before each use for any leaks or damage.
FAQ
Q1:Are you trading company or manufacturer?
A : We are manufacturer with more than 20 years production and technology experiences.
Q2:Can you supply the sample?
A :After confirmation, you can order samples to check the quality. We will charge the sample cost.
Q3:What is your payment terms?
A:T/T 30% as deposit, 70% balance before shipment.
Q4:How long is your delivery time?
A :Generally ship out within 40-50days after receive order and deposit. The time may vary depending on the product and the level of customization.
