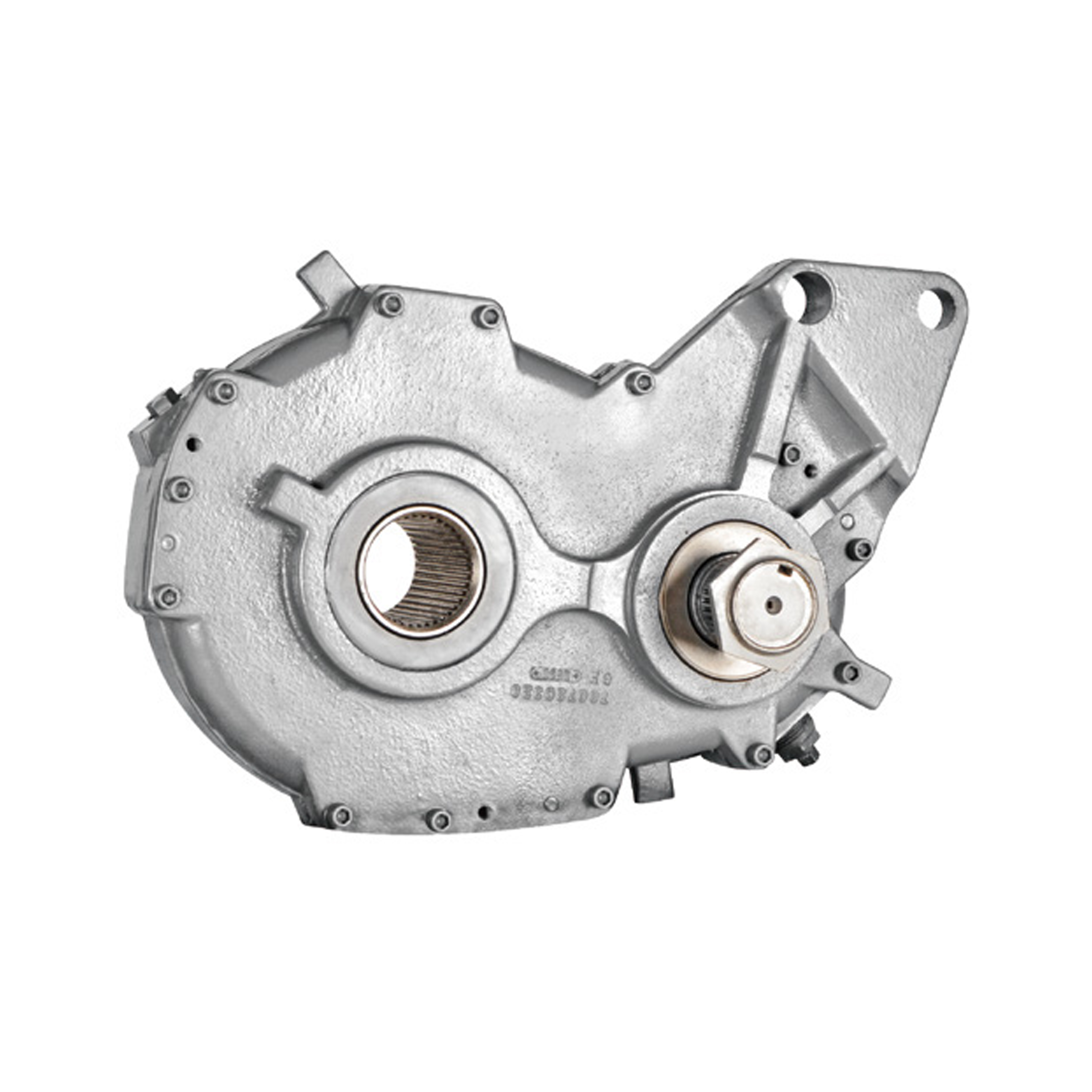

KLF-DFK45 Six Rope Large Square Baler Picking Up Transmission Box
You are here: Home » Products » Agricultural Gearboxes » Square Baler Gearbox » KLF-DFK45 Six Rope Large Square Baler Picking Up Transmission Box
KLF-DFK45 Six Rope Large Square Baler Picking Up Transmission Box
KLF-DFK45 Six Rope Large Square Baler Picking Up Transmission Box KLF-DFK45 Six Rope Large Square Baler Picking Up Transmission Box

loading

KLF-DFK45 Six Rope Large Square Baler Picking Up Transmission Box

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
This gearbox acts as the core transmission unit for six-rope large square balers. It delivers power to the half shaft, which is further connected to the pickup drive box. Its optimized structure greatly boosts transmission torque and extends service life. Replacing traditional chain drive, it eliminates drawbacks including insufficient lubrication and short lifespan, delivering more stable and reliable overall performance.
  • KLF-DFK45

  • KADIVA

Availability:
Quantity:

Product Introduction

The KLF-DFK45 speed reducer features a 2.10:1 ratio, handling 45 kW (60 Hp) at 1000 rpm input. It delivers 903 N·m torque at 476 rpm output, built with precision engineering for consistent, durable performance. Tailored customization is available to suit your specific operational needs.

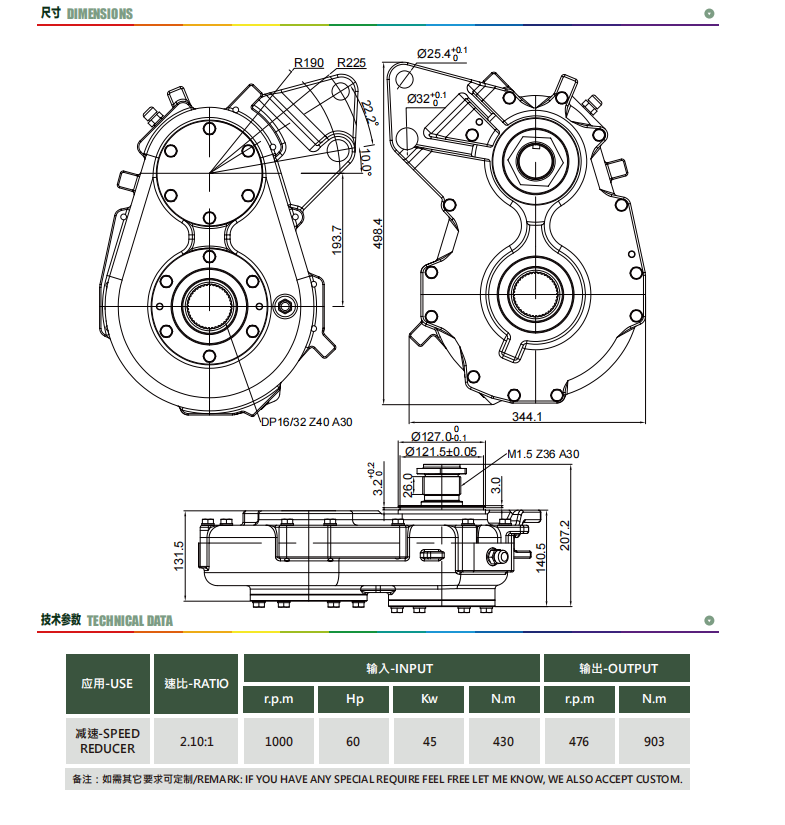

Technical Parameters


Service

Our goal is to work closely with partners to help customers achieve greater success in multiple fields.

Logistics and Delivery Services

We collaborate with reliable logistics partners to provide efficient logistics and delivery services.

After Sales Service

We provide comprehensive after-sales service, providing product return and exchange services.

Technical Support

We have a professional technical team that can provide technical consultation and support to customers.

Quality Control and Analysis

We have advanced laboratory facilities and quality control systems to ensure product quality and compliance.

微信图片_20250924175614_381_56

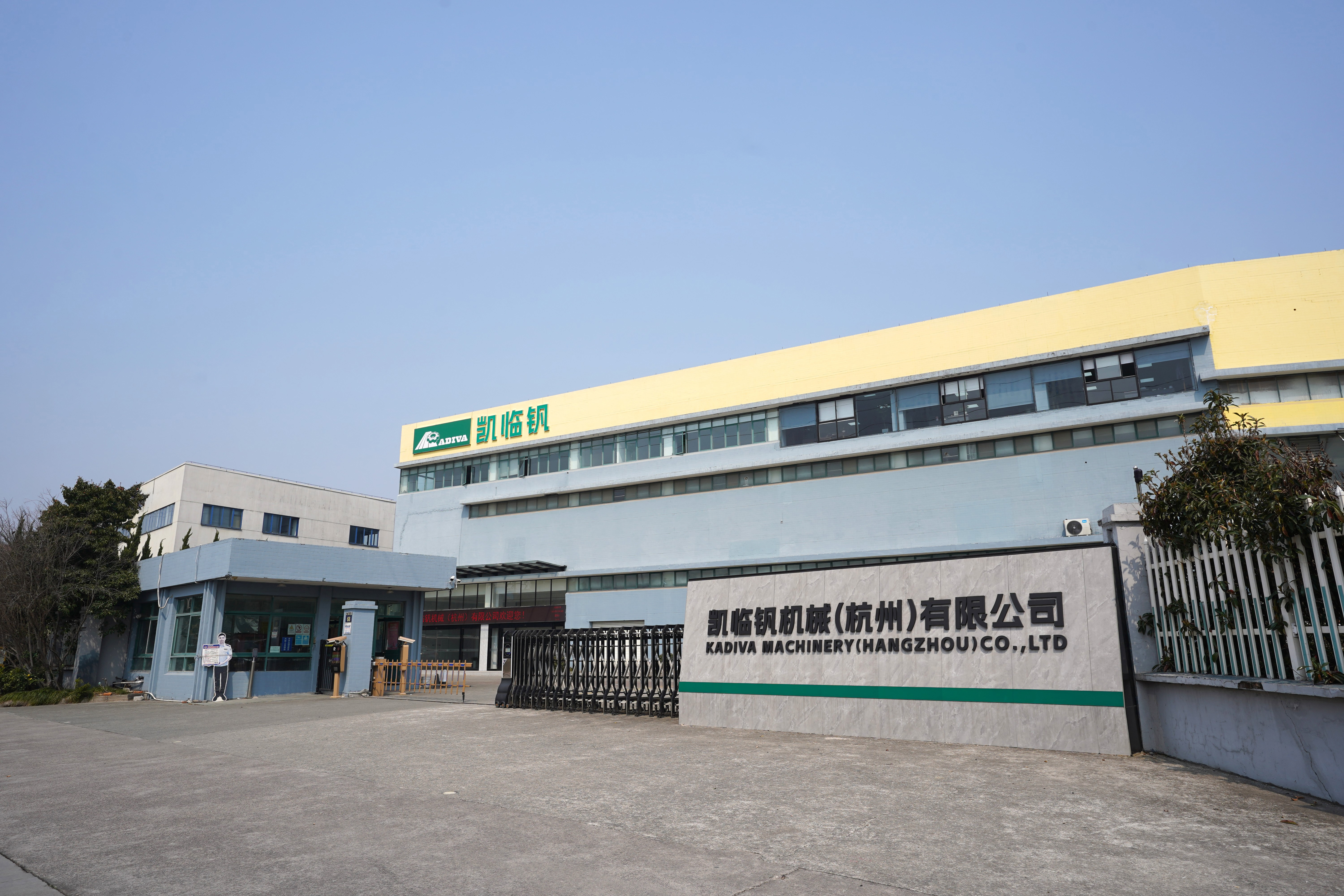

Welcome to Book Your Factory Tour

Our company is located in Xiaoshan District, Hangzhou City, Zhejiang Province, China. It takes less than 30 minutes to reach us from both the high-speed railway station and the airport. Please feel free to contact us to book a factory tour.


FAQ

Can I order a sample first for testing?

We support sample orders for quality verification. Please tell me the specific model you need, and I will confirm the sample price and lead time for you.

What types of gearboxes do you offer?

From which port do you ship?

What is the lead time?
