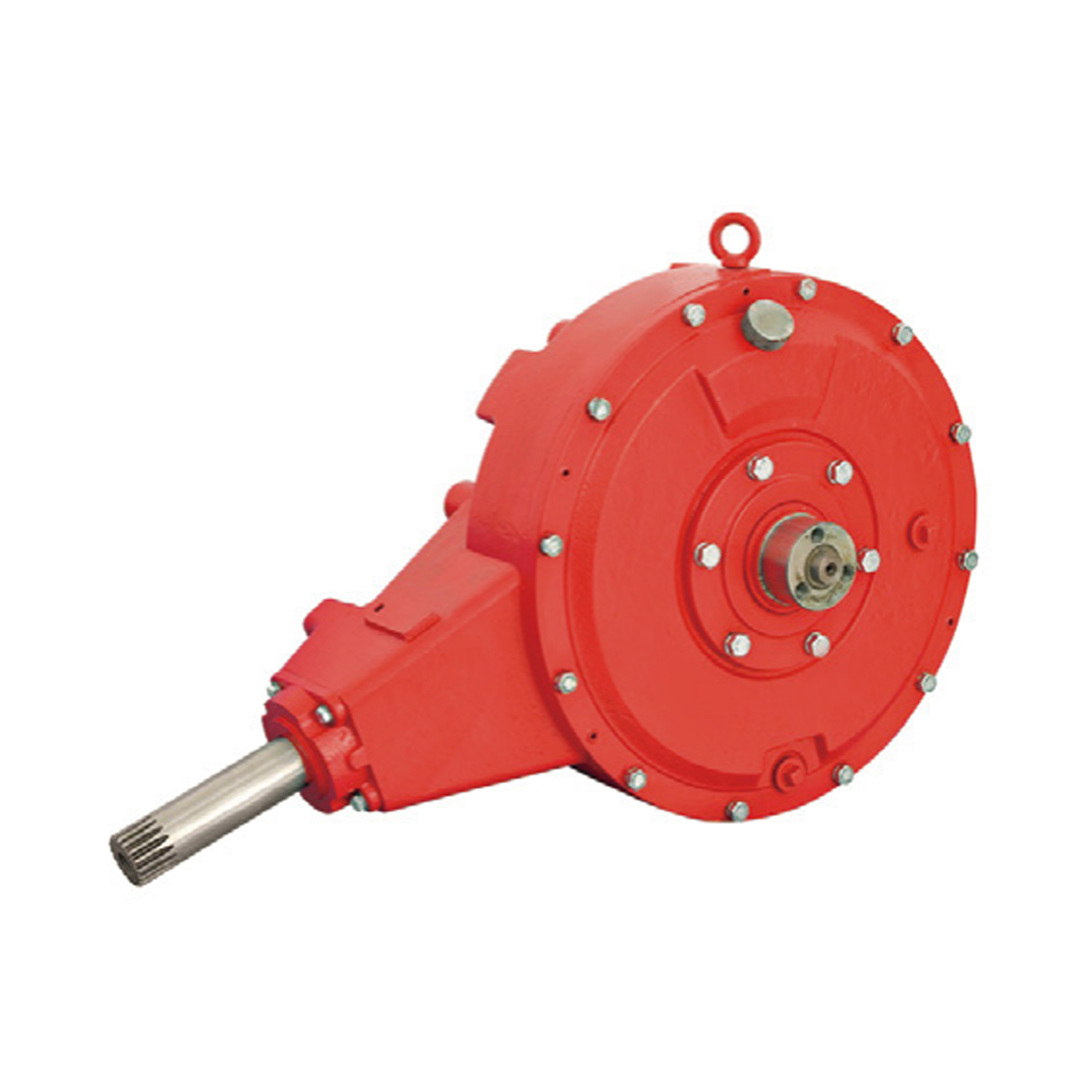

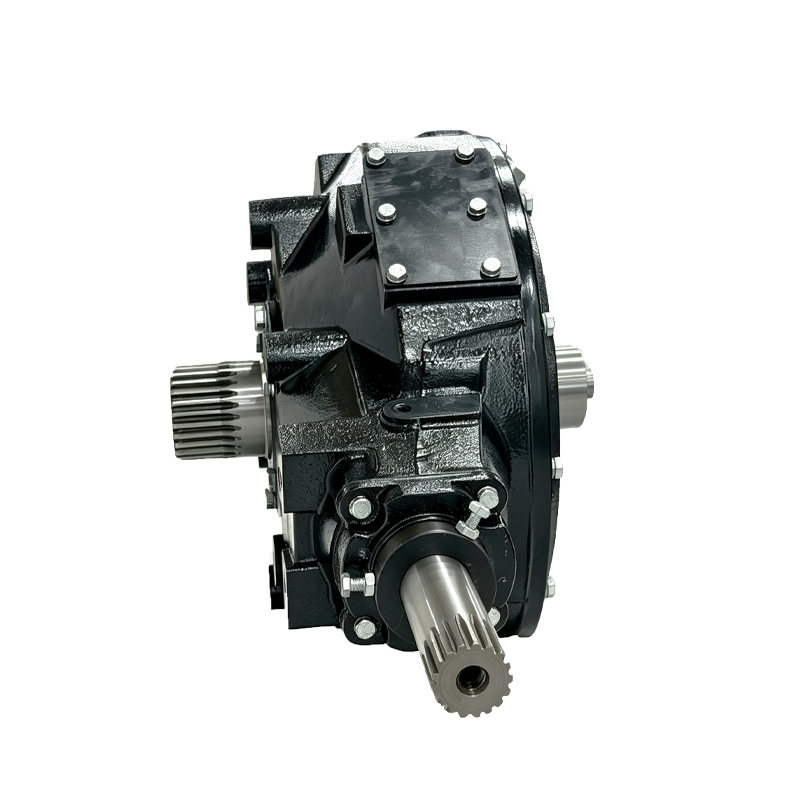

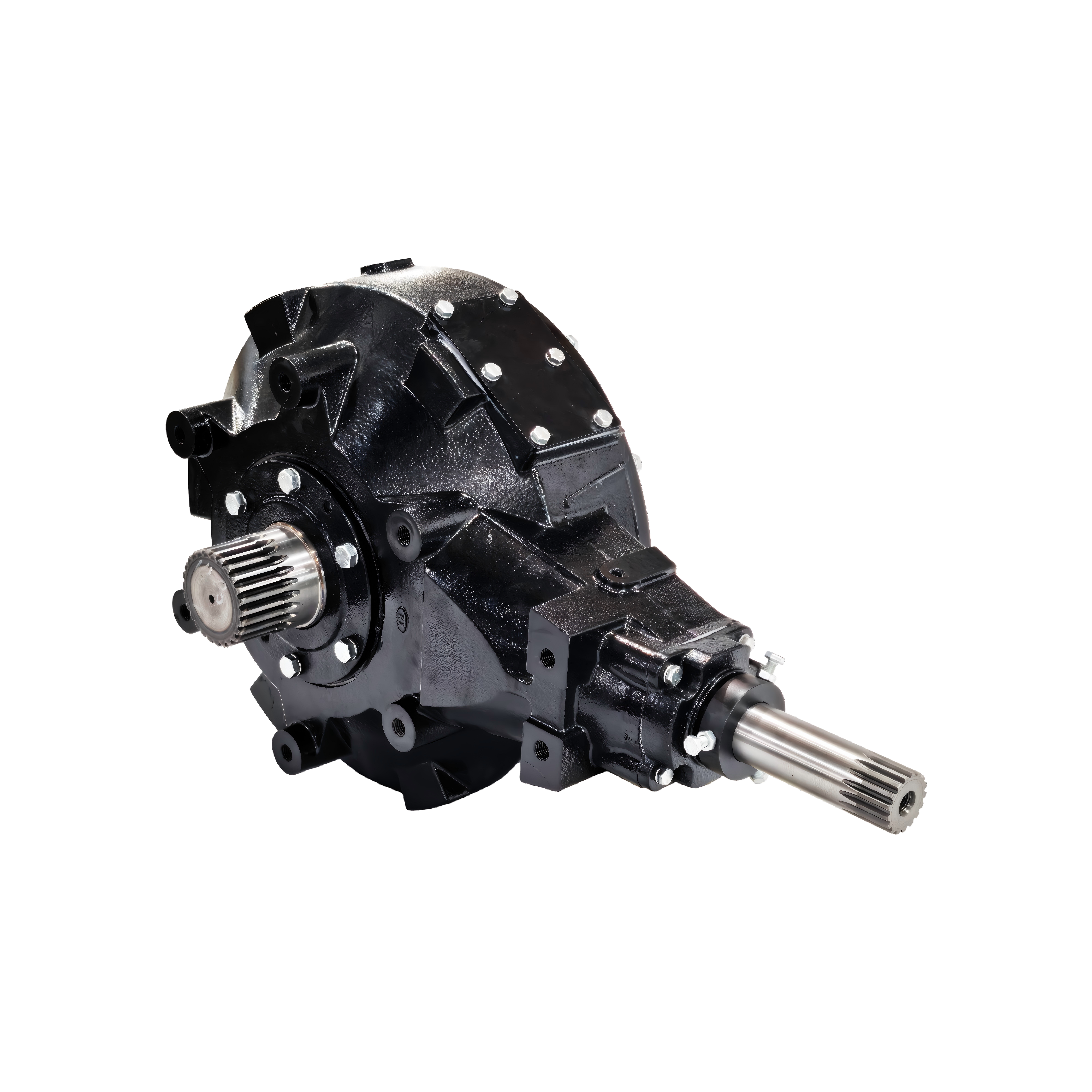

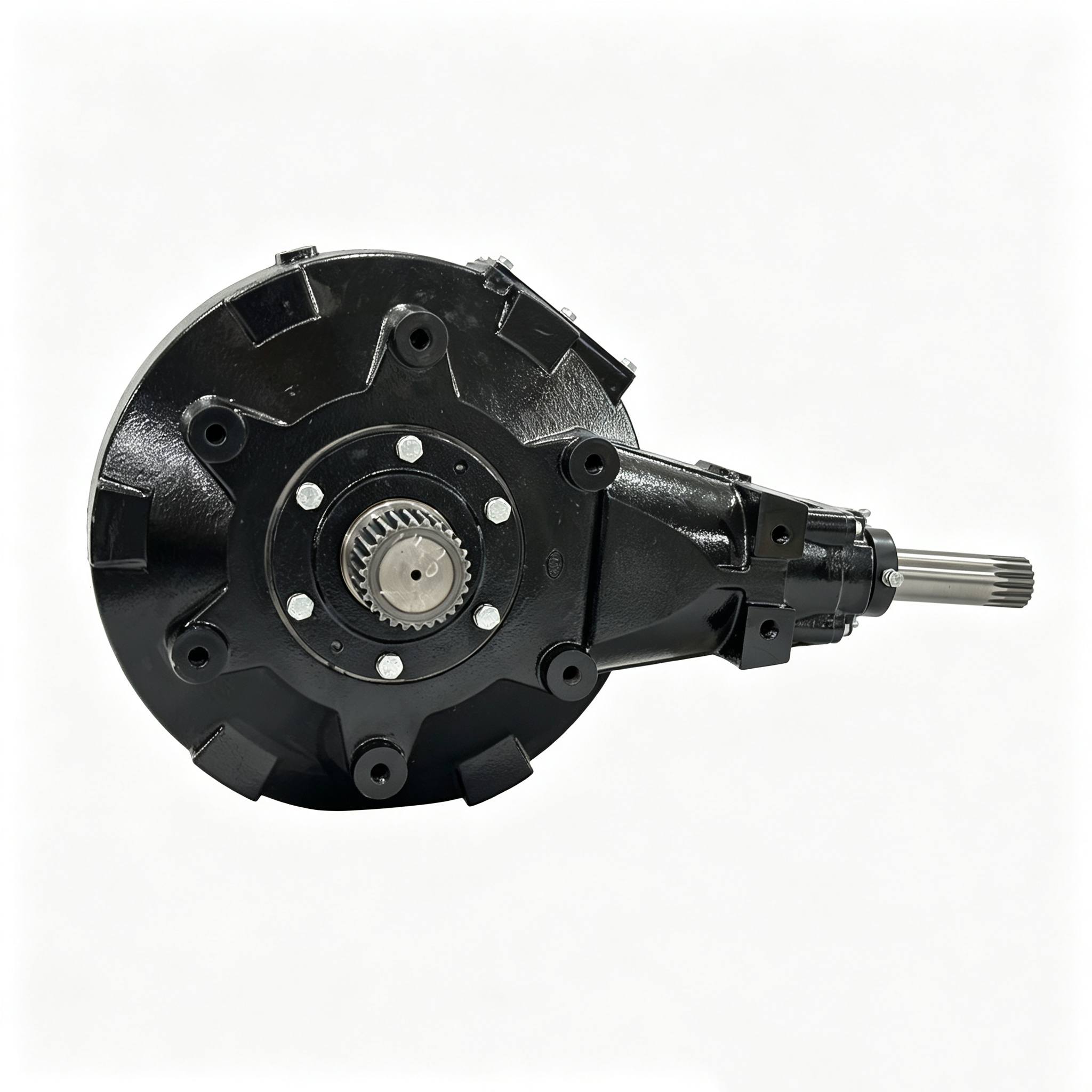

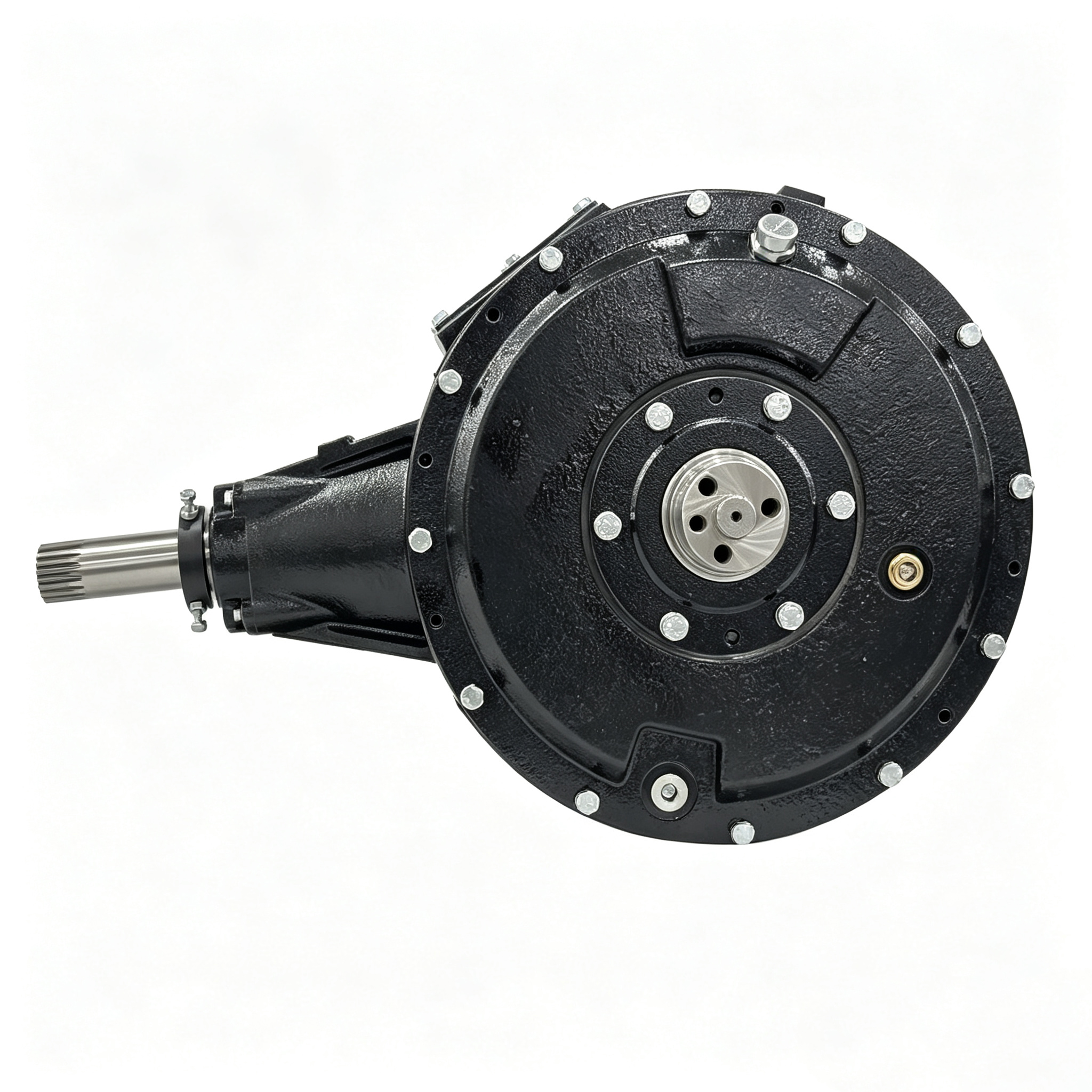

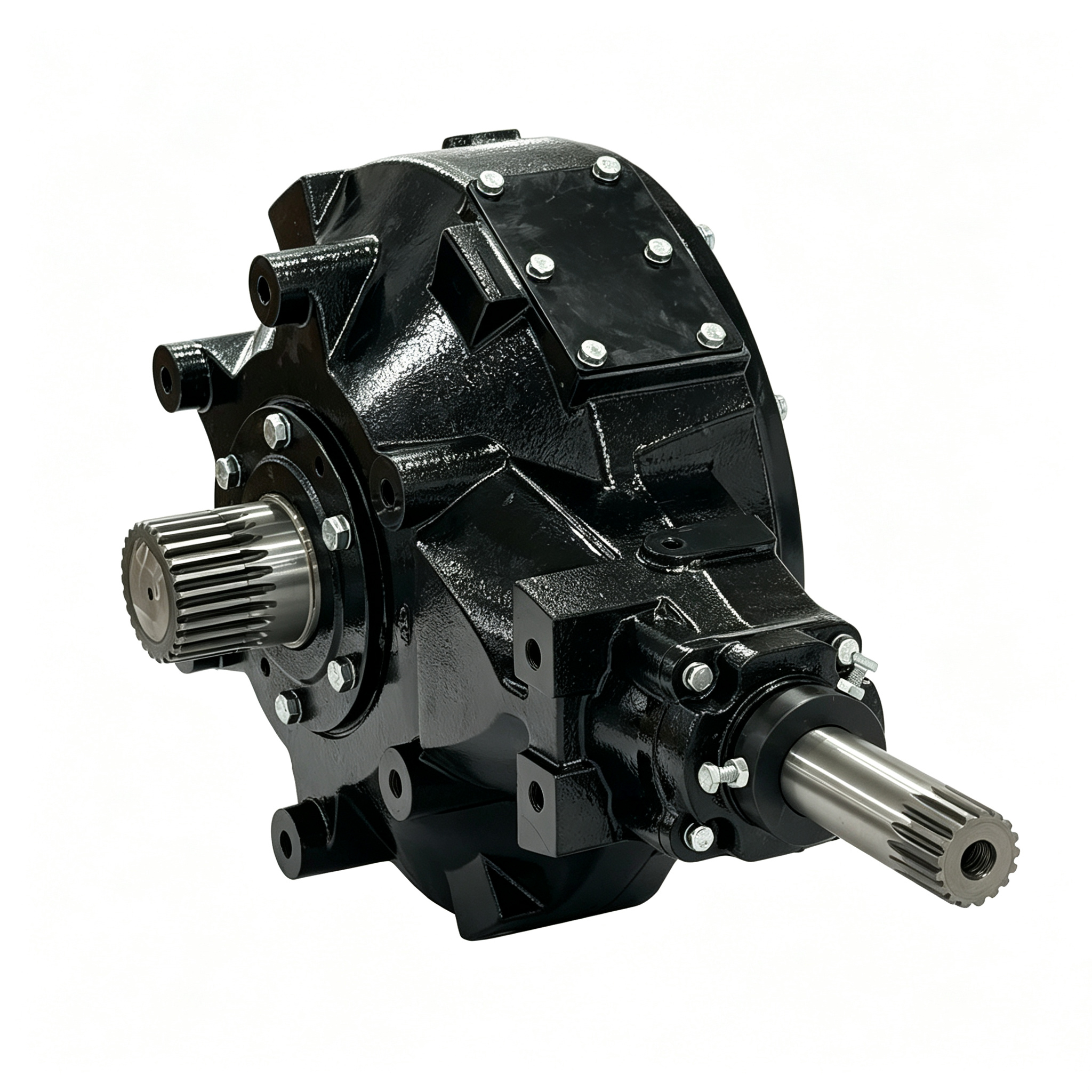

KLF-FK360 Two rope square baler main transmission gearbox

Name: KLF-FK360 Two rope square baler main transmission gearbox
Brand: KADIVA
Rating: 5.0 (82 reviews)

This gearbox serves as the core transmission component specially designed for two-rope square balers, undertaking key tasks of material pickup and straw crushing. It receives power from tractors or front-mounted gearboxes to drive operation. As the main unit, it links all functional parts of the baler reliably, ensuring stable and continuous baling work throughout the whole process.

Model:
KLF-FK360
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

The KLF-FK360 speed reducer features a 5.43:1 ratio, offering dual configurations: 75 kW (102 Hp) / 122 kW (166 Hp) input, with outputs of 7200 N·m / 6324 N·m torque respectively. Built with high-grade materials and precision engineering, it ensures reliable performance under heavy loads. Customized solutions are available to meet specific application needs.

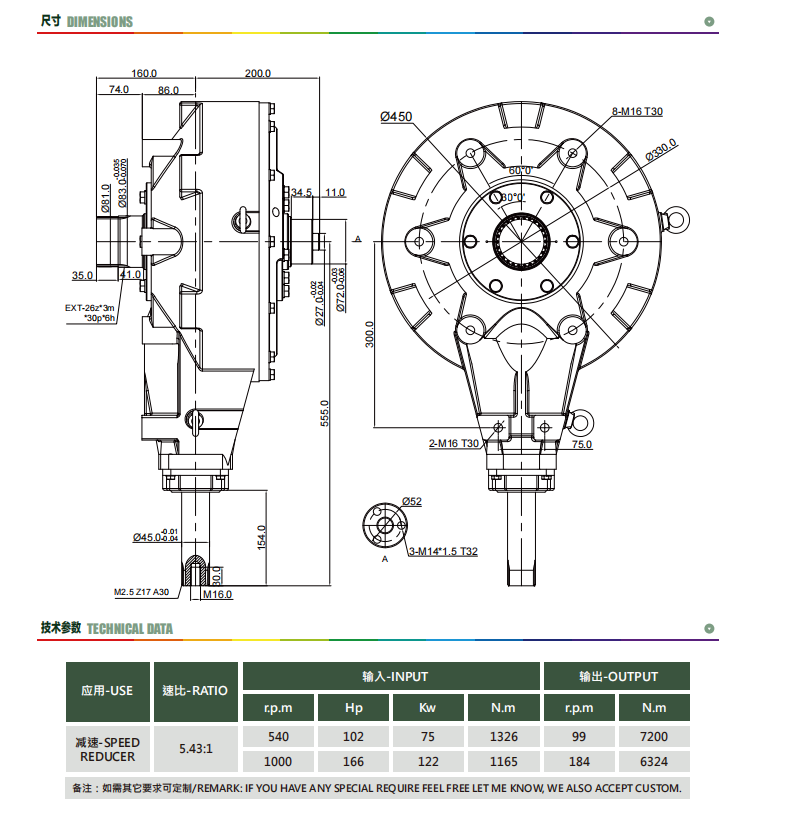

Technical Parameters
