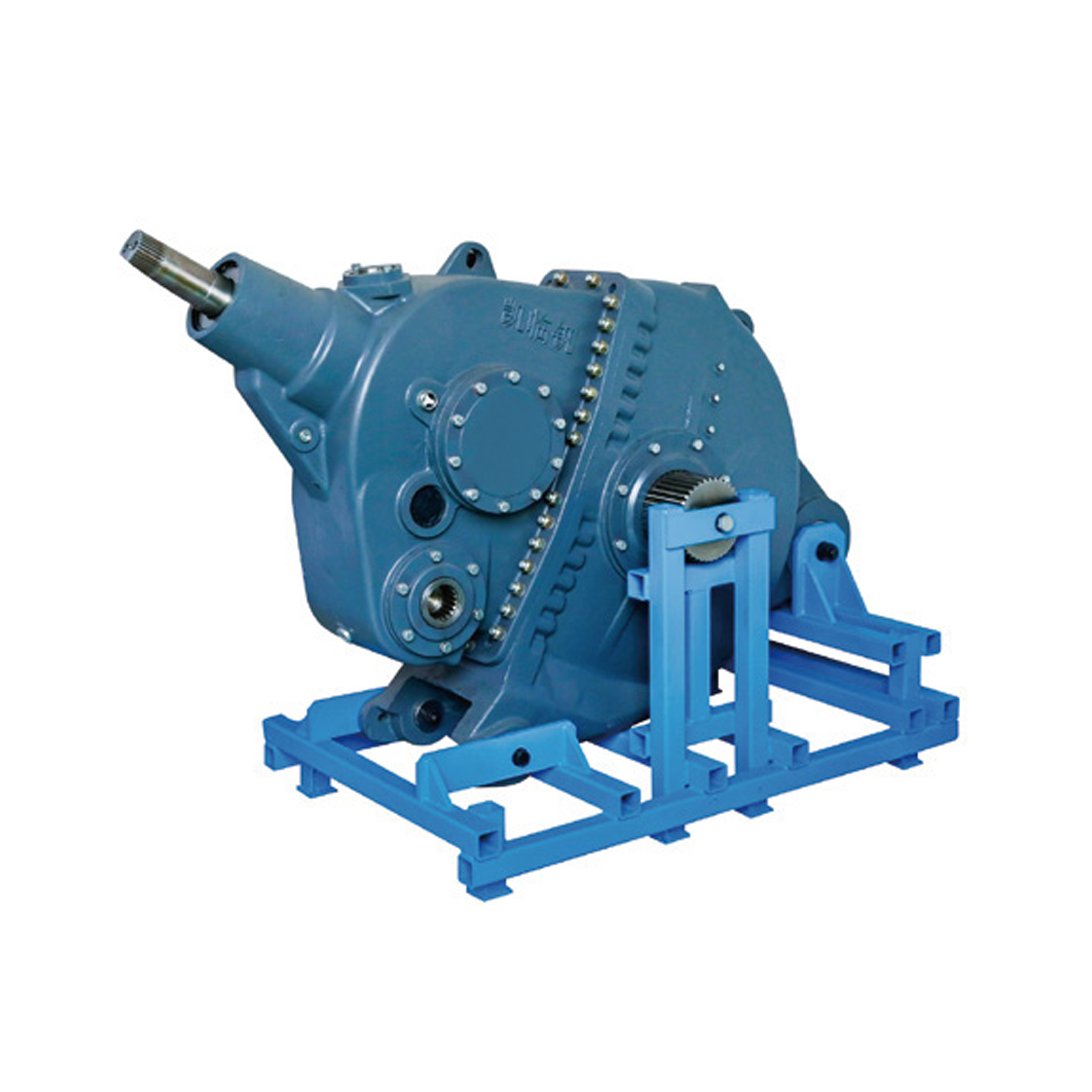

KLF-DFK192 Six Rope Large Square Baler Main Transmission Box
You are here: Home » Products » Agricultural Gearboxes » Square Baler Gearbox » KLF-DFK192 Six Rope Large Square Baler Main Transmission Box
KLF-DFK192 Six Rope Large Square Baler Main Transmission Box
KLF-DFK192 Six Rope Large Square Baler Main Transmission Box KLF-DFK192 Six Rope Large Square Baler Main Transmission Box

loading

KLF-DFK192 Six Rope Large Square Baler Main Transmission Box

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
The gear box is a main transmission box with six ropes and a large square bundle. All transmission mechanisms on the machine are realized through the main transmission box. The internal transmission box uses 5-stage transmission to realize a series of functions such as picking, bundling, hydraulic power output, and sensor monitoring. This product is the American AGCO (Massey Ferguson) 2270XD large square bale series product, which can directly replace imported machines. At present, this machine is the most trusted by customers in terms of global sales, stability and reliability. This product has high operating efficiency and powerful functions. The bundling weight can reach more than 500kg, and the large square bundles are convenient for transportation and save transportation costs.
  • KLF-DFK192

  • KADIVA

Availability:
Quantity:

Product Introduction

The KLF-DFK45 multi-ratio gearbox offers versatile configurations (21.27:1, 4.88:1, 1:2.24), handling 192 kW (261 Hp) at 1000 rpm input. It delivers up to 39009 N·m torque at 47 rpm output, engineered with robust construction for extreme-duty applications. We provide fully customized solutions to match your unique power transmission requirements.

Technical Parameters
