KLF-GC325 Disc Mower Series Gearbox

KLF-GC325 360 Degree rotating traction drive gearbox

This KLF-GC325 universal gearbox for agricultural machinery provides a 1:1 transmission ratio increase, which means that the input speed is consistent with the output speed. 360-degree rotating traction drive. This gear ratio increase is ideal for agricultural machinery that requires precise speed control, such as lawnmowers. It ensures that the lawn mower maintains a stable rotational speed during operation, thereby achieving efficient lawn mowing operations. Input speed 540r/min, Output speed 540r/min, Rated power 160hp, Output torque 1400N.m.It is suitable for traction and steering on various agricultural equipment, and the steering angle is less than 60 degrees. It is flexible and light in turning, solving a series of problems such as difficulty in turning in small plots.

Model:
KLF-GC325
Brand:
KADIVA
Code:
8483409090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

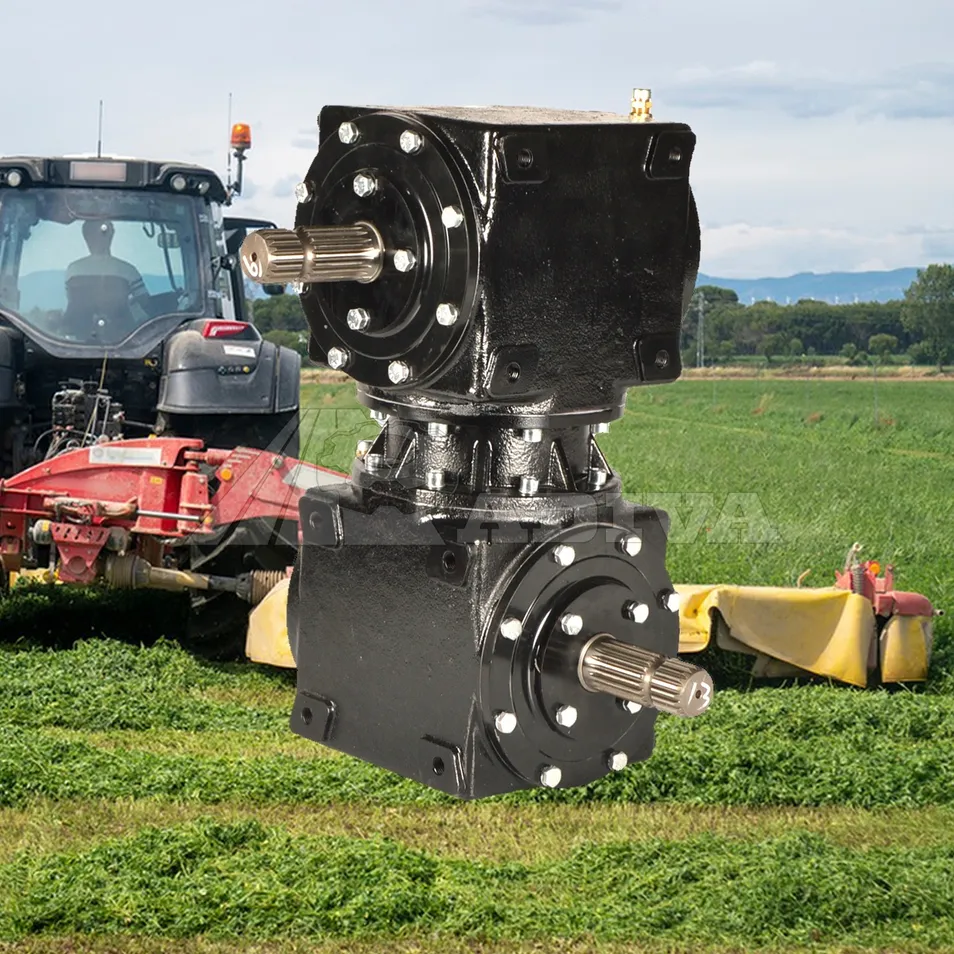

Precision-Engineered Klf-Gc325 Mower Gearbox for Cutterbar Mowers & Silage Harvesters

Product Name:
KLF-GC325 Gearbox
power Source:
Tractor
Major Function:
1.Power transmission

2.This gear ratio increase is ideal for agricultural machinery that requires precise speed control, such as lawnmowers

3.KLF-QZ115 input speed is consistent with the output speed. 360-degree rotating traction drive

Customization:
Available
OEM/ODM:
Available

Key Configurations

1.Rigorous airtight treatment

2.Easy to operate, practical product

3.Heightening and enlarged Design

4.Using cast iron to make the product stronger and more durable

Technical Specifications

(Custom configurations available upon request.)

USE	RATIO	INPUT				OUTPUT
		r.p.m	Kw	Hp	N.m	r.p.m	N.m
SPEED REDUCER	1:1.00	540	120	163	2122	540	2122

		1000	210	286	2005	1000	2005
*If you have any special require feel free let us know, we also accept custom

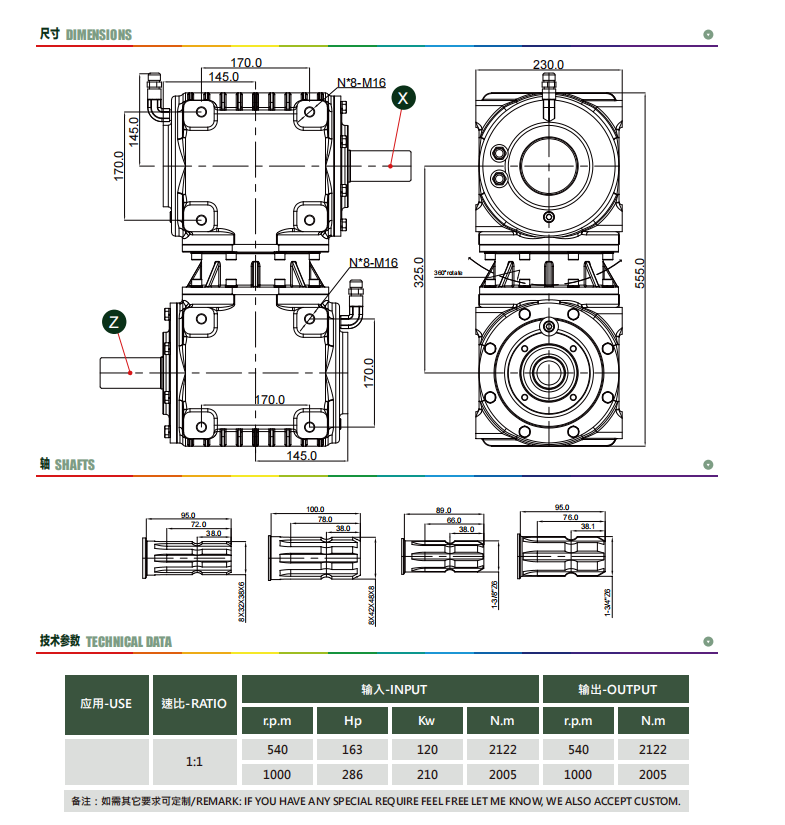

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
