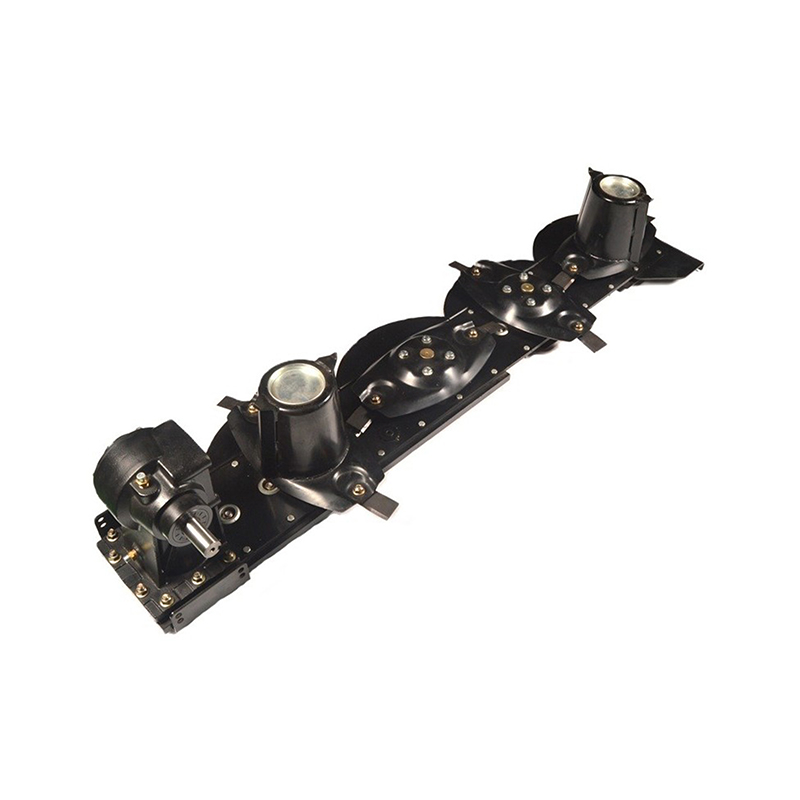

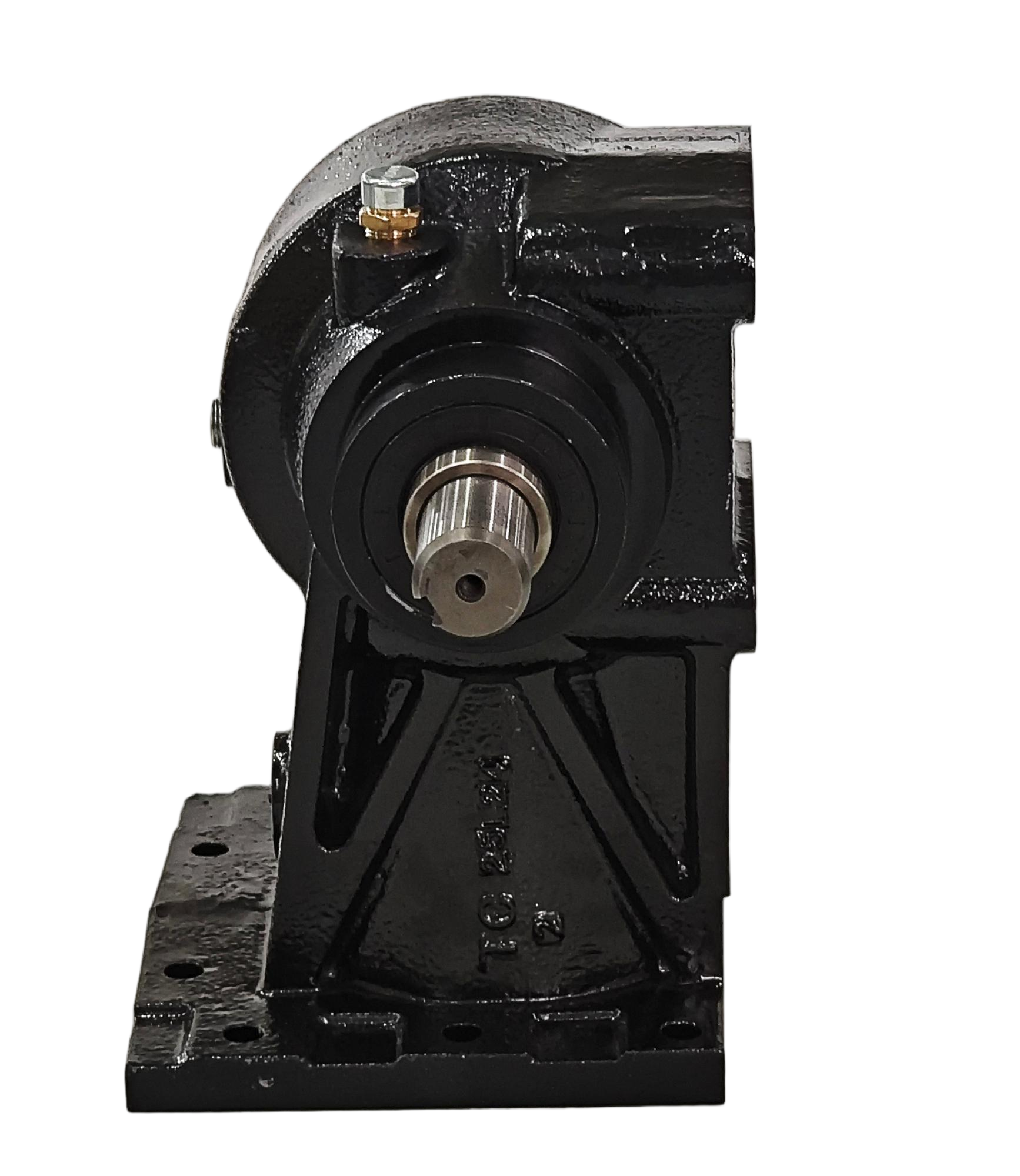

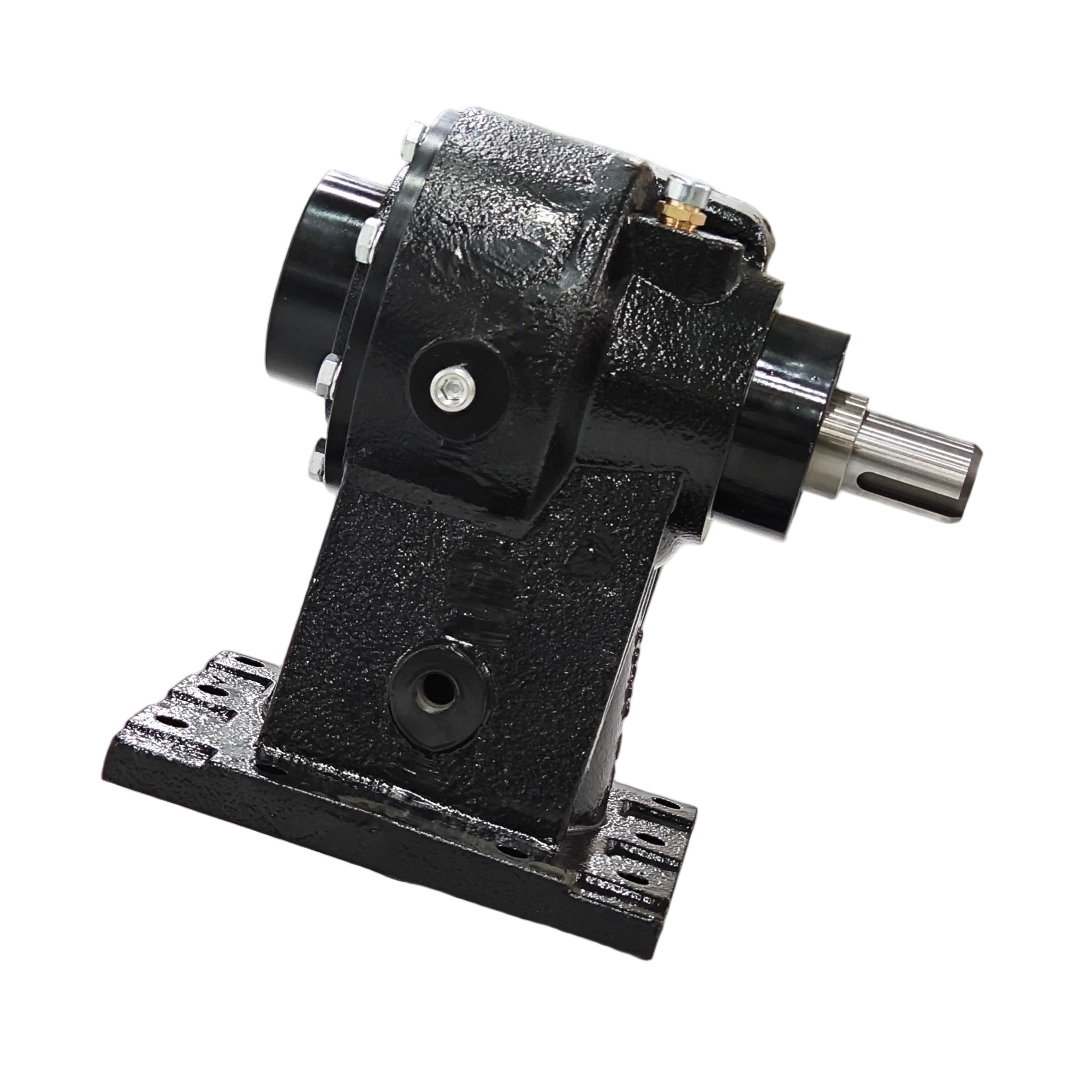

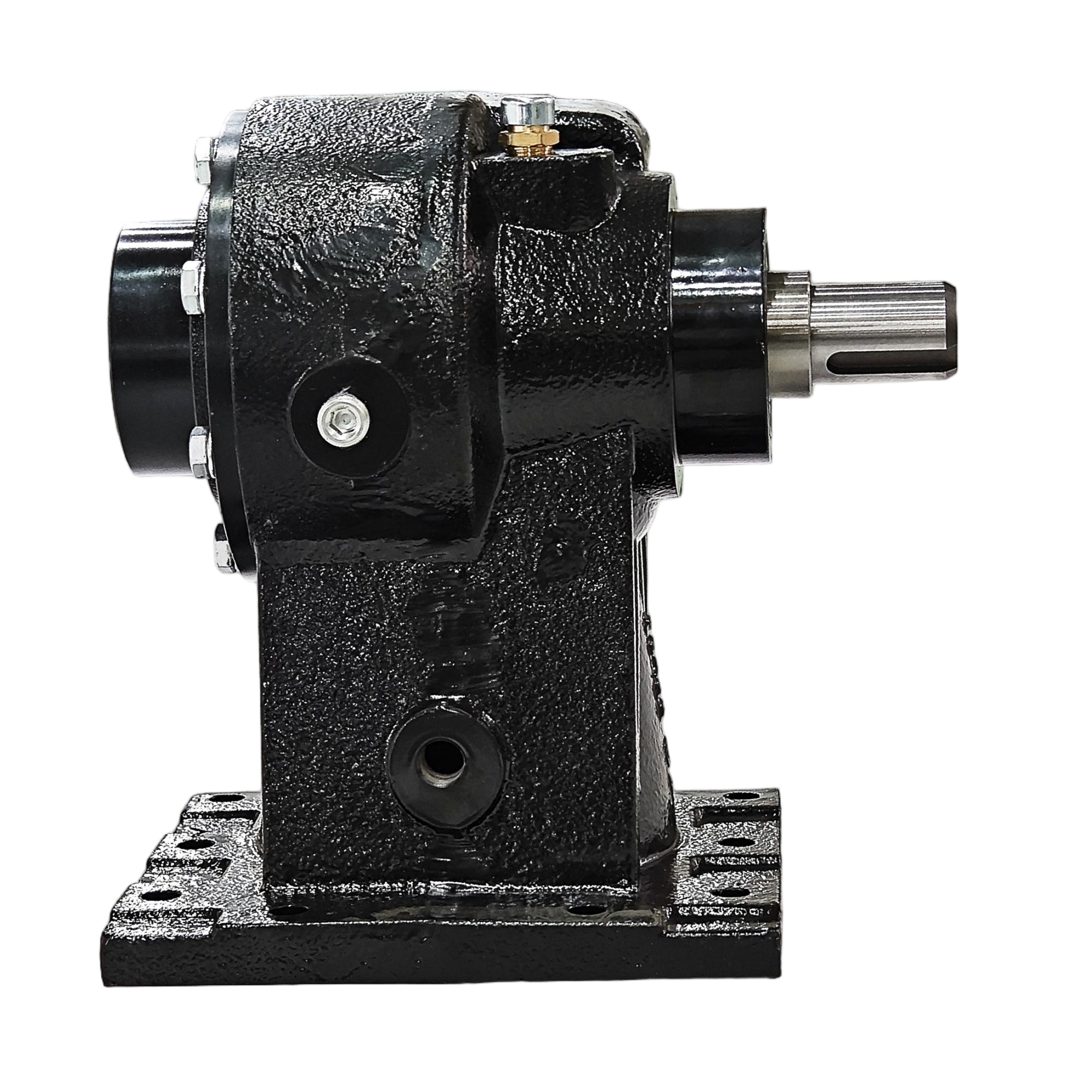

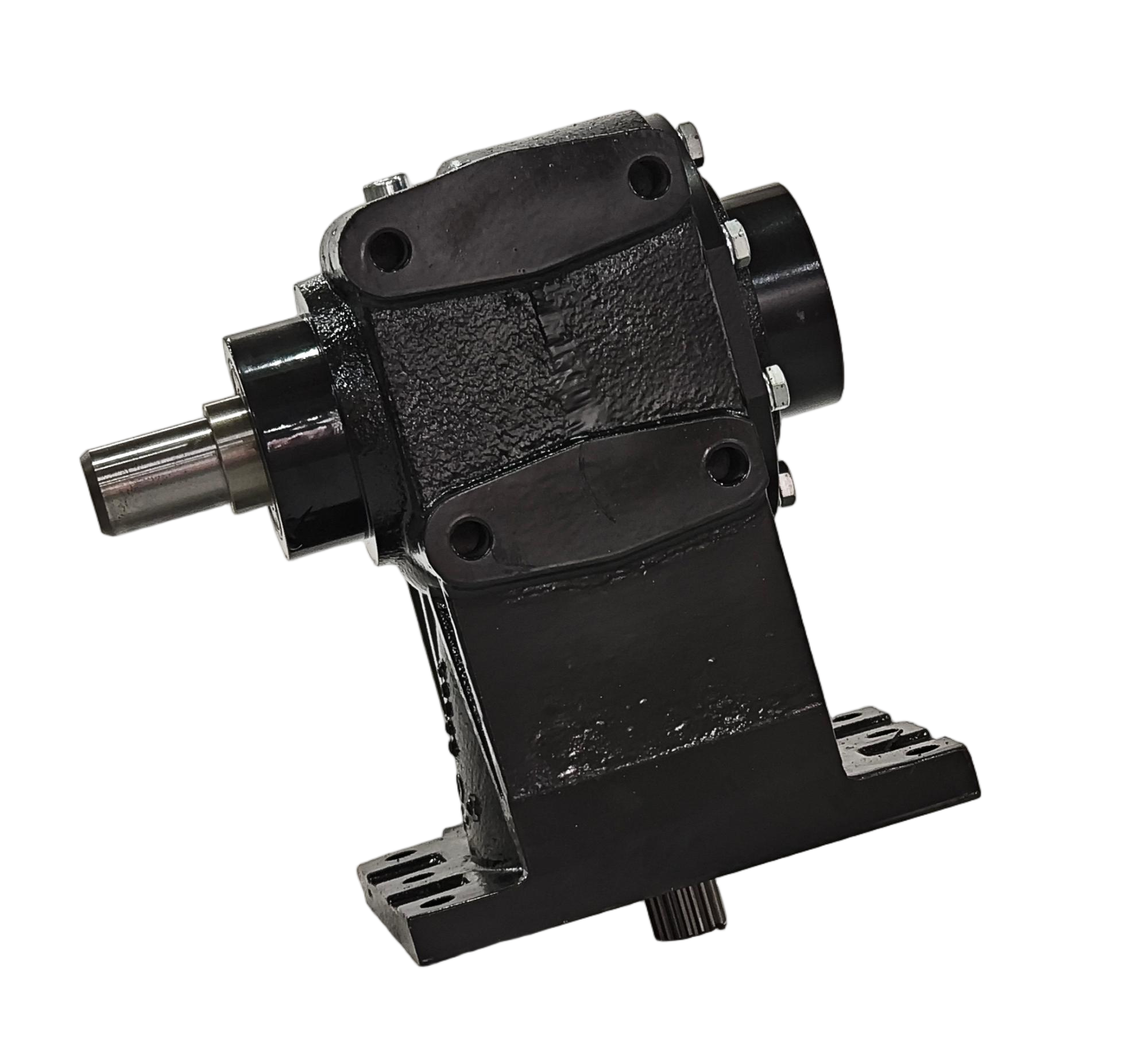

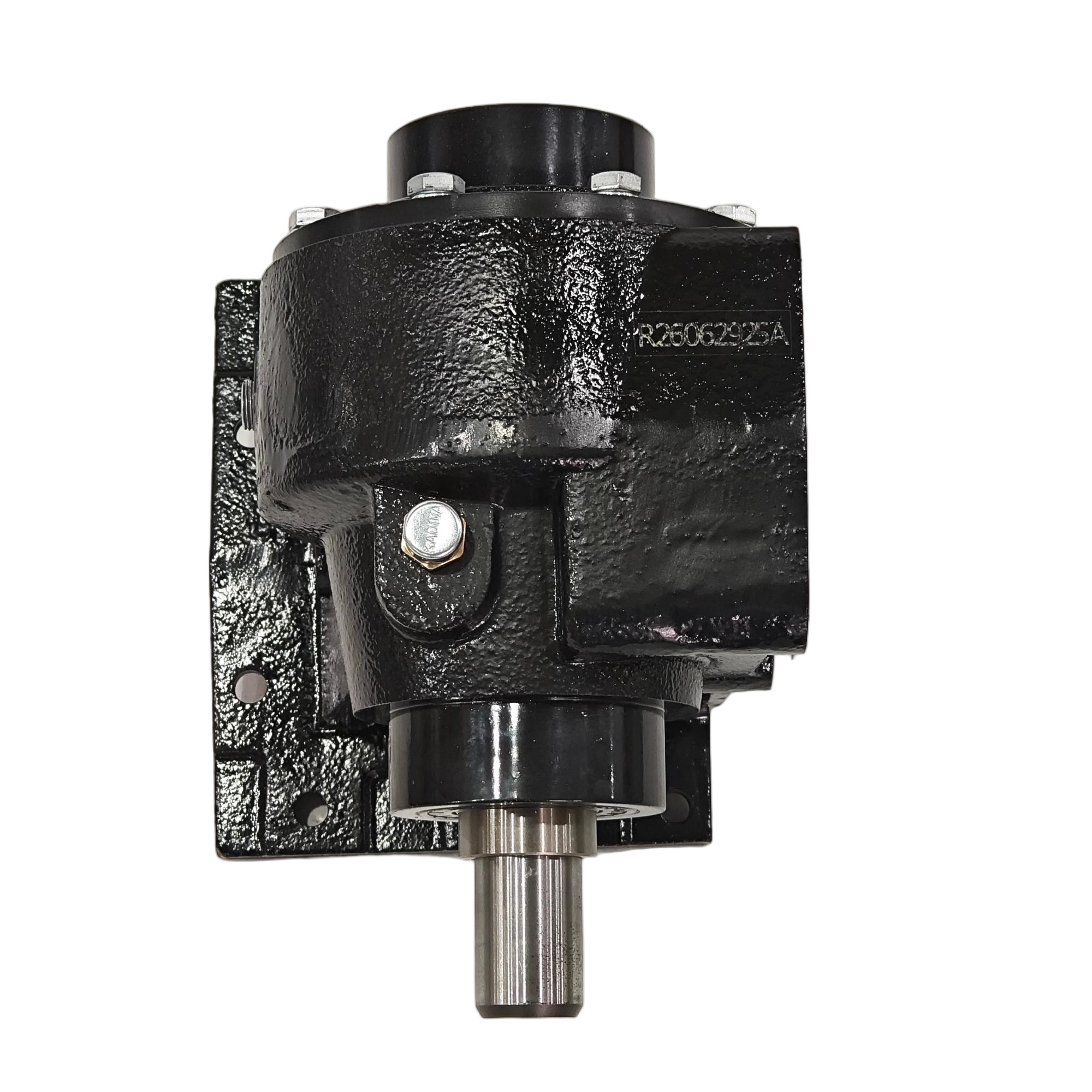

KLF-GC Disc Mower Series Gearbox

KLF-GC Mounted disc lawn mower cutterbar Gearbox

This product is used in the transmission gearbox cutterbar of tractor-mounted rotary disc mowers. It is derived from European and American design concepts and inputs power through the tractor. The transmission main gearbox drives the cylindrical gear to the cutter head. The cutter beam adopts a full gear structure design and the output speed is 3000 rpm. The transmission noise is low, and the quality is more stable and reliable. We have cutter beam available in five models: 4 discs, 5 discs, 6 discs, 7 discs, and 8 discs. The working width can reach 1.65 meters to 3.2 meters, adapting to different needs. KLF-GC is a rear-mounted edge holder that drives the flattening rubber roller. When equipped with KLF-GC, it can realize the lawn mowing and flattening function. It is used for harvesting alfalfa, safflower and other crops. Flattening the stems will help to absorb water and spread them out for drying.

Model:
KLF-GC
Brand:
KADIVA
Code:
8483409090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

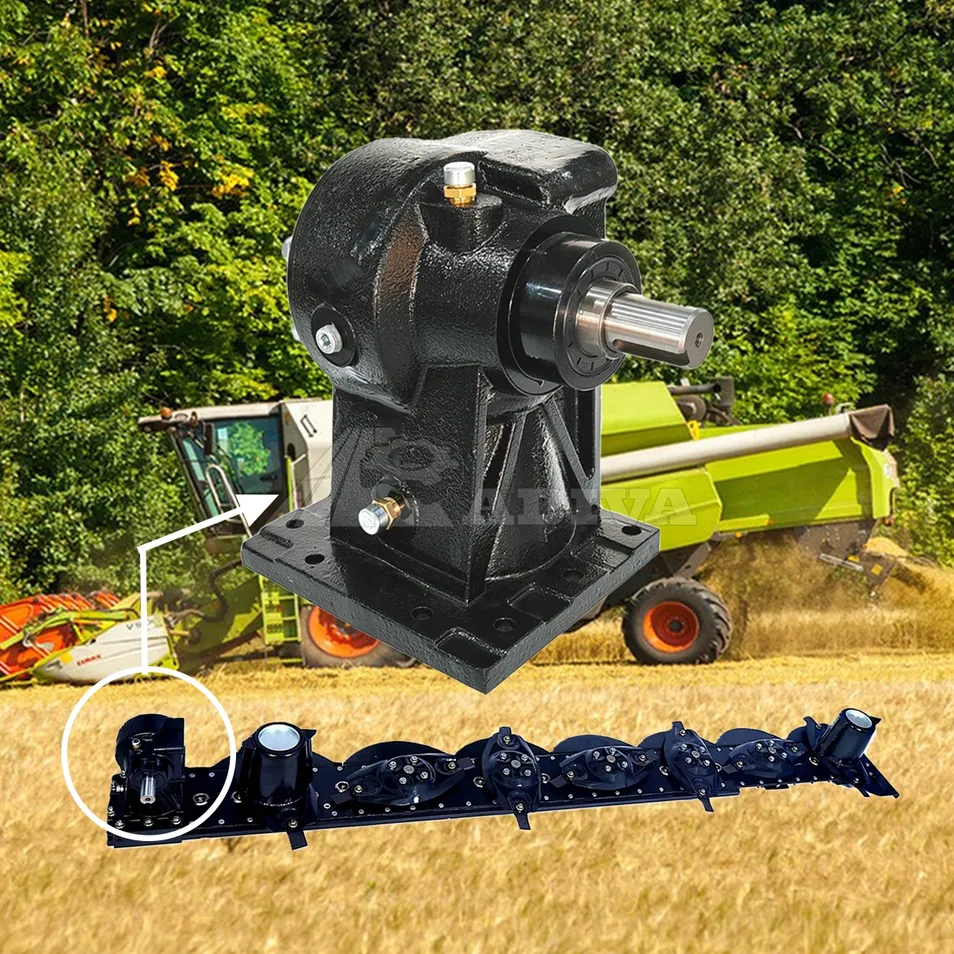

Agricultural Gearbox Bondioli Series Silage Machine Cutterbar Rotary Disc Mower Gear Box

Product Name:
KLF-GC Gearbox with Cutterbar
power Source:
Tractor
Major Function:
1.Power transmission & disc mowers

2.This product produces low noise during operation, and is safe and reliable

3.working width can reach 1.65 meters to 3.2 meters, adapting to different needs
Customization:
Available
OEM/ODM:
Available

Key Configurations

1.Rigorous airtight treatment

2.Cast iron bridge linking method and integrated design

3.Heightening and enlarged Design

4.Using cast iron to make the product stronger and more durable

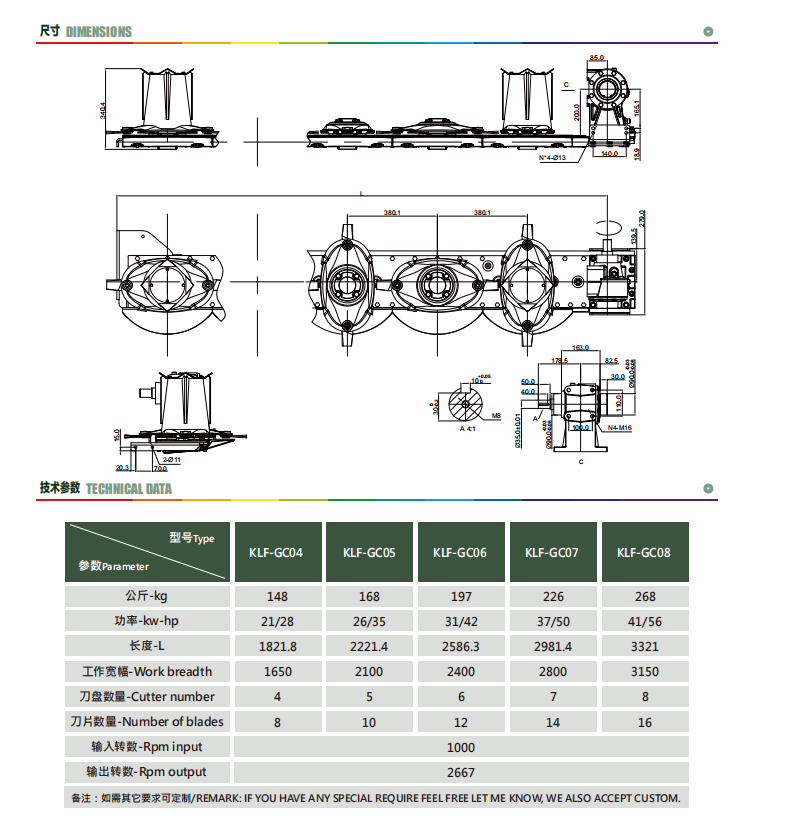

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
