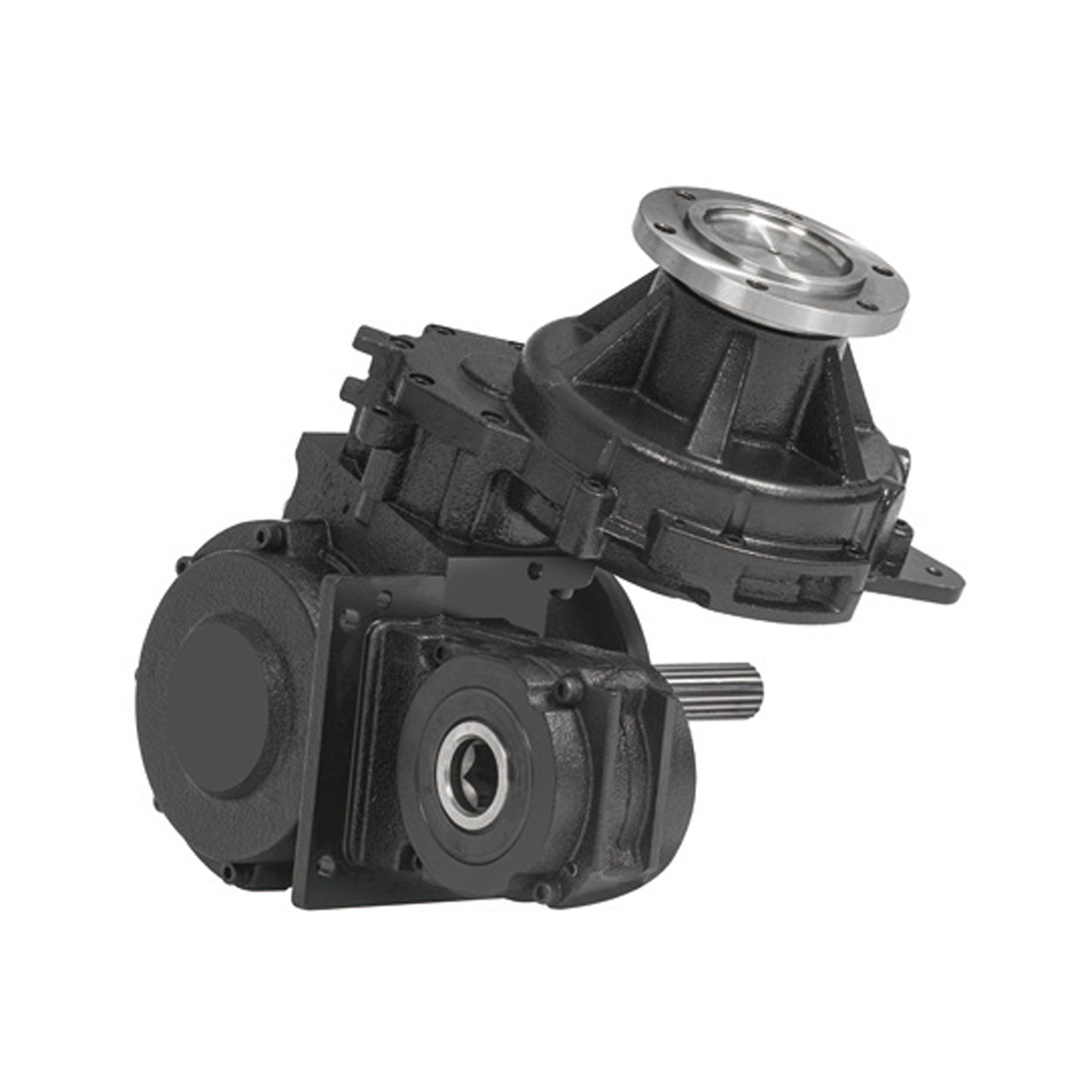

KLF-QZ-WRXL Tedder Hayrake Silage Series

Agricultural Champion 3500 Watt Siliage Harvest Machine Feeding Mower Gearbox
The gearbox design is derived from the German Champion 3500 series, four-disc silage machine gearbox. Imported original design, one set equipped with 6 gearboxes. This product has a complex design structure, and compact space, and comes with a clutch protection device. It is used for silage harvesting of various crops, with a cutting width of up to 3.5 meters. The harvesting discs on both sides have a folding function, and there is a clutch device inside the gearbox. When the preset torque peak is exceeded, automatic slipping can be achieved. Protecting internal parts from damage, this header has high harvesting efficiency and a low failure rate. It can be used with different imported and domestic tractors, a good choice that customers can trust.

Model:
KLF-QZ-WRXL
Brand:
KADIVA
Code:
8483409090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

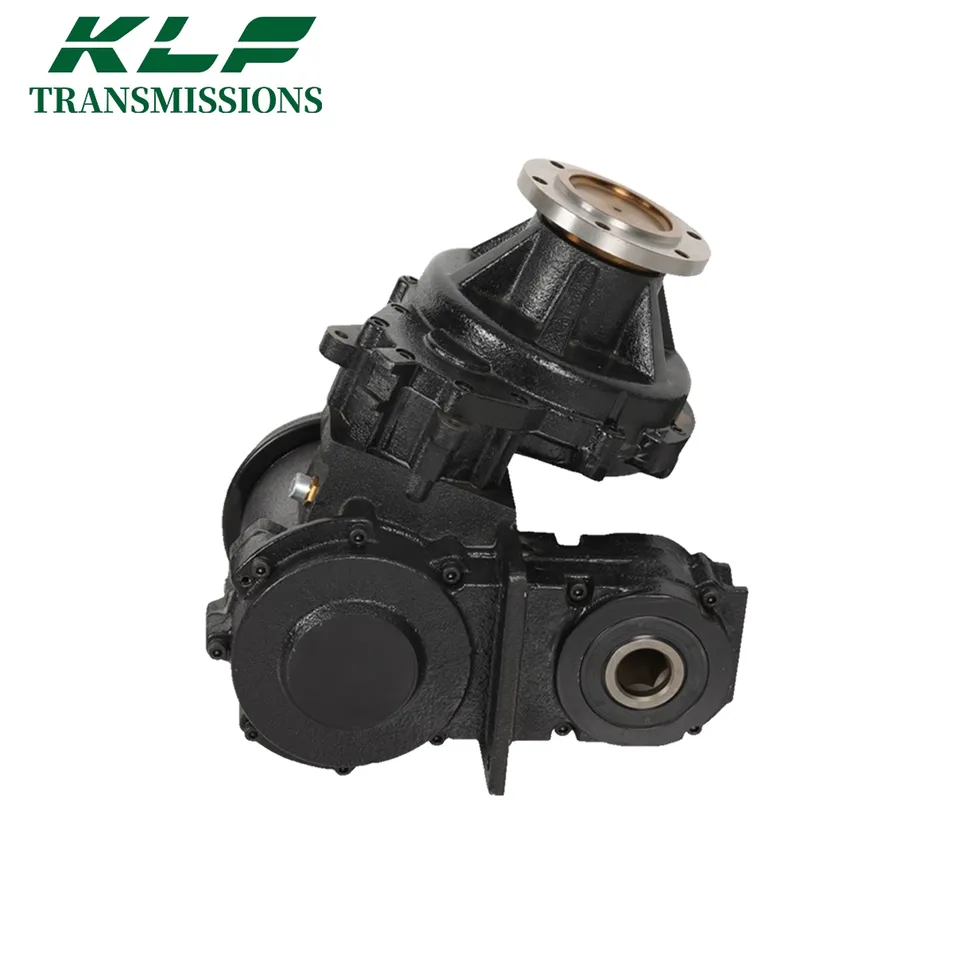

Agricultural Factory OEM/ODM Champion 3500 Watt Siliage Harvest Machine Feeding Mower Gearbox

Product Name:
KLF-QZ-WRXL Gearbox
power Source:
Tractor
Major Function:
1.Power transmission & disc mowers

2.cutting width of up to 3.5 meters

3.four-disc silage machine gearbox
Customization:
Available
OEM/ODM:
Available

Key Configurations

1.Rigorous airtight treatment

2.Cast iron bridge linking method and integrated design

3.Heightening and enlarged Design

4.Using cast iron to make the product stronger and more durable

Technical Specifications

(Custom configurations available upon request.)

Name	Suitable	Turn	Header series	Toothing
Feeding box	Silage machine	Left	3 series	Gleason helical teeth

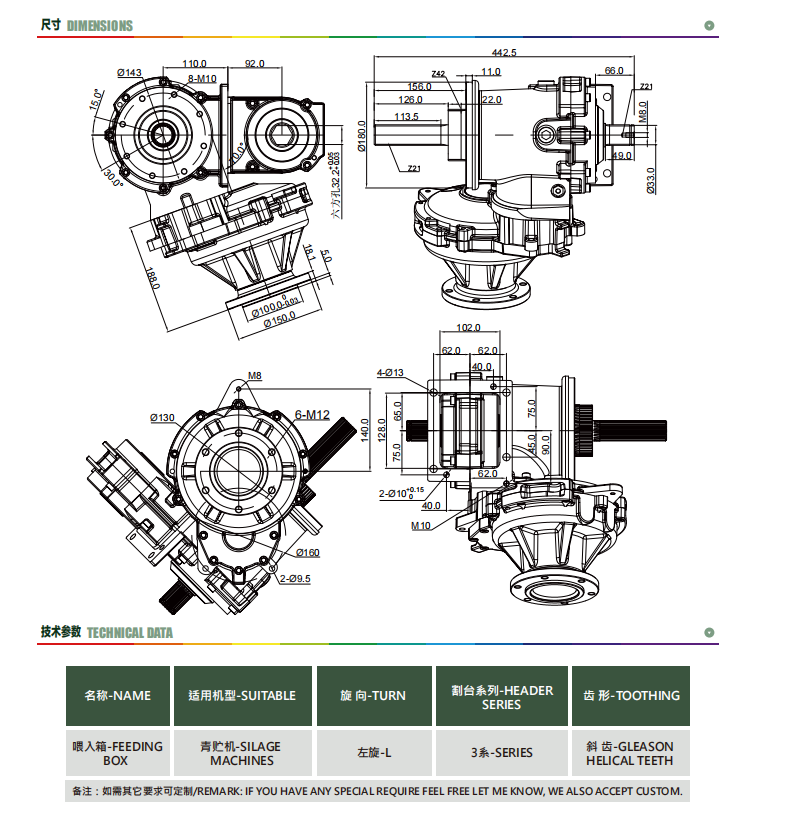

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
