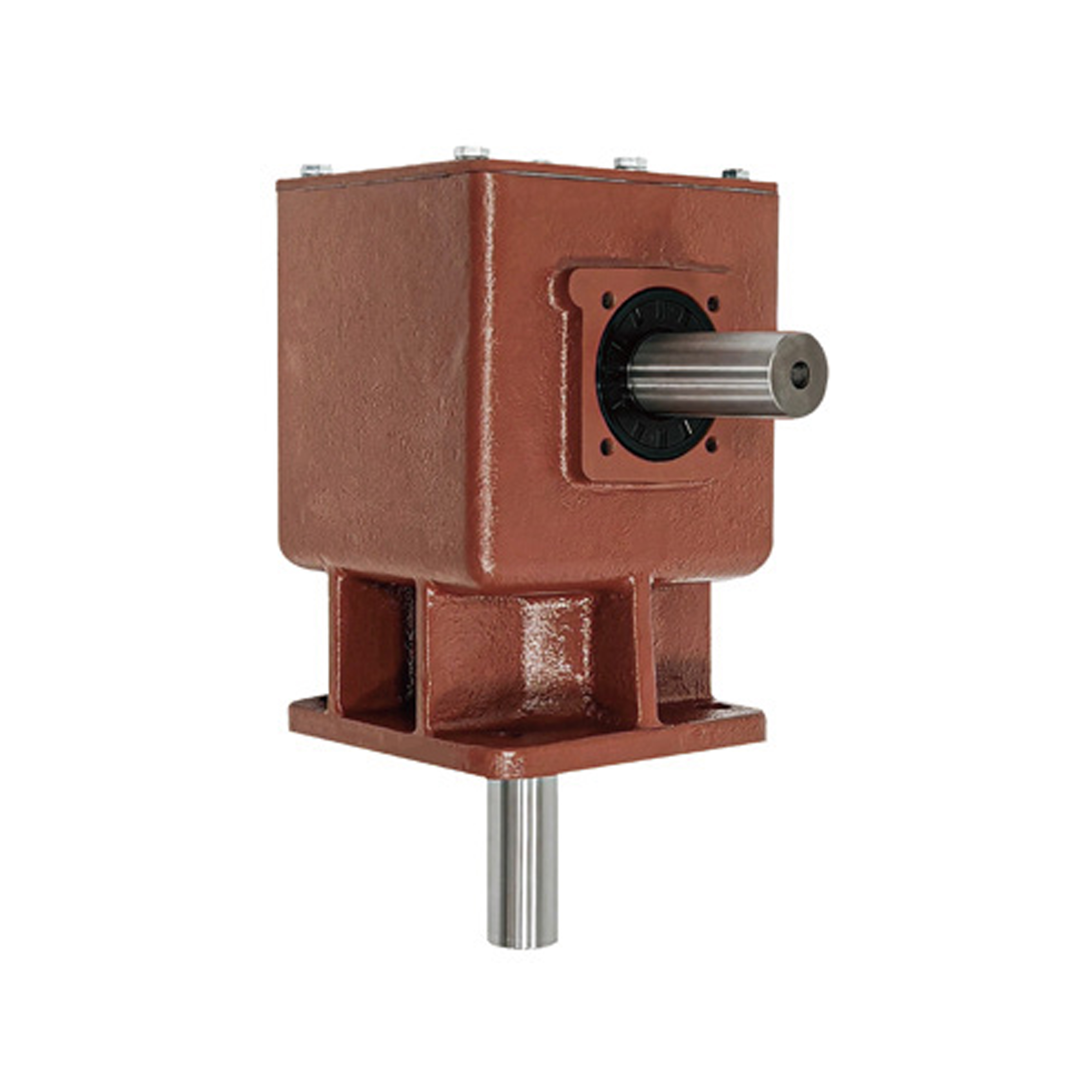

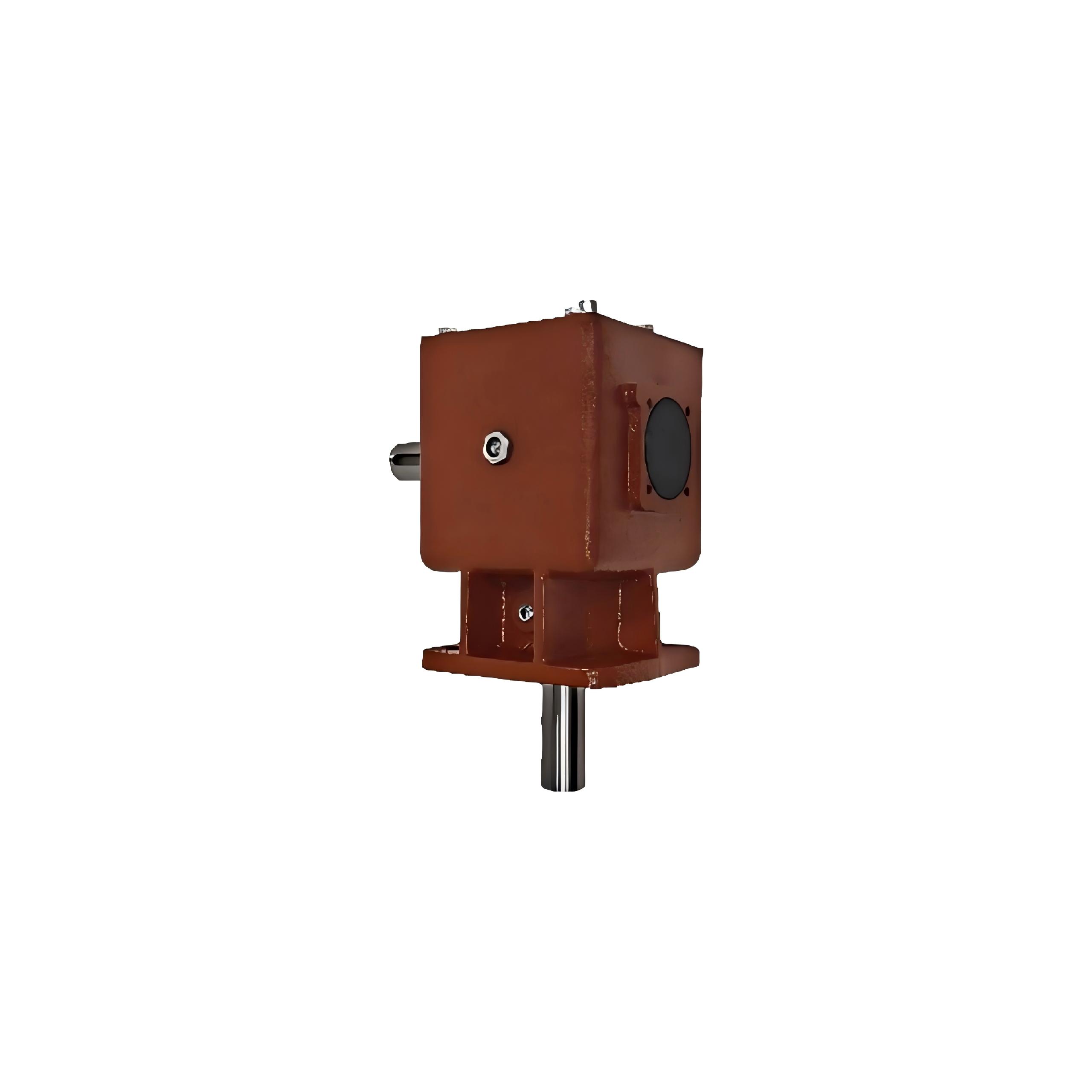

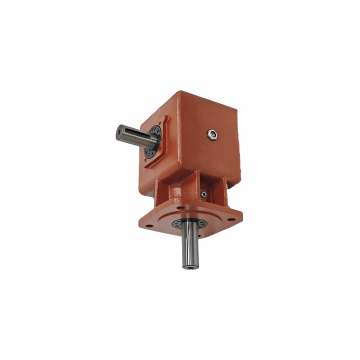

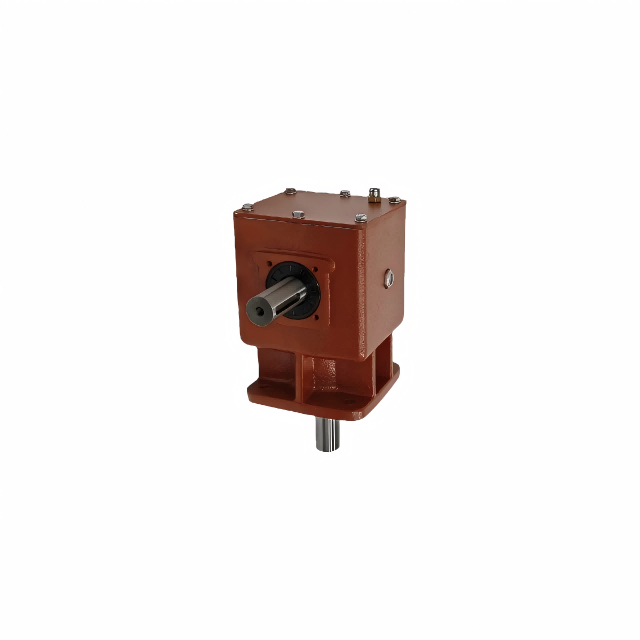

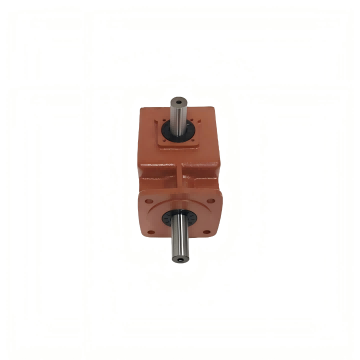

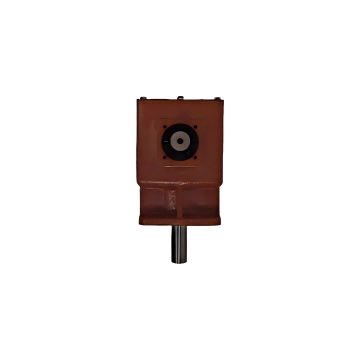

KLF-LF151 Rotary Cutters Series Gearbox

This product is used for tractor-traction and rotary disc mower transmission gearbox cutter beams. It is derived from European and American design concepts. It transmits the KLF-LF151 gearbox through the tractor input, and the link transmission shaft drives the cylindrical gear to the cutterhead. , the tool beam uses a full gear structure design and the output speed is 3000 rpm
该产品用于拖拉机牵引式及旋转式割草机的传动装置中。其设计理念源自欧美国家。该产品通过拖拉机的输入端来驱动 KLF-LF151 变速箱，再由传动轴带动圆柱齿轮，最终使切割头能够正常运转。该产品的刀具梁采用全齿轮结构设计，其输出转速为 3000 转/分钟。

Model:
KLF-LF151
Brand:
KADIVA
Code:
8483409090

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description

Product Name:
KLF-LF151
power Source:
Tractor
Customization:
Available
OEM/ODM:
Available

Certification:
ISO
Specification:
Cast iron
Production Capacity:
50000PCS/Month

Key Configurations

1.Rigorous airtight treatment

2.Cast iron bridge linking method and integrated design

3.Heightening and enlarged Design

4.Using cast iron to make the product stronger and more durable

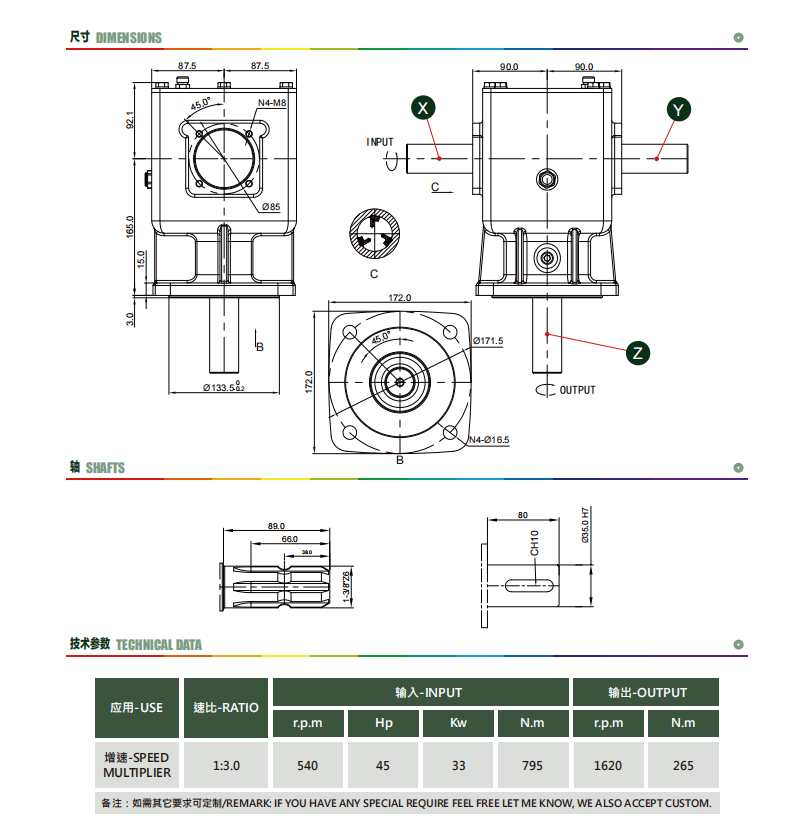

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
