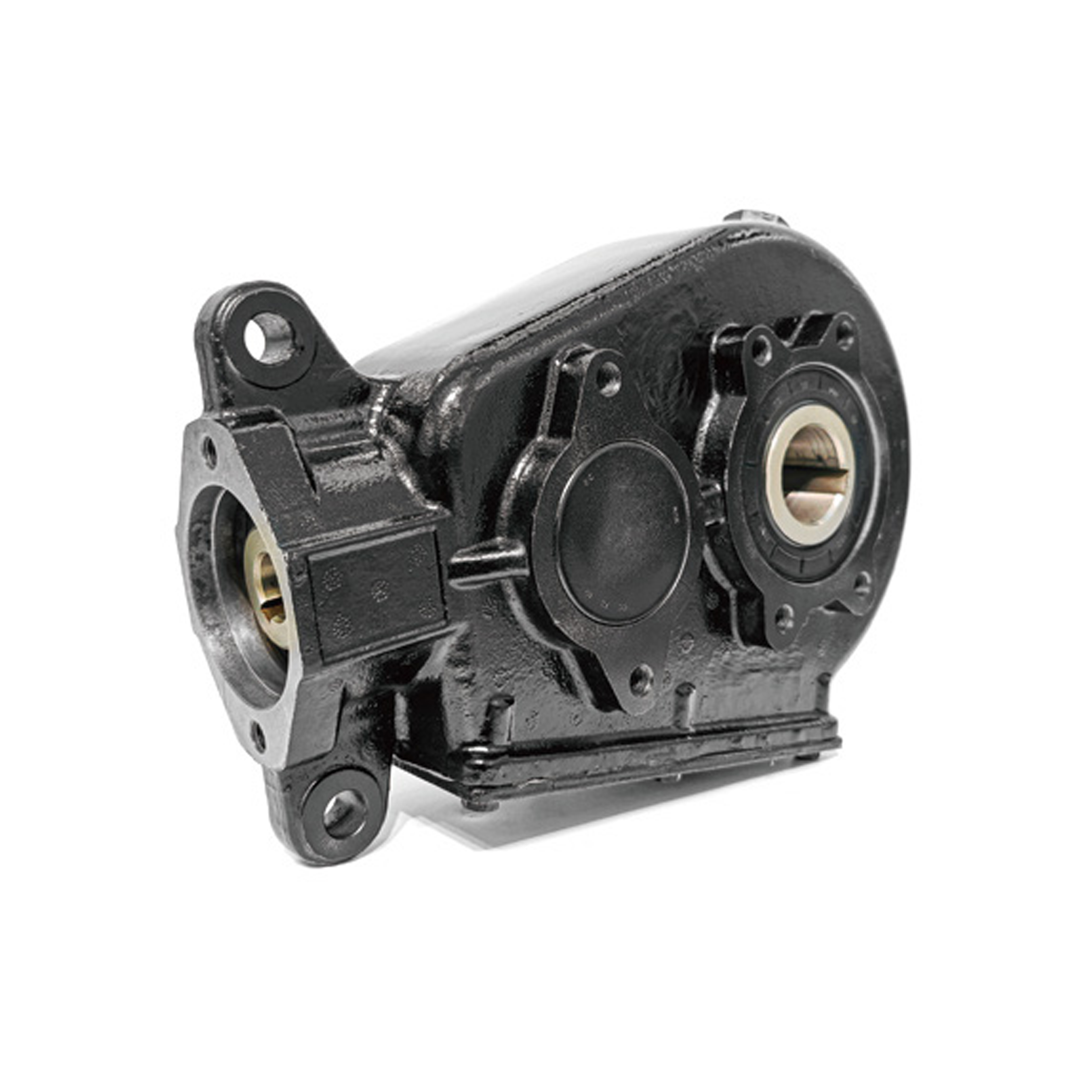

KLF-H200 Hydraulic Drive Gearbox for Seeder Machine

Name: KLF-H200 Hydraulic Drive Gearbox for Seeder Machine
Brand: KADIVA
Rating: 5.0 (94 reviews)

This product is used for the hydraulic drive gearbox of the Seeder Machine, which varies according to the use occasion. There are different models, namely: 8 cubic, 12 cubic, 20 cubic, 50 cubic, etc., and the traction methods also include self-made models and tractor-pulled models. Depending on the model, the size of the hydraulic drive gearbox is also different. The gearbox transmits different power inputs to the hydraulic drive motor to drive the conveyor connecting plate. Transport organic fertilizer and spread it to the fields through augers to increase land nutrition.

Model:
KLF-H200
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

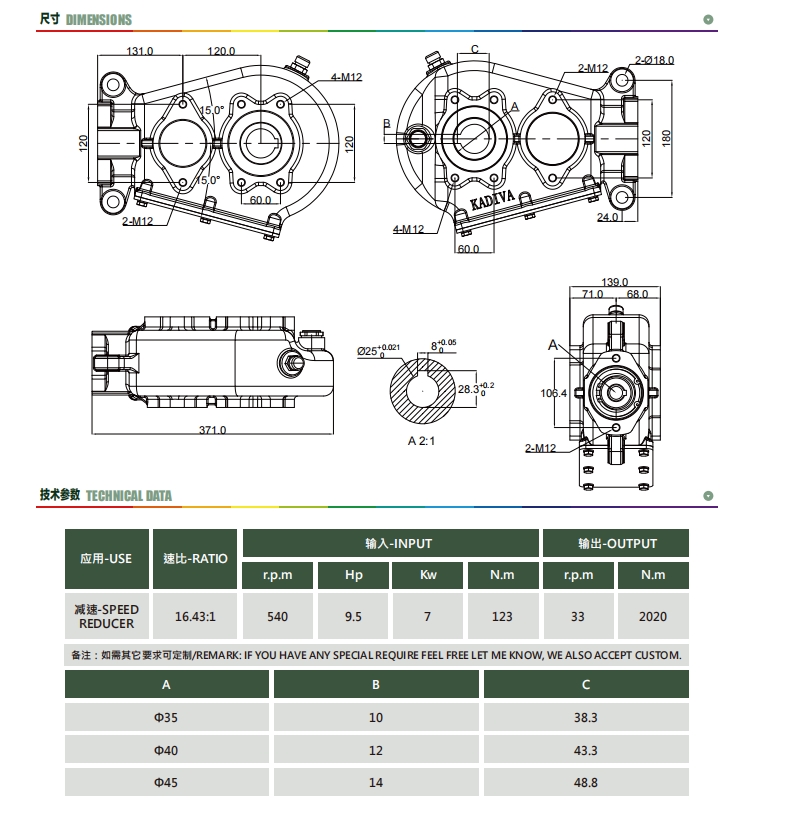

The KLF-H200 hydraulic speed reducer is professionally engineered for agricultural fertilizer spreading and seeding machinery. Featuring a reduction ratio of 16.43:1, it takes 7kW (9.5Hp) input power at 540rpm, generating high output torque of 2020N.m at 33rpm to drive field working components steadily.

Three optional shaft diameters (Φ35/Φ40/Φ45) enable flexible assembly for different seeder/spreader models. Made of high-strength cast housing and precision-ground gears, it resists heavy load and rugged farm working environments for long service life.

We provide full OEM & ODM customization, including tailored gear ratios, shaft sizes and mounting dimensions to satisfy your unique equipment demands.

Technical Parameters
