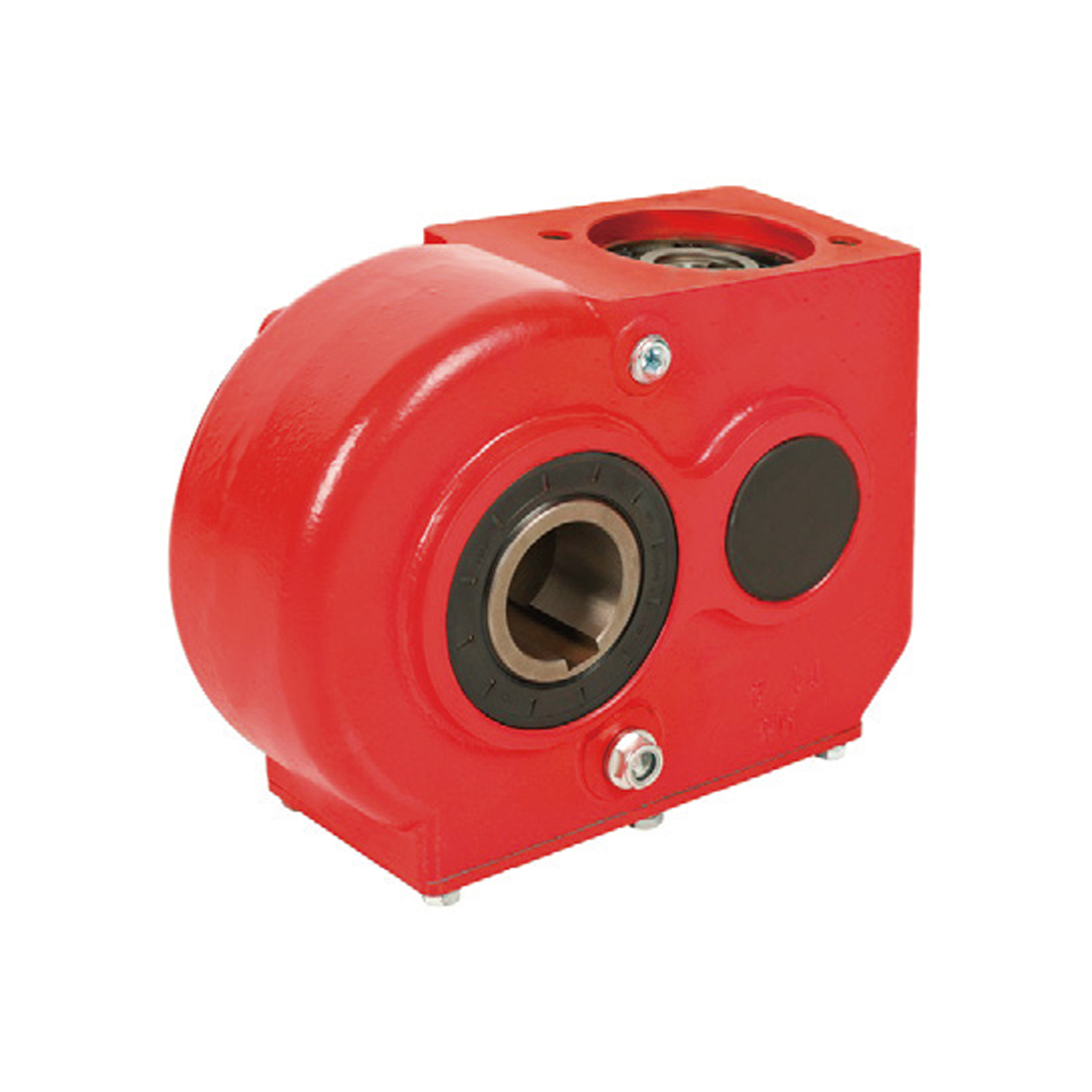

KLF-H150 Hydraulic drive gearbox for Seeder Machine

Name: KLF-H150 Hydraulic drive gearbox for Seeder Machine
Brand: KADIVA
Rating: 5.0 (89 reviews)

This gearbox is a large round baler transmission gearbox , tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power,meanwhile the gearbox realizes the traction between the tractor and the machine. The design is derived from the original design intention of imported models such as American VERMEER and AGCO, and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using cast iron bridge linking method and integrated design.

Model:
KLF-H150
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

The KLF-H150 hydraulic gearbox is a purpose-built speed reducer designed for fertilizer spreaders and seeders, delivering reliable power transmission in agricultural applications. With an 8.15:1 reduction ratio, it accepts 10 kW (14 Hp) of power at 540 rpm input and produces 1500 N·m torque at 66 rpm output, ensuring stable, low-speed operation for spreading and seeding mechanisms.

Built with precision-machined components and a robust, compact housing, the gearbox withstands continuous use in harsh field conditions, minimizing downtime and maintenance. It offers versatile output shaft options (Φ45 or Φ50) to accommodate different machine configurations, making it easy to integrate into various spreader and seeder designs.

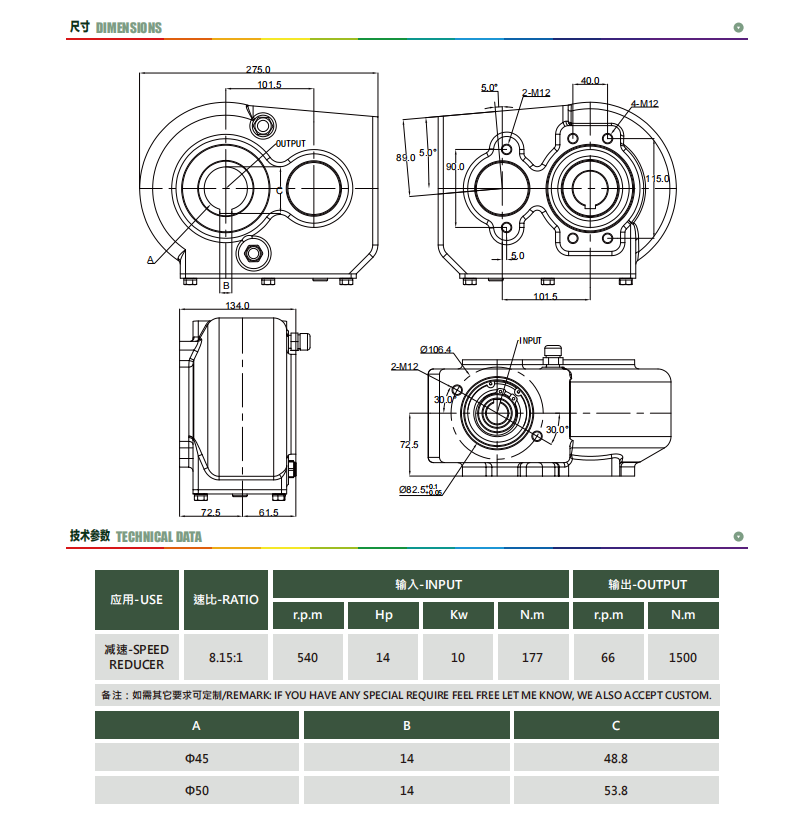

Technical Parameters
