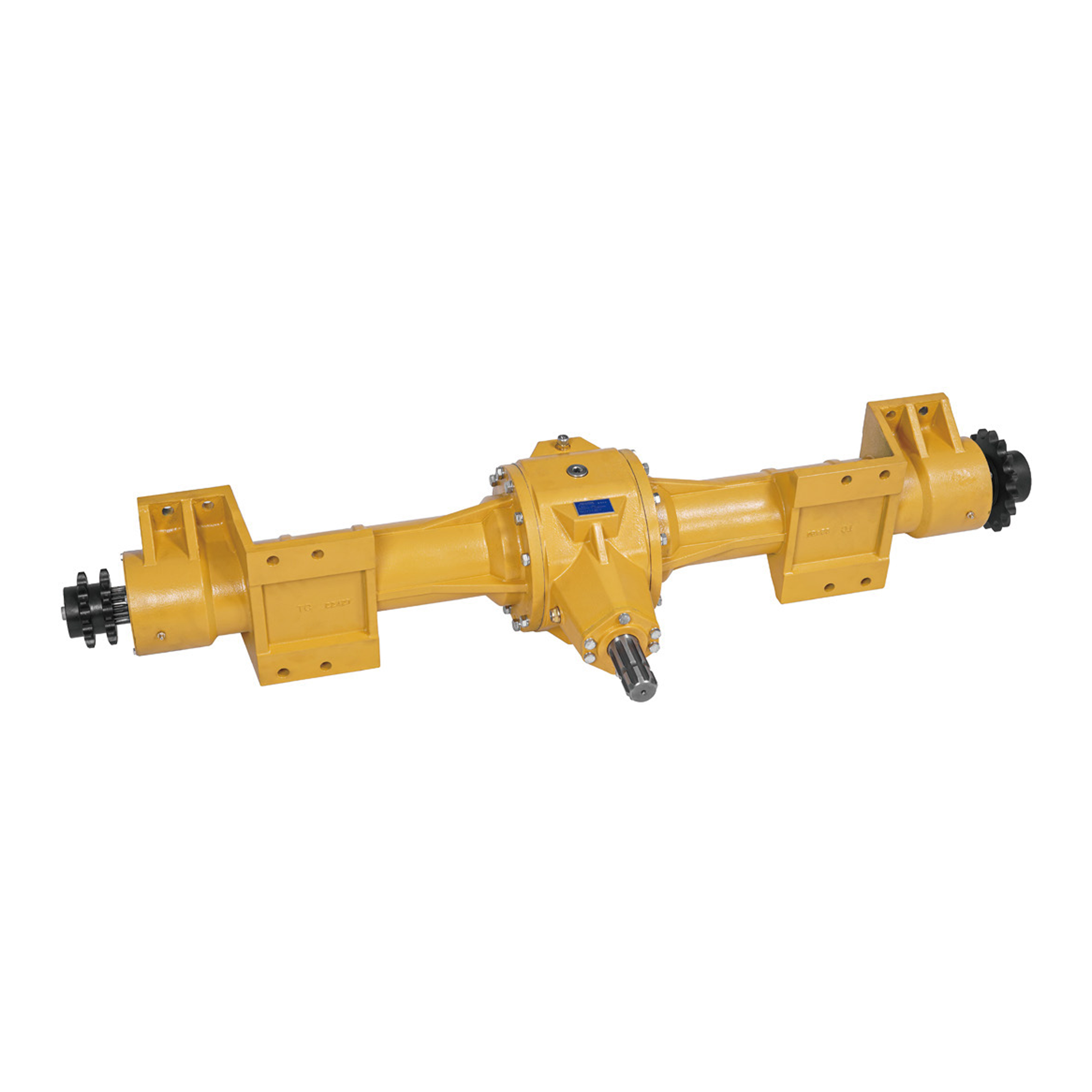

KLF9.0 Traction Type Large Round Baler Gearbox

Name: KLF9.0 Traction Type Large Round Baler Gearbox
Brand: KADIVA
Rating: 5.0 (76 reviews)

This gearbox is a large round baler transmission gearbox , tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power,meanwhile the gearbox realizes the traction between the tractor and the machine. The design is derived from the original design intention of imported models such as American VERMEER and AGCO, and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using cast iron bridge linking method and integrated design.

Model:
KLF9.0
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

The KLF9.0 speed reducer features a 1.92:1 ratio, handling 80 kW (110 Hp) at 540 rpm input. It delivers 2728 N·m torque at 280 rpm output, built with a heavy-duty dual-shaft design for high-stability operation. We offer custom shaft configurations and dimensional adjustments to suit your specific installation requirements.

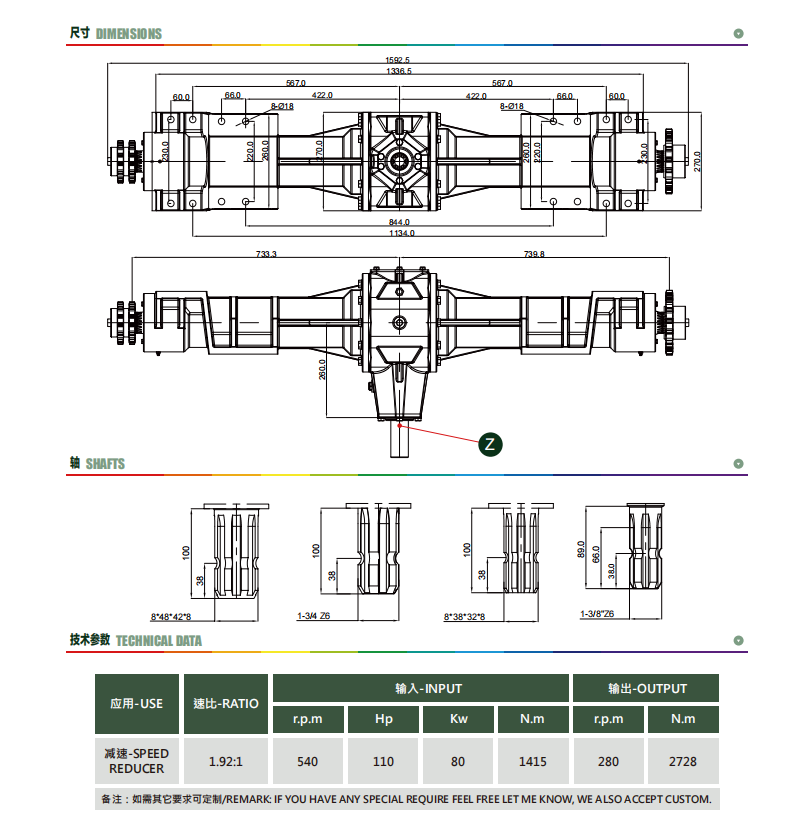

Technical Parameters
