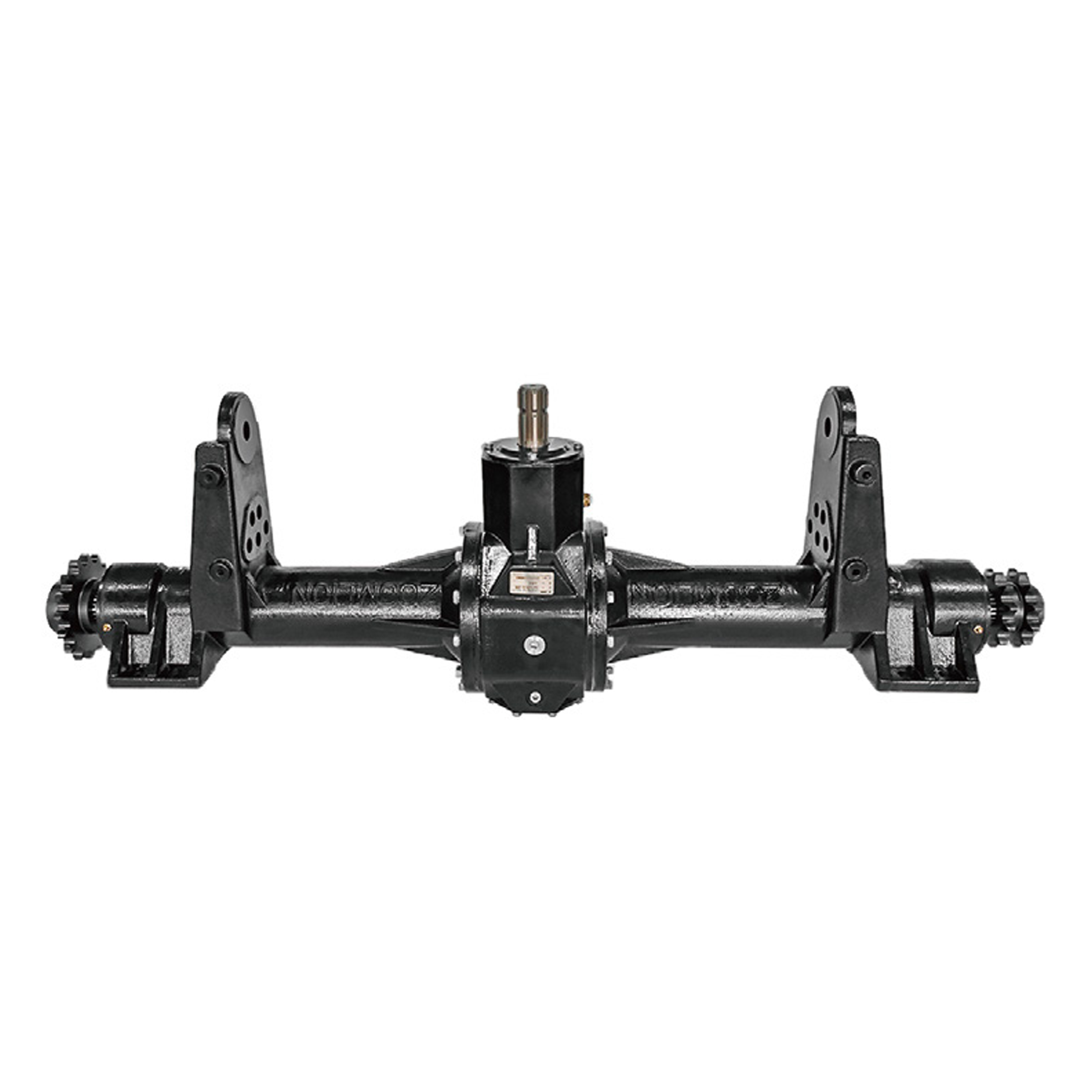

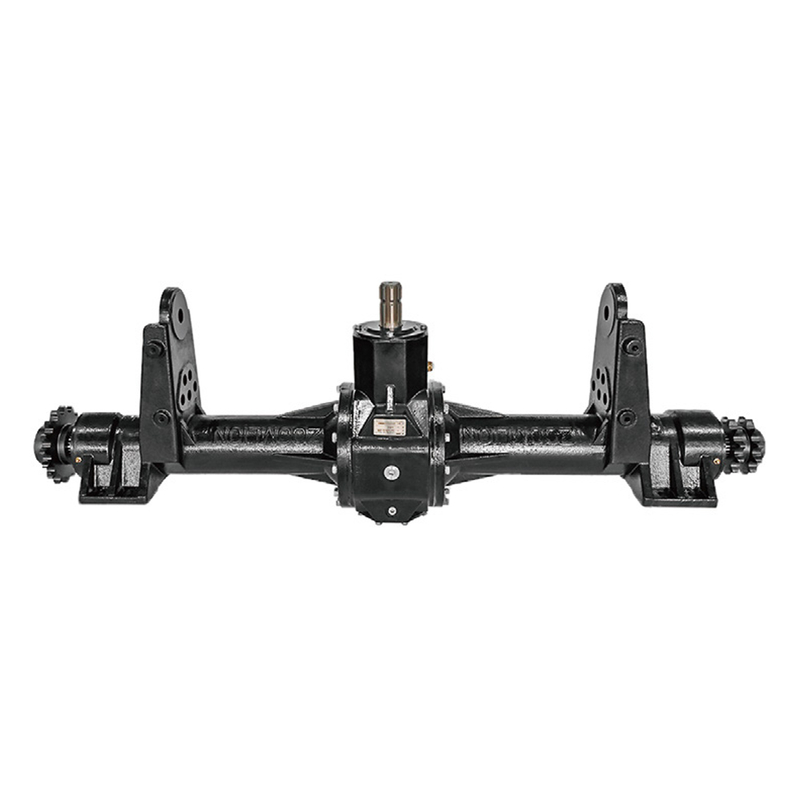

KLF9.35-XH01 Traction Type Large Round Baler Gearbox

Name: KLF9.35-XH01 Traction Type Large Round Baler Gearbox
Brand: KADIVA
Rating: 5.0 (91 reviews)

This gearbox is a large round baler transmission gearbox , tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power,meanwhile the gearbox realizes the traction between the tractor and the machine. The design is derived from the original design intention of imported models such as American VERMEER and AGCO, and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using cast iron bridge linking method and integrated design.

Model:
KLF9.35-XH01
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

The round baler gearbox KLF9.35-XH01 features a 1.92:1 reduction ratio, handling 80 kW (110 Hp) at 540 rpm input. It delivers 2728 N·m torque at 280 rpm output, built with reinforced housing and precision-machined gears to handle the high shock loads of continuous baling cycles. Custom mounting brackets, shaft lengths, and connection types are available to fit your equipment’s exact requirements.

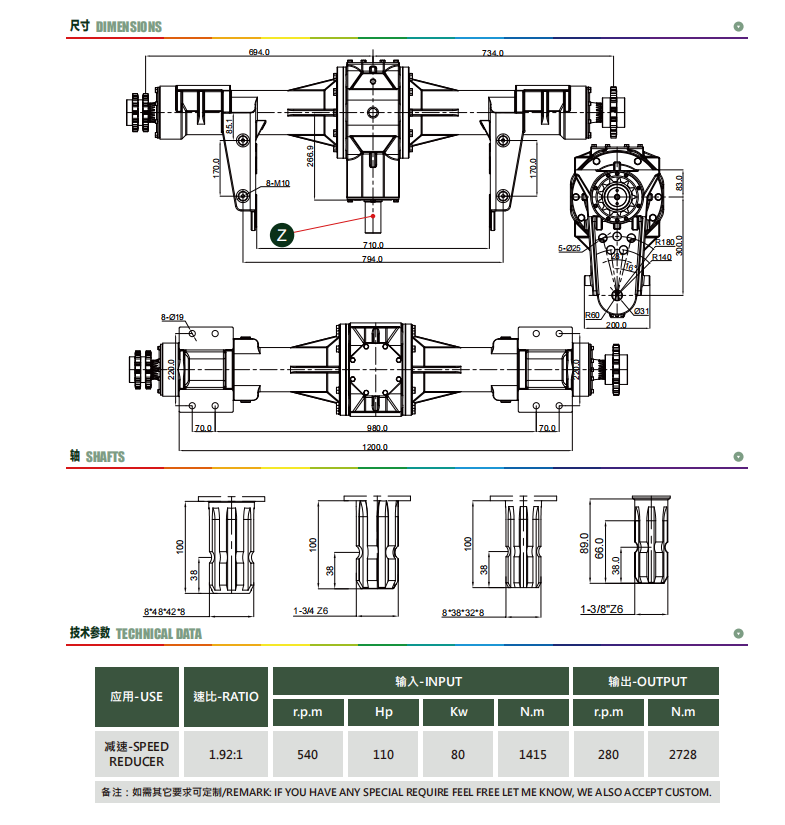

Technical Parameters
