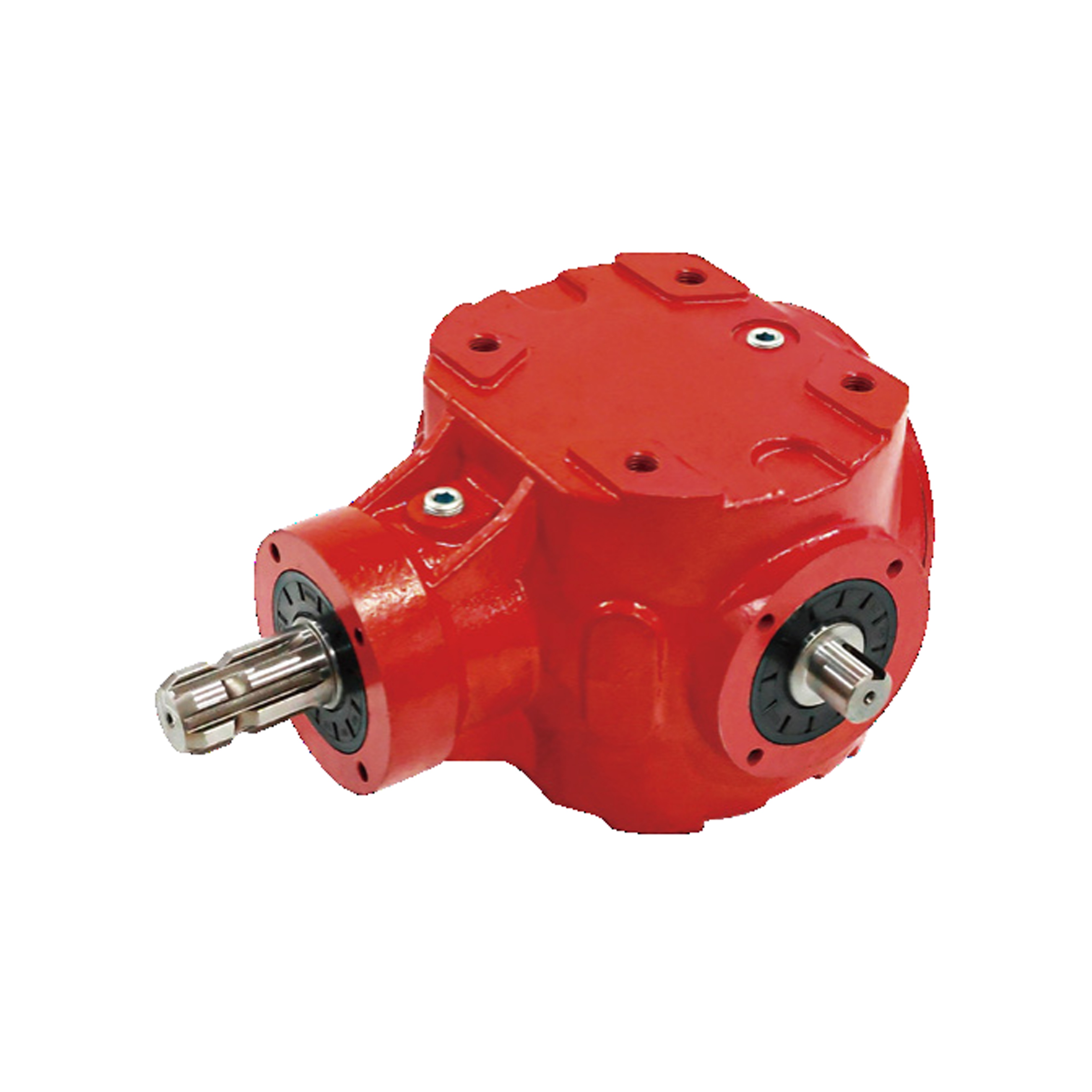

This is the KLF2070 universal multi-ratio bevel gearbox by KADIVA Machinery. It is a heavy-duty 3-way right-angle power transmission unit, supporting both speed multiplication (1:1.35–1:1.92) and reduction (1.35:1–1.92:1). Built with a high-strength cast iron housing and standard 1-3/8" splined PTO shafts, it handles up to 135HP/99kW power and 1171N·m torque at 1000RPM, making it ideal for heavy-duty rotary cutters, tillers, and large farm implements. Custom specifications are available on request.
RFQ
RFQ
Q1: What agricultural equipment is the KLF2070 gearbox commonly used for?
A: It is designed for heavy-duty applications including large rotary cutters, heavy tillers, hay balers, and other high-power PTO-driven farm machinery requiring 90° power transmission or speed conversion.
Q2: What is its maximum power and torque capacity?

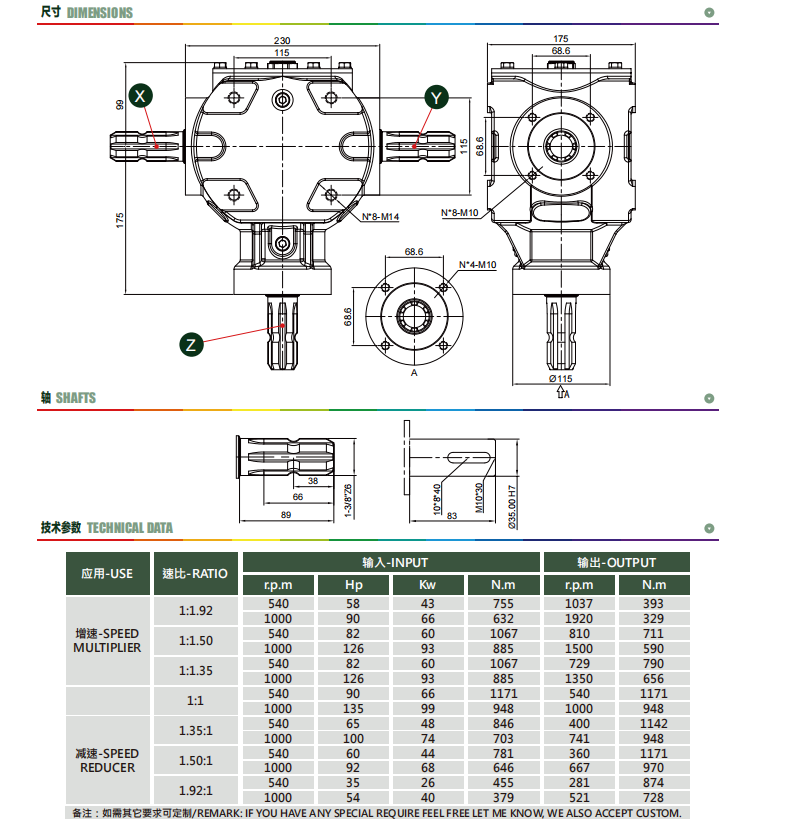

A: At 1000 RPM (1:1 ratio), it supports up to 135 HP / 99 kW input power with 948 N·m input torque, delivering a maximum output torque of 1171 N·m.
Q3: What is the lead time?
A: Stock models ship within 2-3 working days. Custom orders take working days depending on the modification scope and order quantity.
