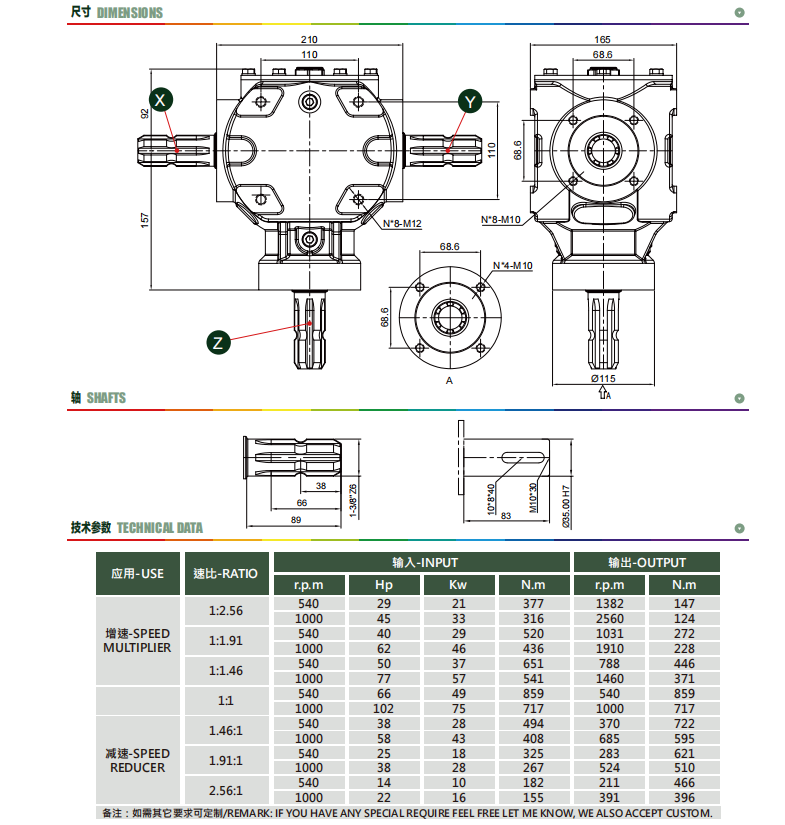

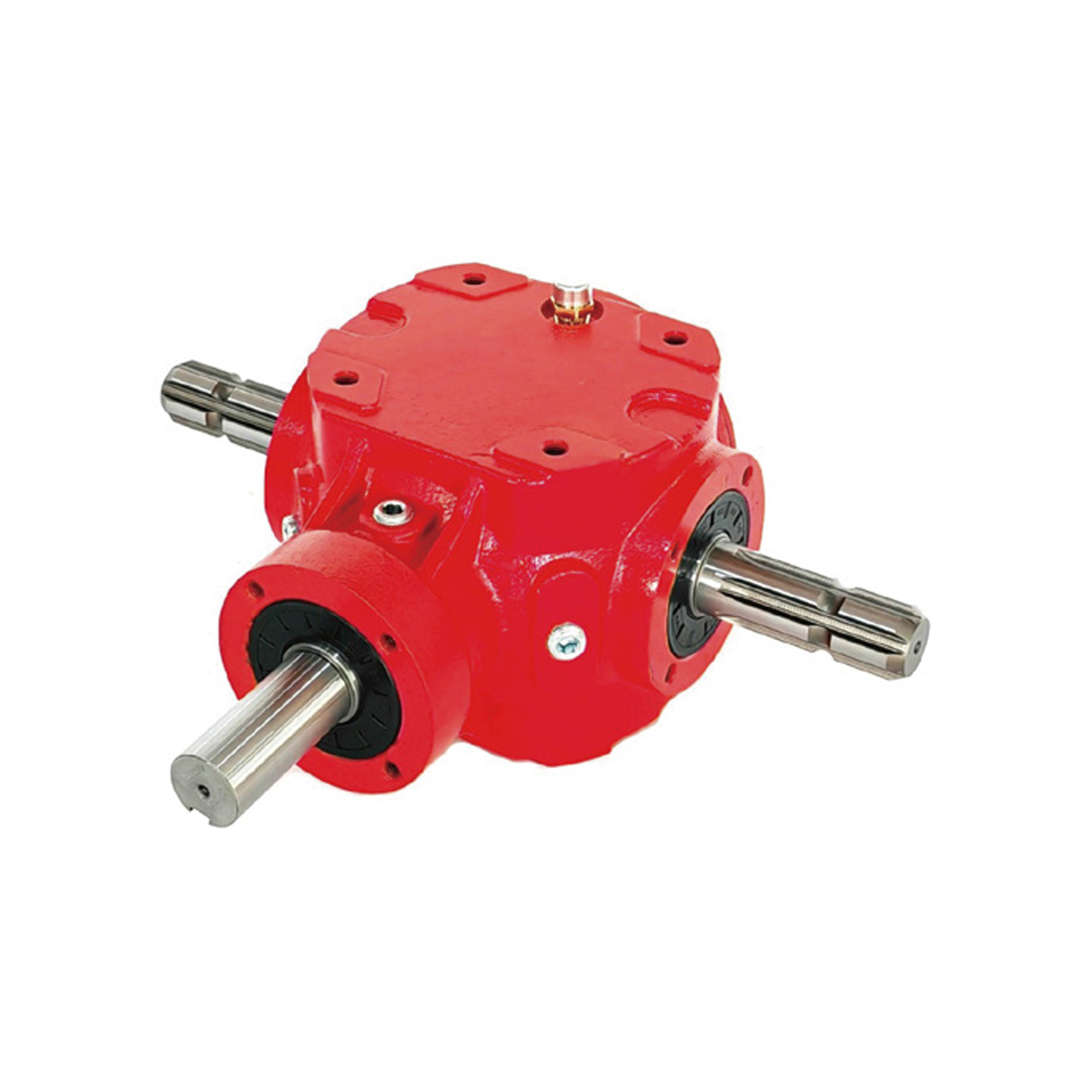

This is the KLF2050 universal multi-speed bevel gearbox from Kadiva Machinery. It is a 3-way right-angle power transmission unit, supporting both speed multiplication (1:1.46–1:2.56) and reduction (1.46:1–2.56:1). Built with a heavy-duty cast iron housing and splined PTO shafts, it handles up to 102HP/75kW power and 859N·m torque at 1000RPM, making it ideal for rotary cutters, tillers, and other farm machinery. Custom specifications are available on request.
RFQ
Q1: What kind of equipment is this KLF2050 gearbox suitable for?
A: The KLF2050 is a universal 3-way right-angle bevel gearbox, primarily designed for agricultural machinery including rotary cutters, tillers, mowers, hay balers, and other PTO-driven implements requiring speed conversion or 90° power transmission.
Q2: What gear ratios are available for this model?
A: It supports multiple ratios for both speed multiplication and reduction:
Speed Multiplier: 1:1.46 / 1:1.91 / 1:2.56
Direct Drive: 1:1
Speed Reducer: 1.46:1 / 1.91:1 / 2.56:1
Q3: Can the shaft configuration be customized?
A: Yes. We can adjust the shaft length, spline profile, or add keyways on the vertical shaft to match your specific implement connections.
