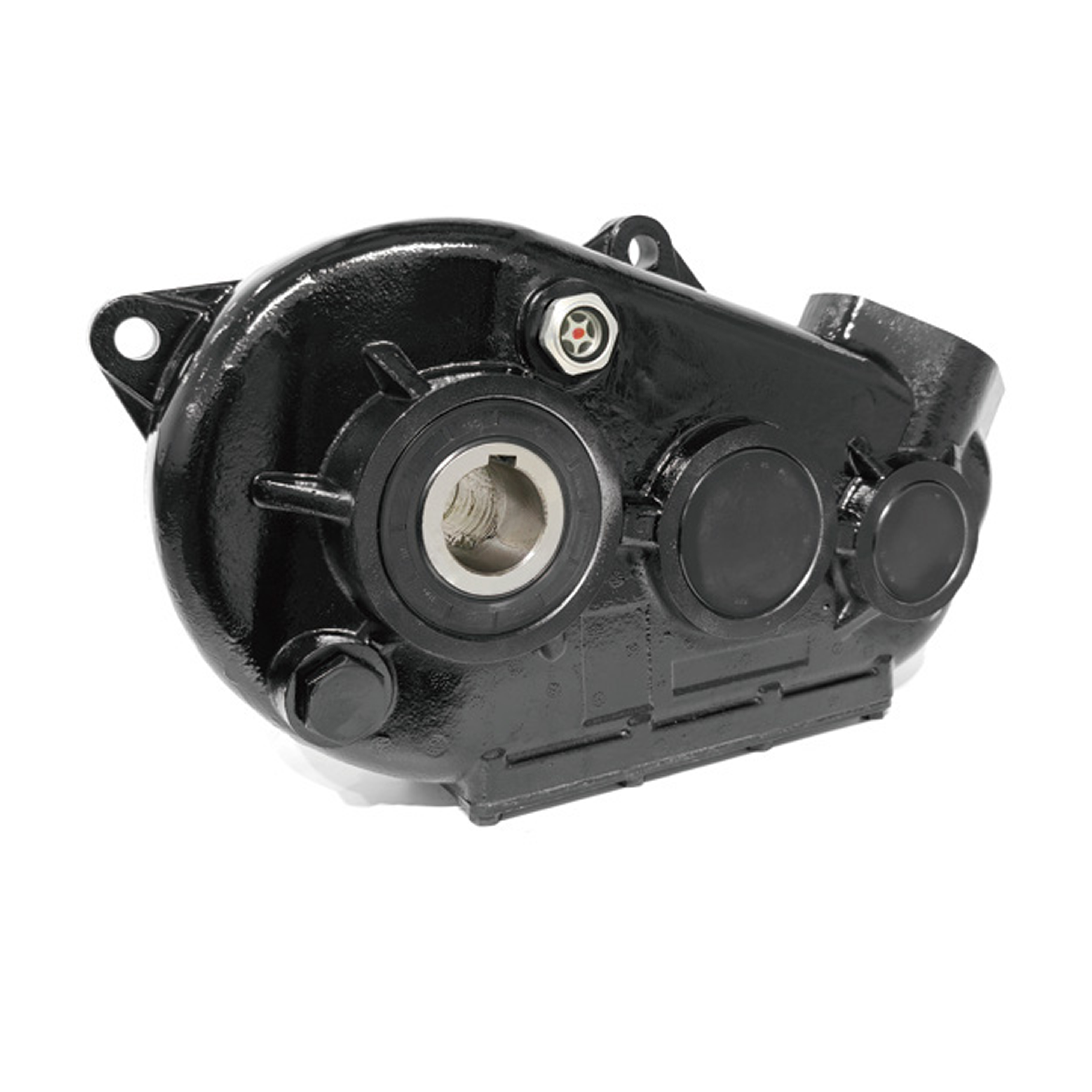

KLF-H300 Hydraulic Drive Gearbox for Seeder Machine

Name: KLF-H300 Hydraulic Drive Gearbox for Seeder Machine
Brand: KADIVA
Rating: 5.0 (59 reviews)

This product is used for the hydraulic drive gearbox of the Seeder Machine, which varies according to the use occasion. There are different models, namely: 8 cubic, 12 cubic, 20 cubic, 50 cubic, etc., and the traction methods also include self-made models and tractor-pulled models. Depending on the model, the size of the hydraulic drive gearbox is also different. The gearbox transmits different power inputs to the hydraulic drive motor to drive the conveyor connecting plate. Transport organic fertilizer and spread it to the fields through augers to increase land nutrition.

Model:
KLF-H300
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Developed exclusively for agricultural fertilizer spreaders and seed drills, the KLF-H300 reduction gearbox adopts a 29.41:1 gear ratio. It runs on 6kW (8.2Hp) input power at 540rpm and delivers high output torque up to 3138N.m at 18rpm, offering powerful steady drive for seeding and fertilizing operations.

It supports three alternative shaft sizes of Φ35, Φ40 and Φ45 for flexible installation on diverse farm equipment. With rugged cast casing and precision heat-treated gears, this unit copes well with rough field conditions and heavy intermittent loads.

We supply this product directly from our factory at competitive prices, alongside reliable OEM and ODM customization for gear ratio, mounting structure and shaft specs. Every gearbox comes with a full one-year warranty to safeguard your after-sales usage.

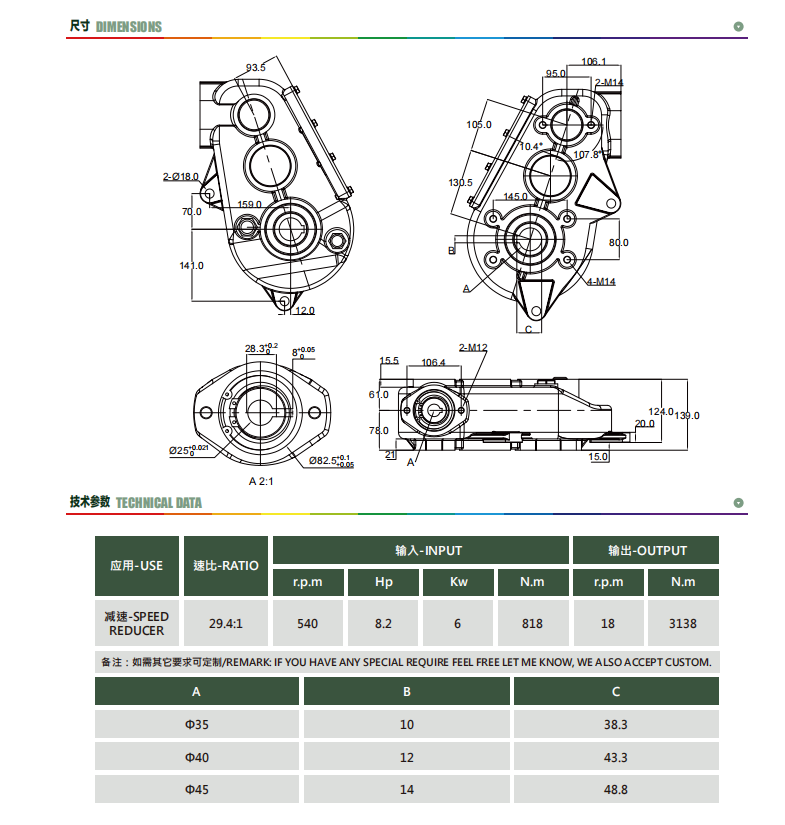

Technical Parameters
