Product Introduction
This product is a Helical Bevel Gear Motor (K Type), a highly efficient and durable right-angle gear unit. It is designed for exceptional energy efficiency in both directions of rotation at any input speed, thanks to its wear-free, high-endurance gearing. Offering versatile input configurations such as direct motor coupling and solid input shaft, along with multiple output options like hollow or solid output shaft, it provides flexible mounting and connection solutions. The series includes foot- or flange-mounted variants, making it ideal for demanding industrial applications that require reliable, long-lasting power transmission and precise motion control.
Product Advantages
Exceptional Energy Efficiency & Bidirectional Performance
This Helical Bevel Gear Motor delivers remarkably high efficiency in both directions of rotation and at any input speed, significantly reducing energy consumption. The optimized gear geometry ensures efficiency ratings of up to 96%, making it an ideal choice for continuous operation applications where operational costs are a key consideration. This consistent performance translates into direct, long-term savings.
Lifetime Durability with Wear-Free Gearing
The core of its reliability lies in its high-endurance gearing. Manufactured from case-hardened and ground alloy steel, the gear teeth are engineered for wear-free operation under standard conditions. This design ensures the gearing lasts the entire gear unit’s lifetime, minimizing downtime and eliminating the need for premature gear replacement, which provides outstanding total cost of ownership.
Unmatched Configuration Flexibility (Input)
We offer maximum integration flexibility through multiple input configurations. Customers can choose from a direct motor coupled design, units with an IEC B5/B14 motor flange, a compact IEC B5/B14 motor mounted version, or a with solid input shaft option. This adaptability allows for seamless fitting into both new machinery designs and existing system retrofits.
Robust & Adaptable Output Solutions
To suit diverse mechanical requirements, the series provides versatile output configurations. Options include a standard solid output shaft, a solid output shaft with flange for enhanced mounting, a hollow output shaft for space-saving direct mounting, and a hollow output shaft with flange. This range ensures a perfect match for various driven equipment connections.
Comprehensive Series Variants for Every Need

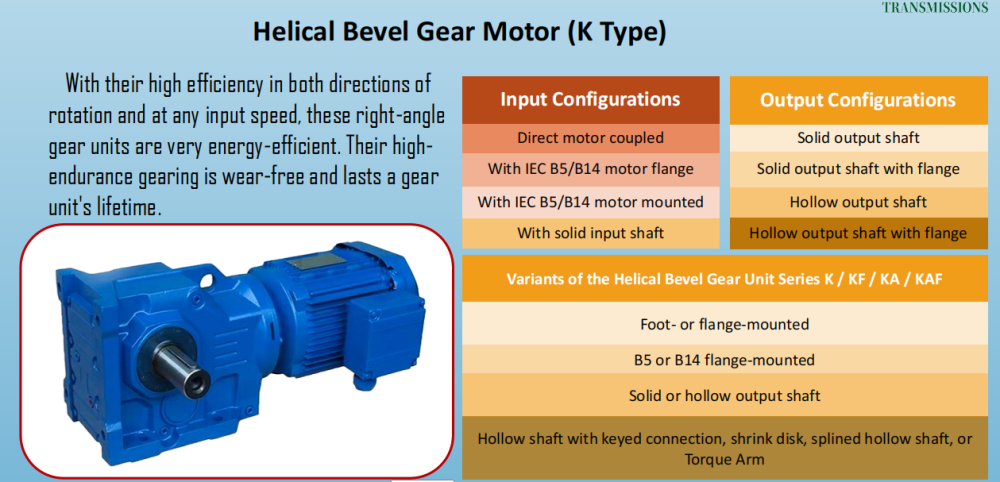

The product family includes several key variants of the Helical Bevel Gear Unit Series K / KF / KA / KAF. These models offer choices between foot- or flange-mounted installation, B5 or B14 flange-mounted motor interfaces, and solid or hollow output shaft types. Furthermore, the hollow shaft can be fitted with a keyed connection, shrink disk, splined hollow shaft, or Torque Arm, providing unparalleled application-specific adaptability.
Technical Parameters
Product Uses
Based on the superior efficiency, versatility, and right-angle design of the Helical Bevel Gear Motor Series K / KF / KA / KAF, this product excels in the following application scenarios:
Material Handling & Conveyor Systems
This gear unit is ideal for driving conveyors, palletizers, and sortation systems. Its high efficiency and bidirectional operation ensure smooth and energy-saving material flow. The availability of solid or hollow output shafts, along with flange options, offers flexible integration for both direct drives and shaft-mounted configurations.
Industrial Mixing & Processing
In mixers, agitators, and processing equipment for food, chemical, or pharmaceutical industries, the wear-free gearing provides long-lasting, maintenance-free operation. The B5/B14 motor flange-mounted variant simplifies installation, and the right-angle layout saves valuable space in compact machinery layouts.
Heavy-Duty Industrial Machinery
From industrial fans and pumps to crushers and feeders, this robust helical bevel gear unit delivers reliable, high-torque output. The Torque Arm option and shrink disk hollow shaft variant provide secure torque transmission in high-vibration environments, ensuring stable operation and long service life.
Automated & Mobile Equipment
Its efficient and compact design makes it suitable for automated guided vehicles (AGVs), robotic arms, and agricultural machinery. The right-angle transmission allows for tight space integration, while the hollow shaft with splined or keyed connection supports precise and responsive motion control in mobile applications.
Product Operate Guide
To operate your K-Series Helical Bevel Gear Motor, first select the correct input configuration, such as an IEC B5/B14 motor flange mount, and ensure secure connection. Then, choose your desired output configuration—whether a solid output shaft or a hollow output shaft with flange—to match your driven machine. For installation, align all connected components accurately to prevent uneven wear. Start the unit under no load and gradually increase to operational speed to verify smooth running.
FAQ
Q1:Are you trading company or manufacturer?
A : We are manufacturer with more than 20 years production and technology experiences.
Q2:Can you supply the sample?
A :After confirmation, you can order samples to check the quality. We will charge the sample cost.
Q3:What is your payment terms?
A:T/T 30% as deposit, 70% balance before shipment.
Q4:How long is your delivery time?
A :Generally ship out within 40-50days after receive order and deposit. The time may vary depending on the product and the level of customization.
