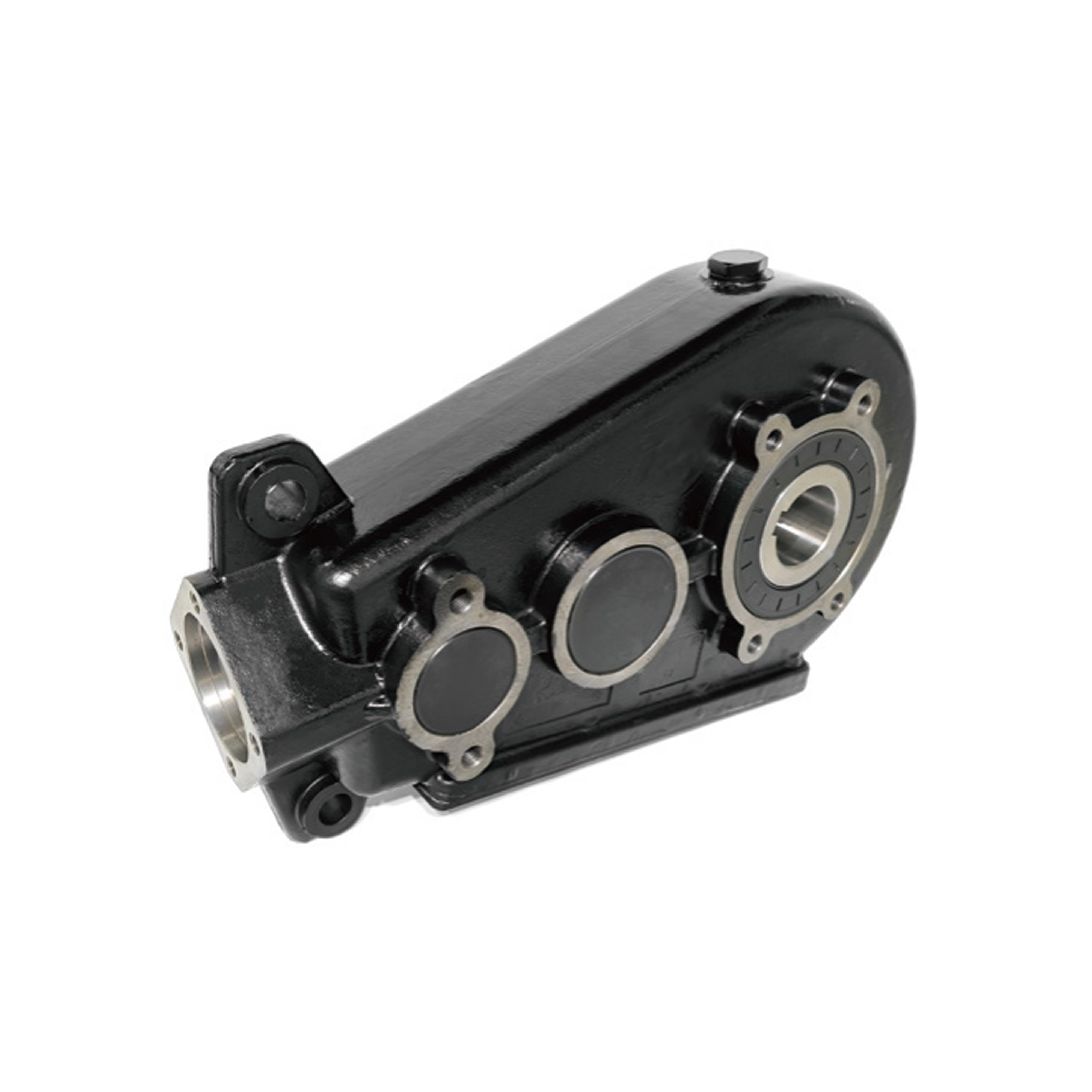

KLF-H400 Hydraulic Drive Gearbox for Seeder Machine

Name: KLF-H400 Hydraulic Drive Gearbox for Seeder Machine
Brand: KADIVA
Rating: 5.0 (23 reviews)

This product is used for the hydraulic drive gearbox of the Seeder Machine, which varies according to the use occasion. There are different models, namely: 8 cubic, 12 cubic, 20 cubic, 50 cubic, etc., and the traction methods also include self-made models and tractor-pulled models. Depending on the model, the size of the hydraulic drive gearbox is also different. The gearbox transmits different power inputs to the hydraulic drive motor to drive the conveyor connecting plate. Transport organic fertilizer and spread it to the fields through augers to increase land nutrition.

Model:
KLF-H400
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

The KLF-H400 reduction gearbox is purpose-built for farm fertilizer spreaders and seed planting equipment, boasting a 35.19:1 reduction ratio. With 6.4kW (8.7Hp) input at 540rpm, it generates high 4074N.m output torque at 15rpm to drive consistent seeding and fertilizing work.

Four optional shaft diameters (Φ45, Φ50, Φ55, Φ60) allow easy matching with diverse agricultural machinery. Robust cast casing and heat-treated gears ensure stable performance amid harsh outdoor farming conditions.

We sell items straight from our production facility and deliver flexible OEM & ODM customization on mounting dimensions and gear parameters. Every unit is covered with a 12-month factory warranty for worry-free after-sales service.

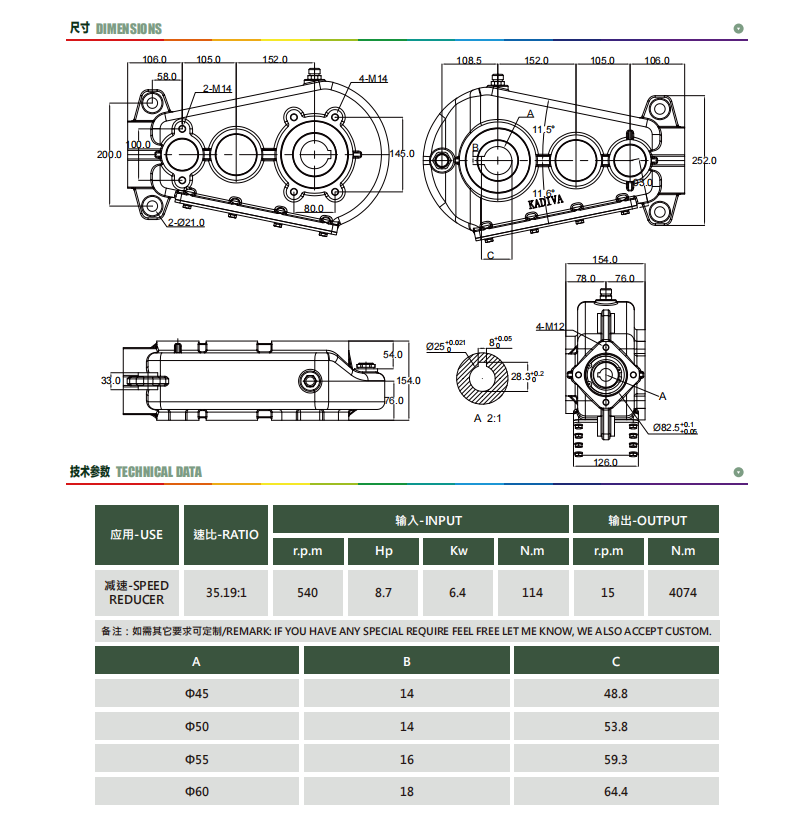

Technical Parameters
