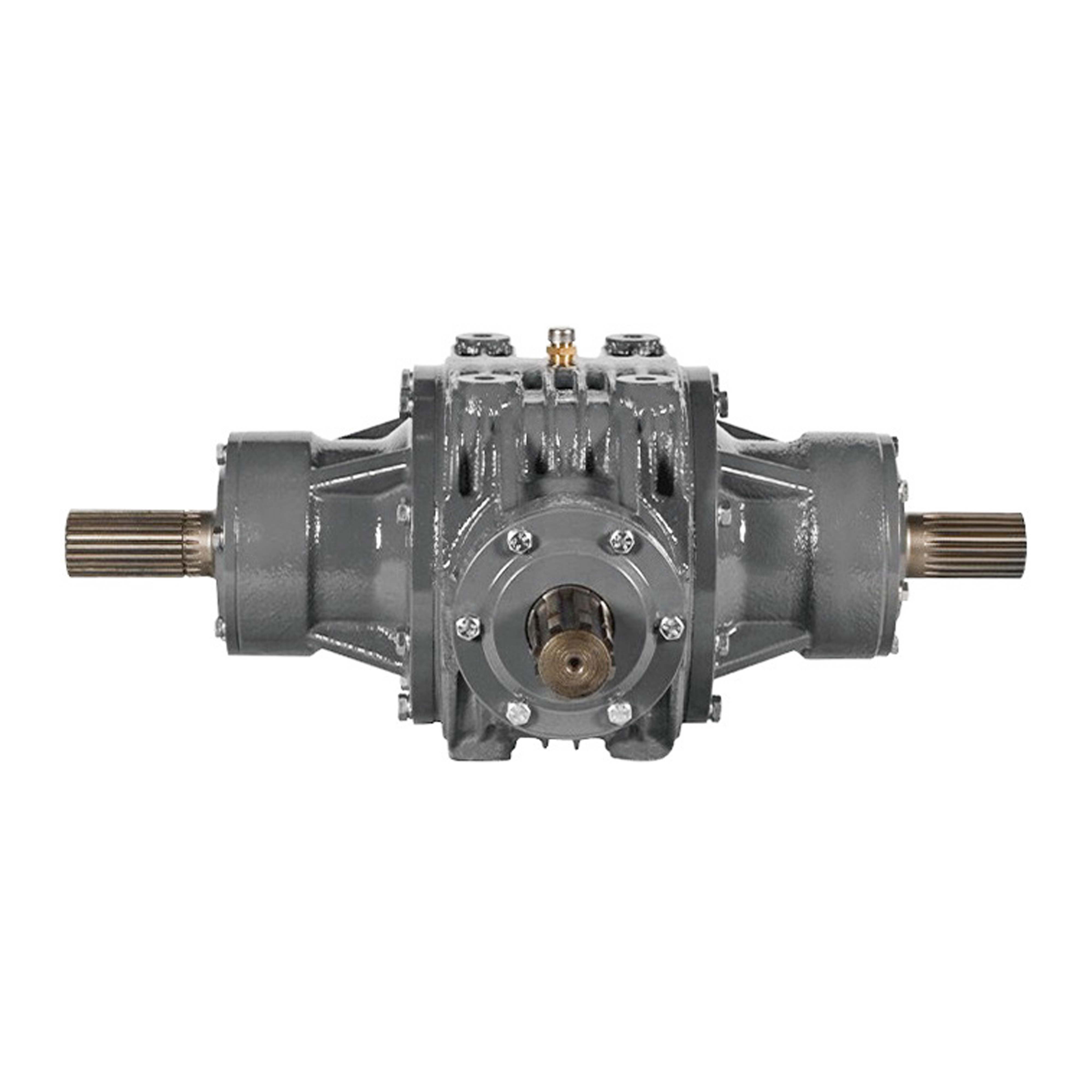

KLF246 Non-traction Large Round Baler Gearbox

This gearbox is a large round baler transmission gearbox, tractor power input. Through the input of the gearbox, the output on both sides drives the machine to operate and transmit power. It has a split-type welded pipe and half-shaft structure. Easy replacement and maintenance, and the design is not limited by disadvantages such as length. The flange ends on both sides use imported maintenance-free bearings for longer service life. The non-traction type gearbox realizes the advantages of small size and lightness and achieves the same transmission efficiency. The design of KLF246 is derived from the original design intention of imported models such as American VERMEER and AGCO, and is based on domestic and foreign usage conditions. We have carried out a comprehensive upgrade using cast iron bridge linking method and unibody design, meets international standards.
