Product Introduction

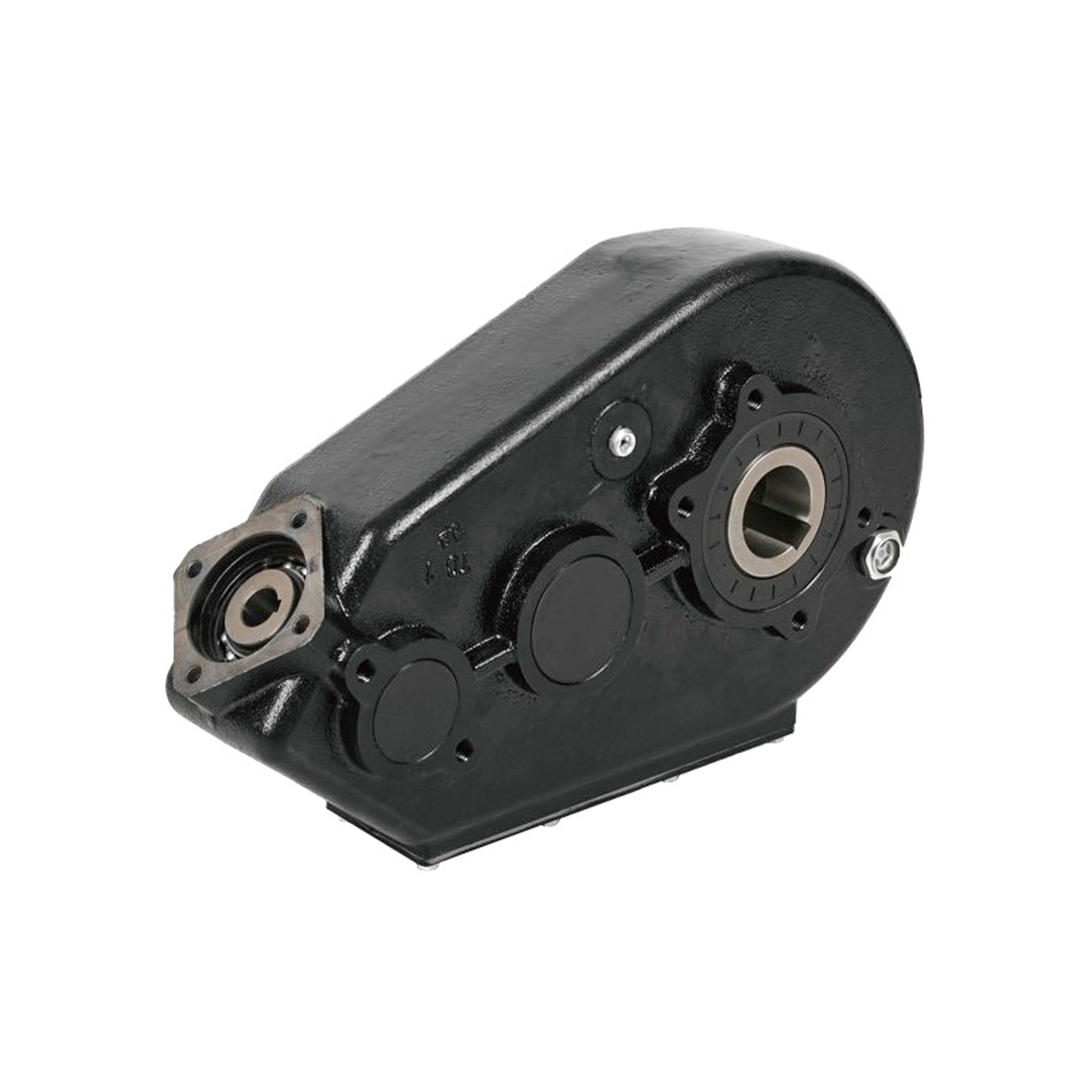

Specially engineered for fertilizer spreaders and seed planters, the KLF-H500 reducer features a 43.54:1 reduction ratio. It runs at 6.3kW (8.57Hp) input power and 540rpm input speed, delivering up to 5000N·m torque at 12rpm for powerful low-speed farm operation.
Three alternative shaft sizes (Φ50/Φ55/Φ60) enable flexible installation across multiple seeding devices. Durable cast housing and precision hardened gears deliver outstanding durability against rough field workloads.
As direct manufacturer, we cut intermediate costs for competitive factory-direct pricing. Custom OEM & ODM solutions cover gear ratio, shaft and mounting tweaks, alongside a full one-year factory warranty for all purchased units.

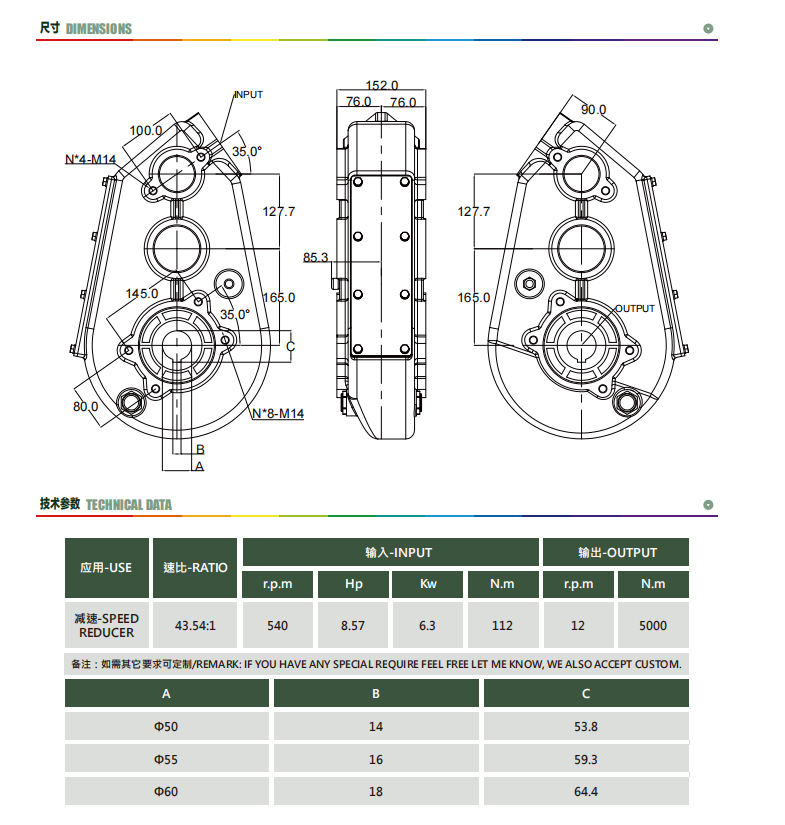

Technical Parameters
Our goal is to work closely with partners to help customers achieve greater success in multiple fields.
We collaborate with reliable logistics partners to provide efficient logistics and delivery services.
We provide comprehensive after-sales service, providing product return and exchange services.
We have a professional technical team that can provide technical consultation and support to customers.
We have advanced laboratory facilities and quality control systems to ensure product quality and compliance.
Our company is located in Xiaoshan District, Hangzhou City, Zhejiang Province, China. It takes less than 30 minutes to reach us from both the high-speed railway station and the airport. Please feel free to contact us to book a factory tour.
What is the material of the gears? Do you have any product dimension drawings?
Regarding the gear material: The housing of our gearboxes are made of high-quality cast iron, and the gears and shafts are made of 20CrMnTi which ensures excellent strength, durability and long service life for agricultural machinery applications.
About the dimension drawings: Yes, we have complete product dimension drawings and technical specifications. I will send the detailed drawing to you right away for your reference.
Please feel free to contact us if you have any other questions or requirements.
