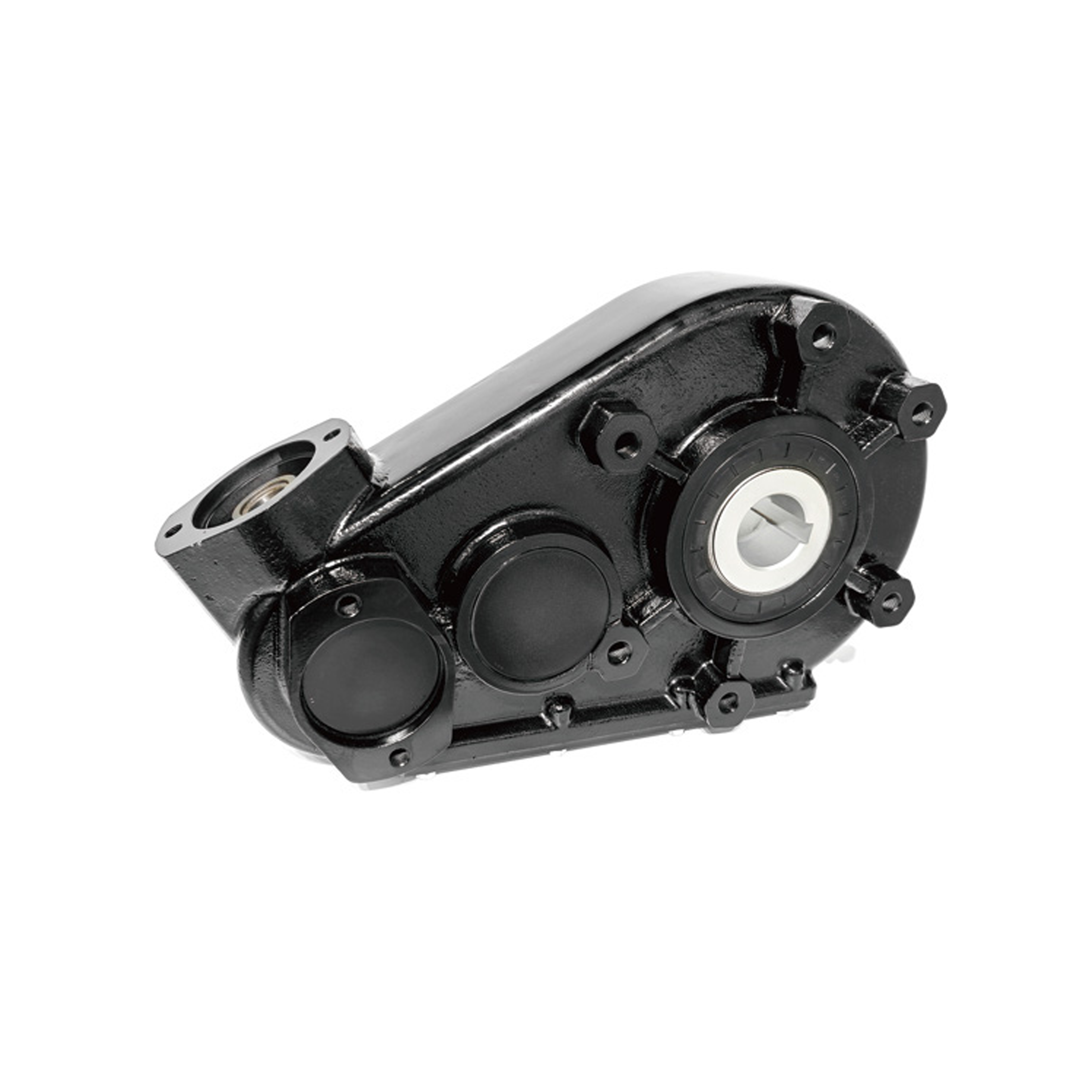

KLF-H350 Hydraulic Drive Gearbox for Seeder Machine

Name: KLF-H350 Hydraulic Drive Gearbox for Seeder Machine
Brand: KADIVA
Rating: 5.0 (48 reviews)

This product is used for the hydraulic drive gearbox of the Seeder Machine, which varies according to the use occasion. There are different models, namely: 8 cubic, 12 cubic, 20 cubic, 50 cubic, etc., and the traction methods also include self-made models and tractor-pulled models. Depending on the model, the size of the hydraulic drive gearbox is also different. The gearbox transmits different power inputs to the hydraulic drive motor to drive the conveyor connecting plate. Transport organic fertilizer and spread it to the fields through augers to increase land nutrition.

Model:
KLF-H350
Brand:
KADIVA

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Introduction

Tailored for agricultural fertilizer spreaders and seeding machines, the KLF-H350 reduction gearbox features a 24.3:1 reduction ratio. Powered by 8.06kW (11Hp) input at 540rpm, it outputs robust 3500N.m torque at 22rpm to guarantee stable operation during heavy-duty fertilizing and sowing tasks.

Four configurable shaft sizes (Φ45/Φ50/Φ55/Φ60) facilitate seamless fitting on varied farming equipment models. Crafted with high-strength cast housing and hardened precision gears, it effectively resists abrasion and variable field load impacts.

As direct factory vendor, we provide cost-effective direct sales plus flexible OEM & ODM customisation covering gear ratios, mounting layouts and shaft specifications. All our gearboxes carry a full 12-month warranty to eliminate customers’ after-sale concerns.

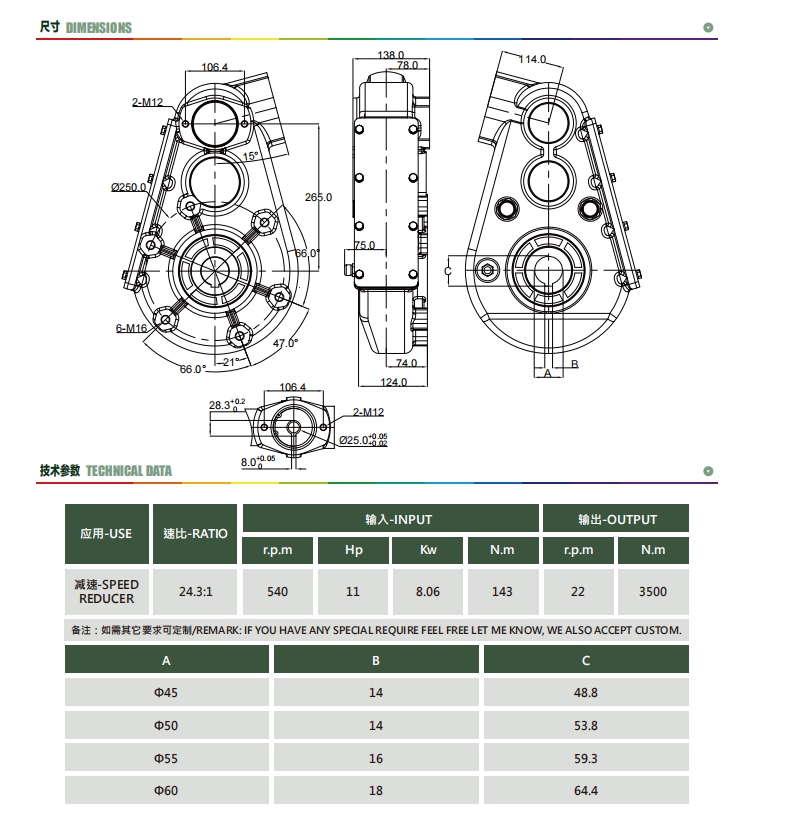

Technical Parameters
