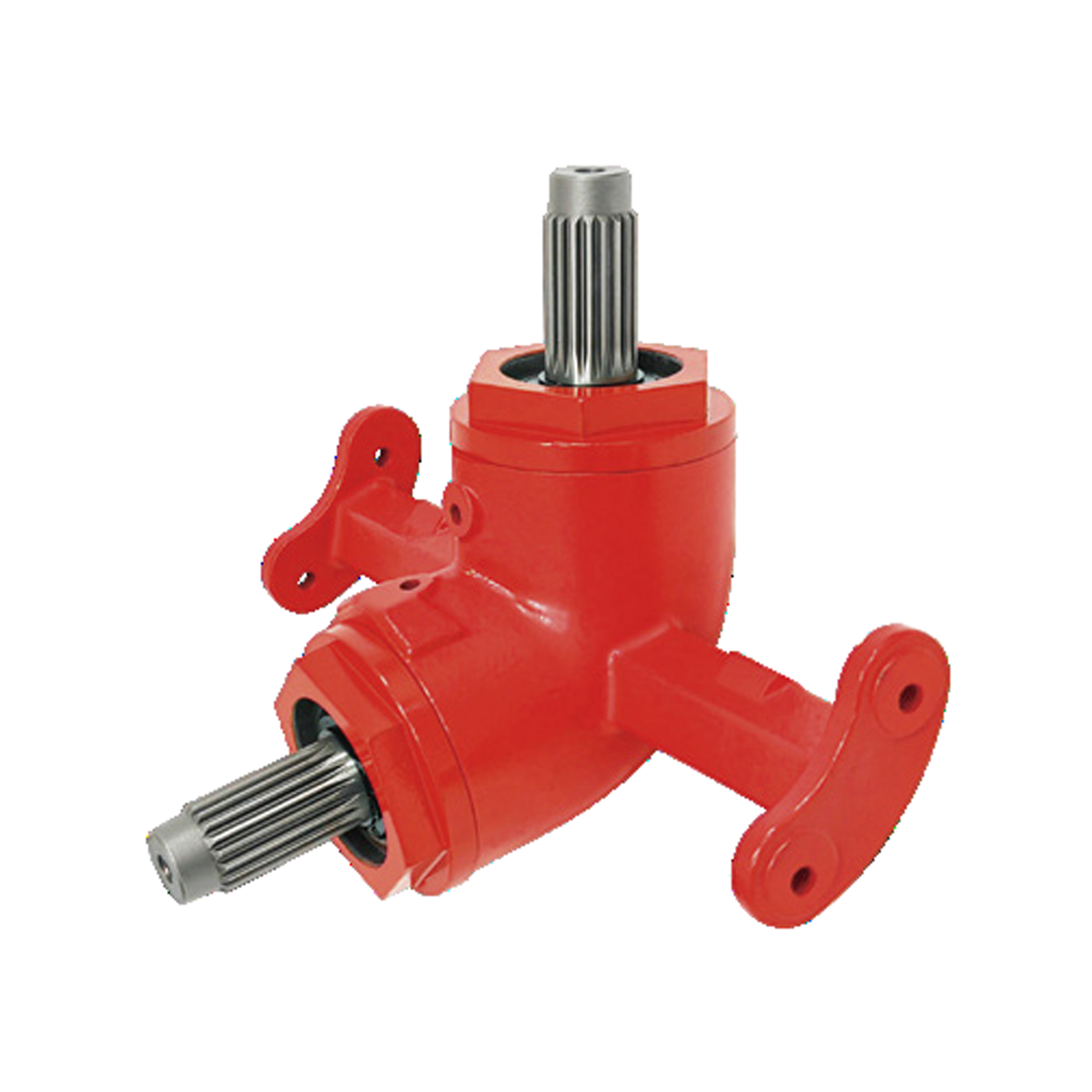

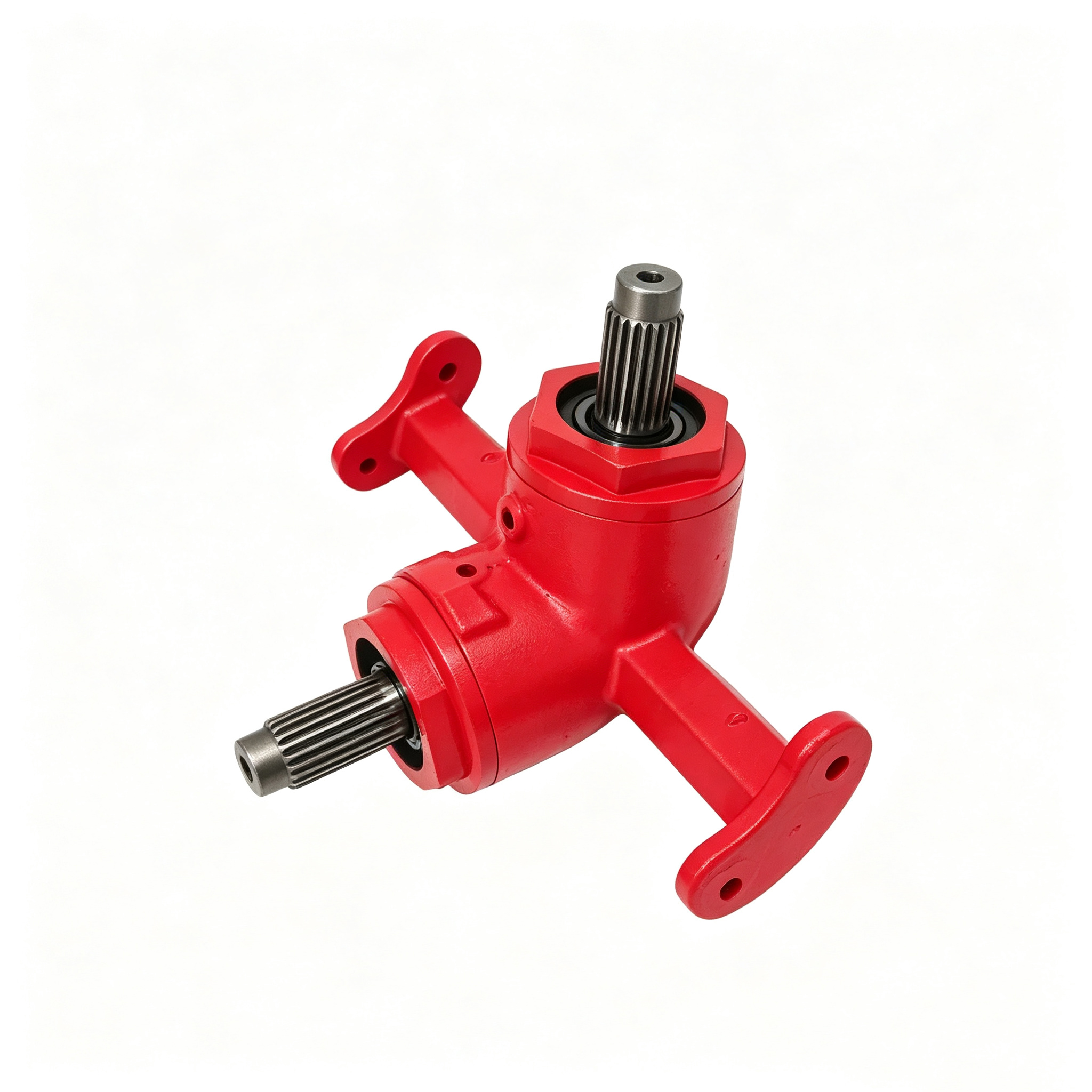

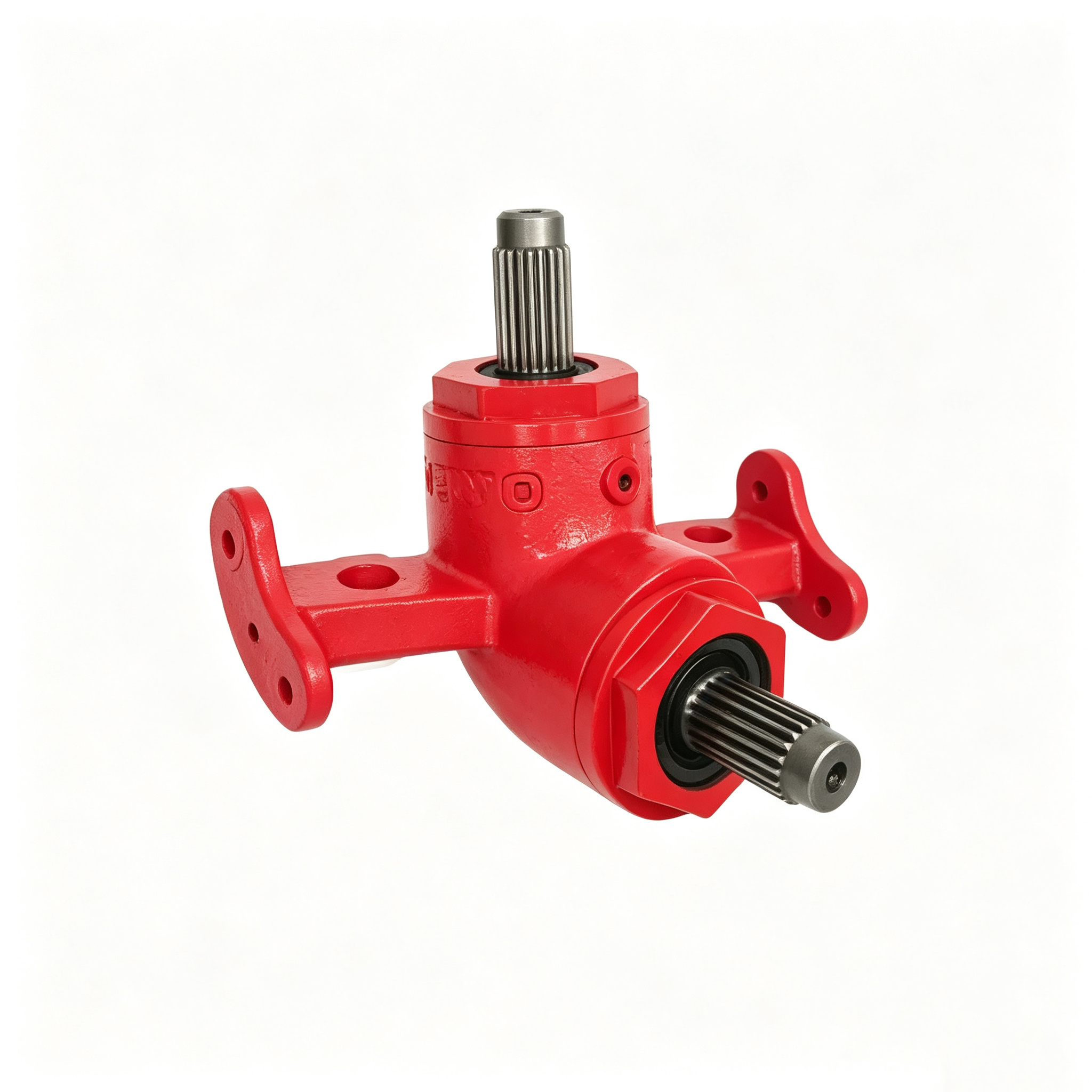

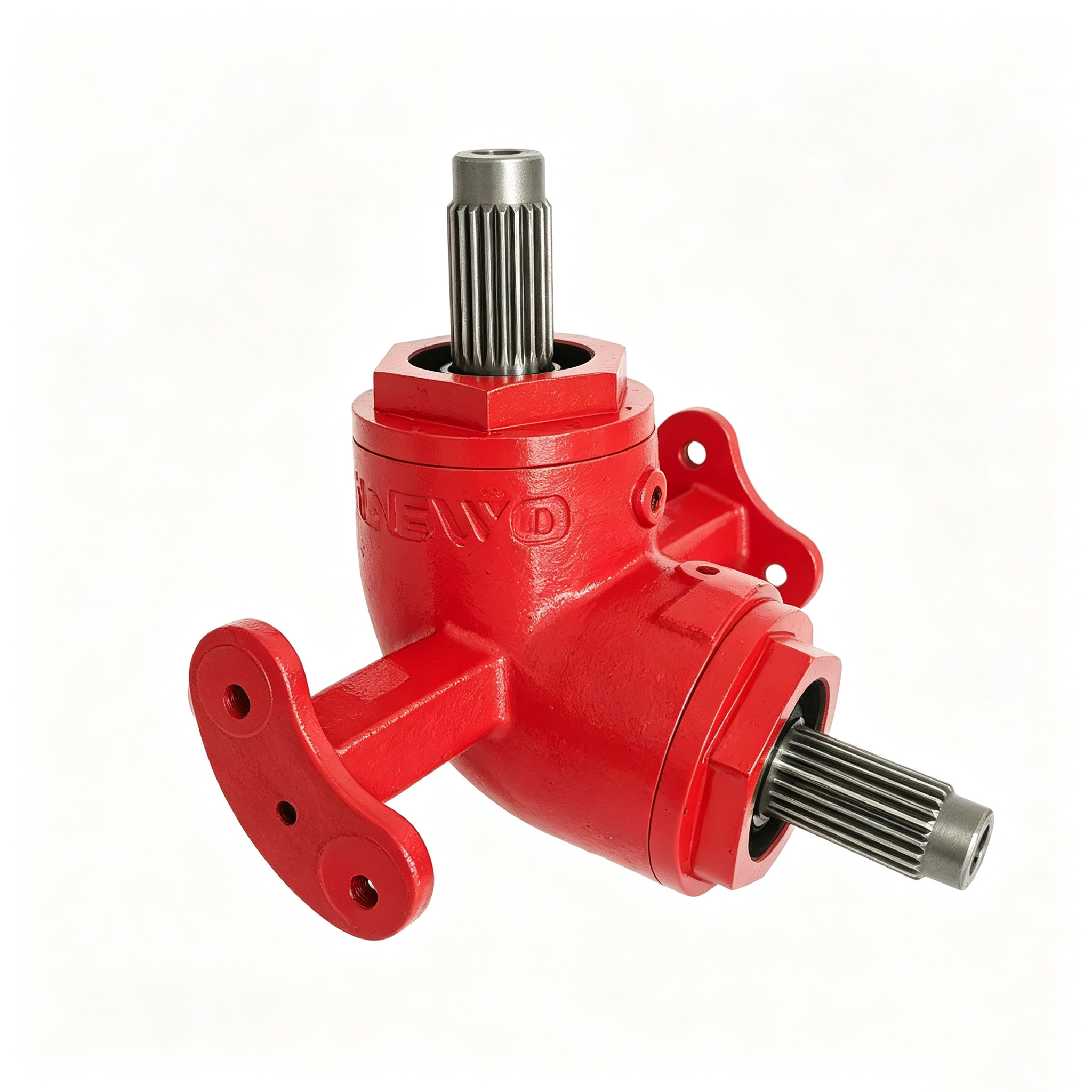

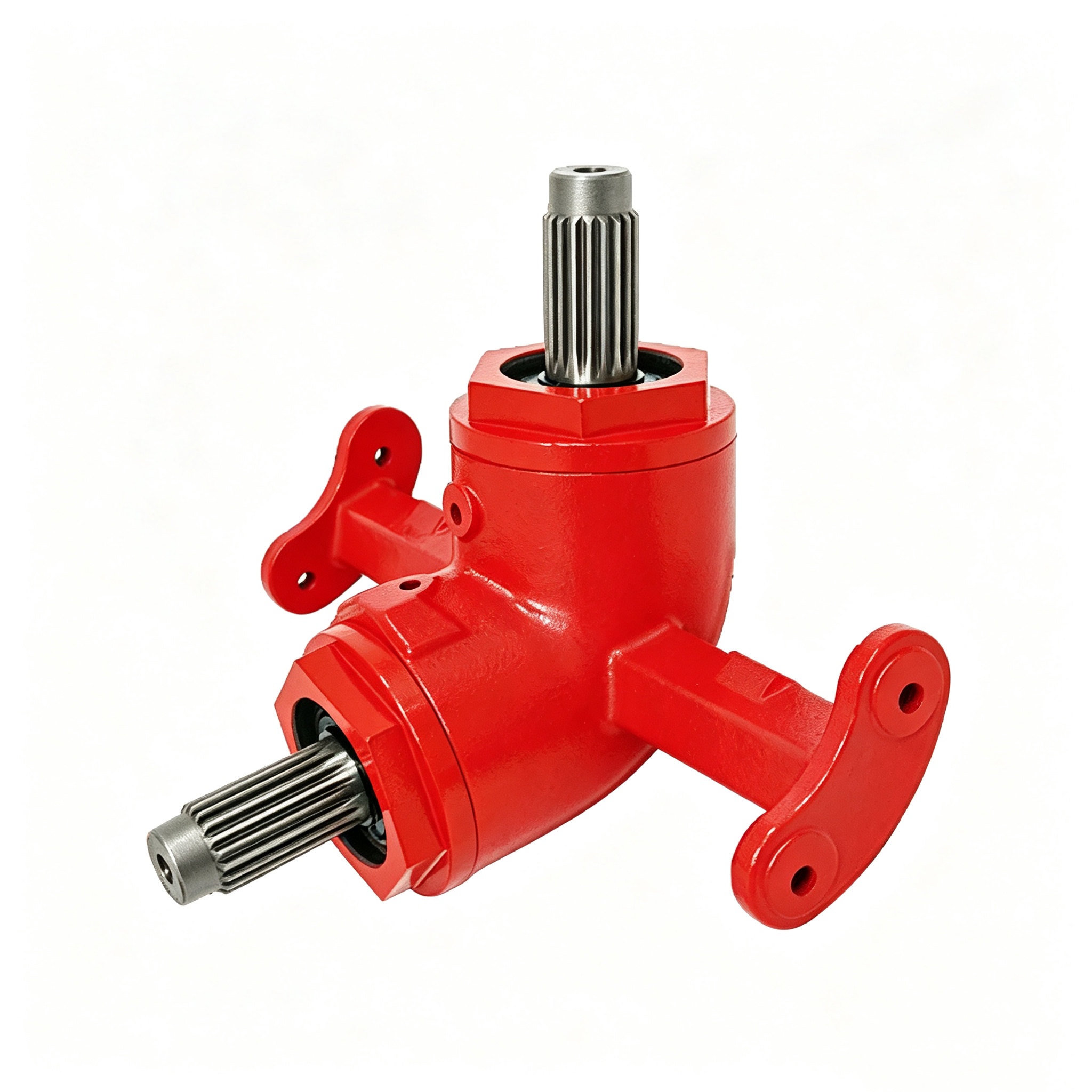

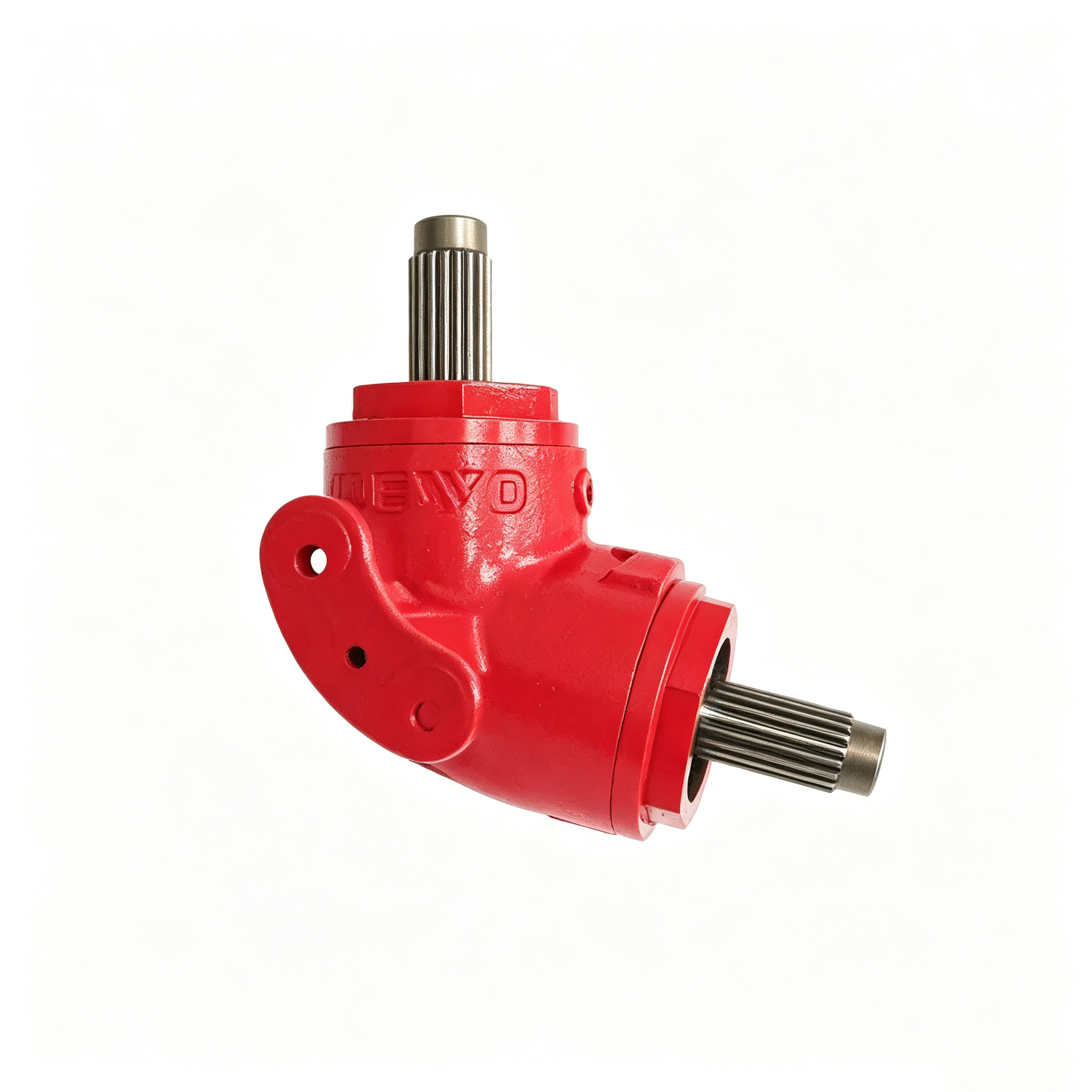

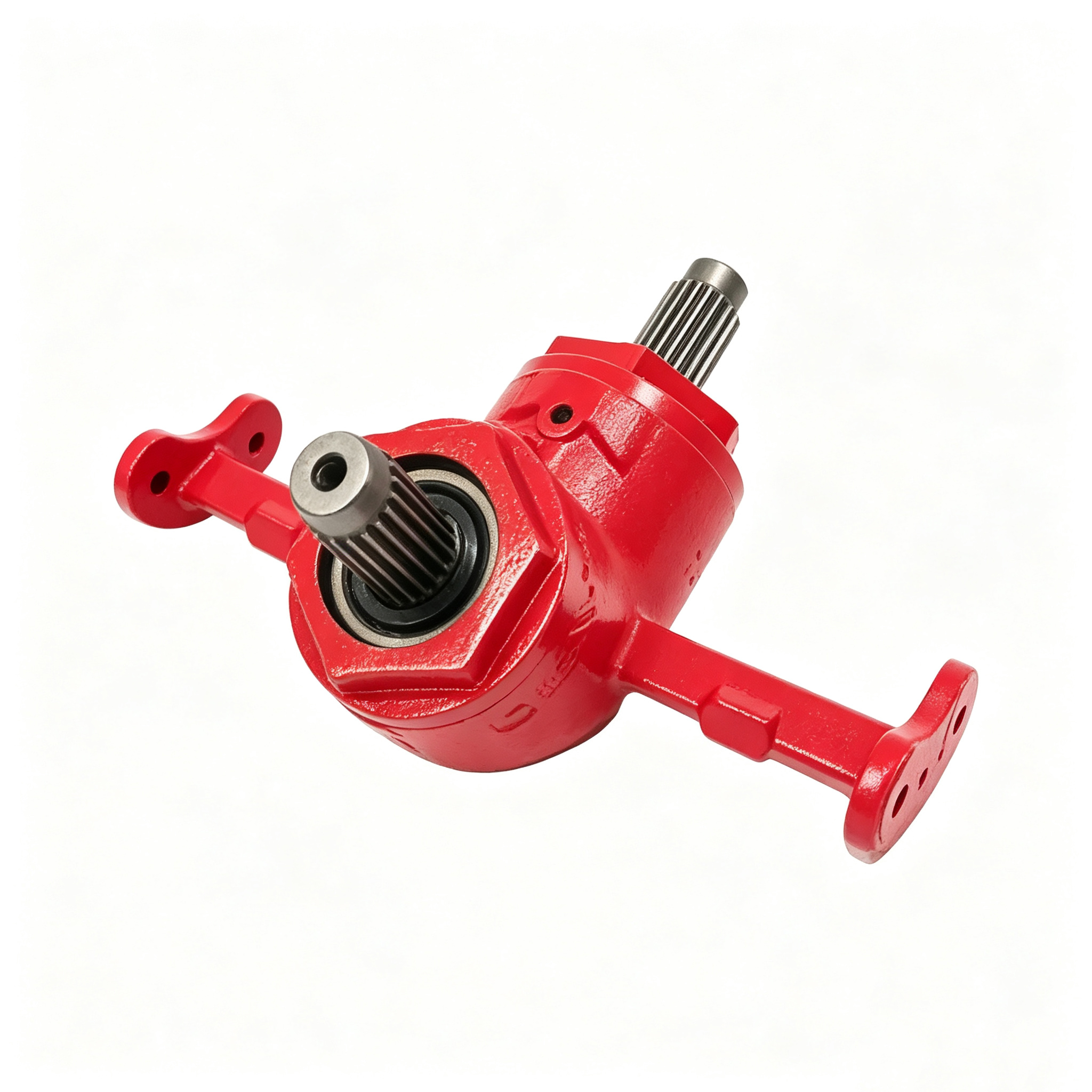

KLF-SH162 Corn Grain Harvester Gearbox 1:1 Ratio Right Angle Bevel Reducer for Corn Picker Machine

Name: KLF-SH162 Corn Grain Harvester Gearbox 1:1 Ratio Right Angle Bevel Reducer for Corn Picker Machine
Brand: Kadiva
Rating: 5.0 (61 reviews)

The KLF-SH162 gearbox is mainly used in the header drive system of corn grain harvesters, providing stable power support for key components such as snapping rolls, conveying chains, and feeding mechanisms. It is widely compatible with mainstream domestic and foreign corn harvester models and is a key transmission component ensuring efficient and continuous corn harvesting operations.

Model:
KLF-SH162
Brand:
Kadiva

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Overview

The KLF-SH162 Bevel Gear Reducer is a dedicated transmission gearbox developed by KADIVA Machinery Hangzhou, specially customized for corn kernel picking & harvesting machinery. This 90-degree right-angle bevel gear unit is widely used as core replacement spare part for small & medium corn picker equipment across global agricultural markets.

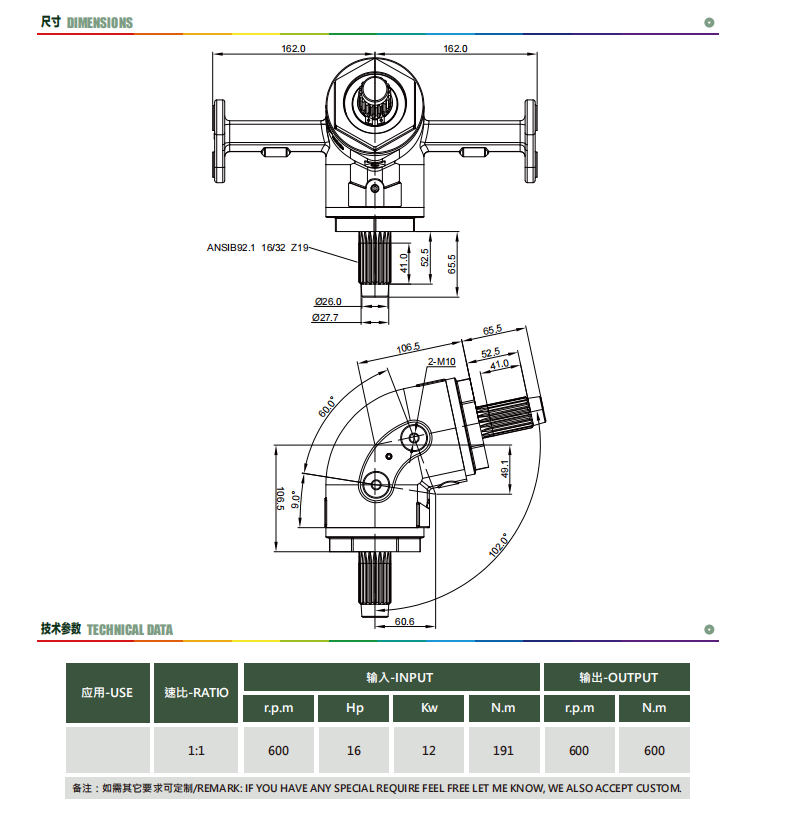

Technical Specifications

Fixed gear ratio: 1:1, input rated speed: 600rpm, rated power: 12KW (16HP), input torque: 191N.m; output speed keeps 600rpm with max output torque up to 600N.m, perfectly matched with standard corn harvester power configuration.
