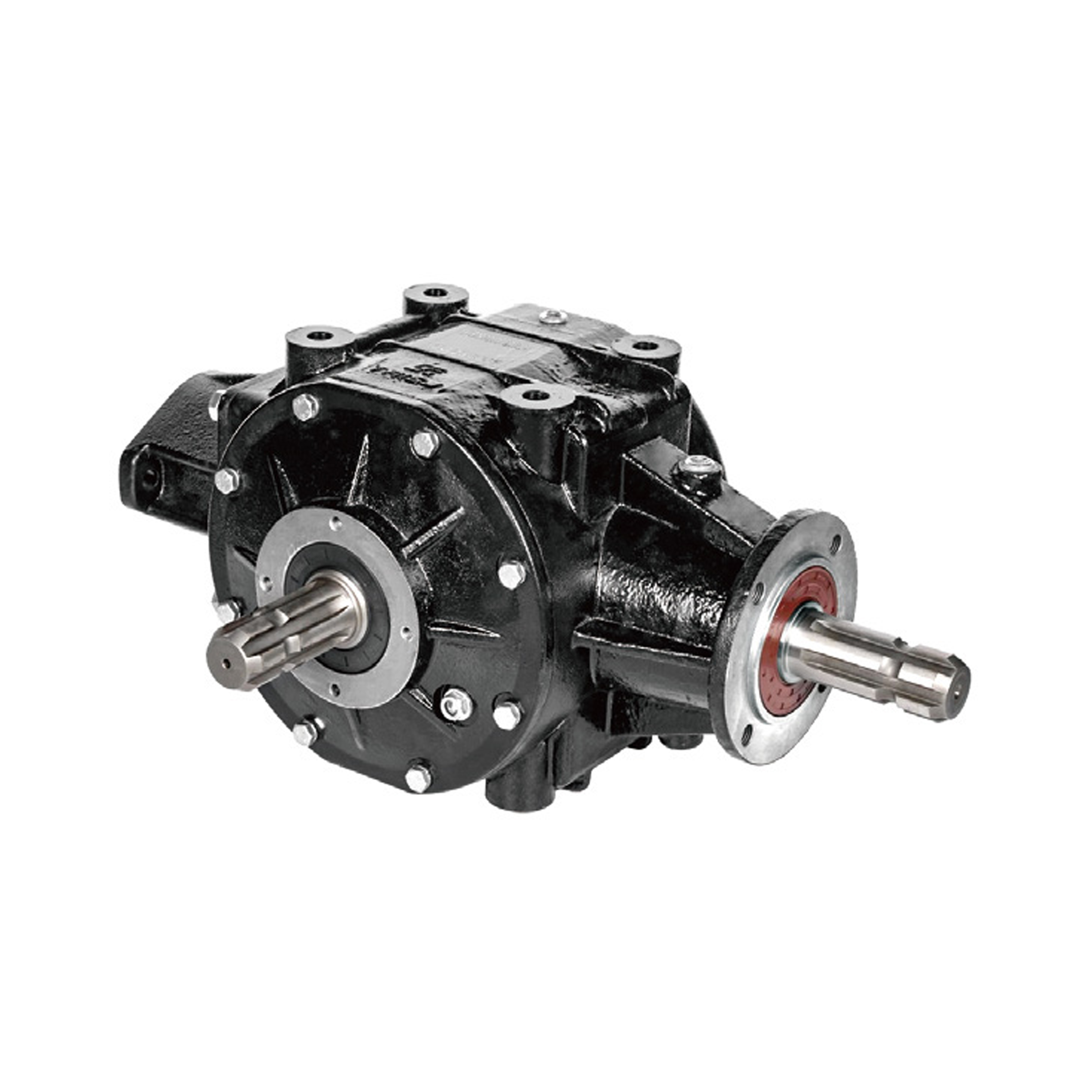

KLF-GC290B Ratchet Speed Increasing Gearbox

Name: KLF-GC290B Ratchet Speed Increasing Gearbox
Brand: Kadiva
Rating: 5.0 (4 reviews)

The KLF-GC290-B features multiple overdrive transmission ratios, suitable for various types of agricultural machinery and equipment, such as straw crushers and agricultural residual film recyclers.

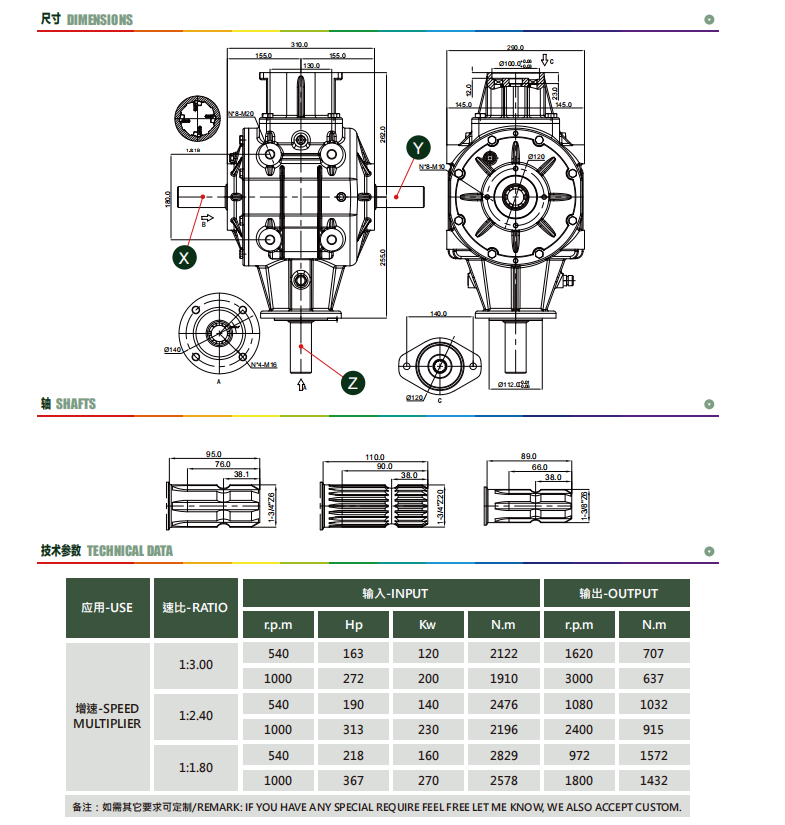

It adopts Gleason bevel gears with high machining precision and meshing accuracy, featuring low transmission loss and high power transmission efficiency.Input speed: 540 r/minOutput speed: 1620 r/minRated power: 163 HPMaximum power: 360 HP
This gearbox is designed with a one-way clutch device. During operation, the cutter shaft runs at a high speed. When stopping operation, if the tractor cuts off power input suddenly, the cutter shaft will produce strong rotational inertia. The one-way clutch can effectively protect the gears and shafts from being damaged.

Model:
KLF-GC290-B
Brand:
Kadiva

Availability:

Quantity:



Inquire Add to Basket

Product Description

KLF-GC290B is a heavy-duty three-shaft speed multiplier bevel gearbox developed by KADIVA MACHINERY(Hangzhou), specially optimized for high-load agricultural field equipment including straw crushers, crop stalk returning machines and agricultural residual film recovery machinery. Featuring matte black high-strength cast iron housing, this ratchet-type speed increaser is built to stand harsh continuous farm working environment with strong anti-shock and anti-abrasion performance.
