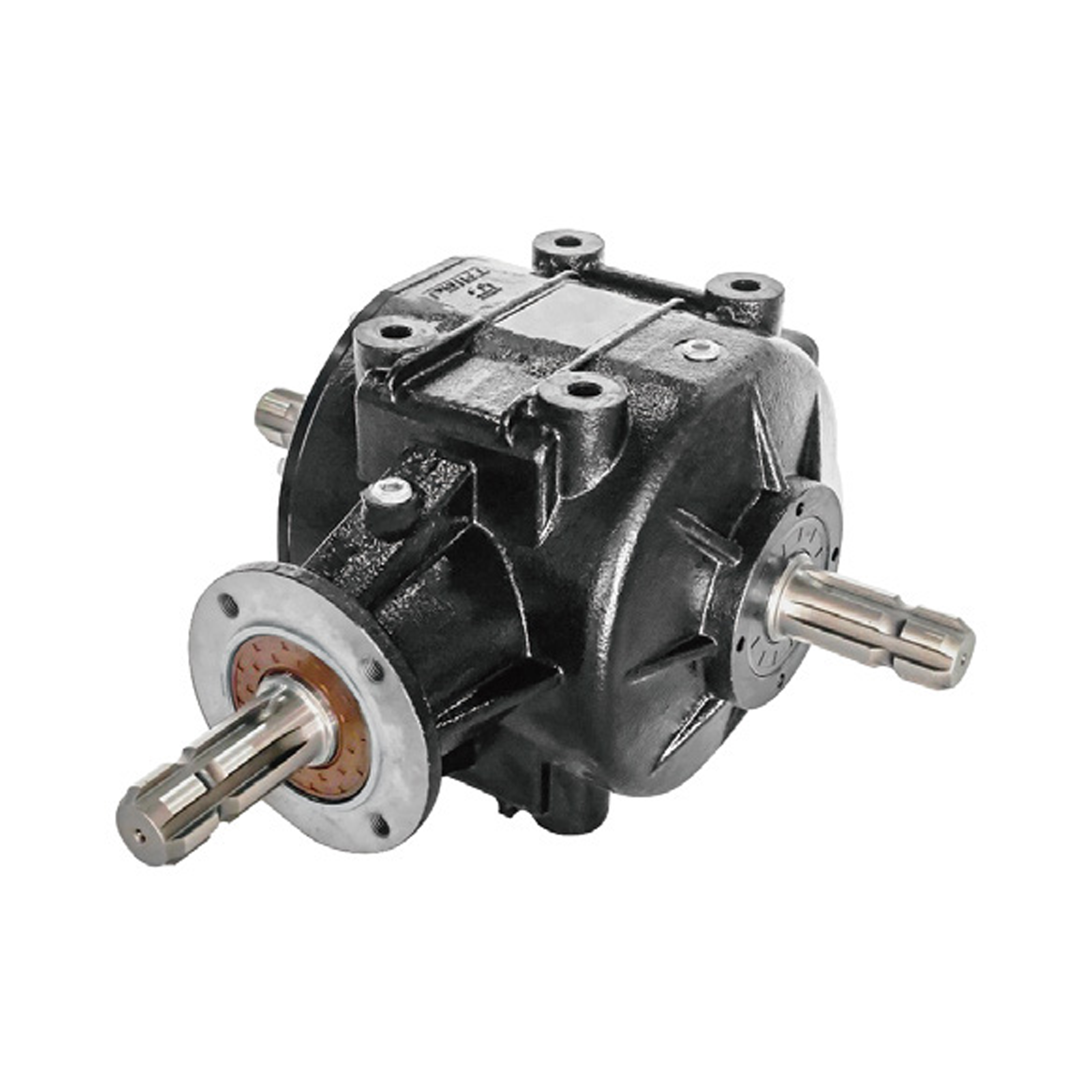

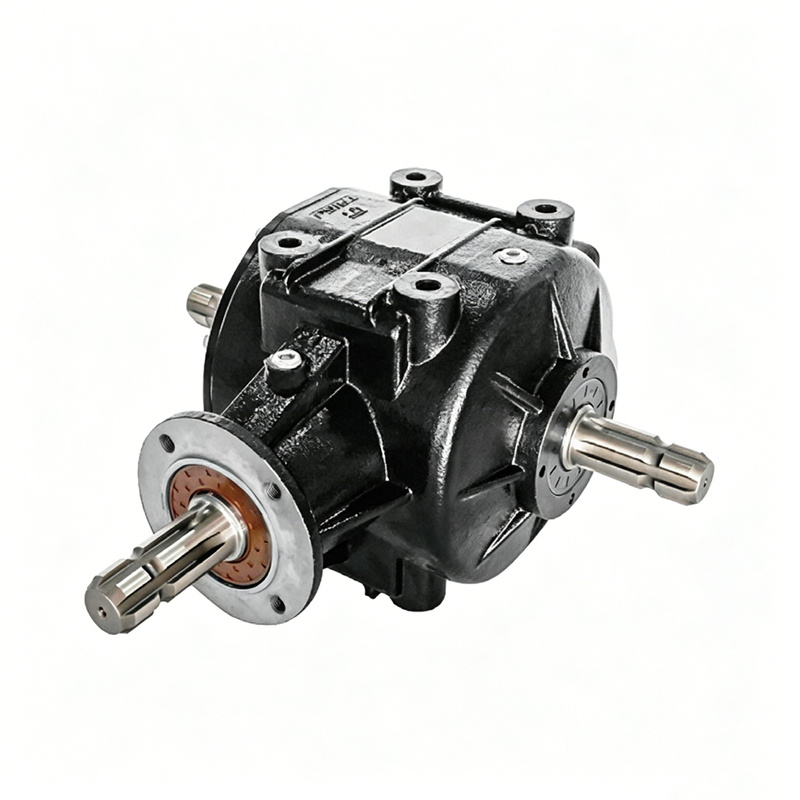

KLF-GC290 gearboxes for mulcher straw crusher machine, agricultural residual film recovery machine

You are here: Home » Products » Agricultural Gearboxes » Mulcher Gearbox » KLF-GC290 gearboxes for mulcher straw crusher machine, agricultural residual film recovery machine

KLF-GC290 gearboxes for mulcher straw crusher machine, agricultural residual film recovery machine

Name: KLF-GC290 gearboxes for mulcher straw crusher machine, agricultural residual film recovery machine
Brand: Kadiva
Rating: 5.0 (69 reviews)

The KLF-GC290 features multiple overdrive transmission ratios, suitable for various types of agricultural machinery and equipment, such as straw crushers and agricultural residual film recyclers.
It adopts Gleason bevel gears with high machining precision and meshing accuracy, featuring low transmission loss and high power transmission efficiency.Input speed: 540 r/minOutput speed: 1620 r/minRated power: 163 HPMaximum power: 360 HP
This gearbox is designed with a one-way clutch device. During operation, the cutter shaft runs at a high speed. When stopping operation, if the tractor cuts off power input suddenly, the cutter shaft will produce strong rotational inertia. The one-way clutch can effectively protect the gears and shafts from being damaged.

Model:
KLF-GC290
Brand:
Kadiva

Availability:

Quantity:



Inquire Add to Basket

Product Description

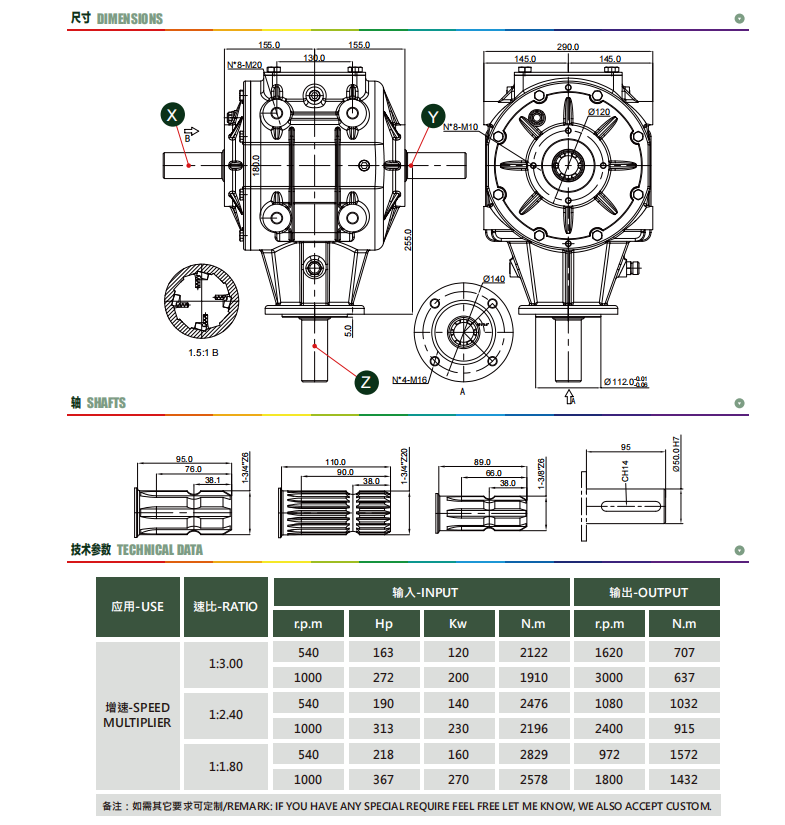

The KLF-GC290 is heavy-duty increasing-speed bevel gearbox specially engineered for large flail mowers, straw crushers and forage harvesting machinery. Available with 3 standard transmission ratios: 1:3.00 /1:2.40 /1:1.80 to match different working speed demands. Adopting premium Gleason spiral bevel gears, it delivers high machining accuracy, low power loss and excellent transmission efficiency. Built-in one-way overrunning clutch effectively protects internal gears and shafts against damage from cutter shaft inertial shock when tractor power cuts off abruptly. Max supporting input power up to 367HP, ideal for heavy-load agricultural operations. Customization on mounting dimension, shaft specification and gear ratio is available.
