Product Introduction
This gearbox is specially developed for the main transmission of power rakes. Adopting advanced European and American design, it drives the transfer case gears to rotate rake blades for normal operation. With vertically rotating blades, the power rake effectively prevents soil nutrient loss.
Model KLF-DXB220 features a working width of 2.5m to 3m and adopts a fork-type shifting structure. It is compatible with tractors of different rotating speeds.
Product Advantage
Fork-type gear shifting enables fast and convenient gear changes.
Vertical blade rotation protects soil nutrients effectively.
Wide compatibility with tractors with various rotational speeds

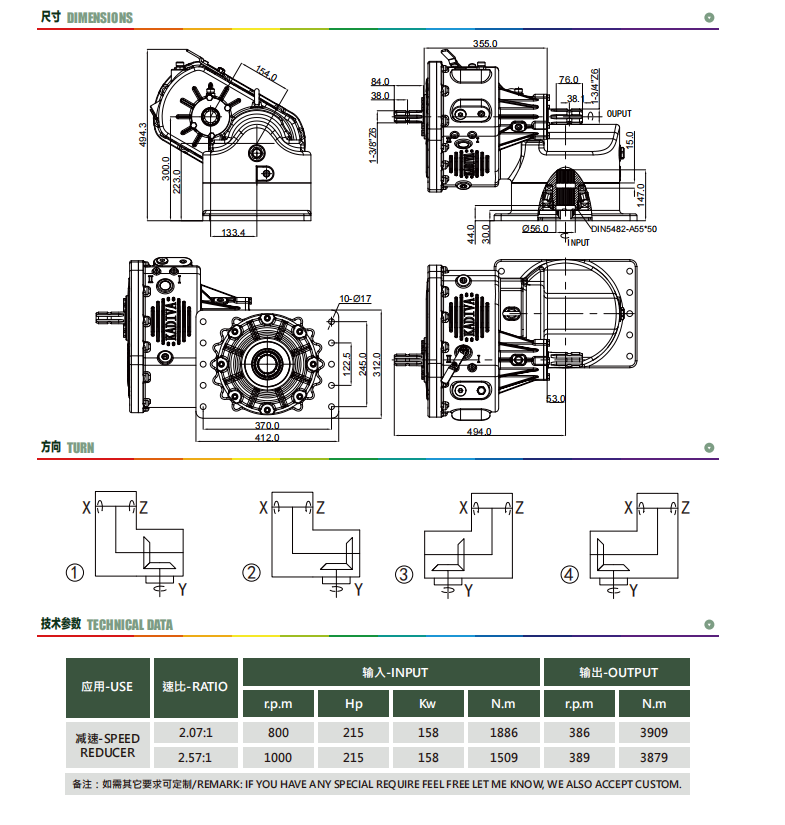

Technical Parameters
RATIO | INPUT | OUTPUT | ||||
r.p.m | Hp | Kw | N.m | r.p.m | N.m | |
2.07:1 | 800 | 215 | 158 | 1886 | 386 | 3909 |
2.57:1 | 1000 | 215 | 158 | 1509 | 389 | 3879 |
FAQ
Q1:Are you trading company or manufacturer?
A : We are manufacturer with more than 20 years production and technology experiences.
Q2:Can you supply the sample?
A :After confirmation, you can order samples to check the quality. We will charge the sample cost.
Q3:What is your payment terms?
A:T/T 30% as deposit, 70% balance before shipment.
Q4:How long is your delivery time?
A :Generally ship out within 40-50days after receive order and deposit. The time may vary depending on the product and the level of customization.
