Product Introduction
This gearbox is the core main transmission component for power-driven rakes, designed with advanced European and American concepts. It drives the transfer case gears to rotate rake blades for field operation. The vertically rotating blades help prevent soil nutrient loss.

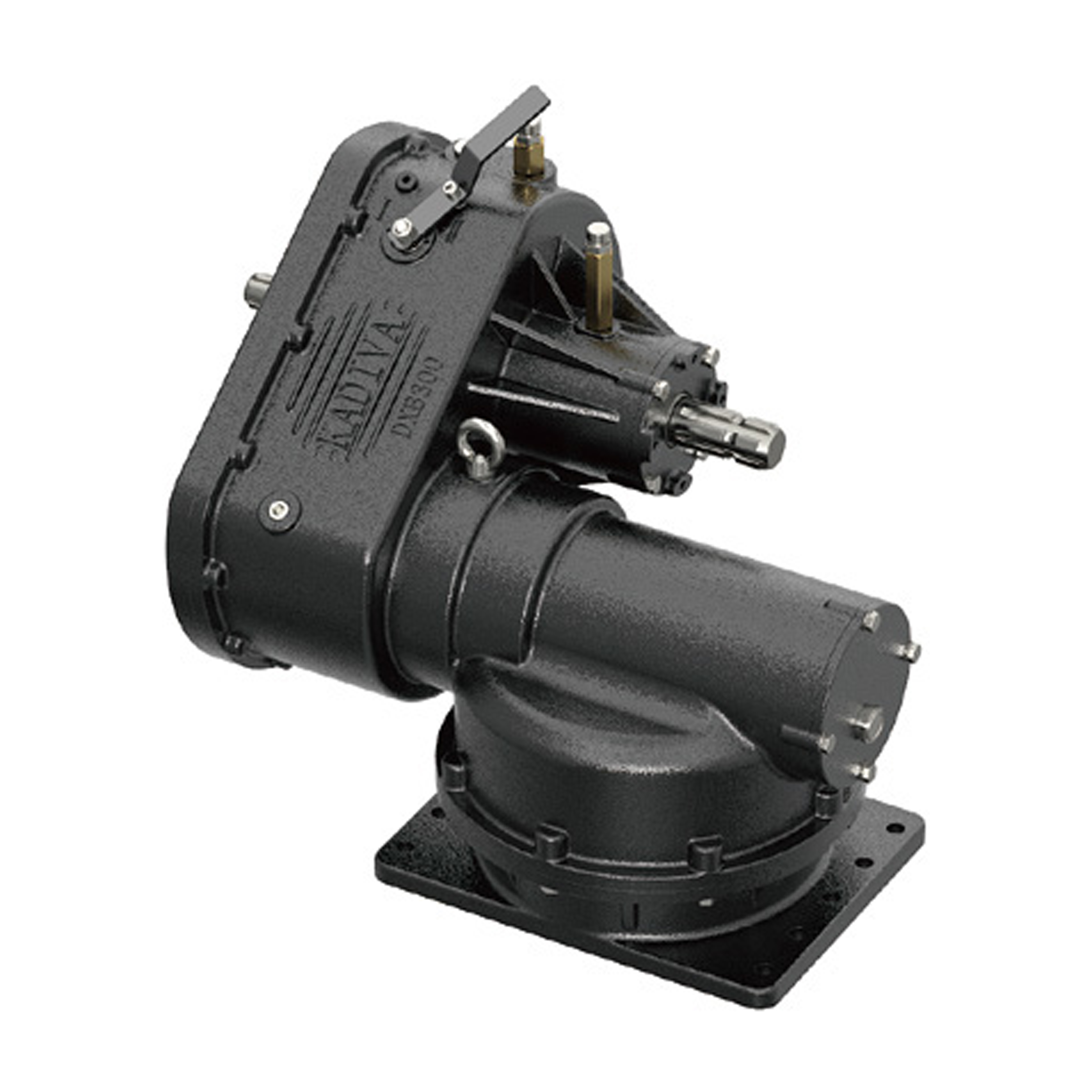

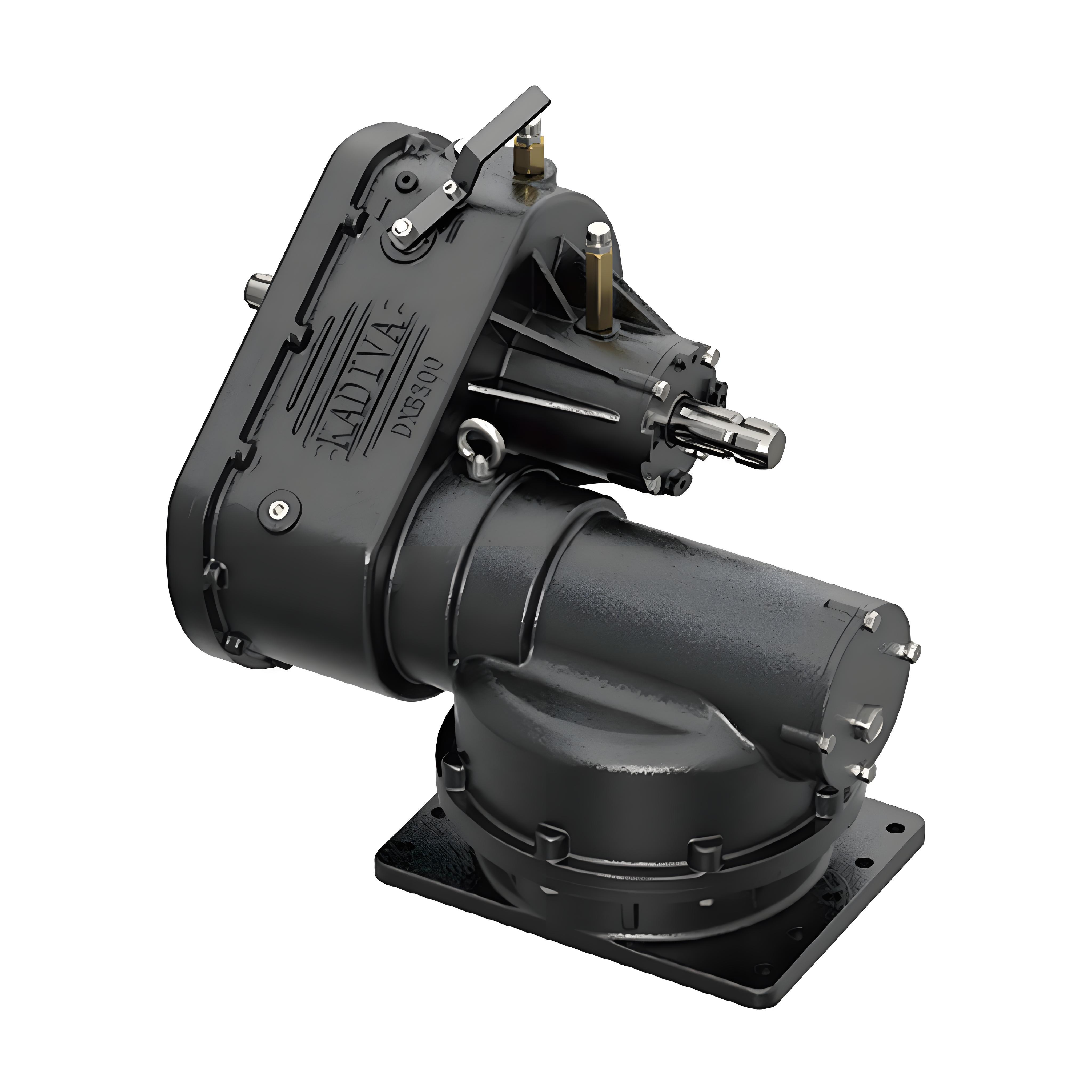

Model KLF-DXB300 features a working width of 3.5m to 4.5m. Equipped with a manual shifting mechanism, it fits tractors with different rotational speeds and supports 4 to 7 output speeds for broader application.
Product Advantage
Manual gear shifting is stable and easy to operate.
Offers 4–7 selectable output speeds with a wide working range.
Compatible with tractors of various speeds.
Vertical blade rotation effectively preserves soil nutrients.

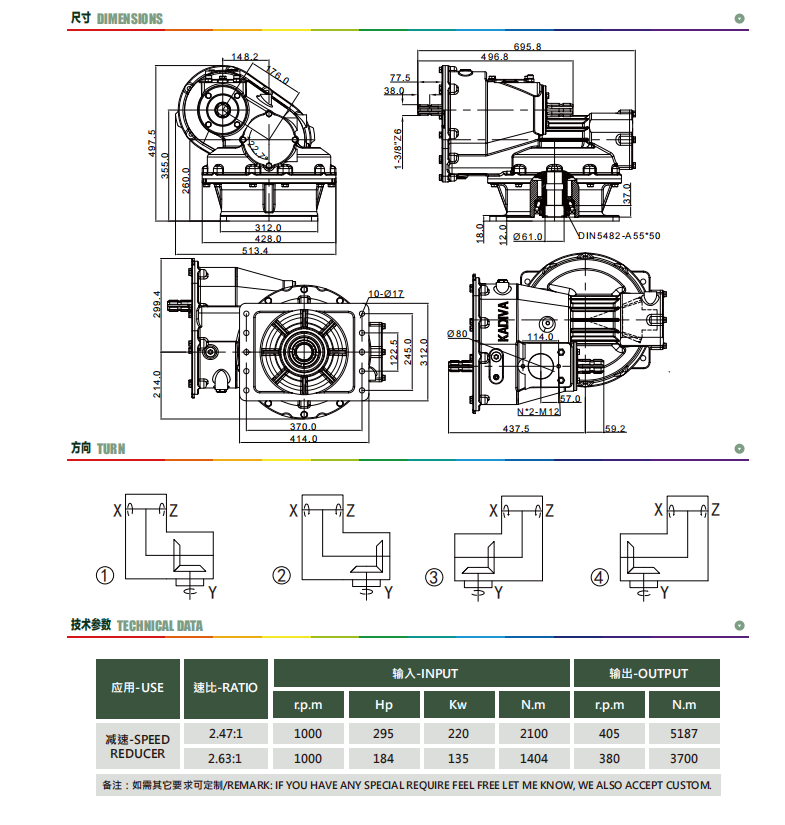

Technical Parameters
FAQ
Q1:Are you trading company or manufacturer?
A : We are manufacturer with more than 20 years production and technology experiences.
Q2:Can you supply the sample?
A :After confirmation, you can order samples to check the quality. We will charge the sample cost.
Q3:What is your payment terms?
A:T/T 30% as deposit, 70% balance before shipment.
Q4:How long is your delivery time?
A :Generally ship out within 40-50days after receive order and deposit. The time may vary depending on the product and the level of customization.
